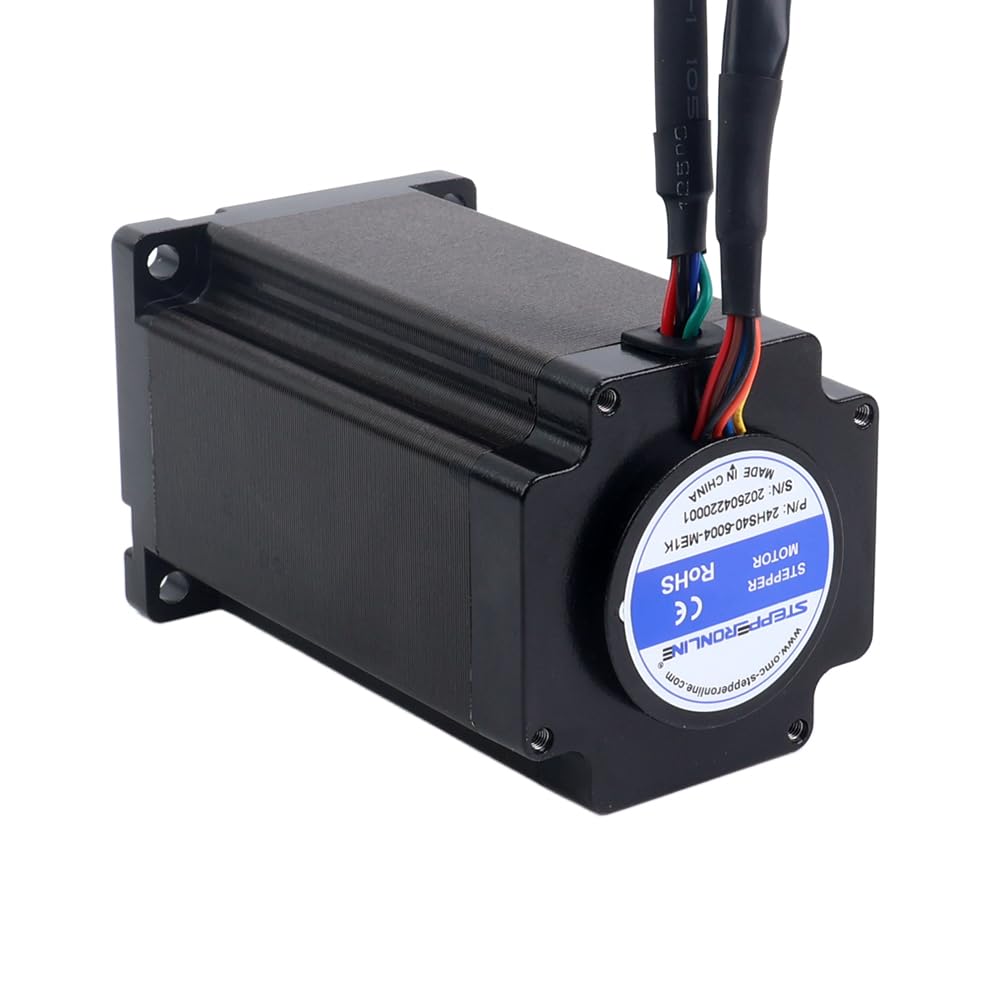

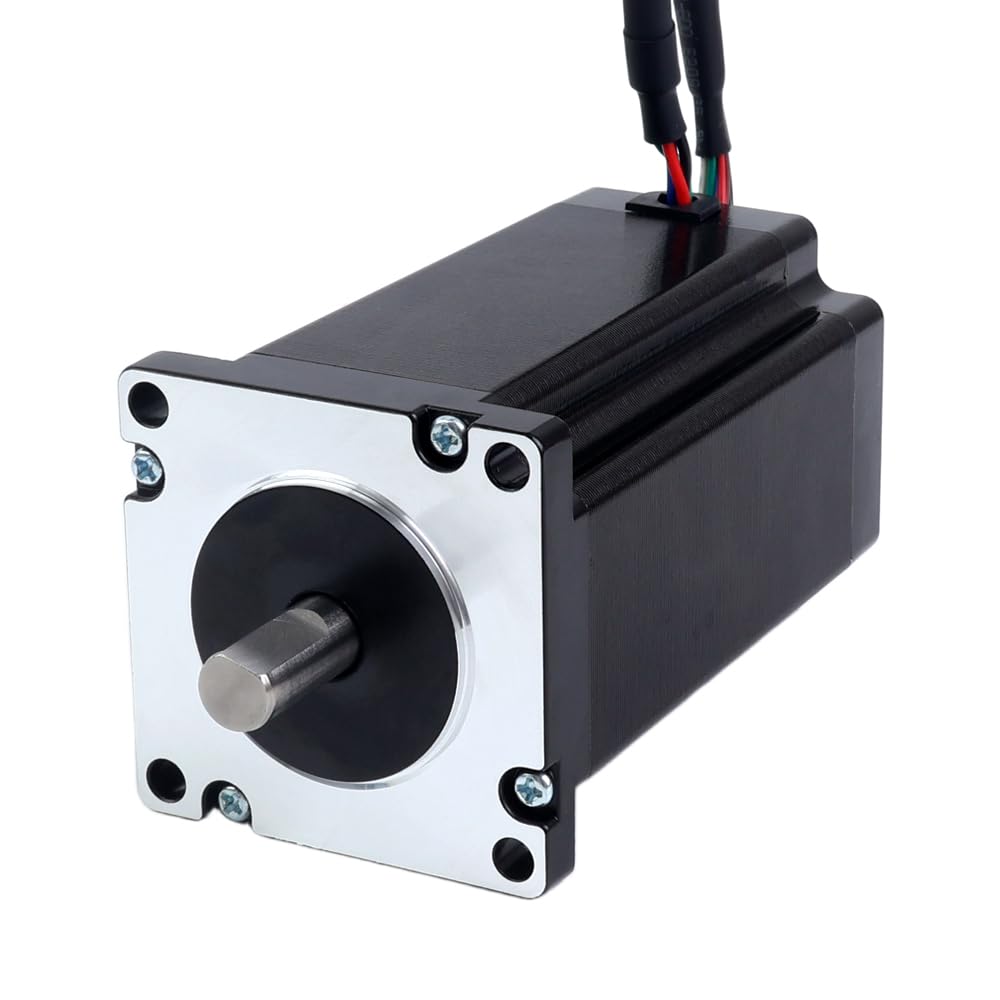

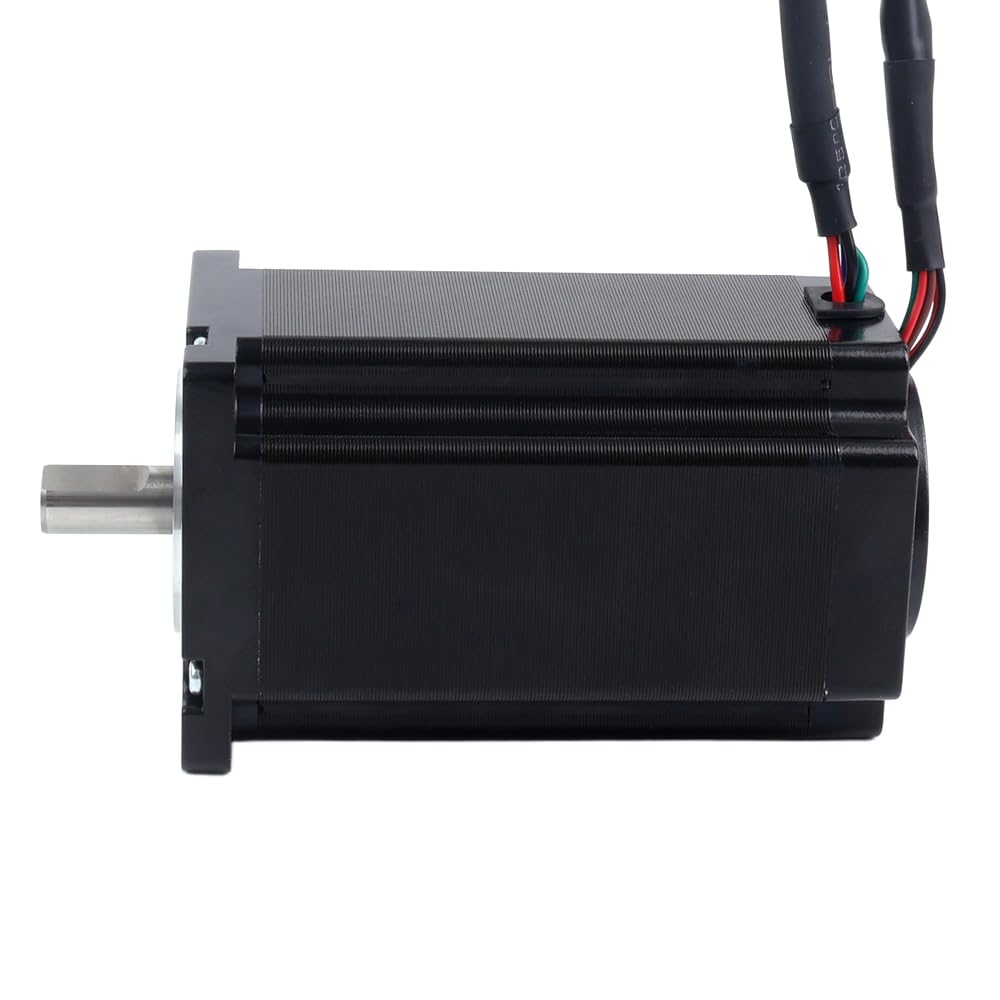

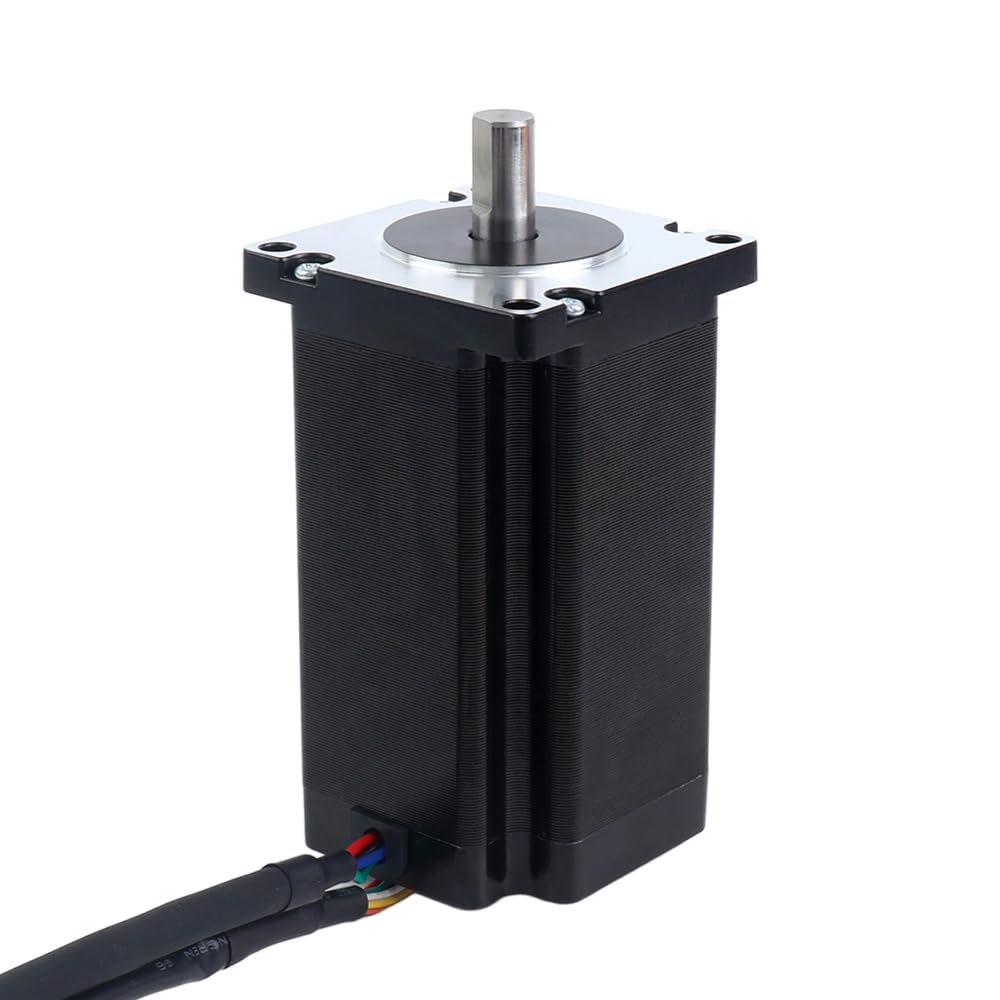

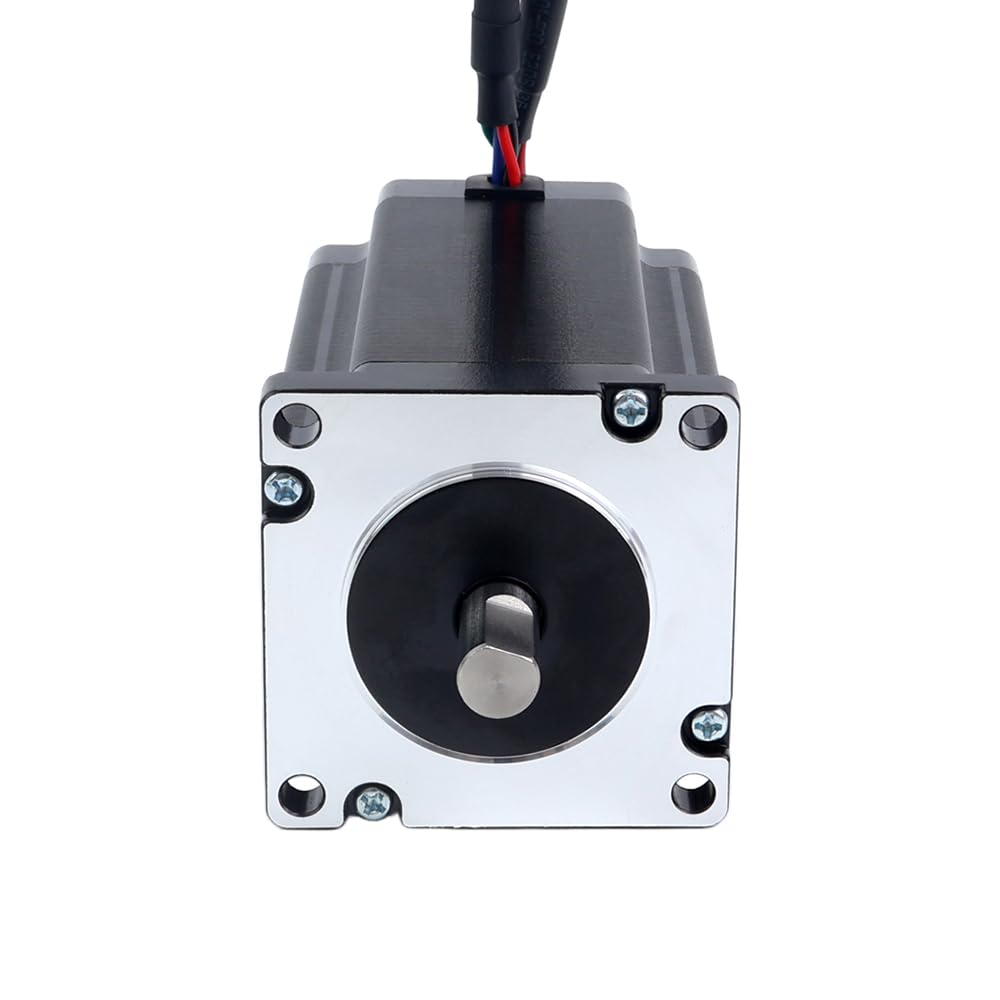

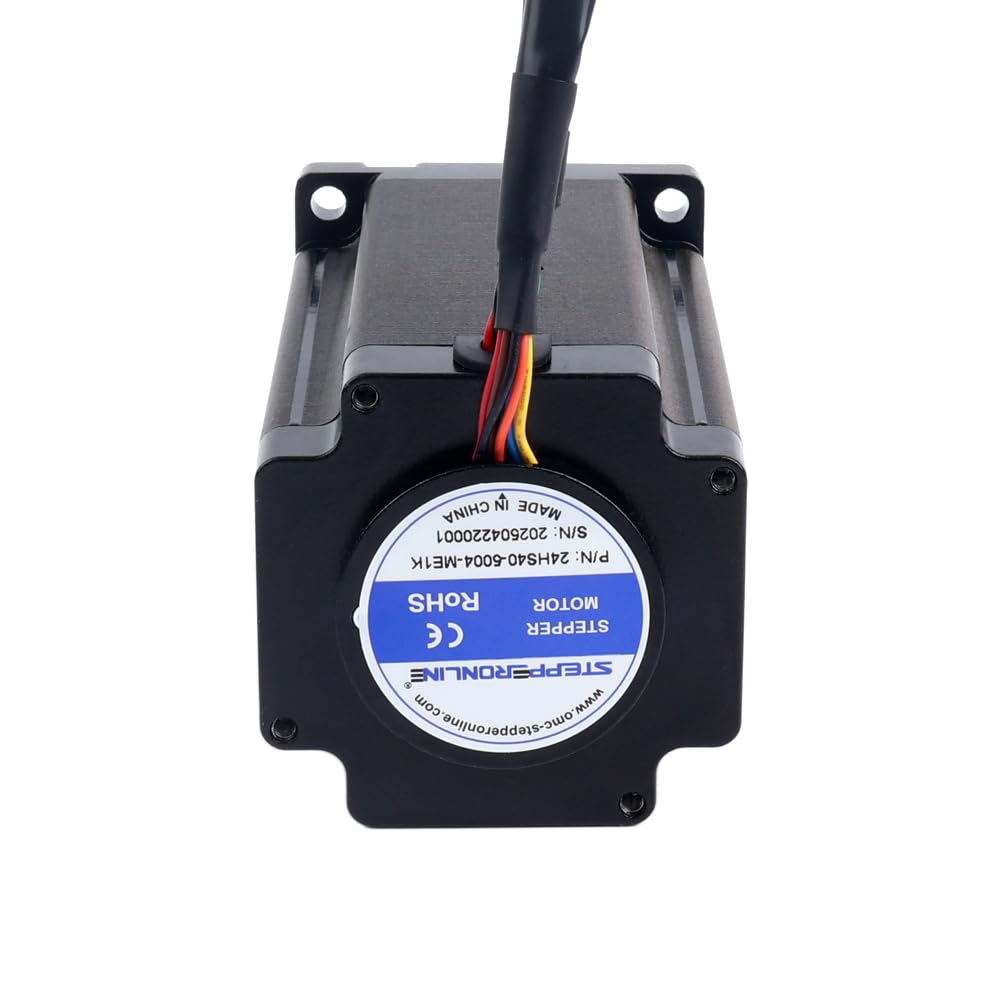

This Nema 23 closed-loop stepper motor delivers a holding torque of 3.00Nm(424.83oz.in) and features a compact magnetic incremental encoder with 3-channel output and 1000ppr(4000cpr) resolution. Compared to other closed-loop stepper motors of the same size, this motor delivers higher output torque, making it ideal for applications requiring precision positioning control in space-constrained yet high-torque scenarios, such as collaborative robots, medical equipment, rail transit, and aerospace systems.

Electrical Specification

*Manufacturer Part Number: 23HS40-5004-ME1K
*Number of phase: 2
*Step Angle: 1.8deg
*Holding Torque: 3.00Nm(424.83oz.in)
*Rated Current/phase: 5.00A
*Phase Resistance: 0.60ohms± 10%
*Inductance: 2.30mH ± 20%(1KHz)
*Insulation Class: B 130°C[266°F]

Physical Specification

*Frame Size: 57 x 57mm
*Body Length: 100mm
*Shaft Diameter: Φ8mm
*Shaft Length: 21mm
*D-cut Length: 15mm
*Lead Length: 500mm
*Weight: 1.49kg

Encoder Specification

*Output Circuit Type: Differential
*Encoder Type: Magnetic Incremental
*Encoder Resolution: 1000PPR(4000CPR)
*Output Signal Channels: 3 channels
*Supply Voltage Min: 3.3V
*Supply Voltage Max: 5.5V
*Output Current: 20mA
*Output High Voltage: 5V
*Output Low Voltage: 0.2V
*Output Frequency Max: 400kHZ
