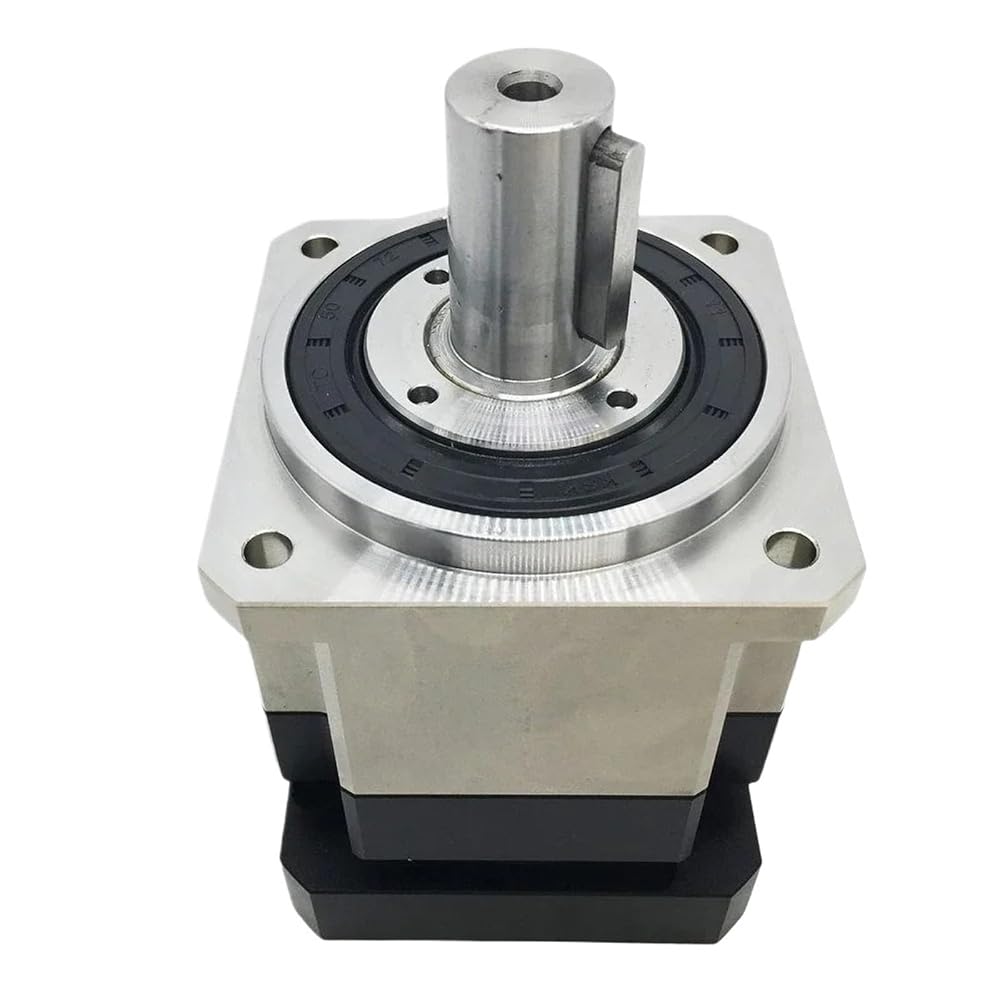

مخفض التروس الكوكبية Nema23 مدخل 11 / 14 مم مناسب لمحرك سيرفو 200 وات 400 وات (نسبة 15 إلى 1، عمود الإدخال 14 مم) in Kuwait

عمود الإدخال 11 مم، نسبة 20 إلى 1

KWD 176.500
ماركة
WRBSUJTMM
فئة
مهاوي
وزن
349 g
اللوننسبة 20 إلى 1
مقاسرمح الإدخال 11 ملم
– 1 +

مميزات خاصة

  • Rotary Shafts
  • High-efficiency transmission:All through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
  • Compact structure:Space-saving design reduces the size of the reducer; suitable for narrow installation environments
  • Flexible transmission ratios:Wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
  • Stable operation and low noise:Iow continuous vibration; reduced impact; low noise

وصف

Rotary Shafts
Input shaft size: 6.35mm/8mm/11mm/14mm
Output shaft size: 16mm
L1: ratio 3 4 5 7 10
Full load efficiency: 97%
Precision: 3 arcmin
L2: ratios 15 20 25 30 40 50 70 100
Full load efficiency: 94%
Accuracy: 5 arc minutes
Maximum torque: 2 times rated torque
Emergency braking torque: 3 times rated torque
Maximum radial force: 1530 N
Maximum axial force: 600 N
Torsional stiffness: 6 Nm/arcmin
Maximum input speed: 8000rpm
Rated input speed: 4000rpm
