Note Different product models have different appearance size and weight parameters

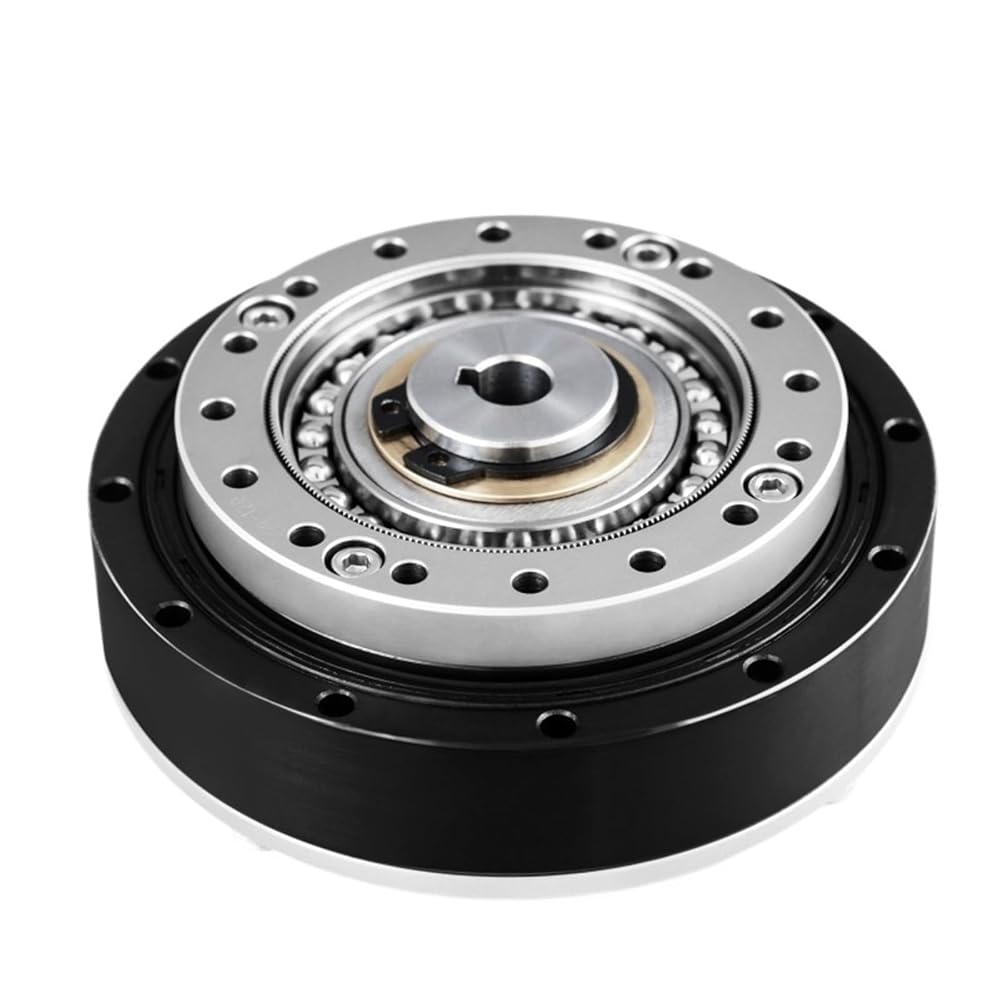

SHF-14-I
Harmonic reducer (self-aligning type)
Diameter: 70mm
Thickness: 29.5mm
Weight: 0.374-0.355kg
Reduction ratio: 30 50 80 100
Rated Tq when inputting 2000r/min: 3.8N.m 5.1N.m 7.4N.m 7.4N.m
Allowable peak Tq when starting and stopping: 8.6N.m 17N.m 22N.m 27N.m
Allowable maximum average load Tq: 7.8N.m 6.6N.m 10.5N.m 10.5N.m
Instantaneous maximum allowable Tq: 16N.m 33N.m 45N.m 51N.m
Allowable maximum input speed: 8000r/min
Allowable average input speed: 3500r/min
Backlash (arcsec): 20 20 10 10
