Attention

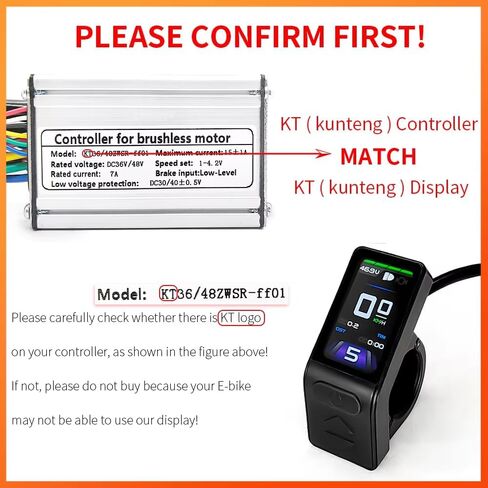

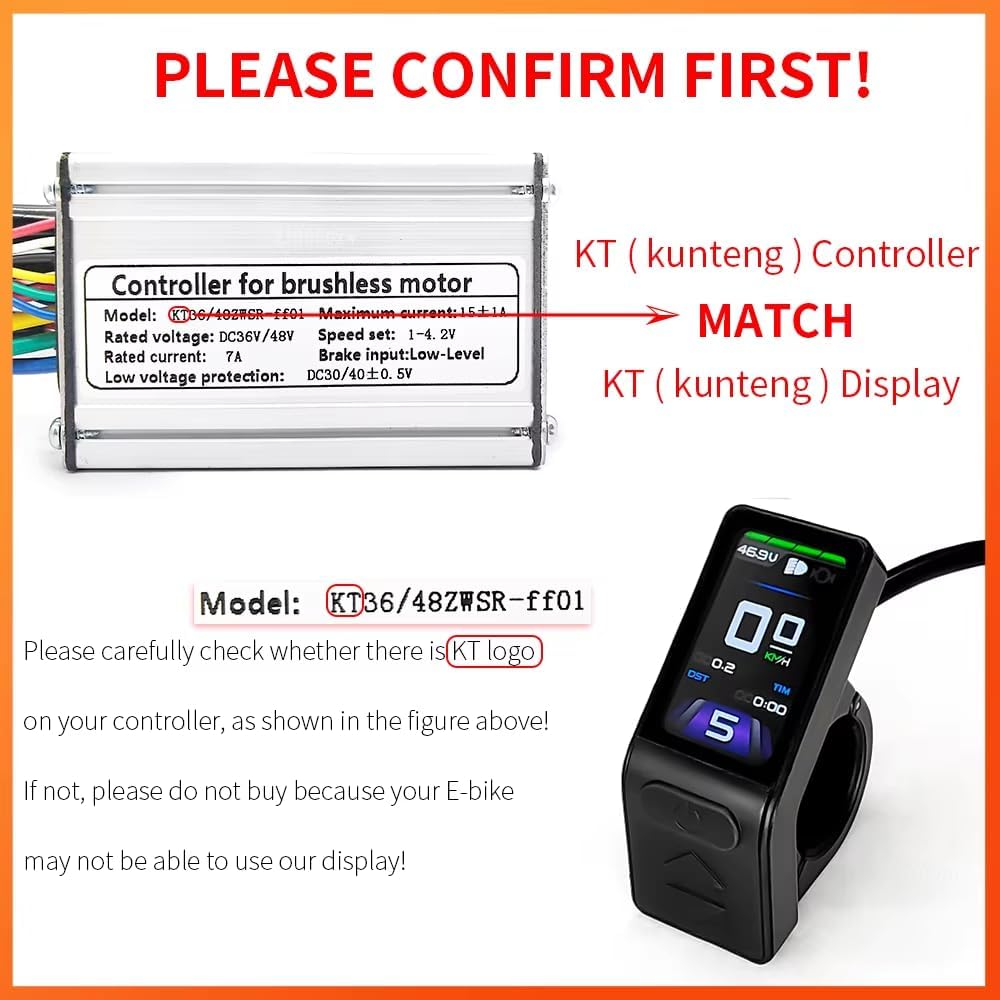

You must make sure that your controller is a KT controller. Because this KT TF04 display is only compatible with the Kunteng controller. They have the same communication protocol.

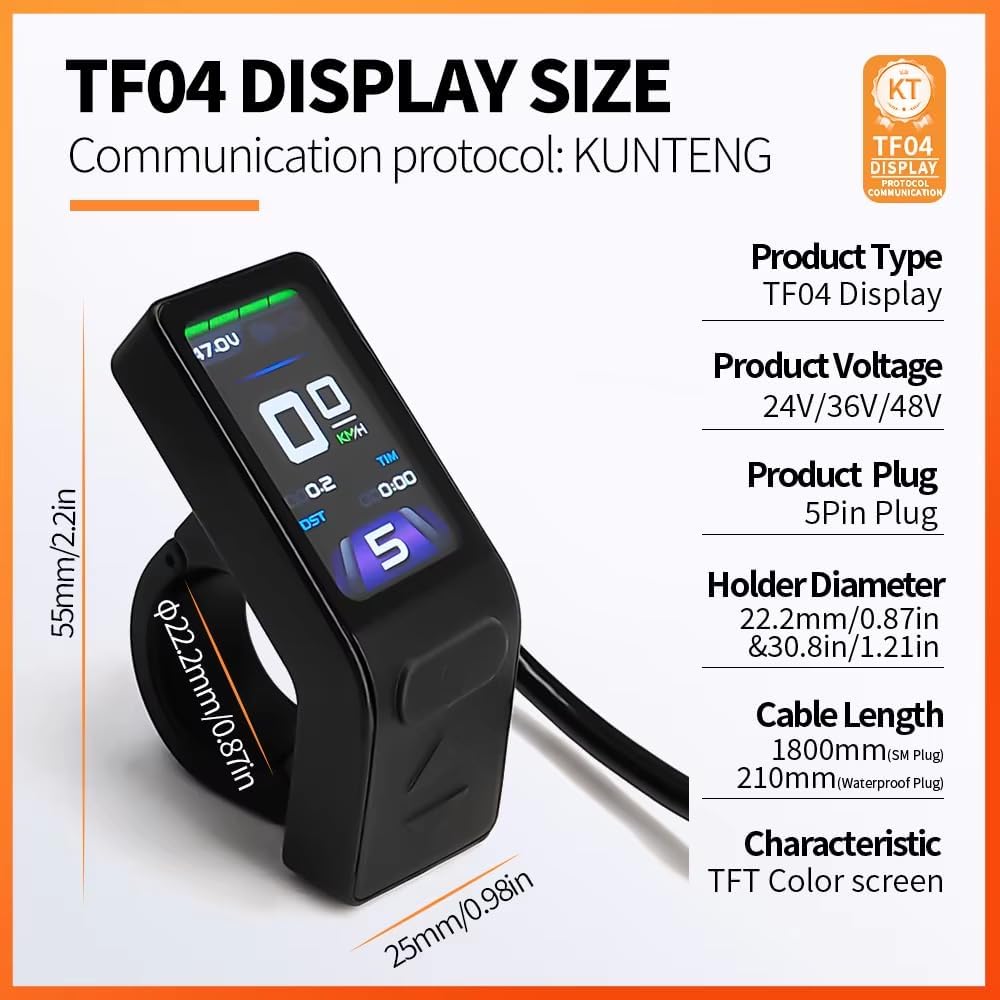

Didplay Parameter：

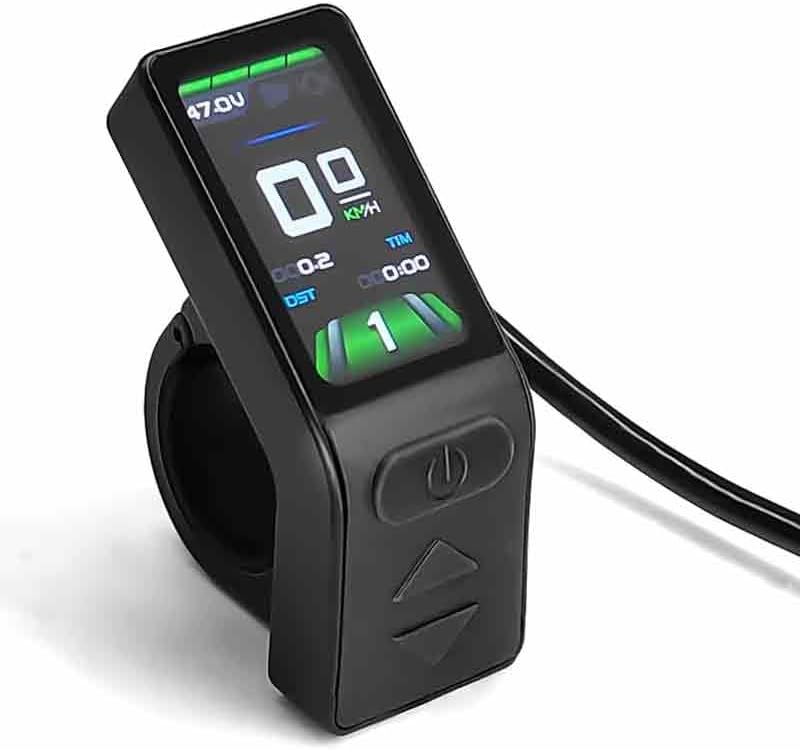

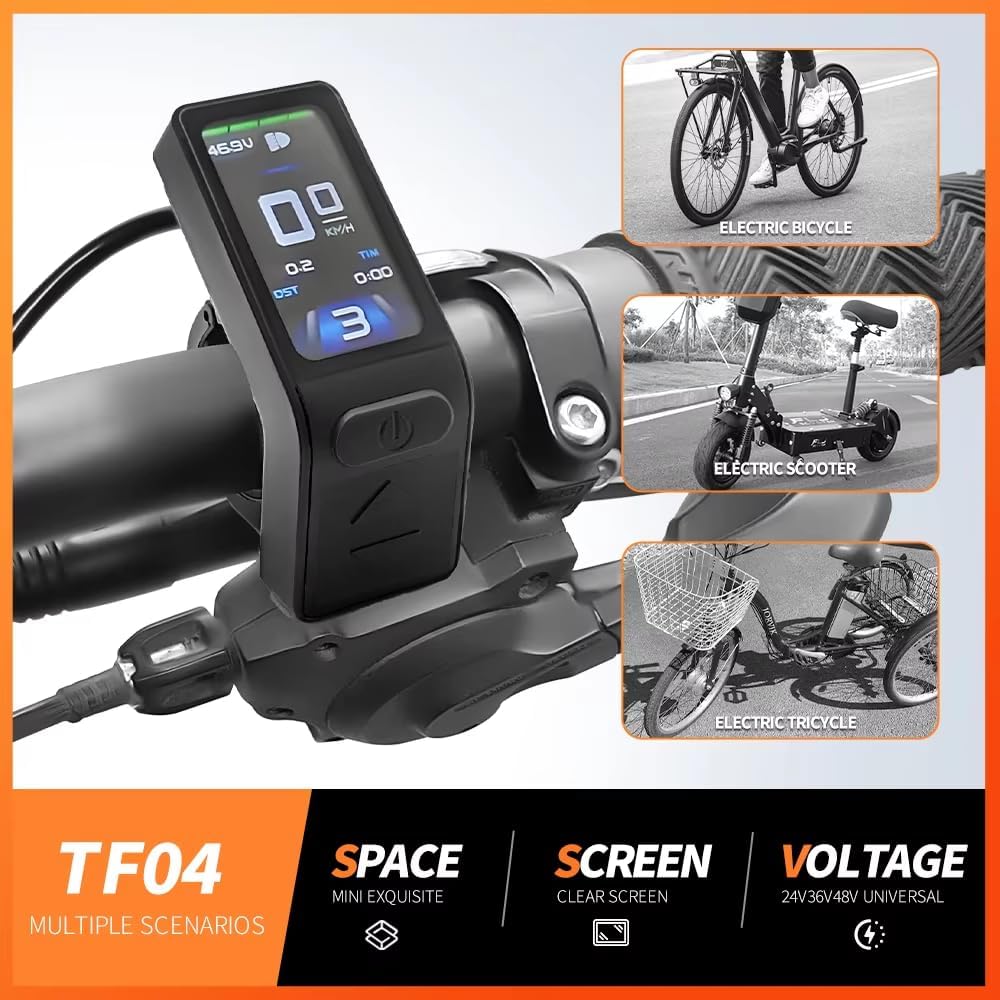

●Type: KT-TF04 display

●Voltage: 24V, 36V, 48V

●Colour: Black

●Weight: 77g

●Grip size: Φ22.2mm

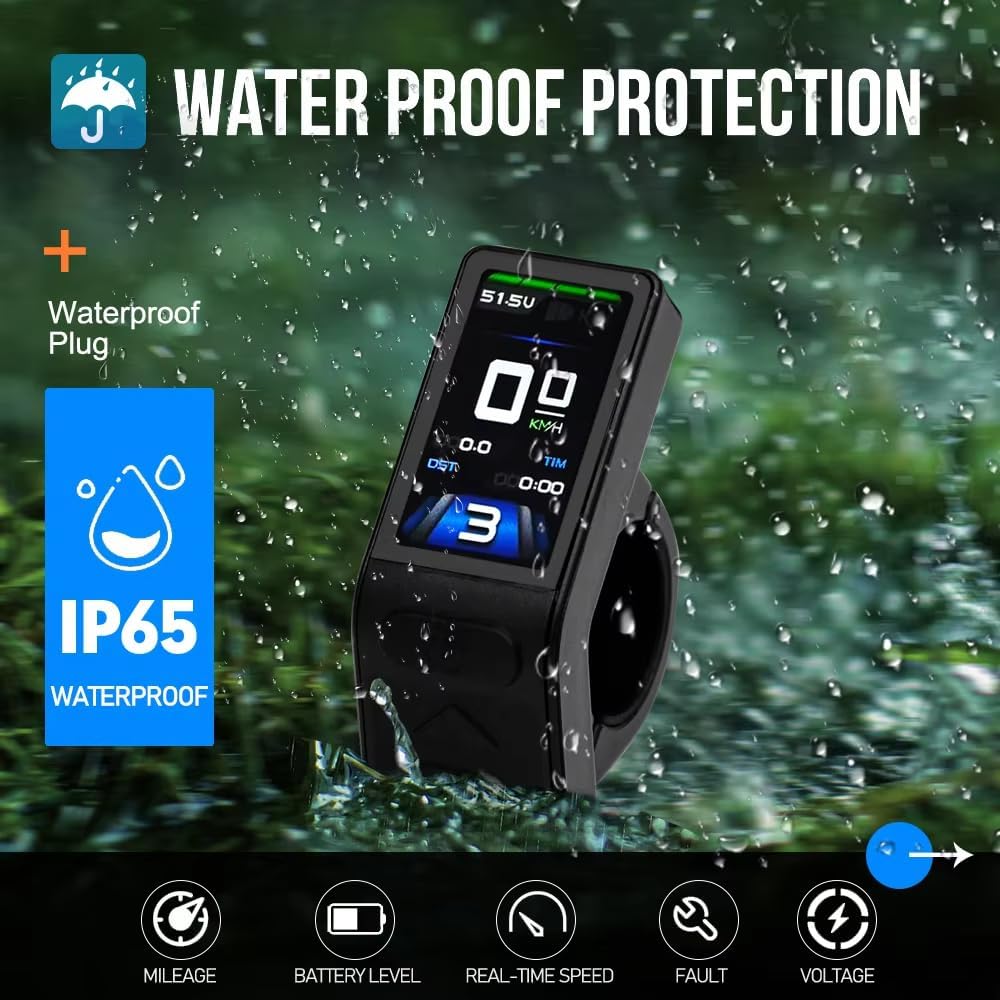

●Display line length: WP connector, about 25cm

Scope:
KT TF04 Ebike Display, TFT Screen, Electric Bicycle Part, Bike Meter, Kunteng, KT Protocol, Waterproof Connector, 24V, 36V, 48V
Vehicle Assist: Assisted propulsion up to 6 km/h. The assist symbol flashes during assist. Riders can use this function while pushing the vehicle, making it easier and more effortless to push.

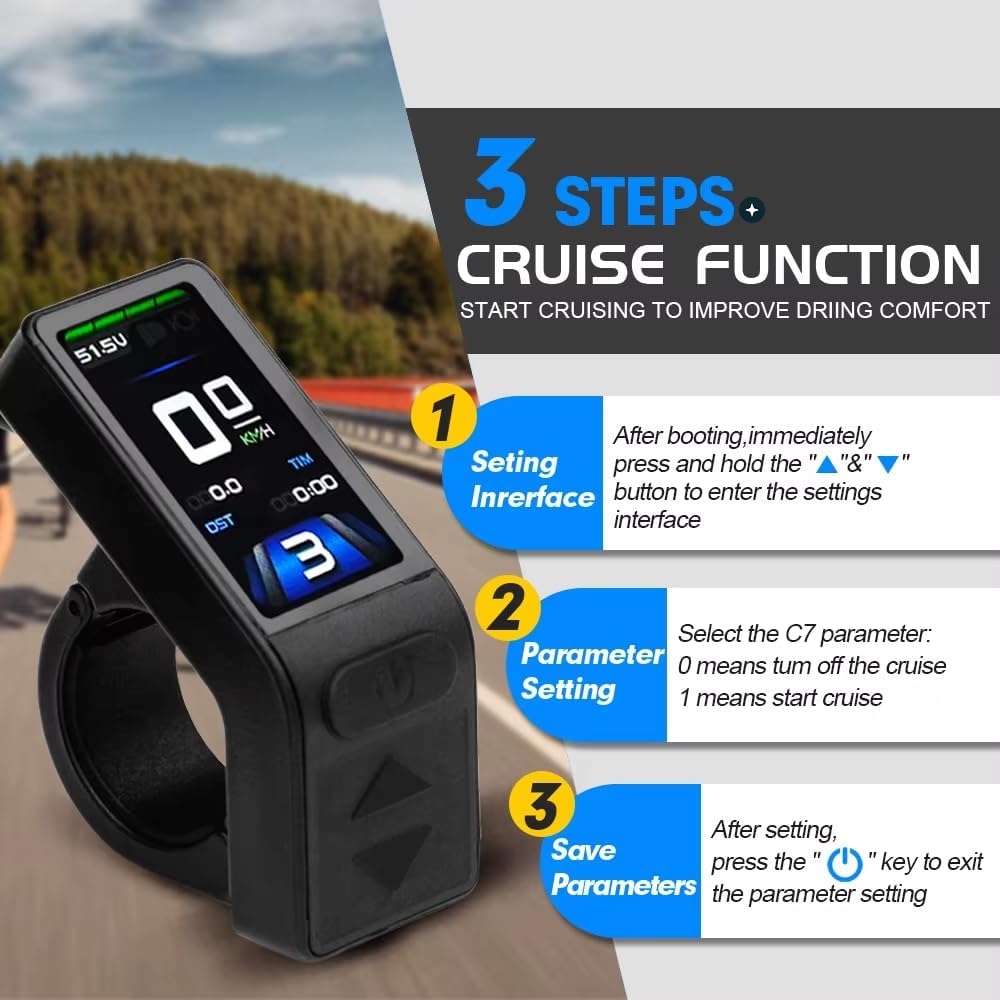

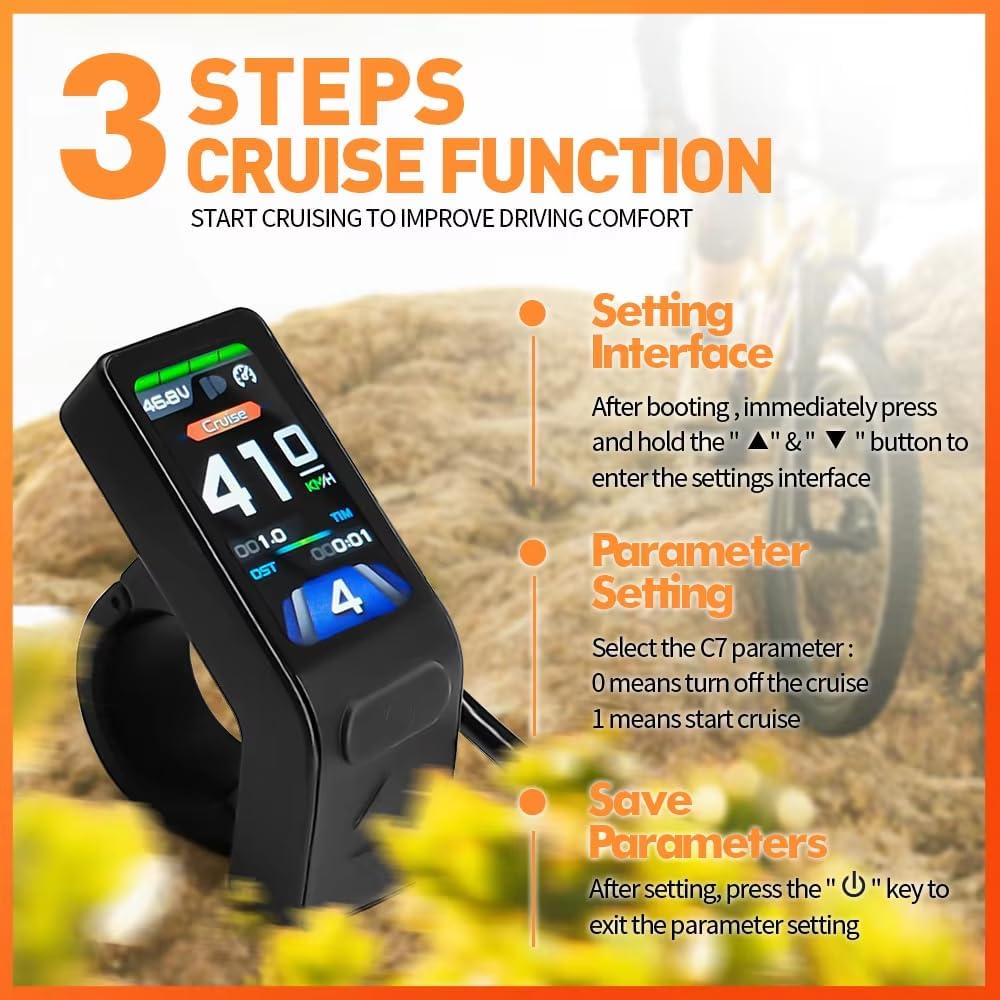

Handlebar Signal Function: Features a built-in handlebar operation function. Cruise Control: Automatically maintains the vehicle's speed, allowing you to set and display the cruise control function.

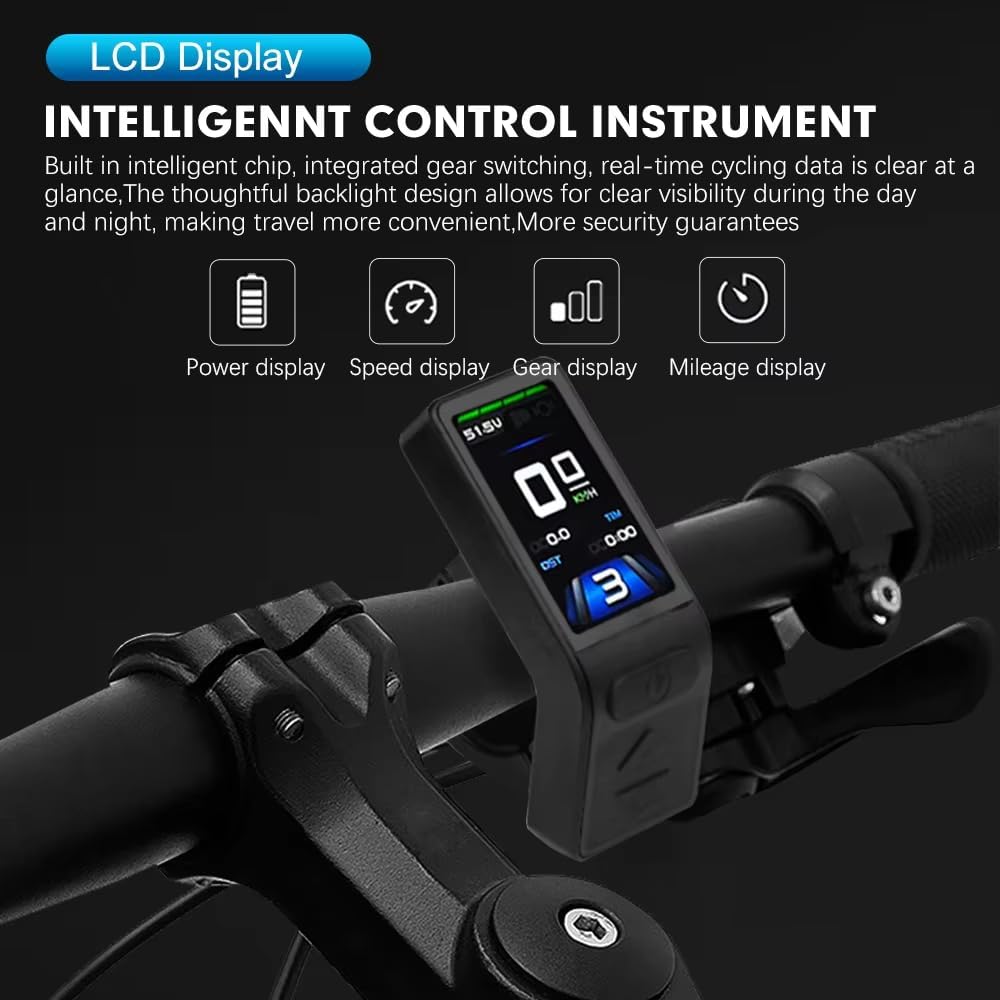

Night Driving Function: Features an LCD backlight display and headlight control, allowing you to activate the instrument backlight and lights during nighttime driving.
Password Setting Function: Provides a three-digit power-on password setting. Automatic Alert Function: Displays different fault codes for vehicle faults, facilitating inspection and repair.
Five-wire digital communication ensures excellent compatibility and interchangeability between different instruments, allowing direct interchange and data copying.

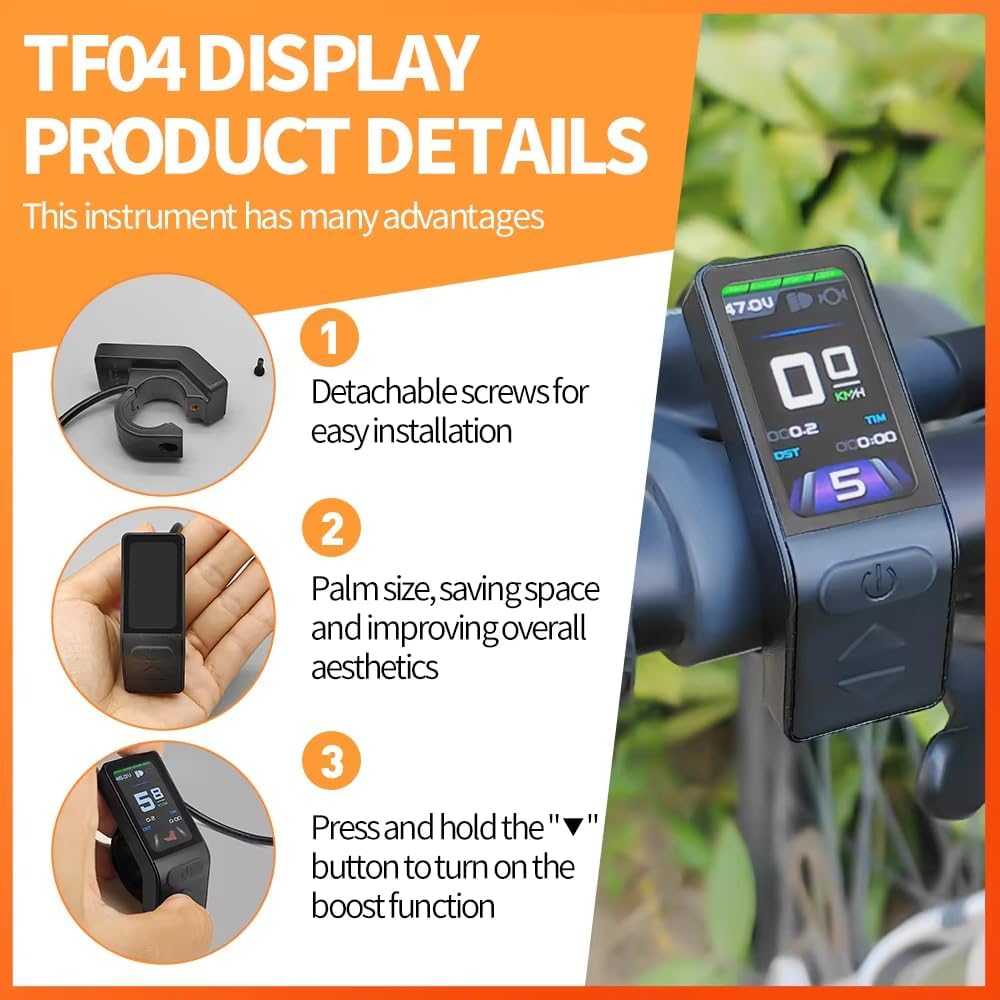

The instrument main unit and operating buttons are designed with a separate structure for more efficient and convenient operation.
Automatically detects and is compatible with 24V, 36V, and 48V power supply voltages.

Function:

1. Travel time display (single travel time (TM) and total travel time (TTM) display);

2. Driving speed display (real-time speed (KM/H or MPH), single maximum speed (MXS) and single average speed (AVS) display;

3. Travel distance display (single travel distance (DST) and total travel distance (ODO) display;

4. Turn on the throttle display (THROTTLE);

5. Power-assisted start (PAS) display;

6. Assist ratio (or throttle) gear (ASSIST) switch;

7.6KM/H power assisted push function;

8. Cruise function (CRUISE);

9. Battery capacity indicator;

10. Real-time battery voltage (VOL) display;

11. Brake display;

12. Turn on the backlight and lights;

13. Data cleaning;

14. Fault code display;

15. User parameter setting

16.24V, 36V, 48V power supply voltage can be automatically identified and compatible.

Packing List:

1.KT TF04 display

2. Display the manual
