Radius Template R Gauge Radius Gage Plate Fillet Gaug External Internal Concave Convex Measuring Tools
Features:Made of stainless steel, this radius gauge is durable .
This radius gauge has two types of leaves so it can check both convex and concave surfaces.
Each leaf is clearly marked, convenient to identify which leaf you need.
There are four radium gauges in different shapes and sizes to meet you various need.
Very useful gauge for tool & die makers machinists and many other worker to check the radius of tools.
Specification:
R1-6.5)including:(1.0 1.25 1.5 1.75 2.0 2.25 2.5 2.75 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5)

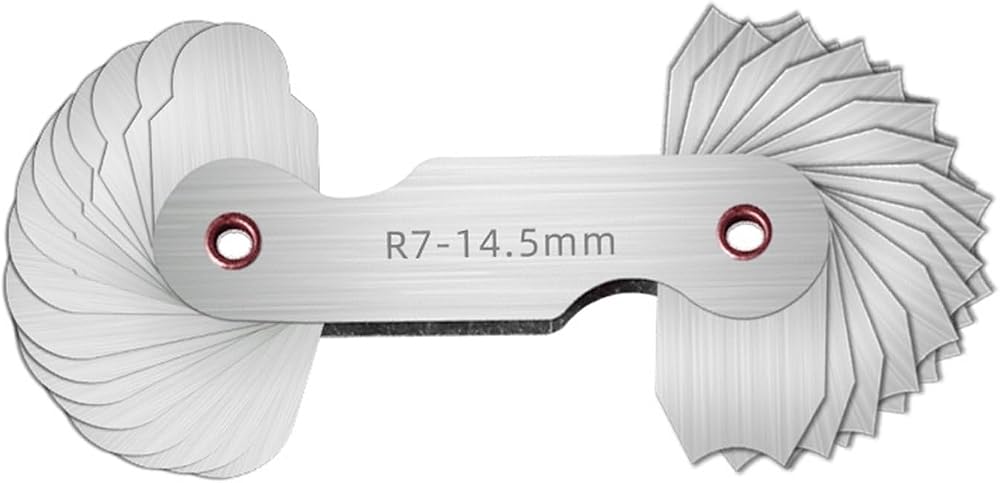

R7-14.5 including:(7.0 7.5 8 8.5 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5)
R15-25 including:(15 15.5 16 16.5 17 17.5 18 18.5 19 19.5 20 21 22 23 24 25)
R26-80 including:(26 27 28 29 30 32 35 40 45 50 55 60 65 70 75 80)
Material: Stainless steel
Measuring Range: R1-6.5/R7-14.5/R15-25/R26-80mm
Notes:
1.Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
2.Please allow slight dimension difference due to different manual measurement.
