مميزات خاصة

Flexible Measuring: Includes five interchangeable measuring jaws (10 mm, 20 mm, 30 mm, 60 mm, 100 mm) to suit various arc sizes and accuracy needs. Easily switch jaws to enhance performance for different tasks, offering both versatility and precision in a single tool.
Wide Applications: Perfect for measuring arcs and contours in mechanical components, construction steel molds, and more. Features a data output port for direct transfer of measurement results to a computer, supporting seamless digital workflow integration.
HD LCD Display: Equipped with a high-contrast digital LCD screen that provides immediate and stable readings in various lighting conditions. Features a single-button control for holding data, switching between mm and inch units, and resetting for reduced reading errors.
Precision Measurement: Accurately measures outer and inner arc radii, as well as depth and step dimensions. Designed for high precision with minimal error: radius measurement error ΔR ≤ 0.01×R, linear measurement error ΔS ≤ 0.02 mm.
Two Size Options: Available in two models to accommodate different measurement needs: one ranging from 5–700 mm and the other from 450–2500 mm. Each model offers precise length displacement measurement (0–15.8 mm or 0–50.8 mm) with a high resolution of 0.005 mm for accurate readings.

وصف

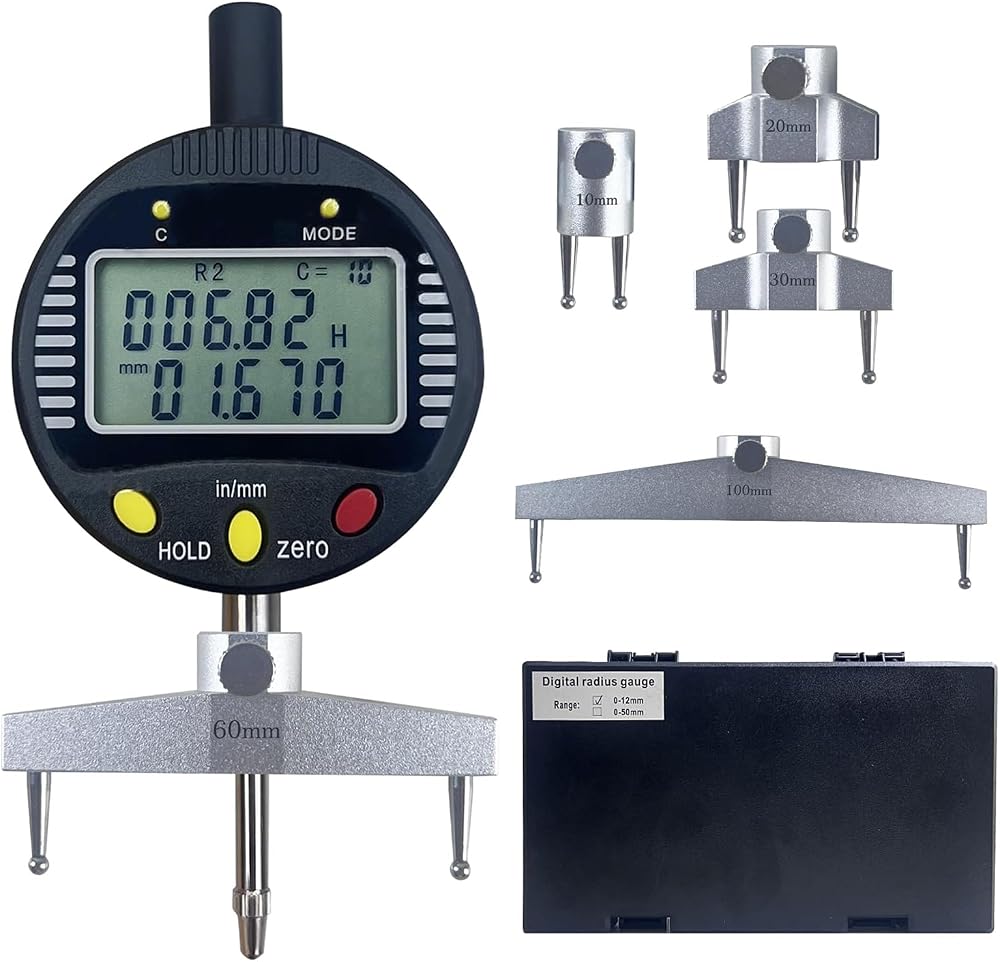

This digital radius gauge is engineered for quick and accurate measurement of spherical diameters, arcs, and radii on mechanical parts, wooden molds, and construction templates. It features a large LCD screen, USB data output, and multiple measuring jaws for versatile applications.

Features:
1. Large digital radius gauge with a claw design, specifically for measuring the radius of large-sized inner and outer circular arcs.
2. Multi-faceted measurement capabilities including external circle, internal arc surface radius, depth, and step measurements.
3. Large LCD display that is easy to read, provides fast readings, and includes a data retention function.

Specifications:
Model-KJ-R:
- Accuracy: 20μm
- Measuring Range: 5-700mm
- Measurement Jaw Configuration: 5pcs (10mm / 20mm / 30mm / 60mm / 100mm)

Model-KJ-R50:
- Accuracy: 30μm
- Measuring Range: 450-2500mm
- Measurement Jaw Configuration: 1 (200mm)

General Parameters:
- Resolution (mm/in): 0.005/0.0005"
- Accuracy: - Display Mode: LCD Digital Display
- Maximum Measurement Speed: >1.5m/s
- Power Supply: 3V Large-Capacity Battery
- Data Output: USB Interface (data cable needs to be purchased separately)
- Sensor Type: Glass Grid Sensor

Packing List:
- 1 × Electronic Digital Display Radius Gauge Host
- 1 × or 5 × Matching Measuring Claws (depending on the model)
- 1 × 3V Battery
- 1 × Protective Portable Storage Box
