【Impedance Matching】Audio transformer with 1300 8 ohm impedance ratio for voltage transformation and load impedance change. Suitable for audio circuits requiring stable signal coupling and single phase use.

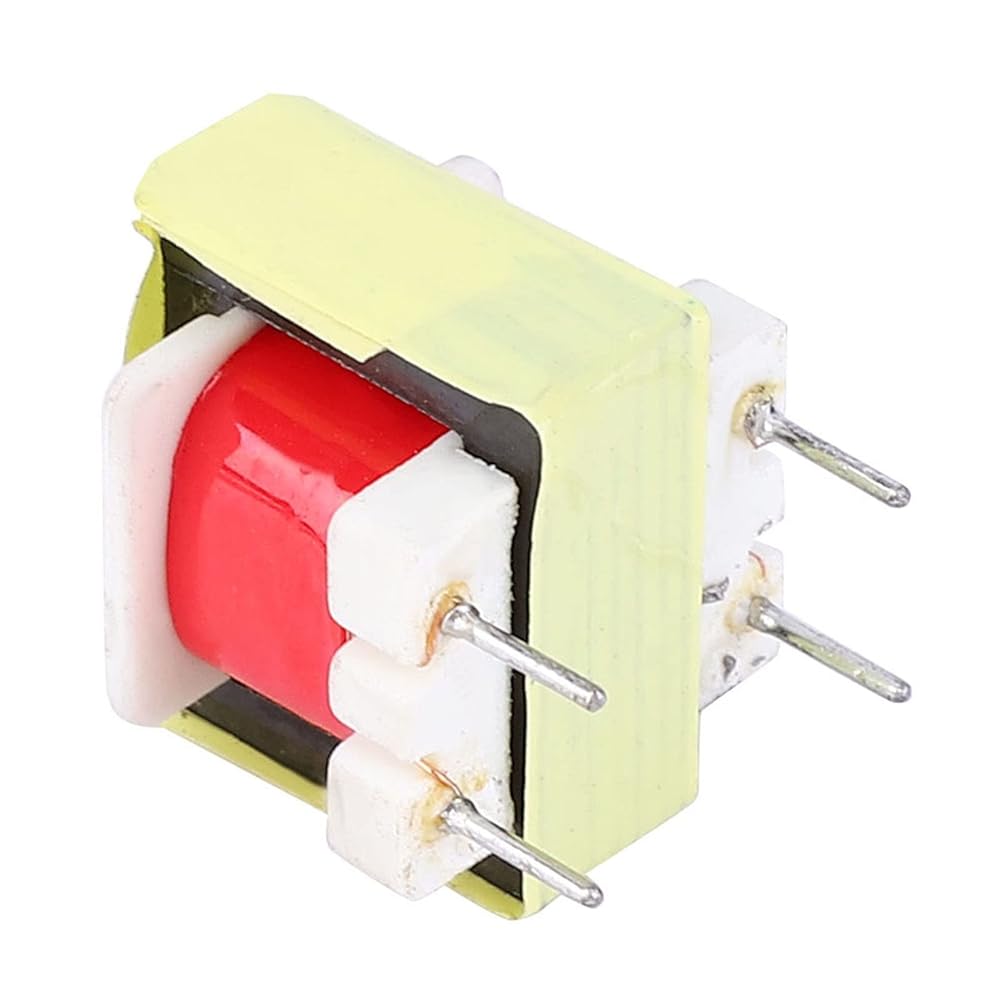

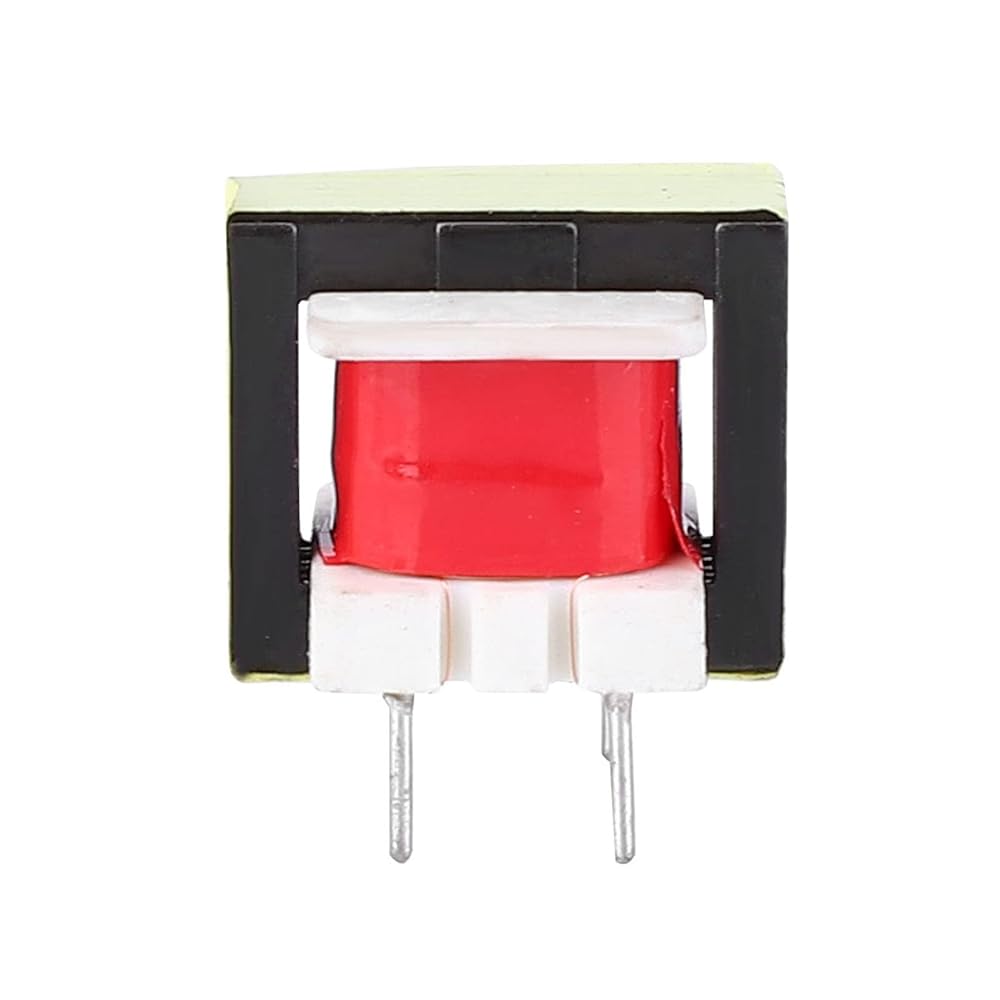

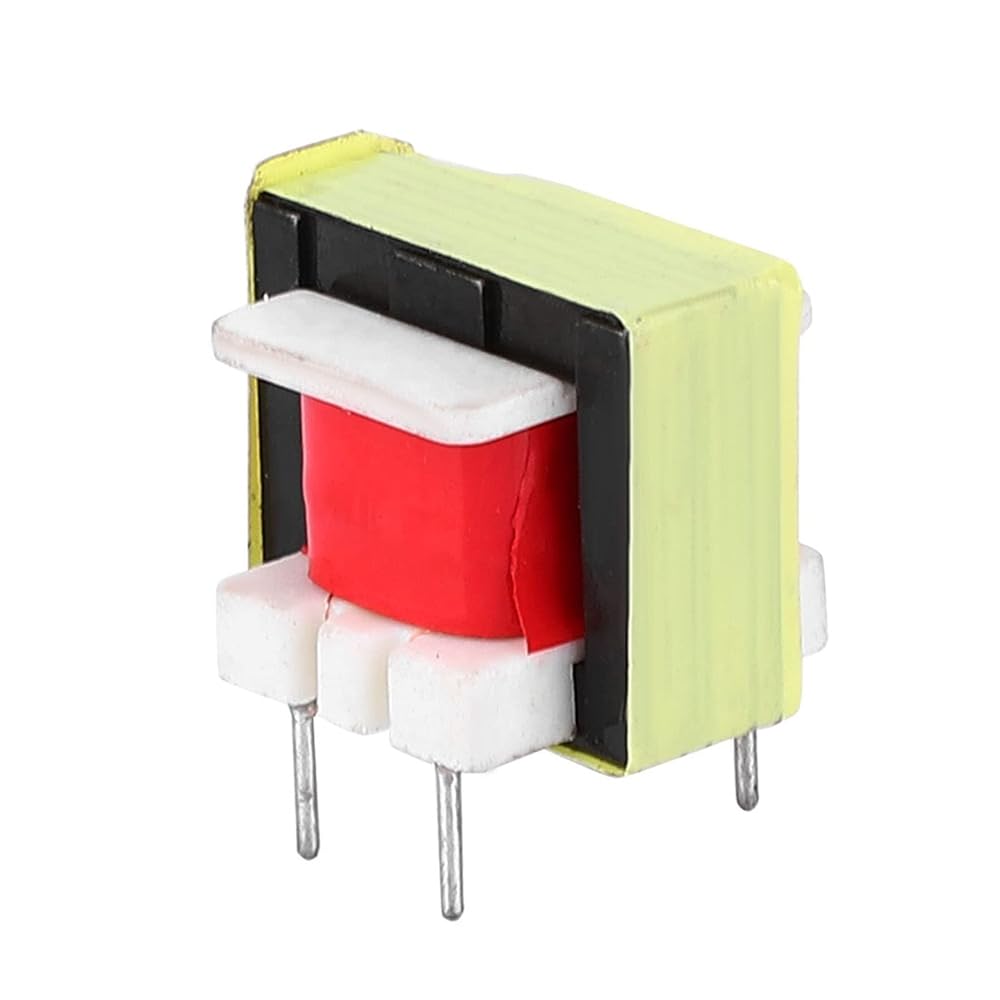

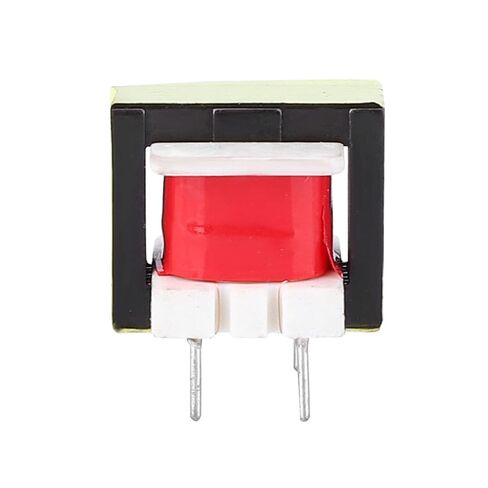

【EE14 Audio Design】EE14 audio transformer uses EI type core structure and self coupling winding form. Primary and secondary windings are closely coupled to help reduce leakage inductance in use.
【Material And Structure】Built with amorphous alloy iron core form and vertical structure. Open type design with oil immersed air cooled method supports medium frequency circuit applications.
【Application Range】Designed for radio communication broadcast television and automatic control systems. Works as a component in voltage amplification and power output circuit arrangements.

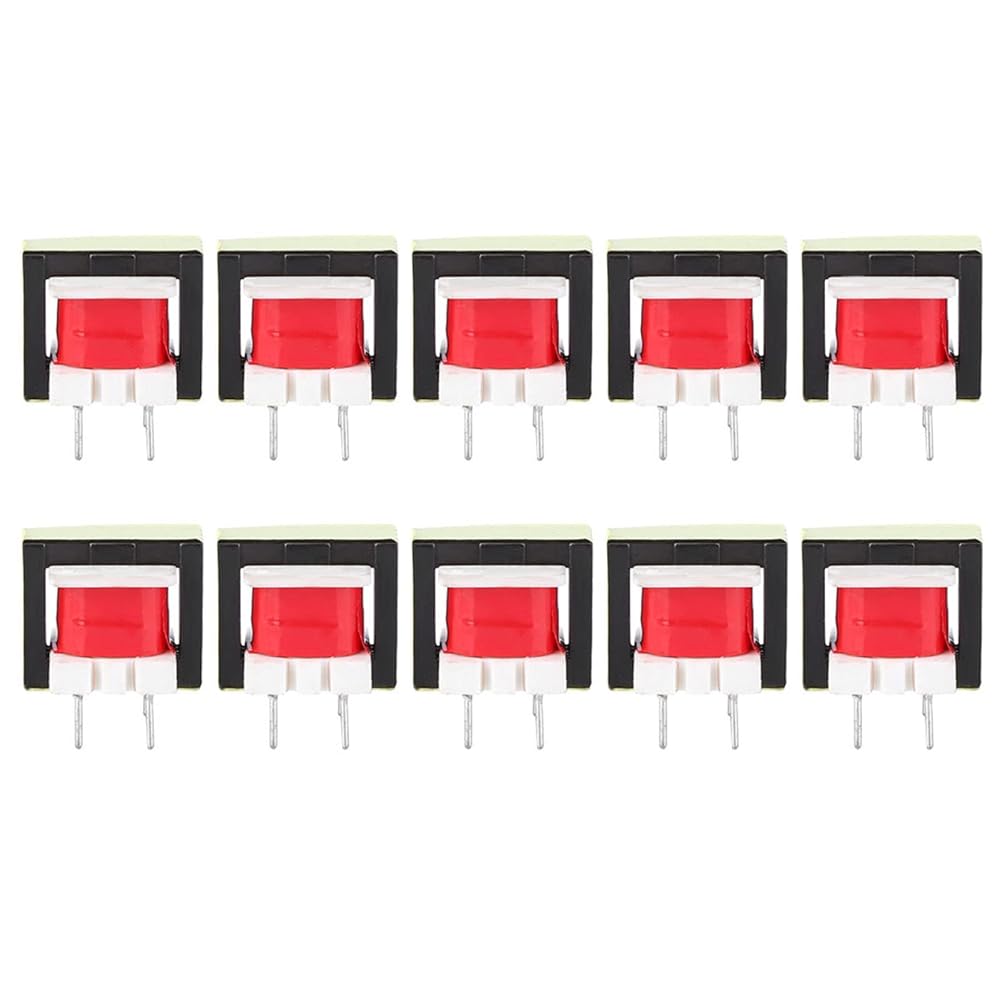

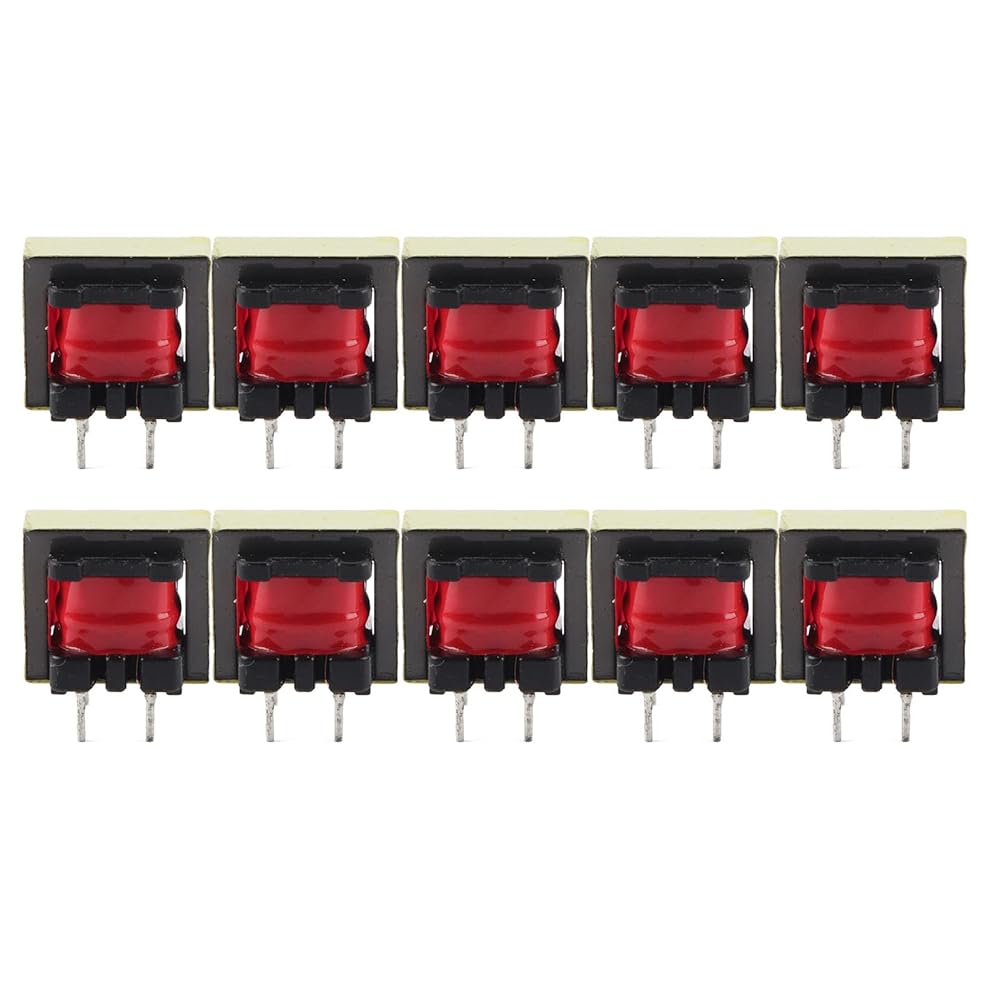

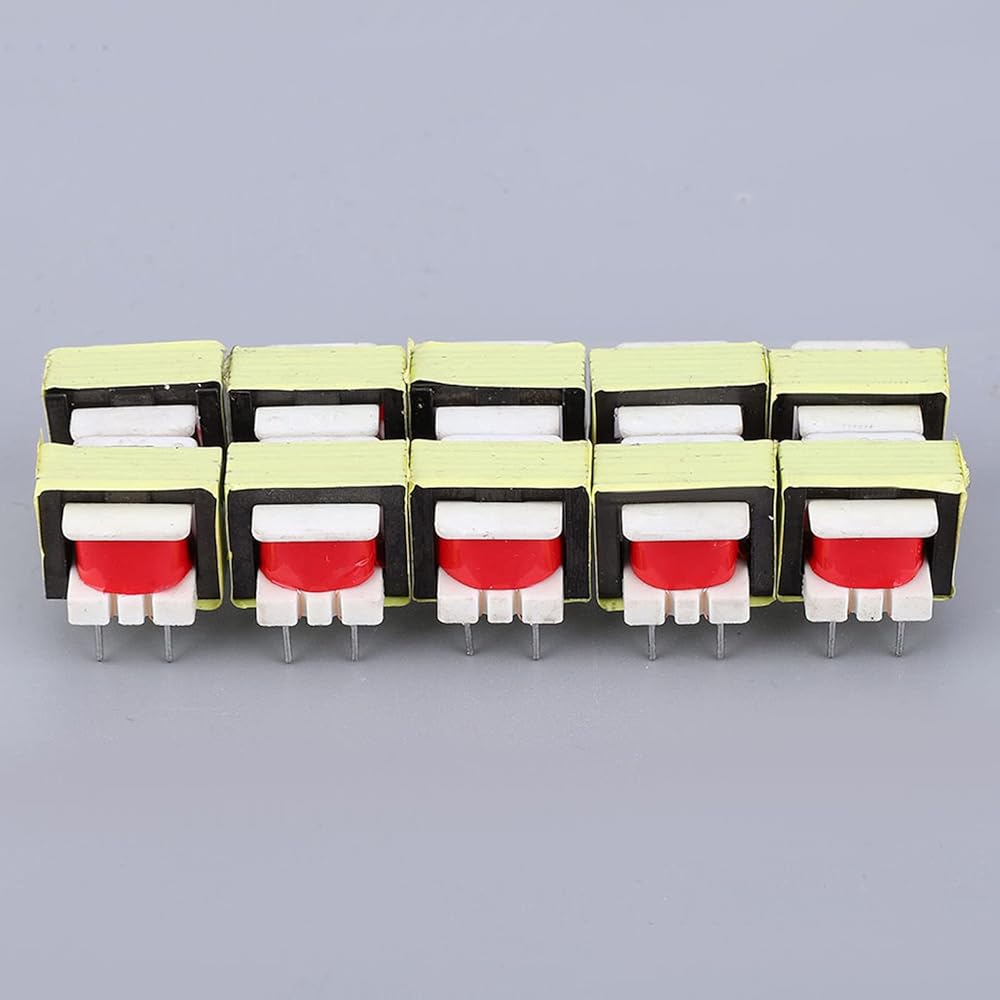

【Package And Notes】Item type is audio transformer. Specifications include single phase medium frequency and 1300 8 ohm ratio. Package includes 10 pieces. New and old types are shipped randomly.

Item Type: Audio Transformer
Impedance Ratio: 1300 : 8
Power Phase Number: Single Phase
Way: Open
Cooling Method: Oil-Immersed Air-Cooled
Frequency Characteristics: Medium Frequency
Winding Form: Self Coupling
Iron Core Form: Amorphous Alloy
Iron Core Shape: EI Type
Structure: Vertical
10 x Audio TransformerPlease note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
