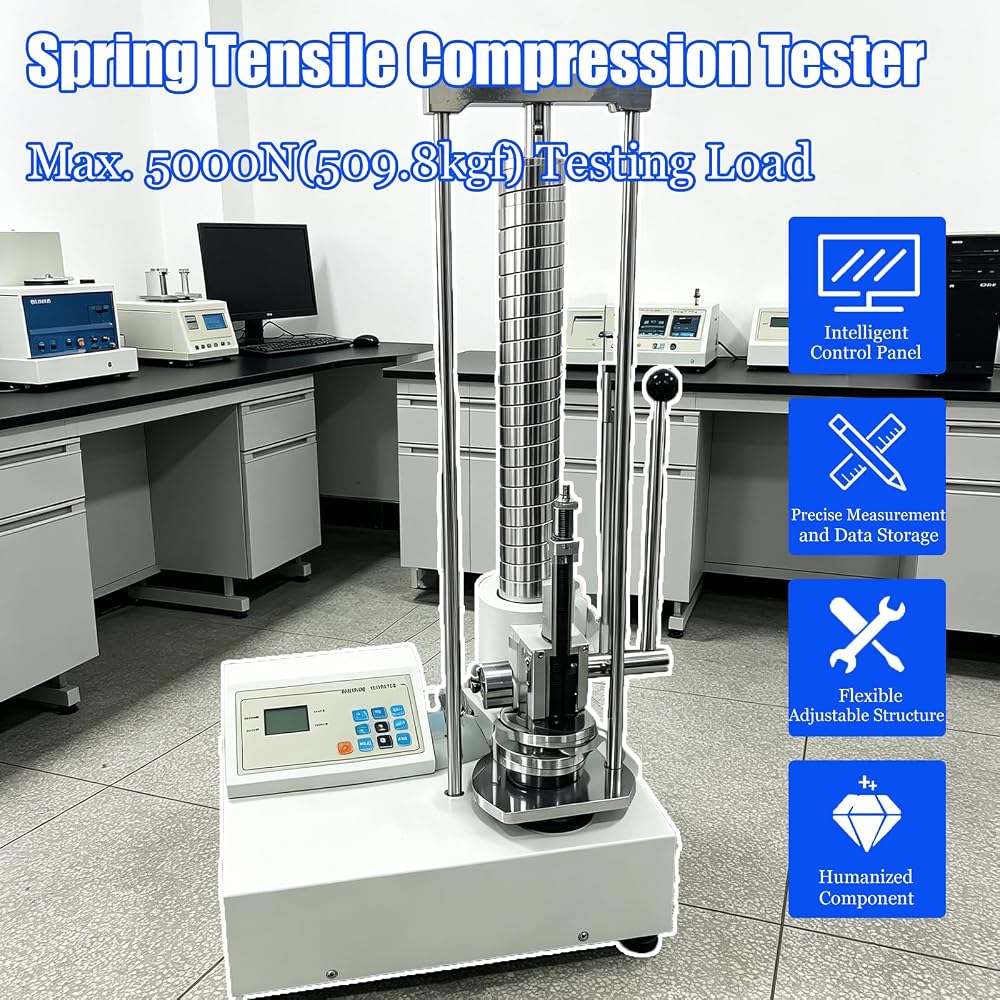

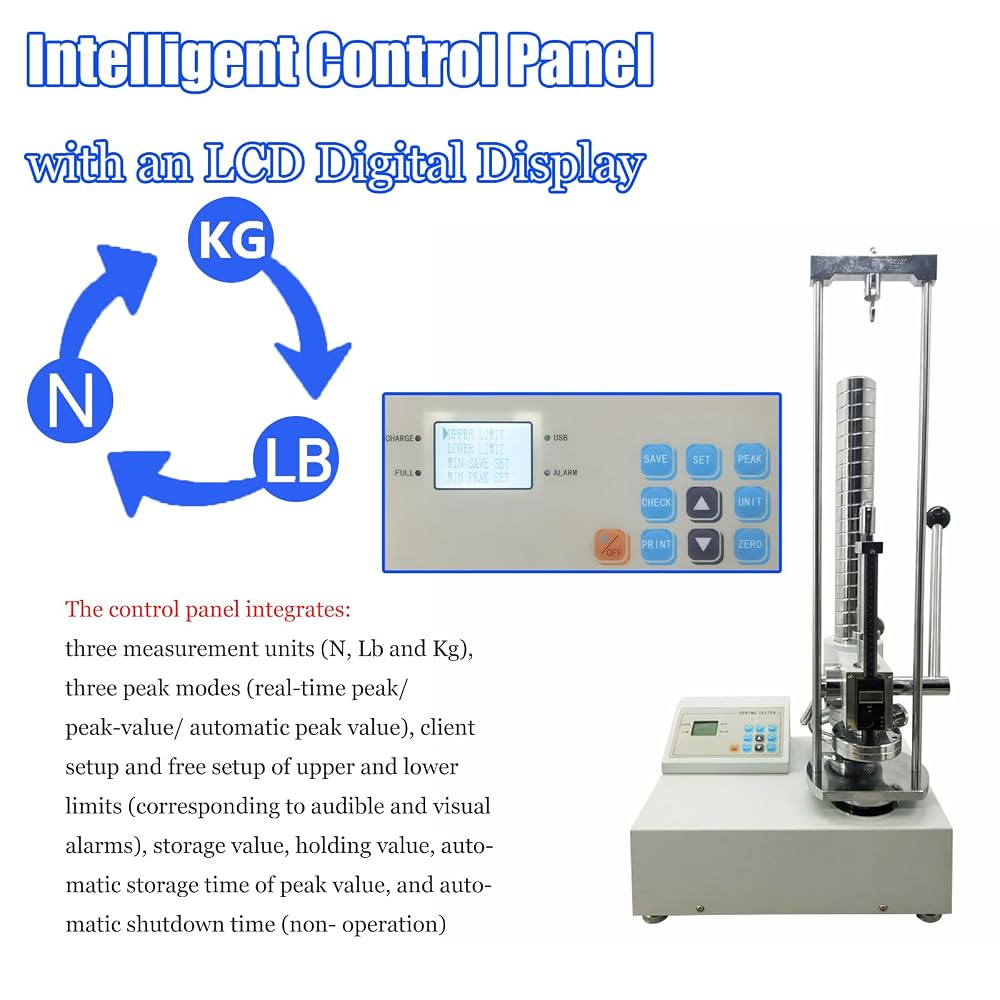

Intelligent Control Panel: The control panel is equipped with an LCD digital display, integrates three measurement units (N, Lb and Kg), three peak modes (real-time peak/ peak-value/ automatic peak value), as well as client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non- operation) and other functions

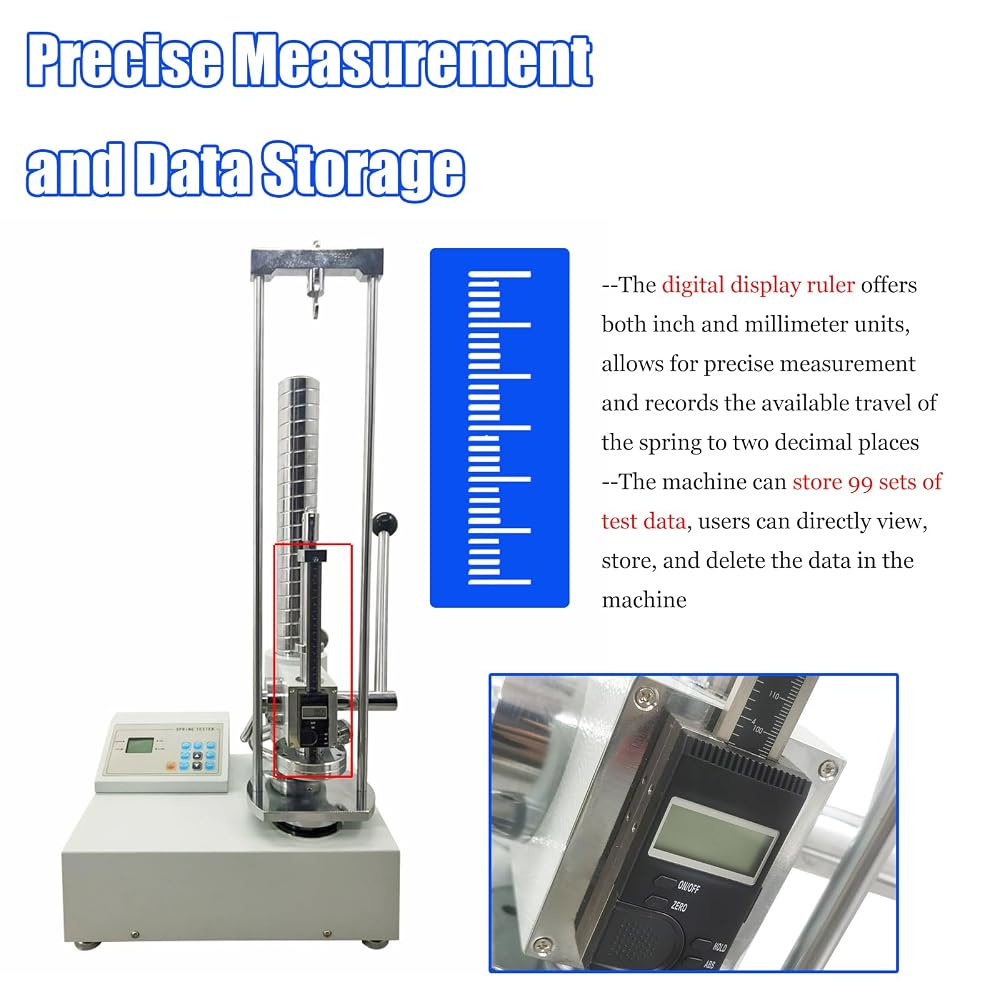

Precise Measurement and Data Storage: The digital display ruler offers both inch and millimeter units, allows for precise measurement and records the available travel of the spring to two decimal places. users can independently set gravity acceleration of the usage location to ensure more accurate testing and unit conversion, additionally, the machine can store 99 sets of test data, and users can directly view, store, and delete the data in the machine

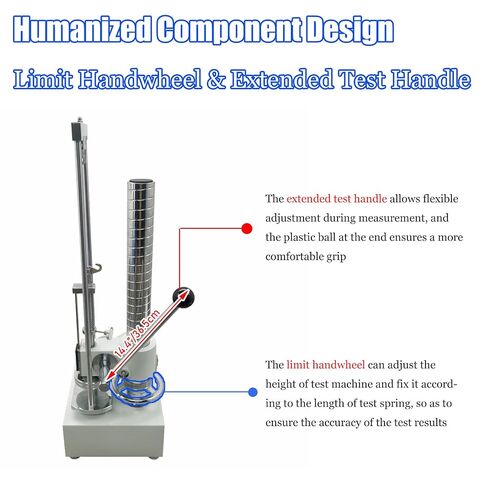

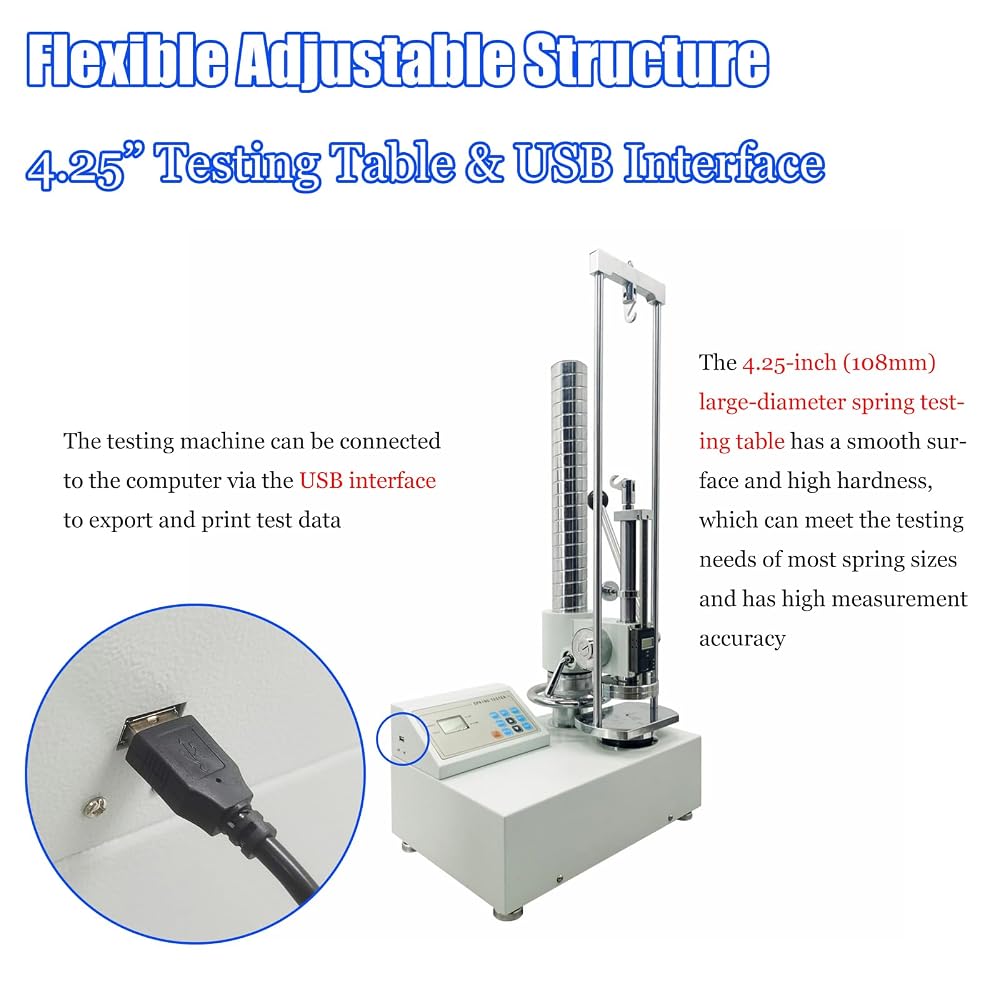

Flexible Adjustable Structure: The limit handwheel can adjust the height of test machine and fix it according to the length of test spring, so as to ensure the accuracy of the test results, the 4.25-inch (108mm) large-diameter spring testing table has a smooth surface and high hardness, which can meet the testing needs of most spring sizes and has high measurement accuracy

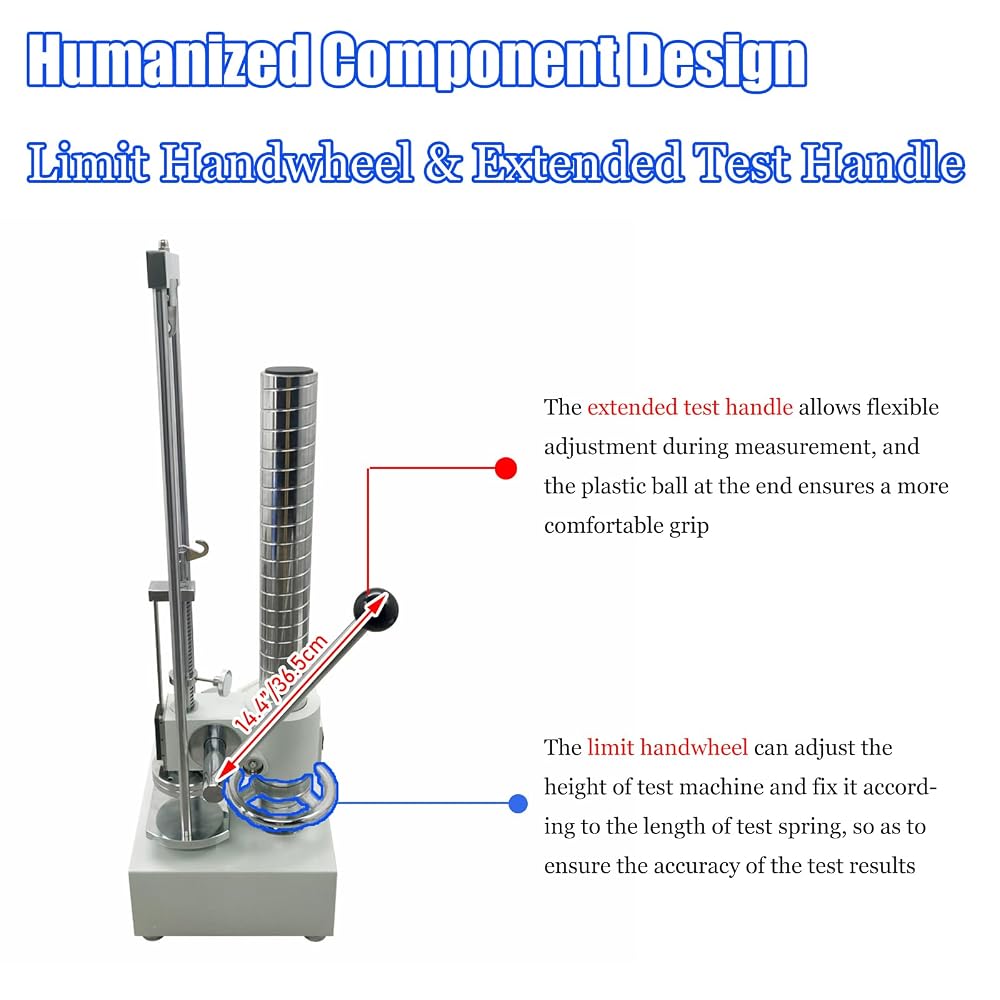

Humanized Component Design: The extended test handle allows flexible adjustment during measurement, and the plastic ball at the end ensures a more comfortable grip, the testing machine can be connected to the computer via the USB interface to export and print test data

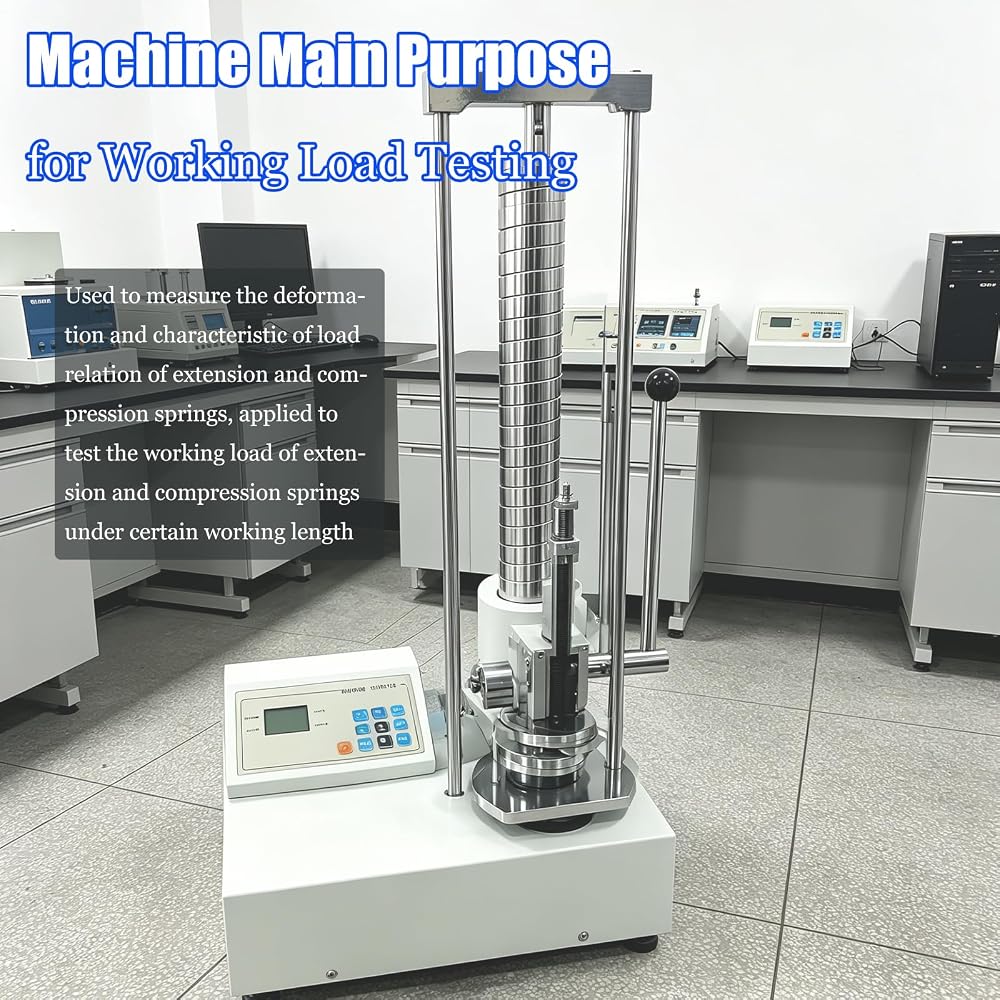

Machine Main Purpose: The testing machine is used to measure the deformation and characteristic of load relation of extension and compression springs, it can be applied to test the working load of extension and compression springs under certain working length
وصف

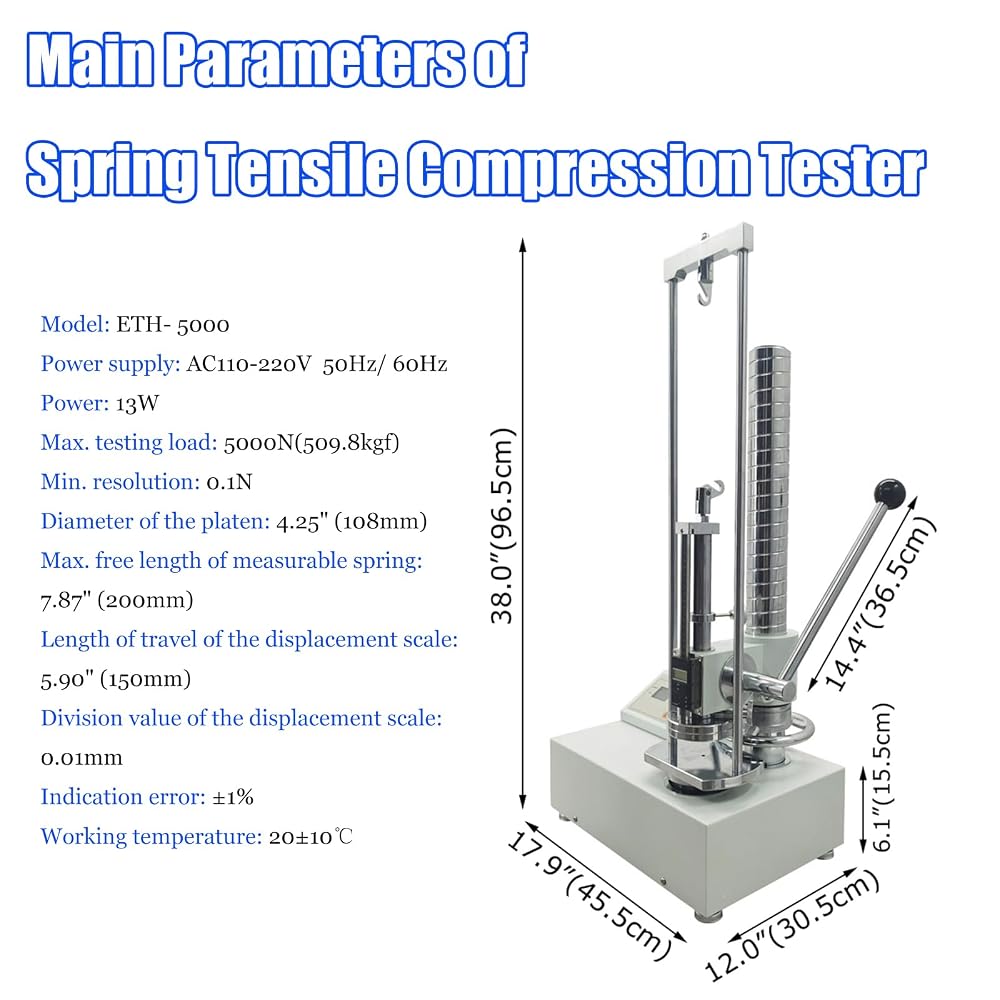

Product Parameters
Model: ETH- 5000
Voltage: AC110-220V 50Hz/ 60Hz
Power: 13W
Max. testing load: 5000N(509.8kgf)
Min. resolution: 0.1N
Diameter of the platen: 4.25" (108mm)
Max. free length of measurable spring: 7.87" (200mm)
Length of travel of the displacement scale: 5.90" (150mm)
Division value of the displacement scale: 0.01mm
Indication error range: ±1%
Working temperature: 20±10℃
Machine size: 17.9*12.0*38.0" (45.5×30.5×96.5cm)
Package size: 22.8*20.1*37.4" (58×51×95cm)
Net weight / Gross weight: 172LB(78kg) / 198LB(90kg)

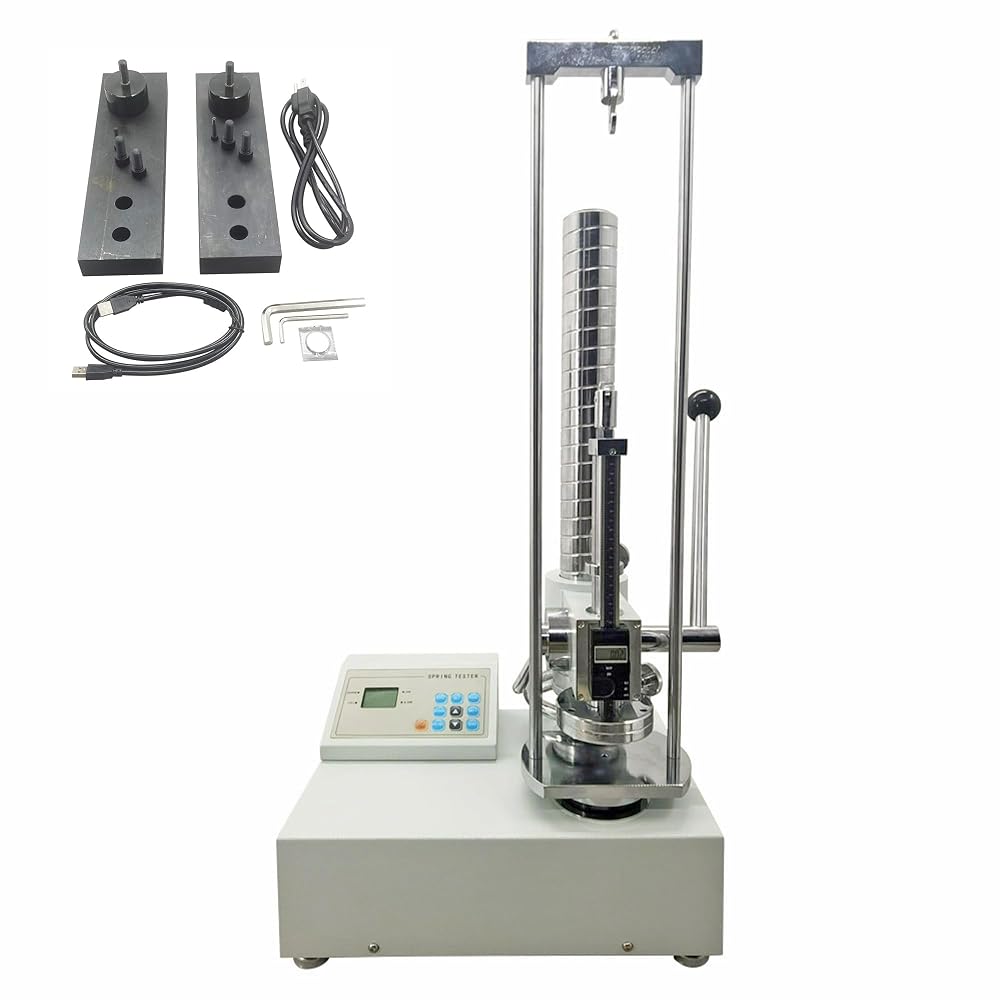

One package includes
Spring Testing Machine *1
Power Cable *1
USB Cable *1
Allen Wrench *2
Screw *6
Bracing Foot *4
English Manual *1
