1Pcs* Planetary reducer
1Pcs* Key
4Pcs* Install screws
Speed Ratio:
1 Stage (L1)
: 3:1;4:1;5:1;6:1;8:1;10:1
2 Stage (L2)
: 9:1;12:1;15:1;16:1;18:1;20:1;24:1;25:1;30:1;32:1;36:1;40:1;48:1;50:1
3 Stage (L3)
: 64:1;72:1; 80:1;96:1;100:1;120:1;144:1;160:1;180:1;200:1;216:1
Noise: less than 60dB

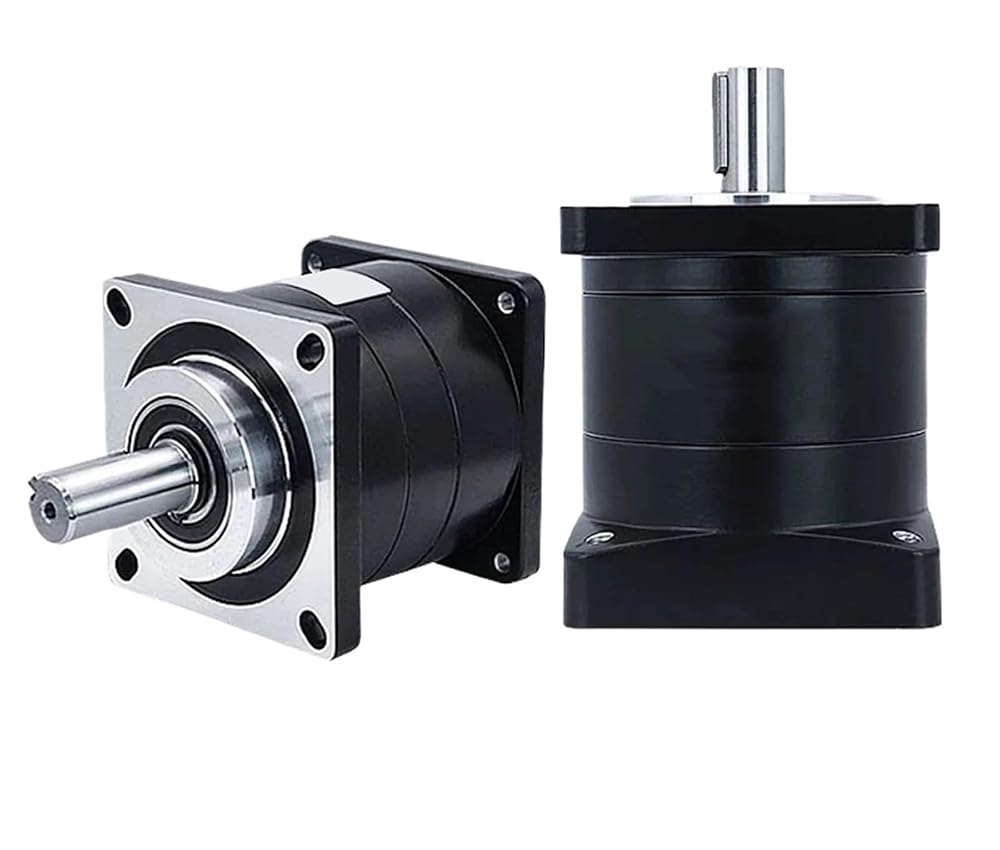

130PX Planetary Reducer Technical Parameters
Stage
Stage 1
Stage 2
Stage 3
Reduction ratio
3/4/5/6/8
9/12/15/16/18/20/24
/25/30/32/36/40/48
64/72/80/96/100/120
/144/160/180/200/216
Input (MM)
19/ 22
19/ 22
19/ 22
Output shaft (MM)
19/ 22/ 28
19/ 22/ 28
19/ 22/ 28
Keyway (MM)
6/ 8
6/ 8
6/ 8
Rated load (N.M)
90
150
200
Maximum load (N.M)
150
200
240
Full load efficiency (%)
90
86
80
Backlash Precision (arcmin)
20
30
45
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
