Features:

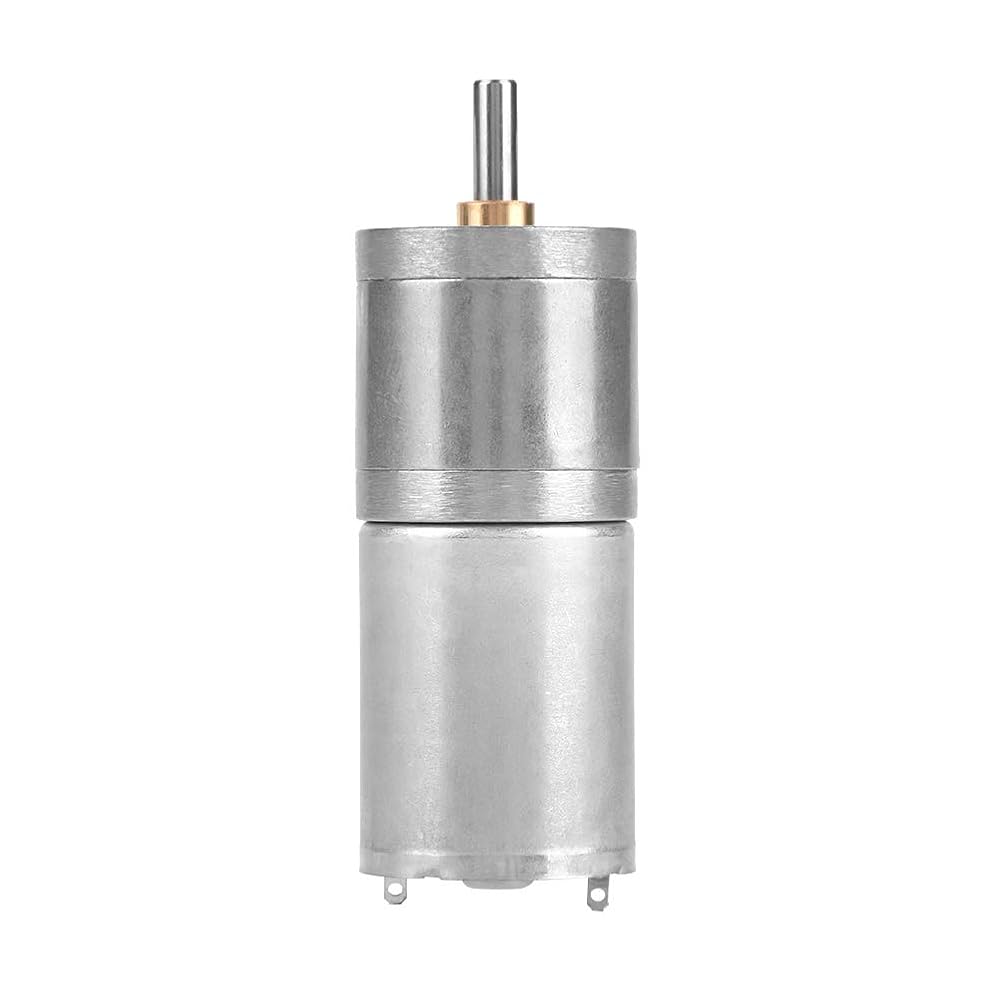

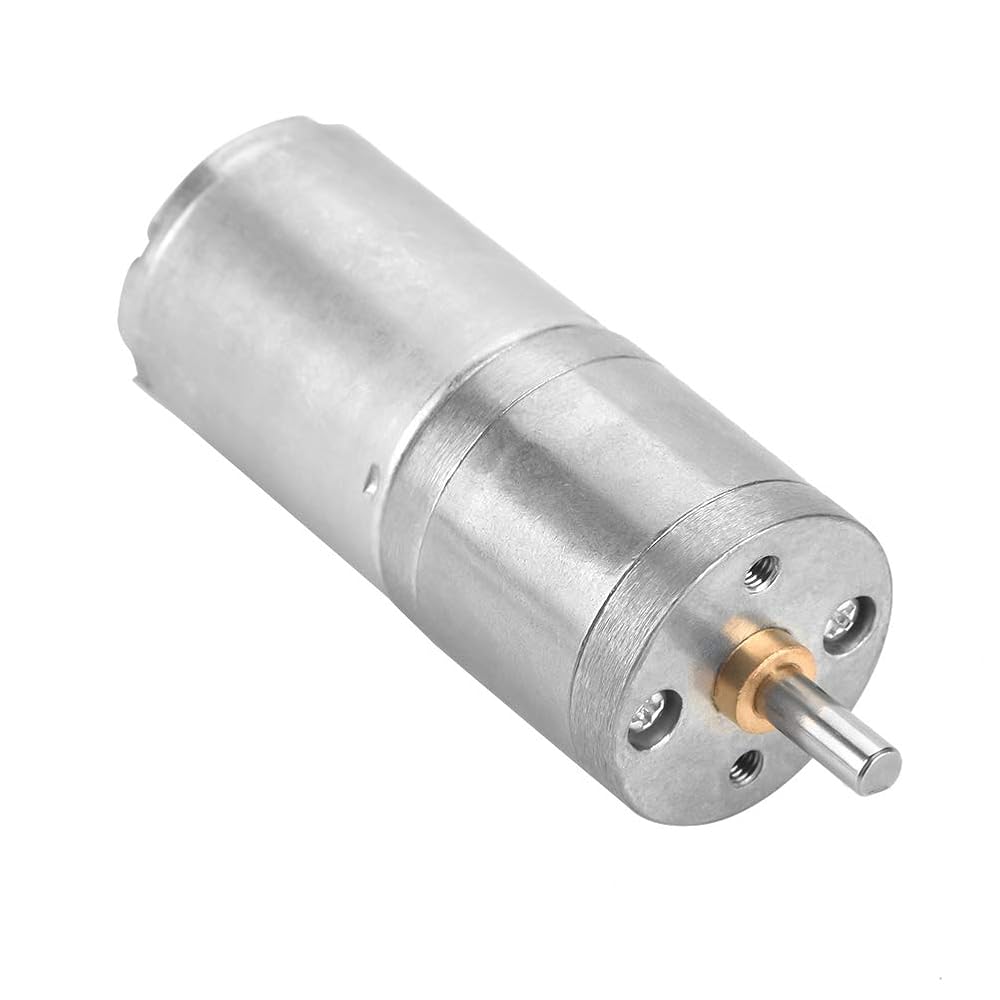

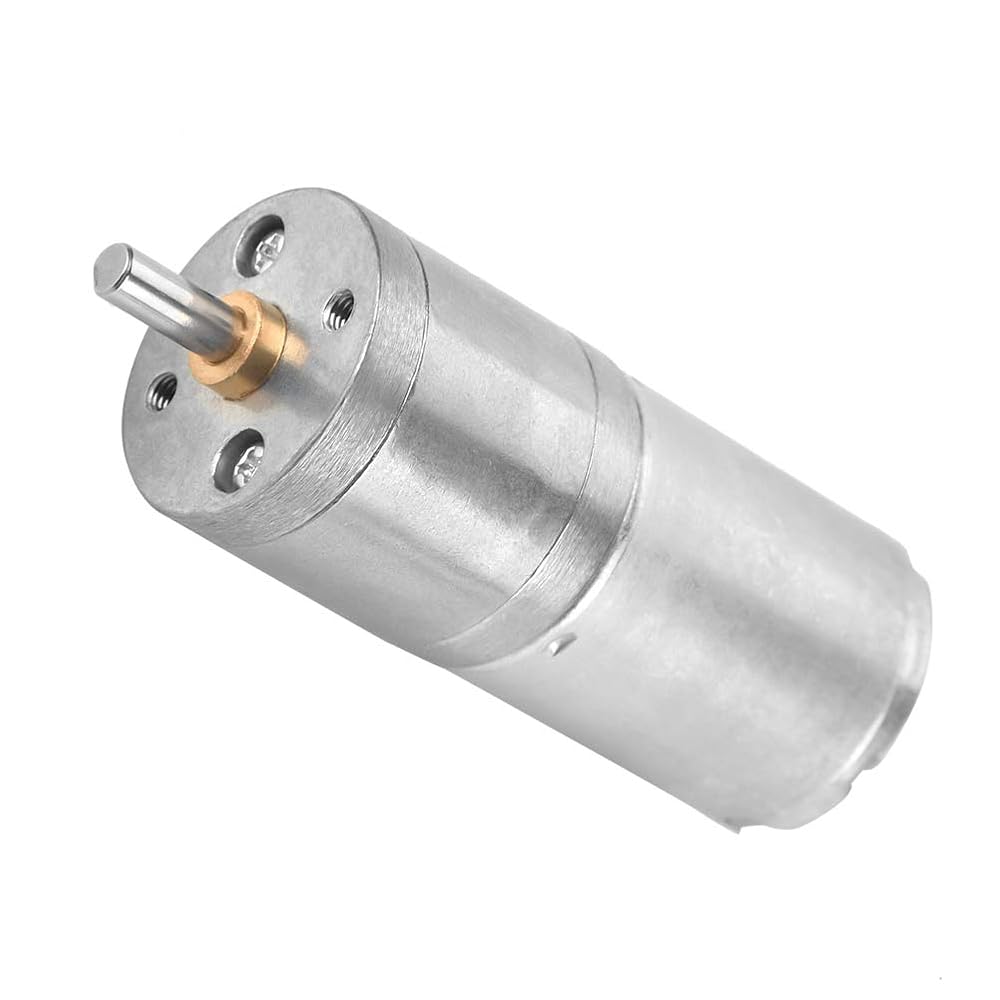

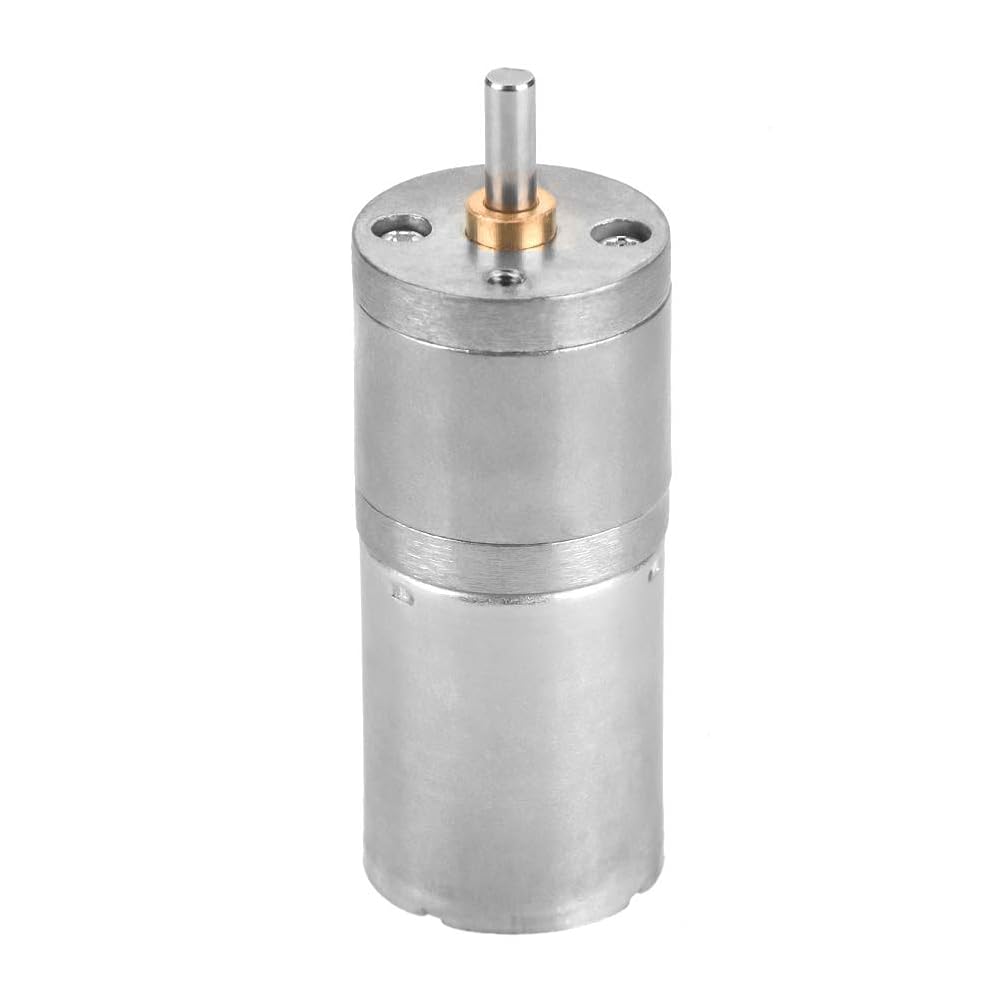

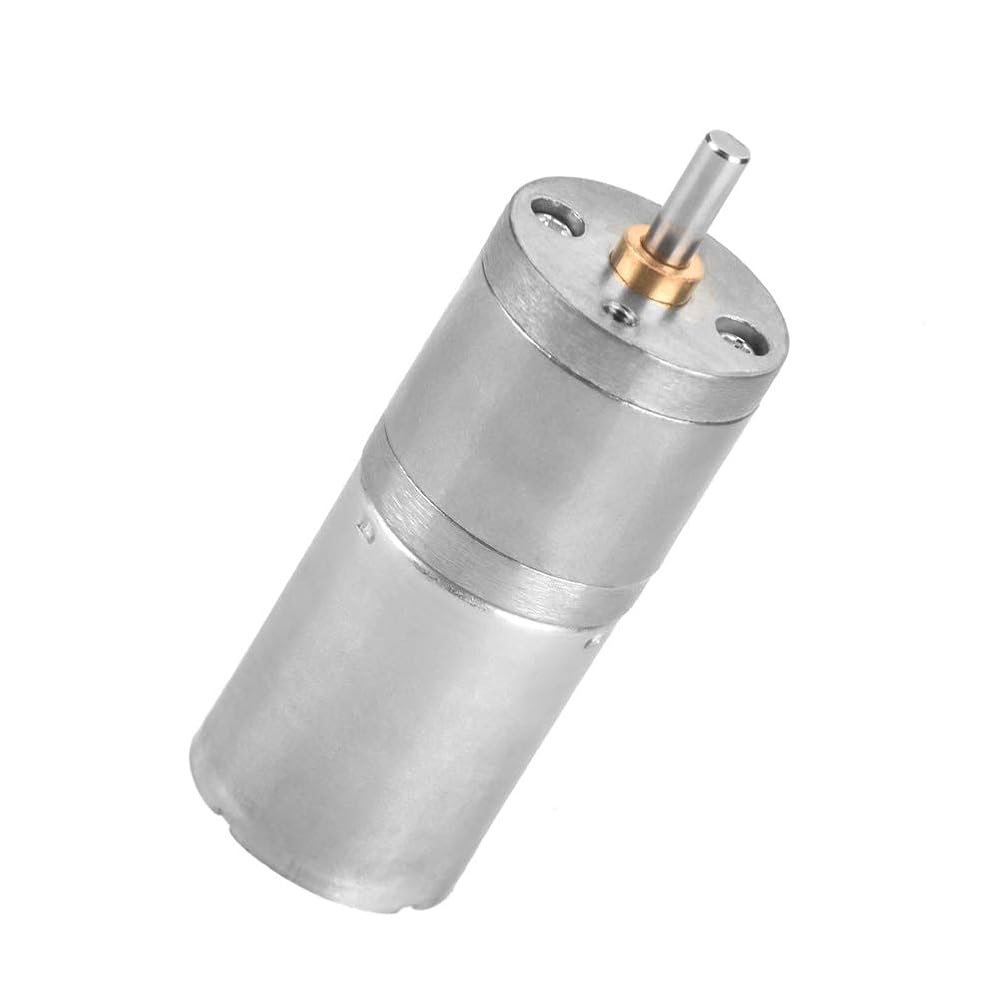

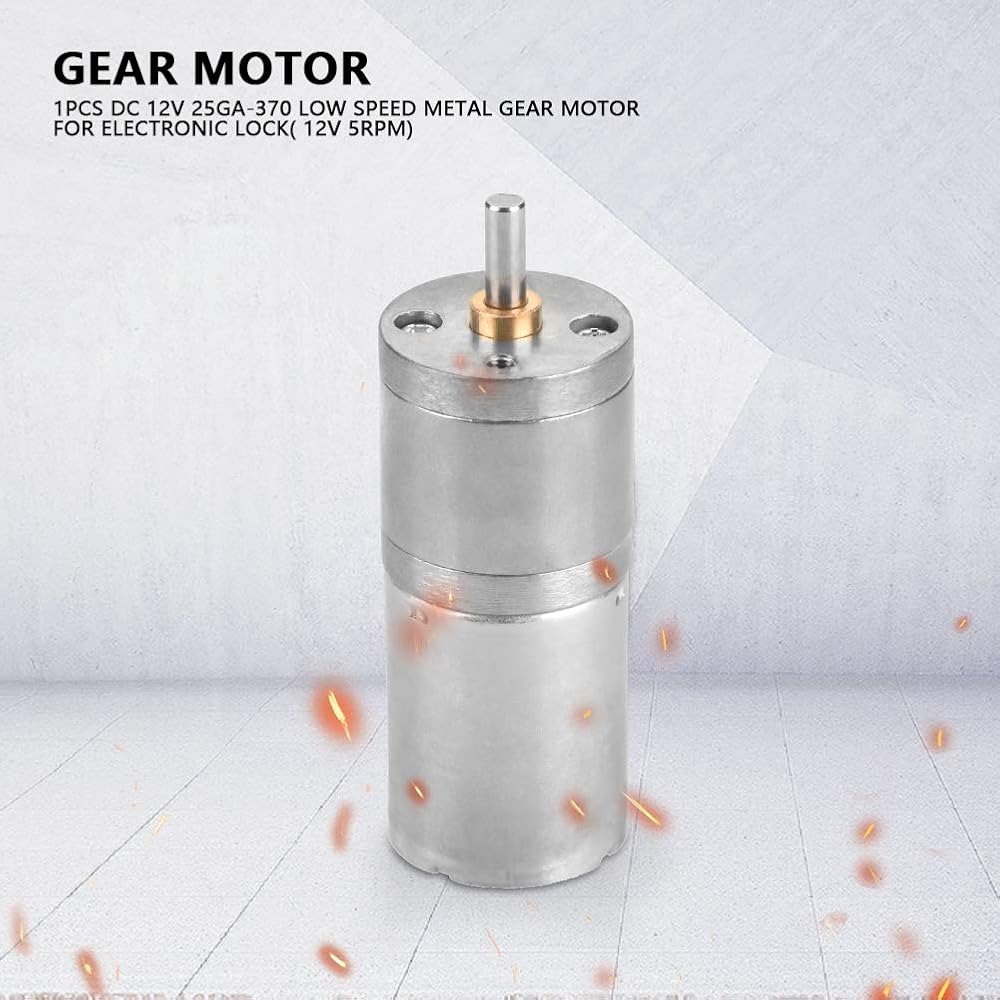

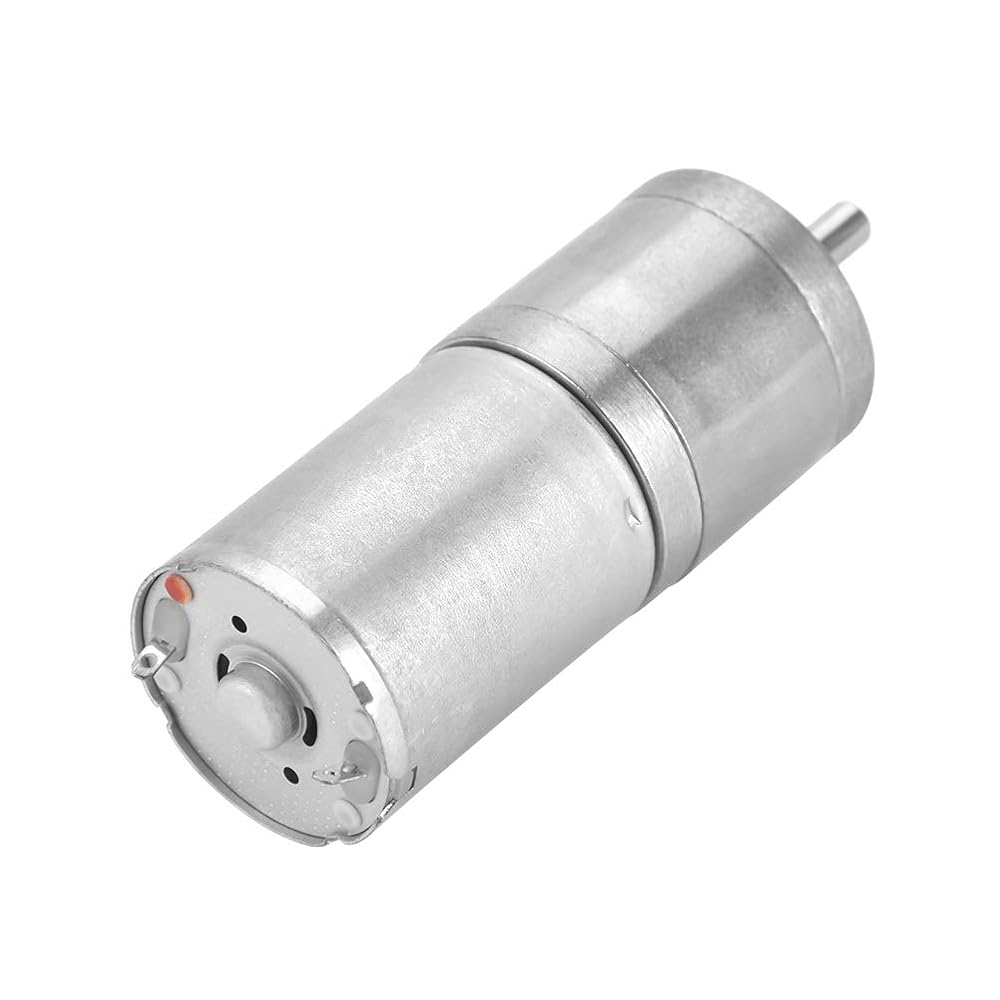

This product is a DC gear motor with high accuracy metal gear, stable working
This DC motor features large moment of force, low speed, and low noise.

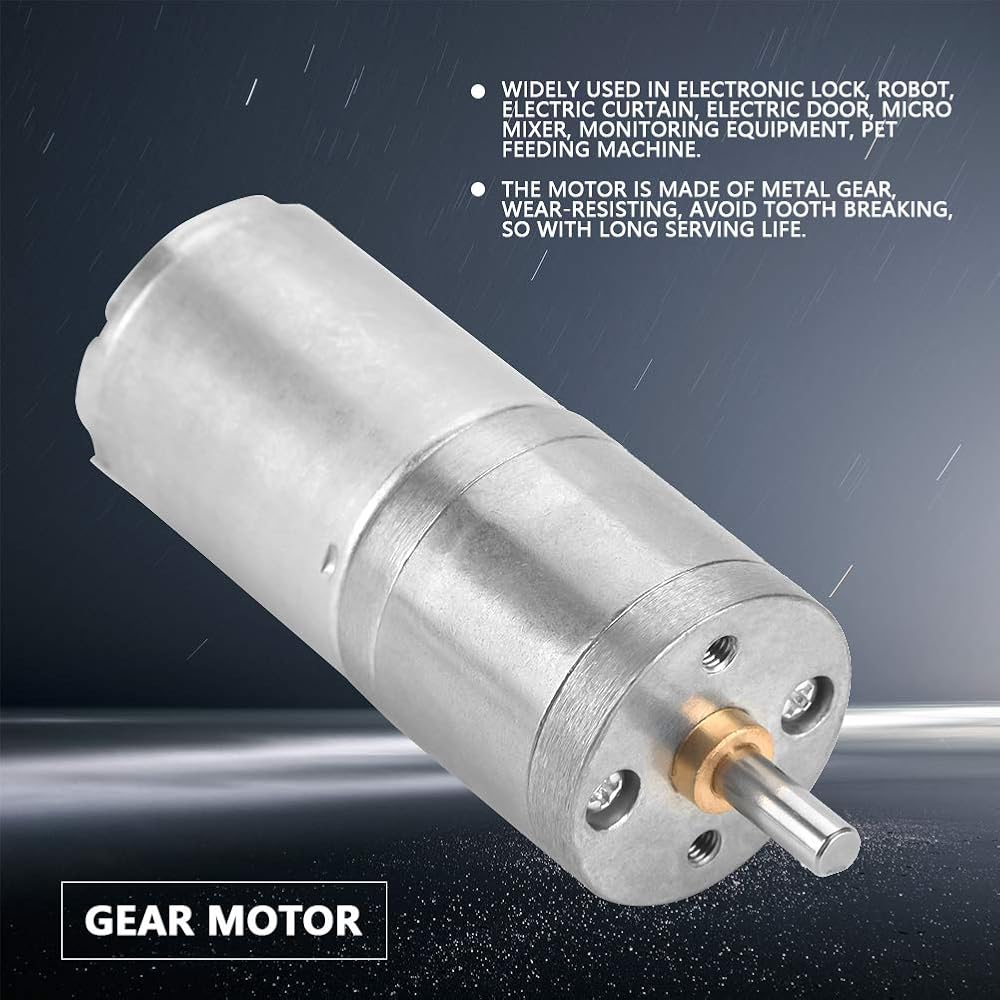

The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
This motor is adopted of pure copper wire coil, with low heat and low loss.
Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine

Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM
Outer diameter: 25 mm/1.0in
Shaft diameter: 4mm / 0.2in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz
VoltageGear ratio no loadloadStallspeedCurrentspeedCurrenttoqureCurrenttoqure12V1:6505RPM≤150MA3RPM≤70MA1150gf.cm≤2.1A15.4kgf.cm12V1:15010RPM≤170MA7RPM≤100MA980gf.cm≤2.1A14.8kgf.cm12V1:15030RPM≤170MA25RPM≤100MA770gf.cm≤2.1A12.0kgf.cm12V1:20060RPM≤170MA51RPM≤100MA750gf.cm≤2.1A11.8kgf.cm12V1:100100RPM≤150MA73RPM≤185MA660gf.cm≤2.1A10.5kgf.cm12V1:50200RPM≤180MA165RPM ≤105MA580gf.cm≤2.1A8.8kgf.cm12V1:30300RPM≤190MA254RPM≤145MA180gf.cm≤2.1A7.8kgf.cm12V1:25400RPM≤190MA344RPM ≤145MA170gf.cm≤2.1A7.7kgf.cm12V1:20500RPM≤190MA460RPM ≤145MA150gf.cm≤2.1A7.5kgf.cm12V1:101000RPM≤190MA820RPM ≤145MA88gf.cm≤2.1A7.2kgf.cm

Package list:
1 x gear motor
