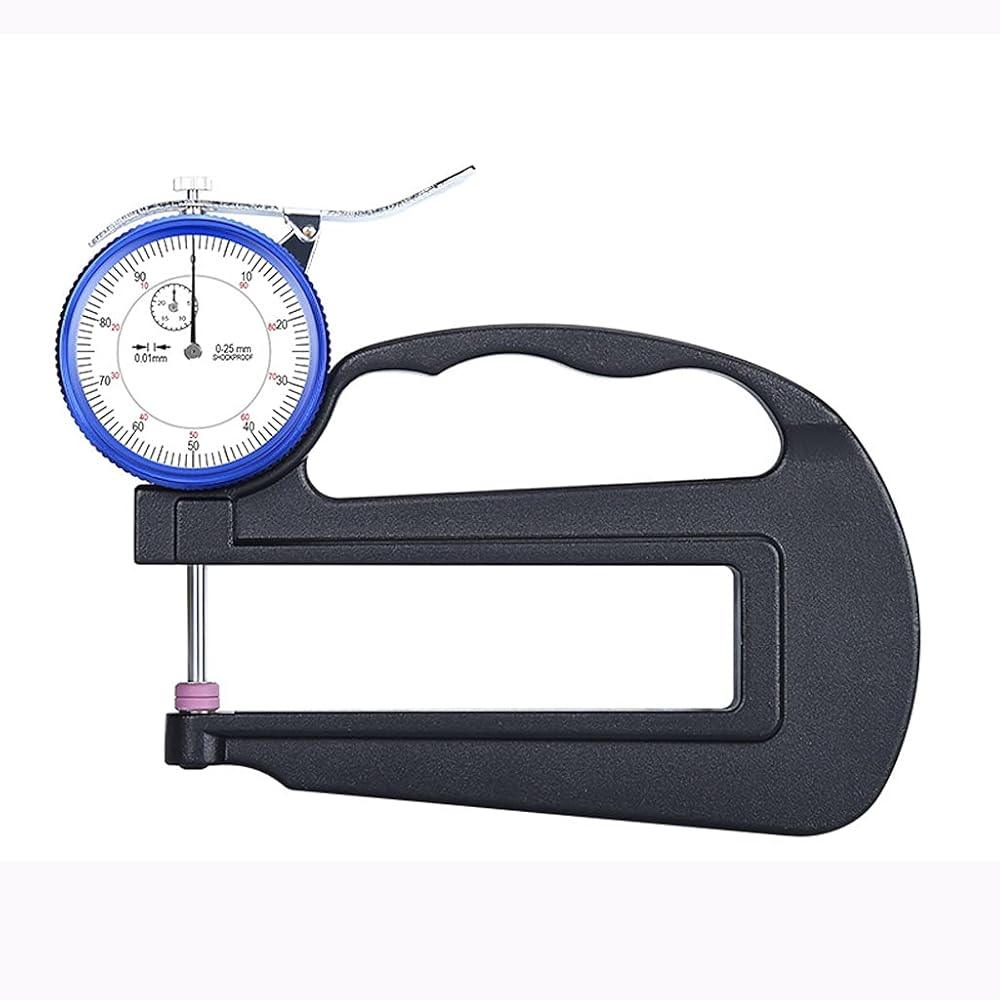

Type: thickness gauge(Percentage/Micrometer)
Measurement Range：0-10mm/0-25mm/0-1mm
Tolerance: ≤0.02mm/≤0.03mm/≤0.005mm
Diameter Measuring Surface: 10mm
Material Measuring Surface：ceramics
With grip handle, thumb trigger and spring-loaded spindle.
Pointer display, clear and easy to read.
Good tools for thickness measurements of long flat soft materials, such as leather, film, paper, rubber, cloth, tape, etc.
Model A
Accuracy: 0.01mm
Measuring Range: 0-10mm
Tolerance: ≤0.02mm
Force measurement: ≤1.5N
Diameter Measuring Surface: 10mm
Measuring Surface：ceramics
Model B
Accuracy: 0.01mm
Measuring Range: 0-25mm
Tolerance: ≤0.03mm
Force measurement: ≤1.5N
Diameter Measuring Surface: 10mm
Measuring Surface：ceramics
Model C
Accuracy: 0.001mm
Measuring Range: 0-1mm
Tolerance: ≤0.005mm
Force measurement: ≤1.5N
Diameter Measuring Surface: 10mm
Measuring Surface：ceramics
Reminder: For measuring thin film materials, it is recommended to choose Model C.
Package Included:
1x thickness gauge
Note:
1. Please Allow 1-3cm Differs Due To Manual Measurement.
2. Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. Please refer to the actual product.Thanks For Your Understanding.
