Luftschloss 1 قطعة FFC FPC كابل 0.5 مللي متر الملعب 40 دبوس 150 مللي متر مرنة شقة الشريط كابل لشاشة LCD B نوع in Kuwait Luftschloss 1 قطعة FFC FPC كابل 0.5 مللي متر الملعب 40 دبوس 150 مللي متر مرنة شقة الشريط كابل لشاشة LCD B نوع in Kuwait Luftschloss 1 قطعة FFC FPC كابل 0.5 مللي متر الملعب 40 دبوس 150 مللي متر مرنة شقة الشريط كابل لشاشة LCD B نوع in Kuwait Luftschloss 1 قطعة FFC FPC كابل 0.5 مللي متر الملعب 40 دبوس 150 مللي متر مرنة شقة الشريط كابل لشاشة LCD B نوع in Kuwait

Luftschloss 1 قطعة FFC FPC كابل 0.5 مللي متر الملعب 40 دبوس 150 مللي متر مرنة شقة الشريط كابل لشاشة LCD B نوع

KWD 2
– 1 +

مميزات خاصة

  • [SPECIFICATION]: 40 Pin 0.5mm pitch; Total Length: 150 mm / 5.91 inch; B Type (Pin on the Opposite Side)
  • [APPLICATION]: Applying to various of the LCD screen, such as digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc..
  • [STRUCTURE]: The cable usually consists of a flat and flexible plastic film base, with multiple metallic conductors bonded to one surface.

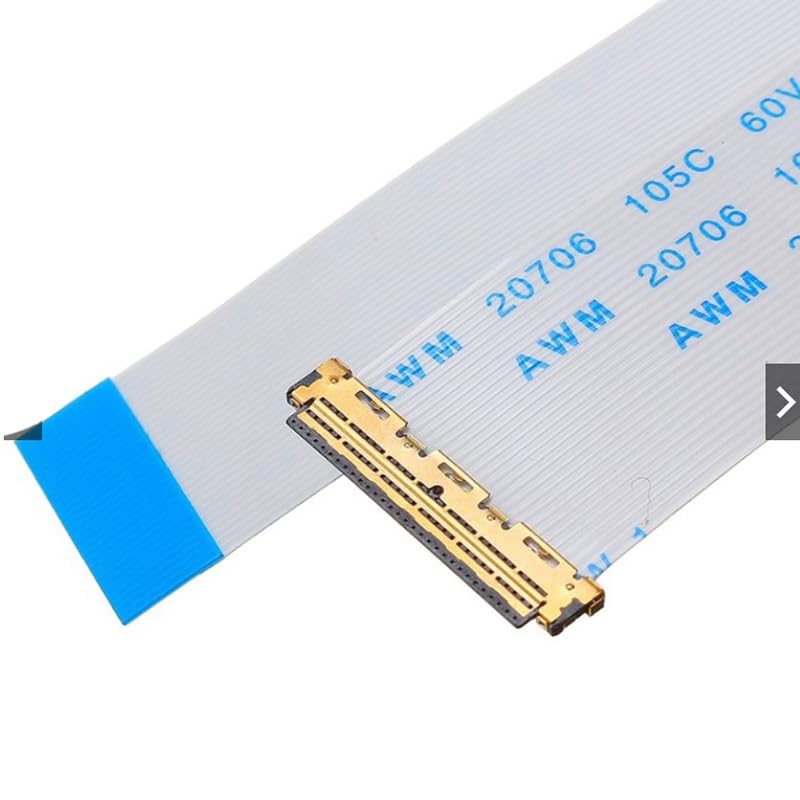

  • [FEATURE]: The one end cable is reinforced with a pin protector to make insertion easier.
  • [ADVANTAGE]: The term FFC(Flexible Flat Cable) usually refer to the extremely thin flat cable often found in high density electronic applications.

وصف

Description:
The term FFC(Flexible Flat Cable) usually refers to the extremely thin flat cable often found in high density electronic applications.
The one end cable is reinforced with a pin protector to make insertion easier
The stiffener makes the cable slightly thicker.
Applying to various of the LCD screen, such as digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Specification:

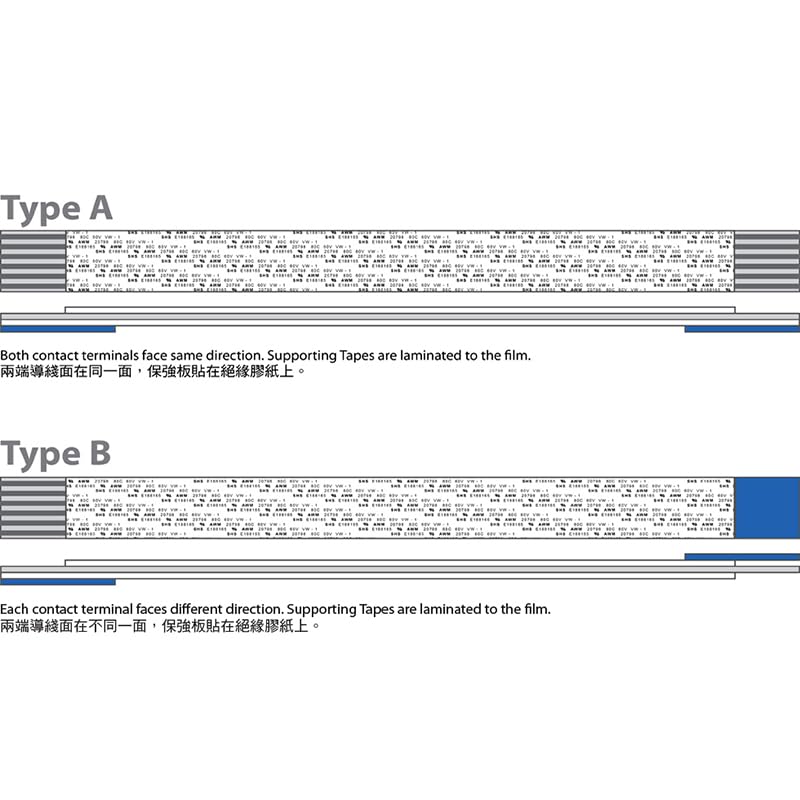

Type: B Type (Pin on the Same Side) with pin protector
Pins: 40 Pin
Pitch: 0.5mm
Total Length: 150 mm / 5.9 inch
External Material: Plastic
Color: White, Copper Tone
Flat Cable Width: 20.5 mm / 0.81 inch

Package Content :
1 x FPC Cable with Pin Protector
