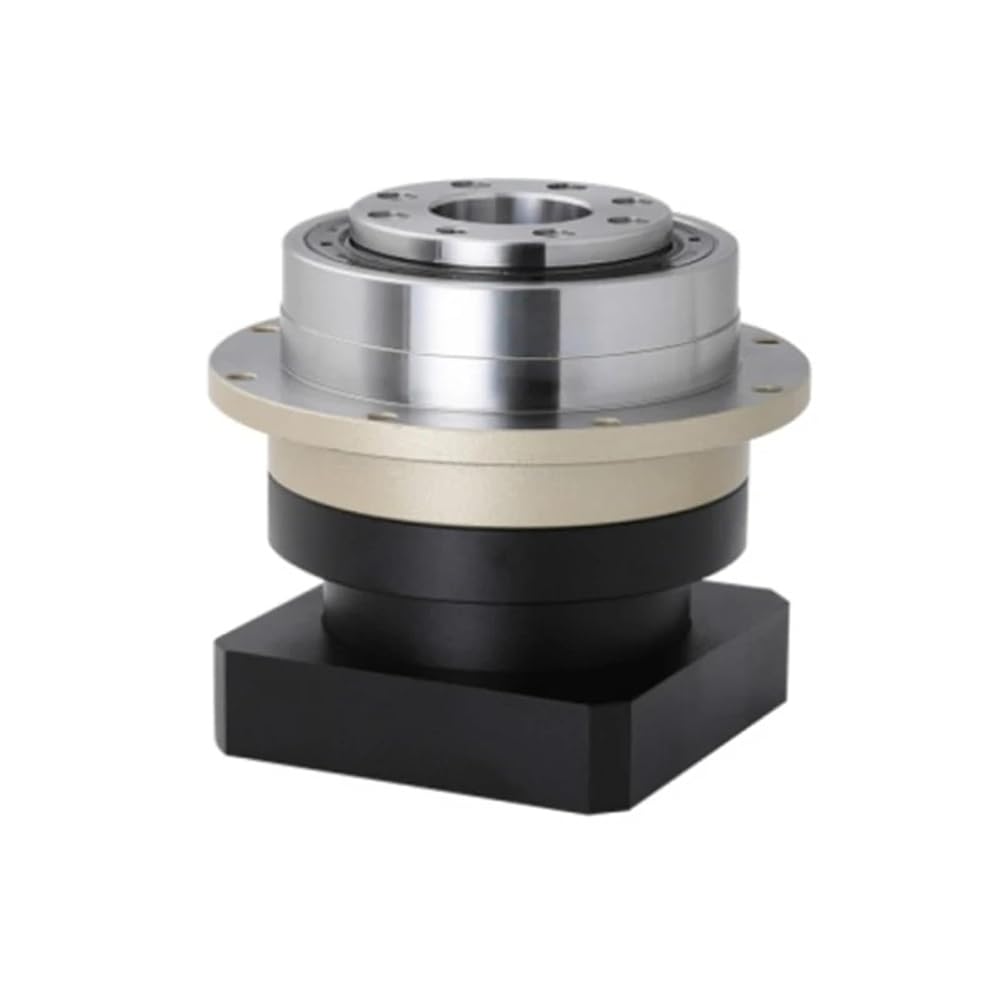

PLX060 Flange Output Planetary Gearbox Reducer for 57 NEMA23 Stepper Motor Input Shaft 635 8 / 9.525mm
PLX helical disc output planetary gearbox
The double support cage planetary carrier structure has high reliability.
Can adapt to frequent positive and negative reversals.
Diagonal gear transmission provides smoother transmission and greater load-bearing capacity.
Low clearance for more precise positioning.
The unique flange output method provides greater installation freedom.
Assemble tapered roller bearings on the bogie to meet the requirements of heavy-duty working conditions.
Specification range: 060 090 120.
Speed ratio range:
L1-4 5 7 10.
L2-16 20 25 28 35 40 50 70 100.
Accuracy range: 3-5 arcmin (Level 1) 5-7 arcmin (Level 2)
