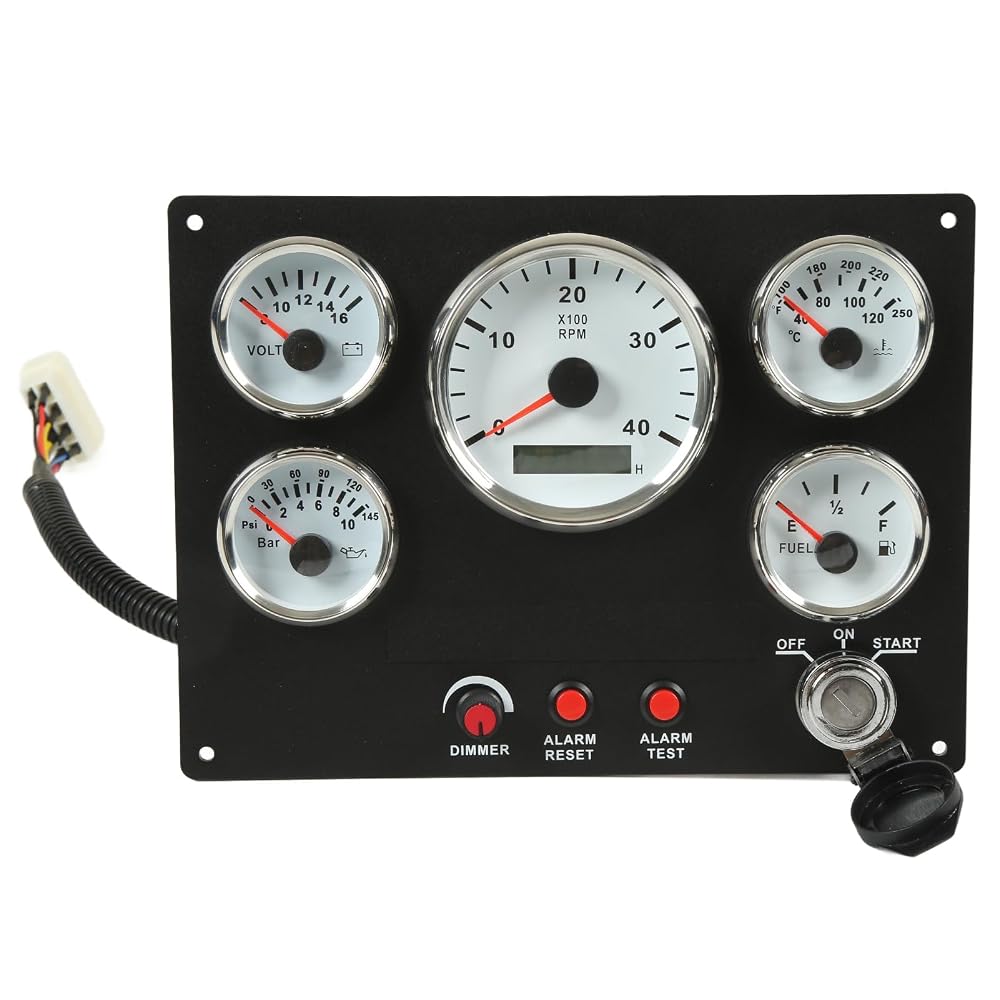

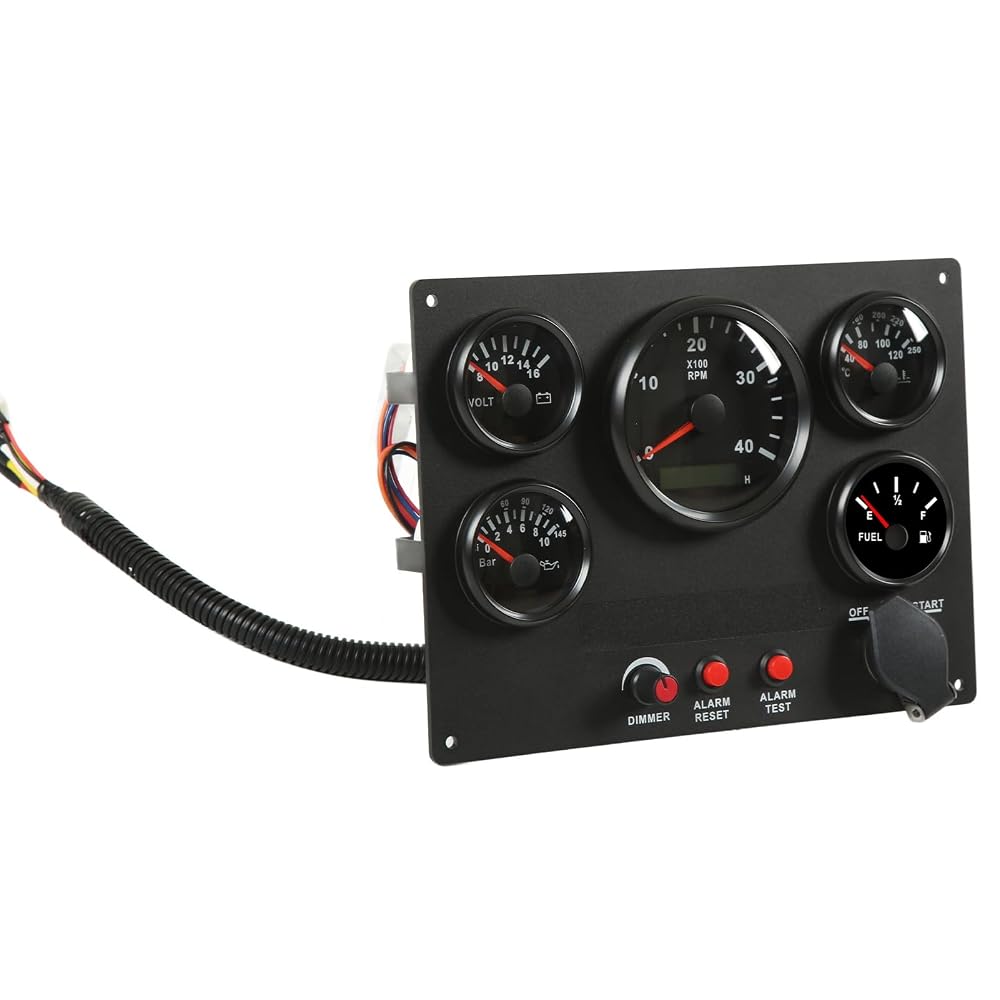

1. [MULTIFUNCTIONAL GAUGE SET] This comprehensive Boat Instrument Panel includes five essential gauges: a tachometer, water temperature meter, fuel level gauge, oil pressure meter, and voltmeter, all designed to provide crucial engine readings at a glance, ensuring you stay informed during your marine adventures.
2. [HIGH-ACCURACY PERFORMANCE] Each gauge is equipped with a precision stepping motor that guarantees accurate readings across various parameters, including engine speed (0-4000RPM) and oil pressure (0-10Bar). Monitor your vessel's performance effortlessly with our user-friendly design.
3. [DURABLE AND ] Constructed from high-quality materials like aluminum alloy and stainless steel, this panel boasts an impressive IP67 protection rating. No matter the marine conditions, it can handle water exposure, dust, and mechanical shocks, ensuring longevity and reliability at sea.
4. [BRIGHT NIGHTTIME VISIBILITY] Featuring vibrant red LED backlighting and needle indicators, this instrument panel allows for easy reading in low-light environments, ensuring that you can monitor your vital statistics even under the stars or in the murky depths.
5. [EASY INSTALLATION] Designed for seamless integration into your boat's central control, the panel requires only a simple hole of 240 x 180mm for installation. Back harness connectors with snaps help secure connections, ensuring solid operation even in challenging conditions.

Specification:
Item Type: Boat Instrument Panel
Material: Aluminum alloy+ABS+stainless steel+tempered glass
Function Display:
85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing;
52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input signal: 301-22ohms)
52mm fuel level gauge shows the fuel volume of the fuel tank: F-1/2-E; (Input signal: 0-190ohms)
52mm oil pressure gauge can display the oil pressure of the oil tank: 0-10Bar (0-145psi); (Input signal: 10-184ohms)
52mm voltmeter can display battery voltage: 8-16V;
Operation Mode: LCD display, stepper motor
Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system)
Working Current: ≤ 100 MA
Working Temperature: - 30 ℃ -+75 ℃
Storage Temperature: - 40 ℃ -+85 ℃
Backlight Color: Red
Protection Grade: IP67, can work at 1m underwater, excellent antifog function;
Application: This instrument panel can be installed in the central control position of your RV yacht or engineering vehicle. It only needs 241 x 177mm / 9.5 x 7in unit area to combine the engine tachometer + water temperature gauge + fuel level gauge + oil pressure gauge + voltmeter, which greatly saves space and adorns your central control. The five instruments are equipped with red background light and red LED light needles, so that all parameters can be clearly viewed even at night, At the same time, the multifunction panel also comes with DIMMER ALARM RESET/TEST; ENGINE VOLT, ENGINE OIL PRESS, COOLANT TEMP, FUEL, GEAR OIL PRESS, SEAWATER FLOW, WATER IN FUEL and other functions, and the status of the engine can be known at any time through the panel data
Application: The multifunction refitting panel can be used in the fields of engine, generator set, RV, yacht, fishing boat, ship, engineering machinery, agricultural machinery, refitting vehicle, etc.
Stepping Motor Description: Stepping motor is a discrete value control motor that converts the electric pulse excitation signal into the corresponding angular displacement or linear displacement. This type of motor moves one step every time an electric pulse is input, so it is also called pulse motor.

How to Use:
1. Open a hole of about 240 x 180mm/9.45 x 7.09in at the pre installation position of the central control (slightly smaller)
2. Put the instrument panel into the open hole, and connect the power harness and sensor harness on the back of the instrument panel in turn (please check the instructions for the wiring sequence, and it is recommended to find a professional electrician to assist in installation)
3. Fix the panel with screws

PackageList:
1 xBoat Instrument Panel
2 x Key
1 x Wiring Buckle
8 x Wiring Terminal
