مميزات خاصة

The size of this regulator is 3cm(L)×1cm(W)×0.3cm(H)/1.18in*0.39in*0.12in； Weight: 3g/0.11oz No external compensation element is required, small size and light weight
The regulator includes a current-limiting protection current to prevent the load from short-circuiting and burning the components; Built-in high-temperature overheating protection circuit to prevent overheating of the junction temperature from burning the device; Power consumption limiting circuitry is included to prevent the output drive transistor from being burned out
The regulator has an output voltage range of 4.75-5.25V, an input voltage range of 7-35V, and a quiescent current range of 4.2-8m

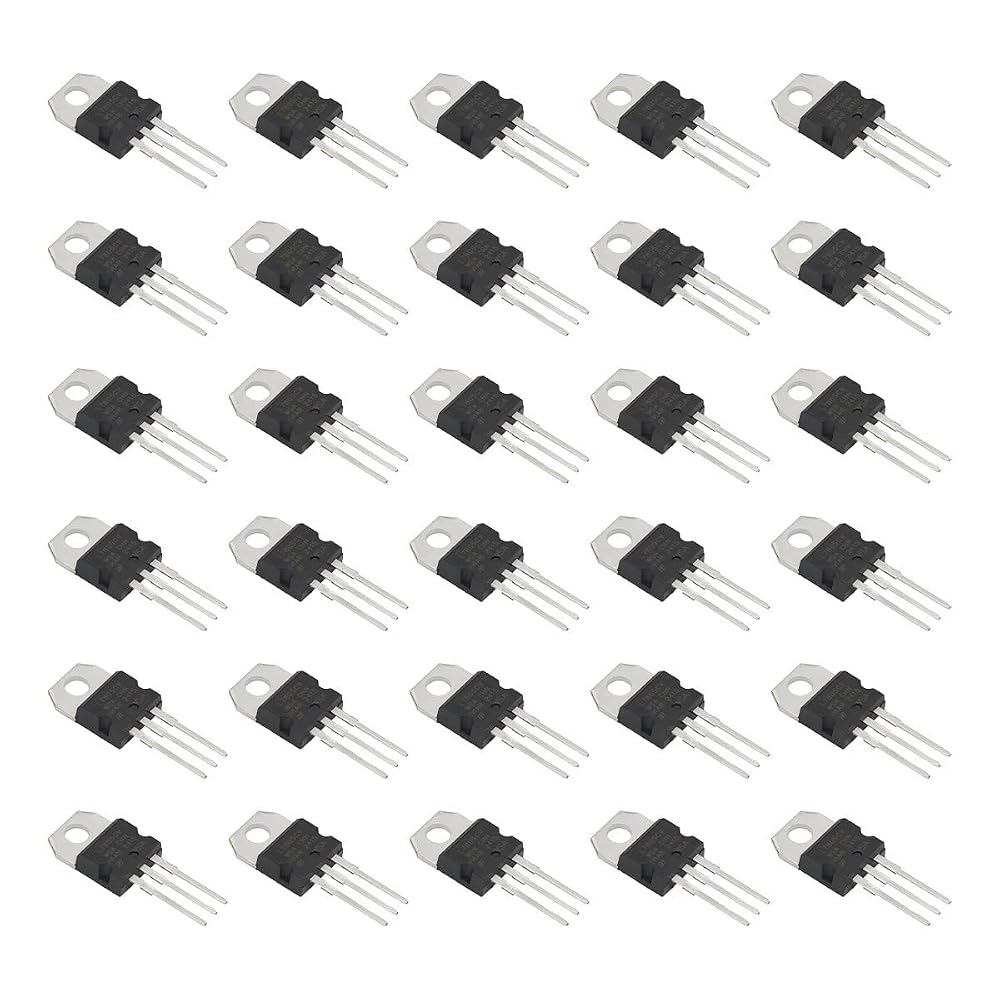

The package includes: 30pcs L7805CV three-terminal voltage regulator, which can meet the needs of multiple projects at the same time, which is easy to replace
The voltage regulator is used in electronic instruments, office equipment, communication equipment, automotive electronics, machine industry, security monitoring, medical equipment, industrial manufacturing, household appliances

وصف

Product Name: L7805CV TO-220 IC / Three-Terminal Voltage Regulator

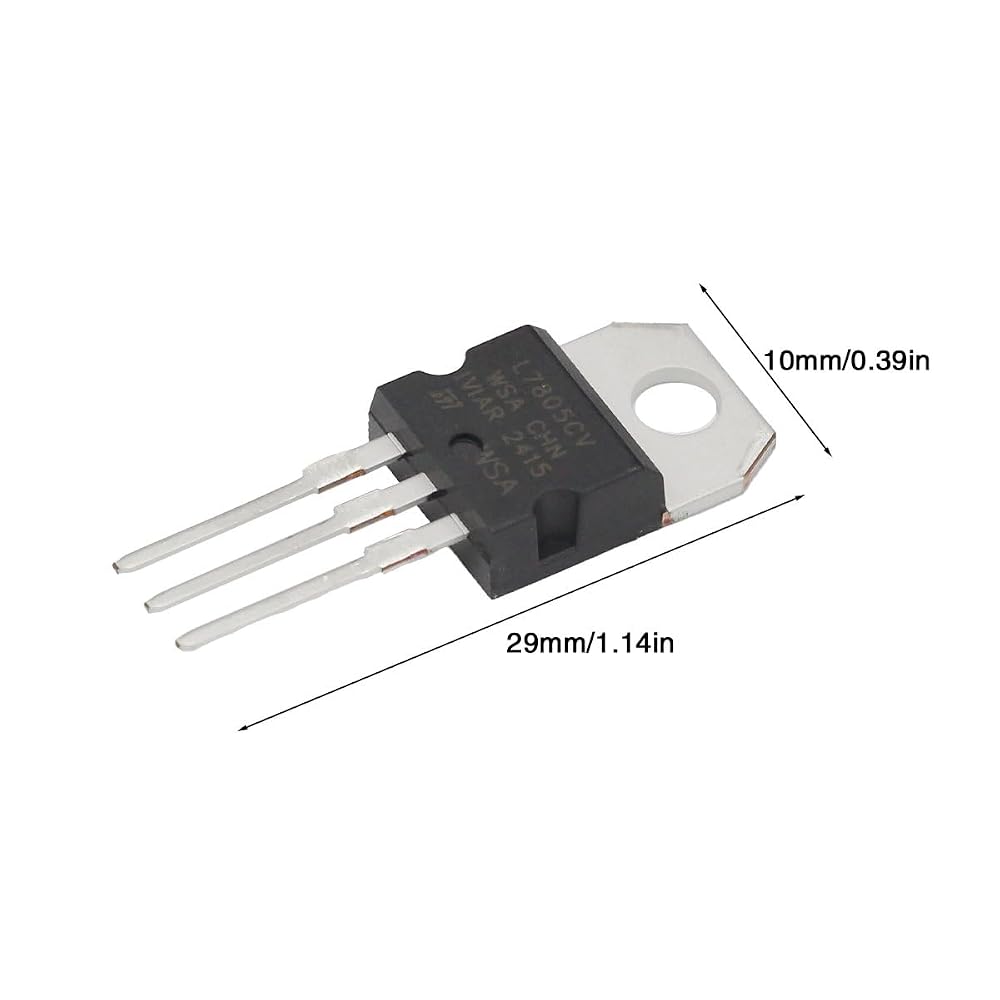

Dimensions: 3cm(L) × 1cm(W) × 0.3cm(H) / 1.18in × 0.39in × 0.12in
Weight: 3g / 0.11oz
Output Configuration: Positive Voltage Regulator
Output Voltage Range: 4.75-5.25V
Input Voltage Range: 7-35V
Quiescent Current Range: 4.2-8mA
Control Type: Linear Regulator
Max Output Current: 1.5A
Operating Temperature: 0°C ~ 125°C
Package: TO-220
Protection Features: Thermal Protection and Overcurrent Protection
Description:

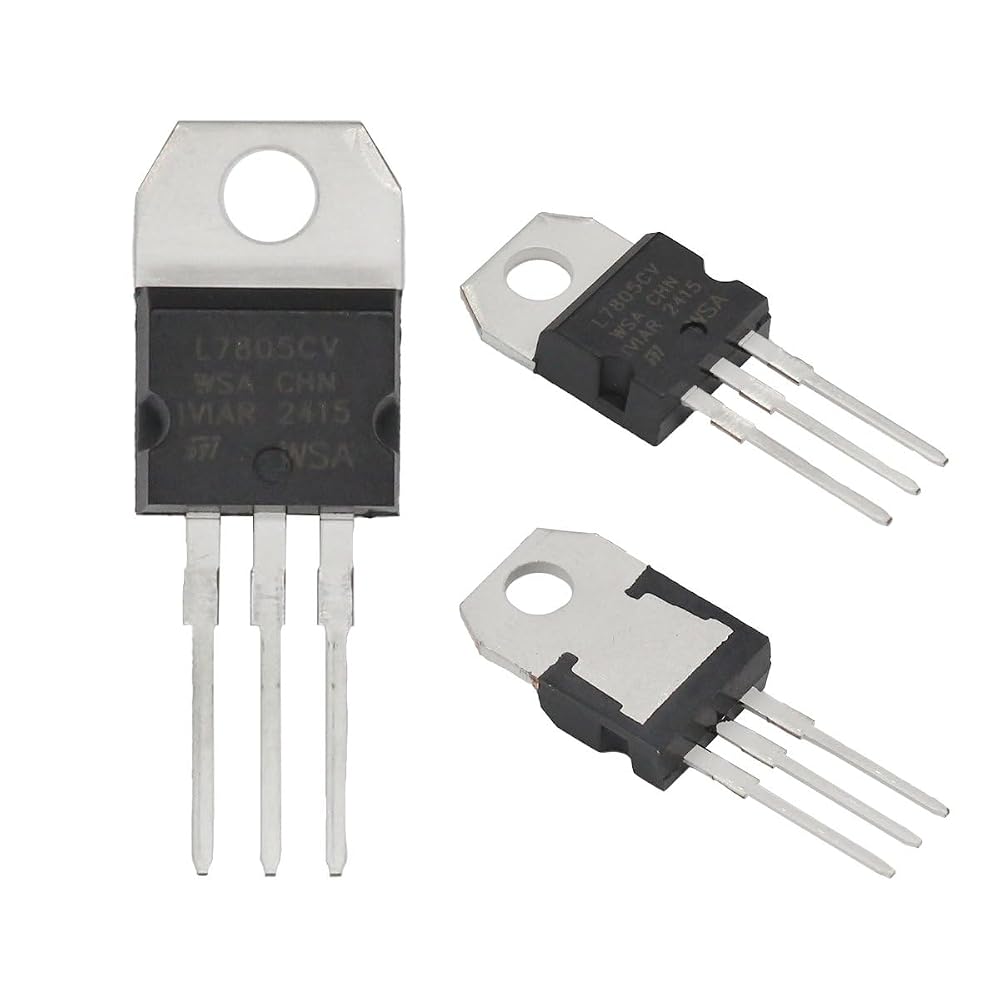

The L7805CV three-terminal voltage regulator has the following pin configuration:
Pin 1: Input (+7V to +35V)
Pin 2: Ground (Common)
Pin 3: Output (+5V)
Function:
When a DC voltage of 7V to 35V is input at pins 1 and 2, the regulator outputs a stable 5V DC voltage from pins 2 and 3, even if the input voltage fluctuates.
