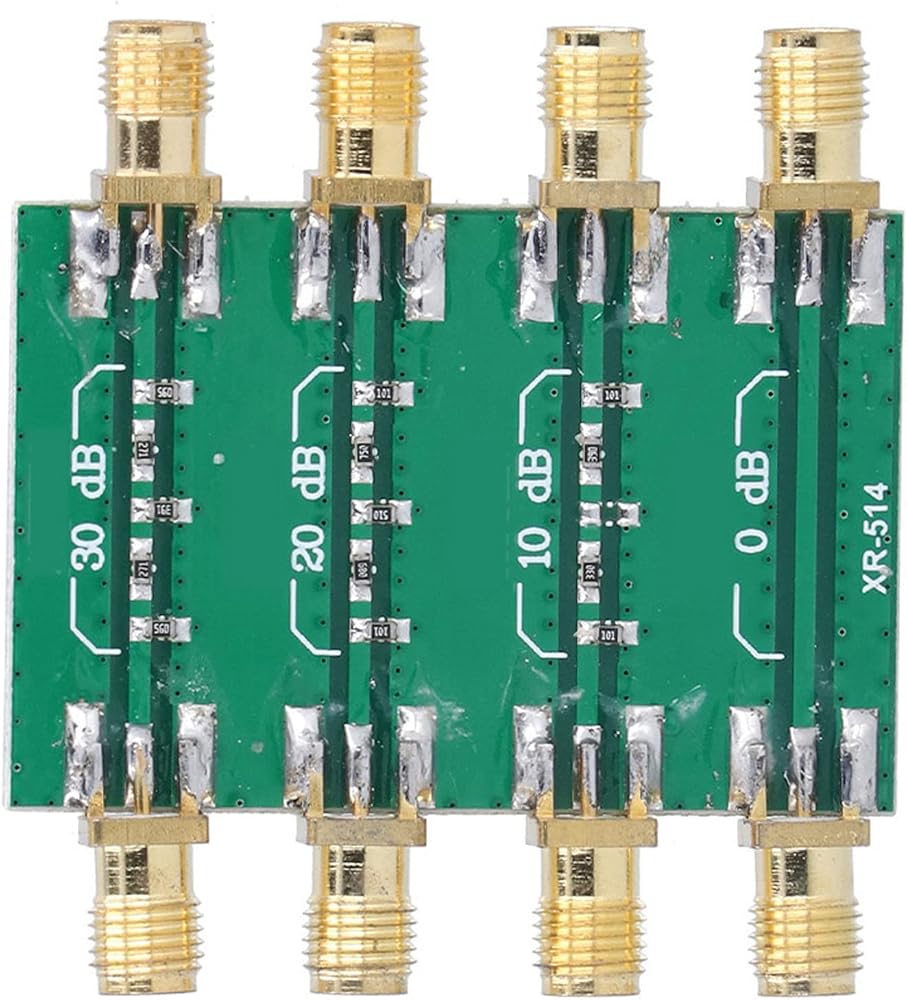

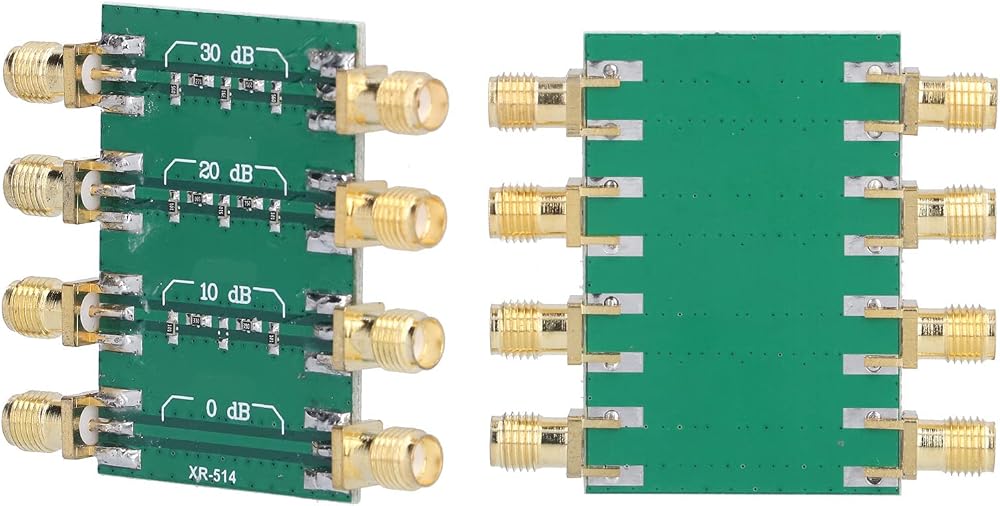

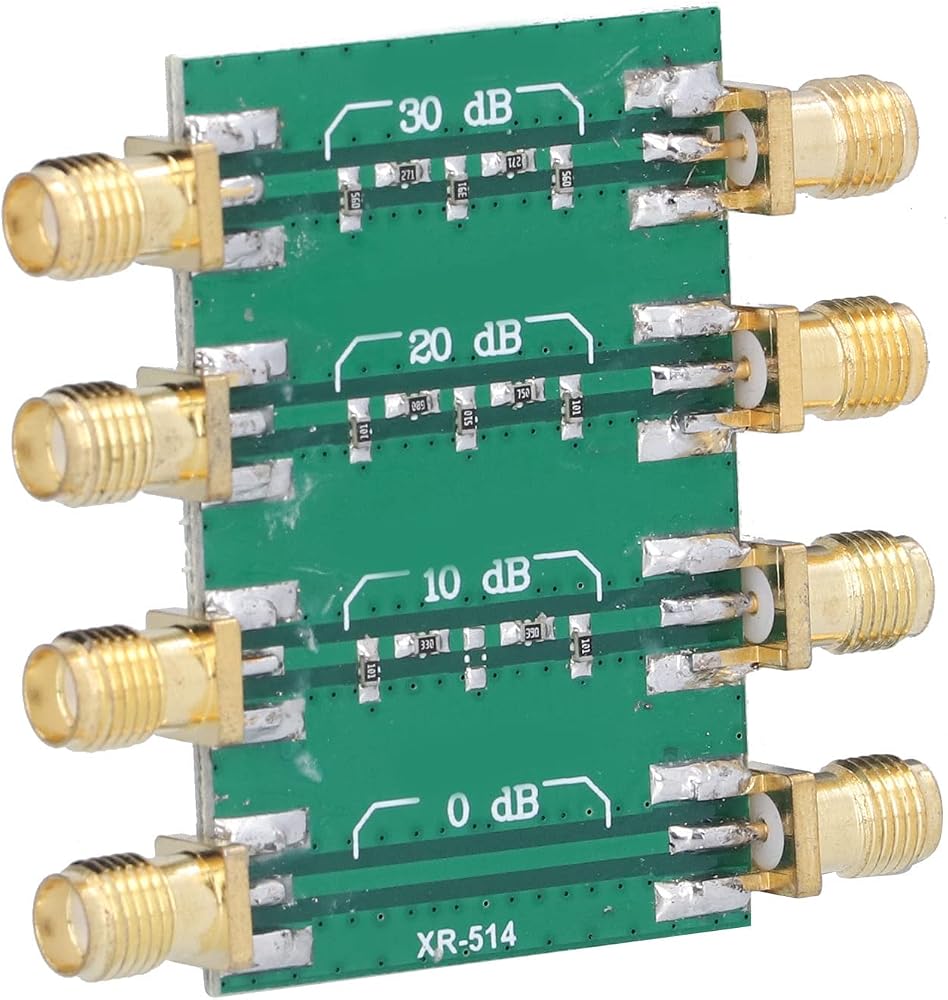

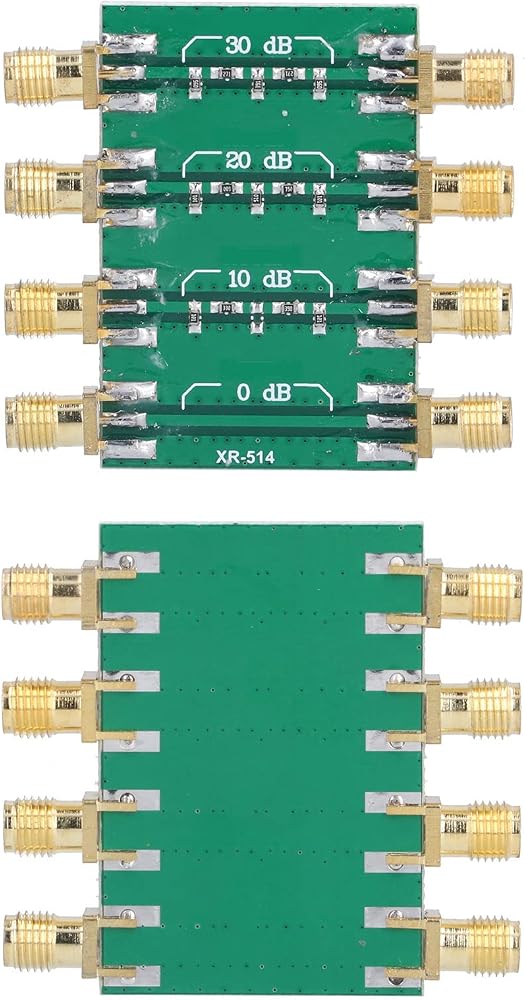

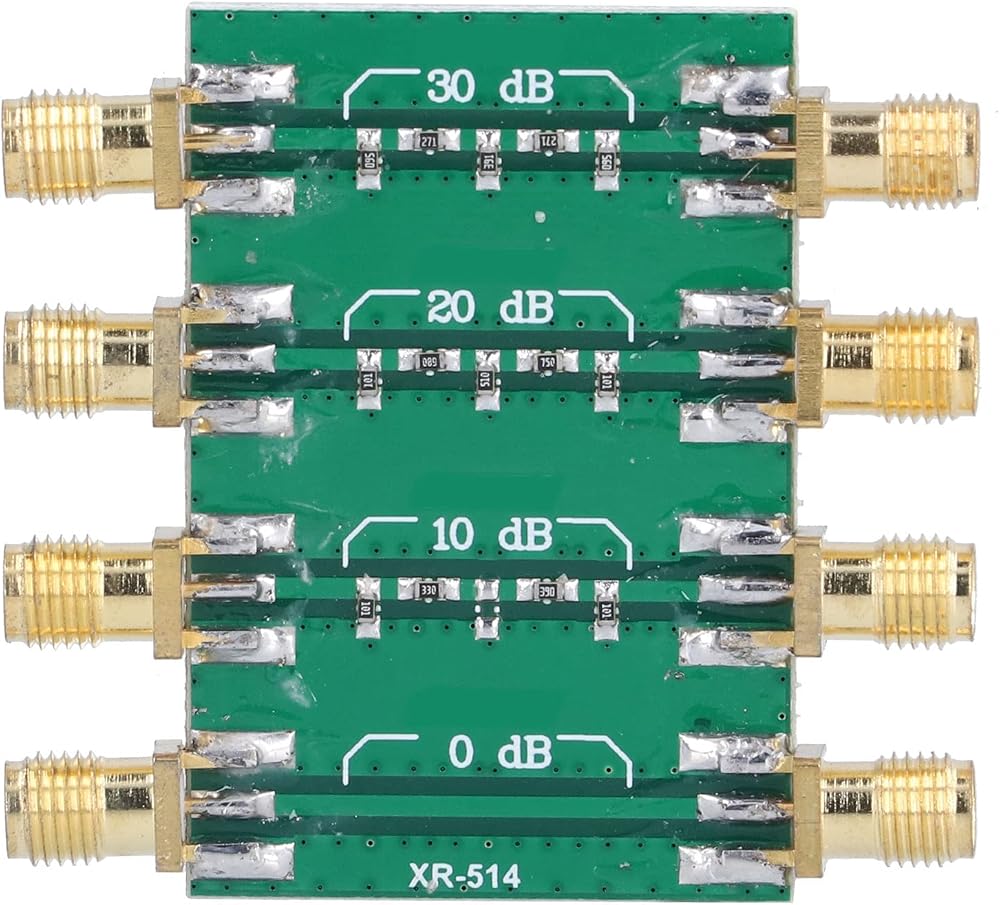

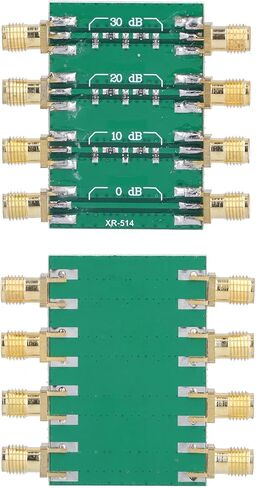

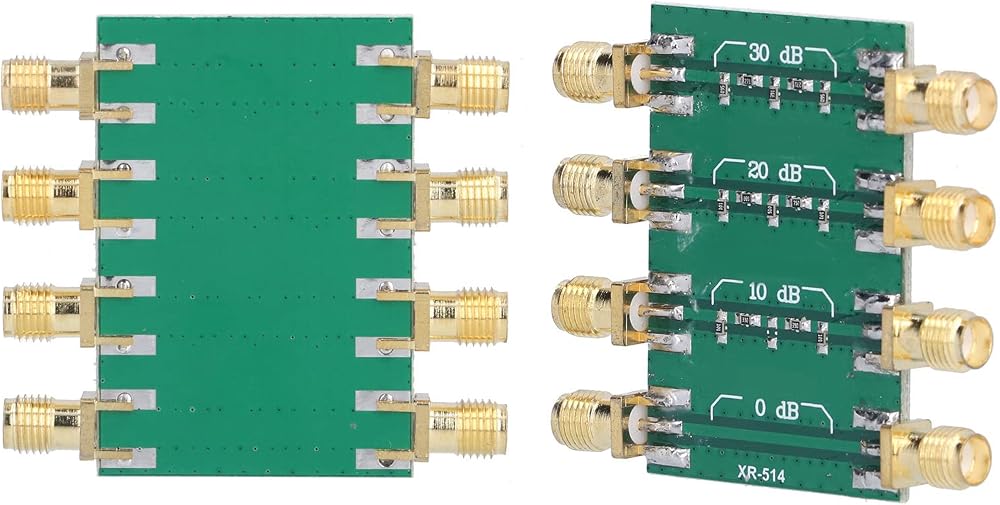

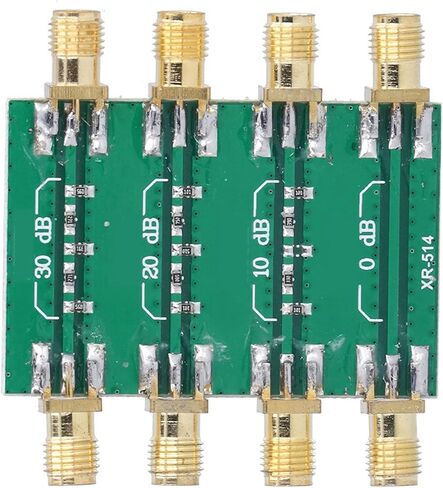

[PRECISE SIGNAL CONTROL] This Digital RF Attenuator Module provides accurate and adjustable signal reduction for your electronic circuits. It features four distinct attenuation levels: 0dB for reference, 10dB, 20dB, and 30dB with tight tolerances. Widely used in RF communication systems, testing equipment, and signal processing units to precisely manage signal strength and prevent overload, ensuring optimal performance and clarity in your signal chain from DC up to 4.0GHz.
[STABLE IMPEDANCE BUFFERING] Improve your system's impedance matching and stability with this module's excellent buffering capability. It acts as a crucial buffer between circuit stages, mitigating the impact of impedance changes and ensuring a relatively stable load. This function is vital for maintaining signal integrity, reducing reflections, and protecting sensitive components in demanding RF applications where consistent performance is non-negotiable.
[ PERFORMANCE] Engineered for robust operation across a broad frequency spectrum from DC to 4.0GHz. The module maintains a low Standing Wave Ratio (SWR) of ≤1.20 and a 50Ω system impedance, ensuring minimal signal reflection and maximum power transfer. With a maximum power handling of 23dBm (200mW), it delivers reliable, performance for amateur radio, lab testing, and professional communication setups.
[DIRECT READOUT CONVENIENCE] Simplify your measurement and calibration processes with the functionality. In comparative measurement circuits, you can instantly and directly read the attenuation value applied to the network under test. This user-friendly feature saves time, enhances accuracy during prototyping, troubleshooting, and system tuning, making it an indispensable tool for engineers and technicians.

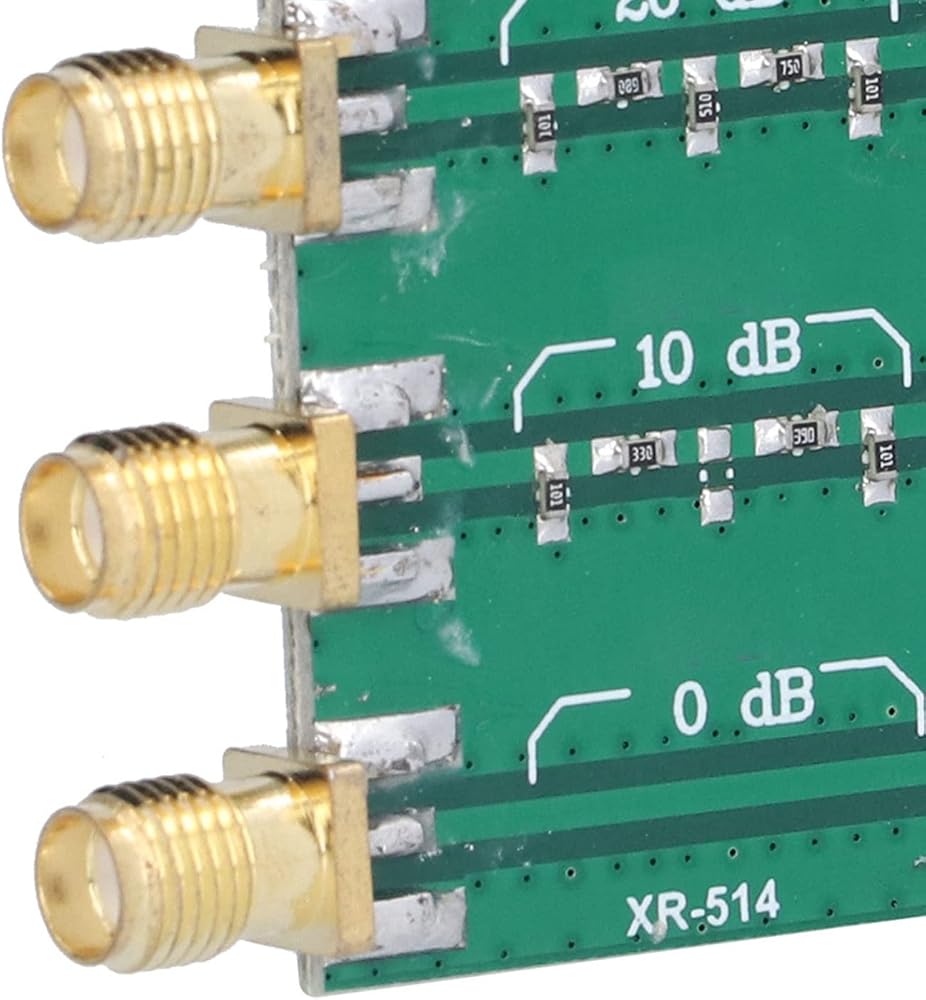

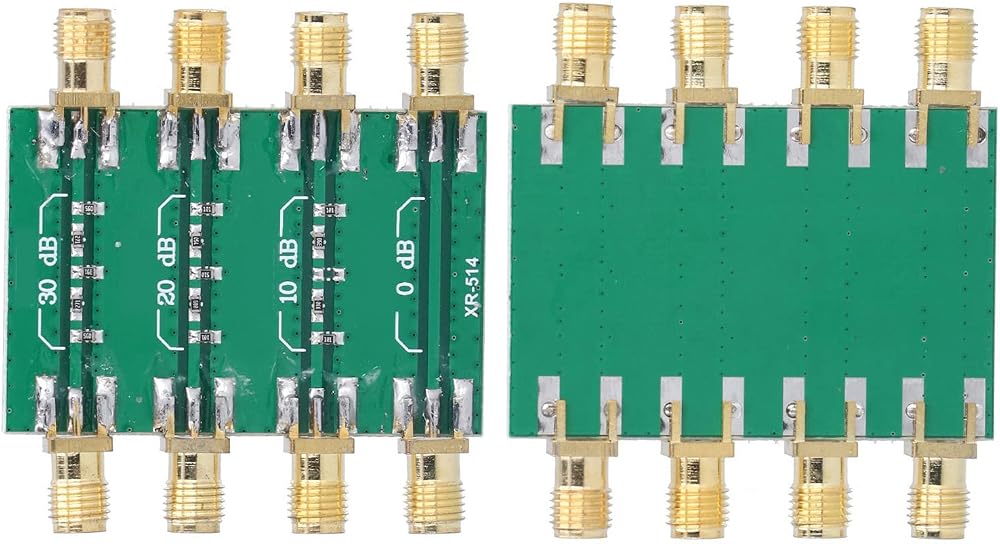

[RELIABLE & DURABLE CONSTRUCTION] Built for longevity and consistent operation using a PCB with uniform carbon film resistors. This construction offers excellent electrical performance with minimal
