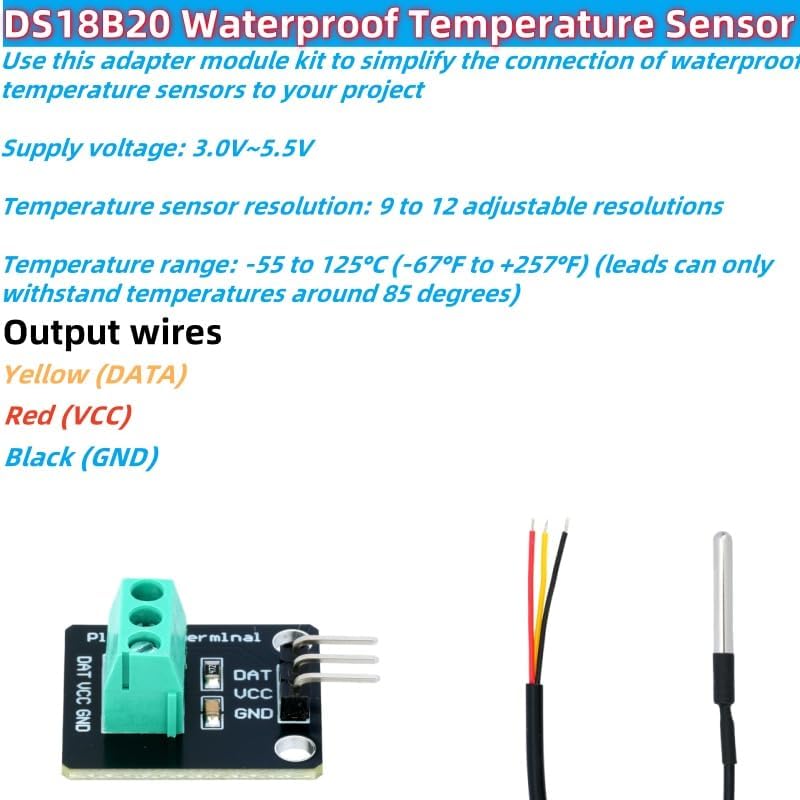

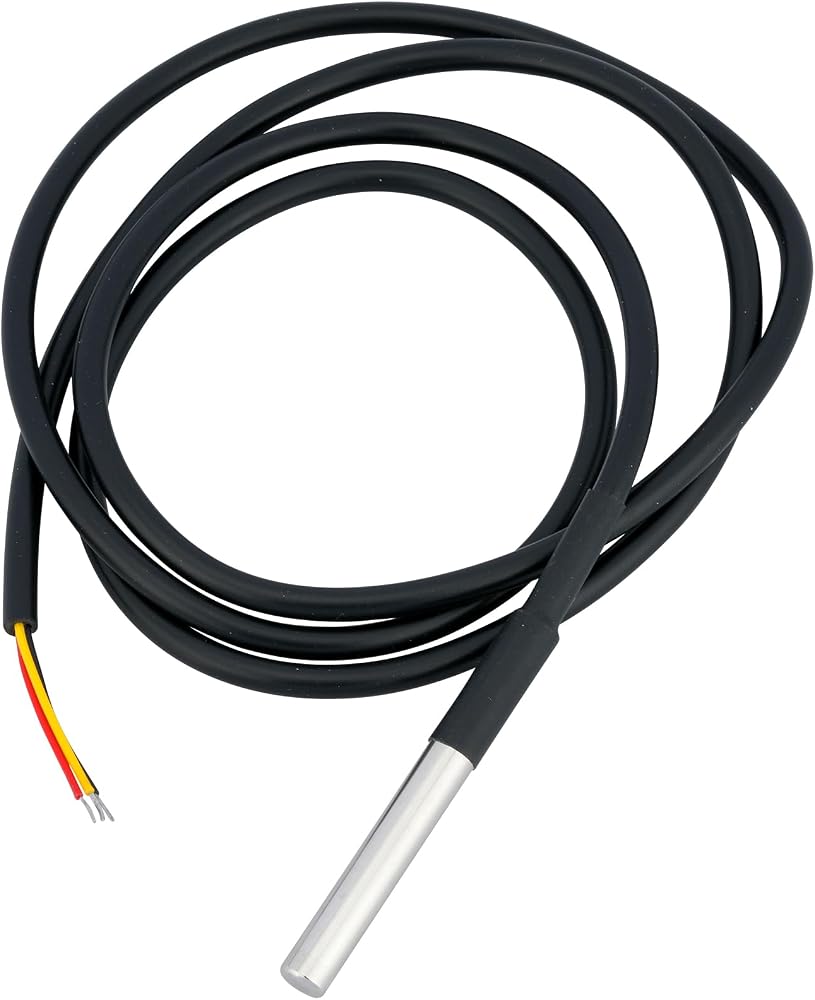

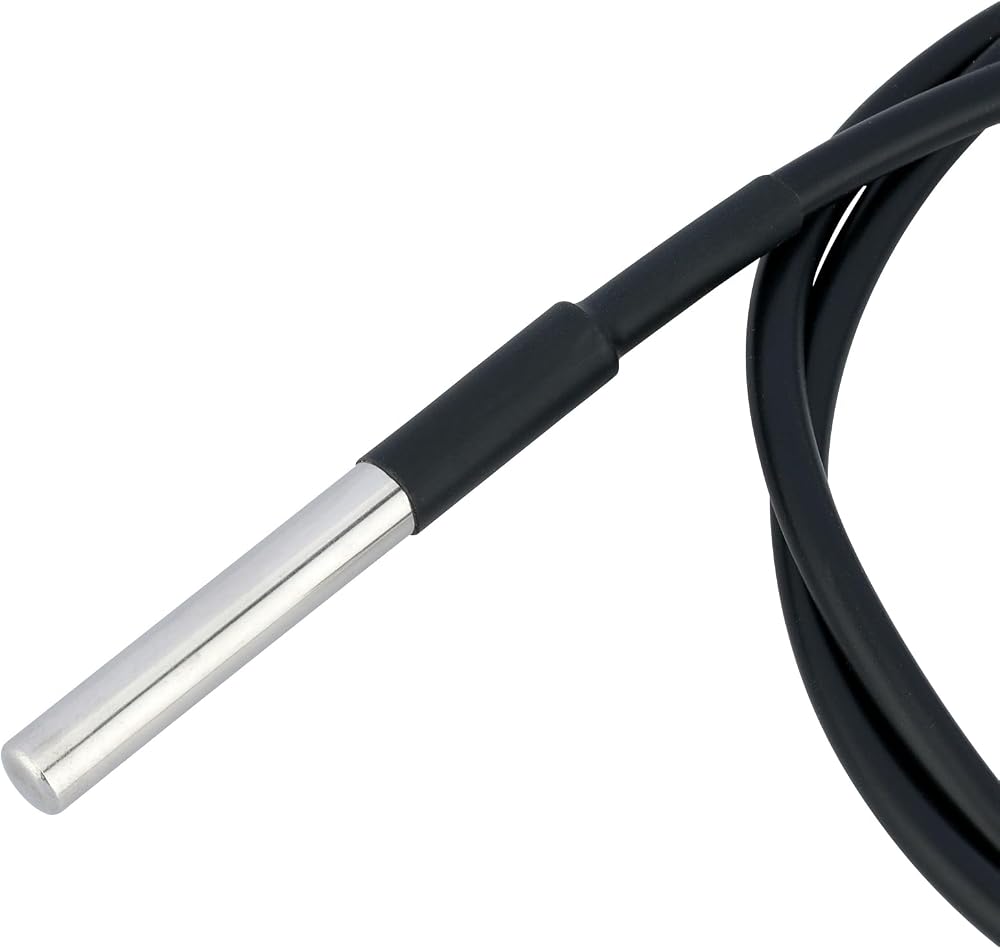

DS18B20 Waterproof Temperature Sensor: Use this adapter module kit to simplify the connection of waterproof temperature sensors to your project
Supply voltage: 3.0V~5.5V
Temperature sensor resolution: 9 to 12 adjustable resolutions
Temperature range: -55 to 125°C (-67°F to +257°F) (leads can only withstand temperatures around 85 degrees)
Output wires: yellow (DATA); red (VCC); black (GND)
Adapter cable: green (DATA); red (VCC); black (GND)

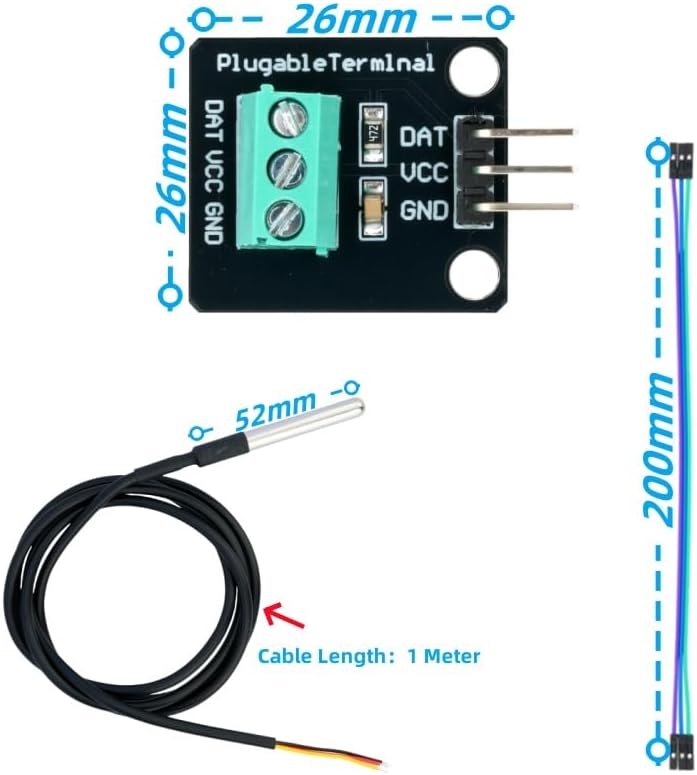

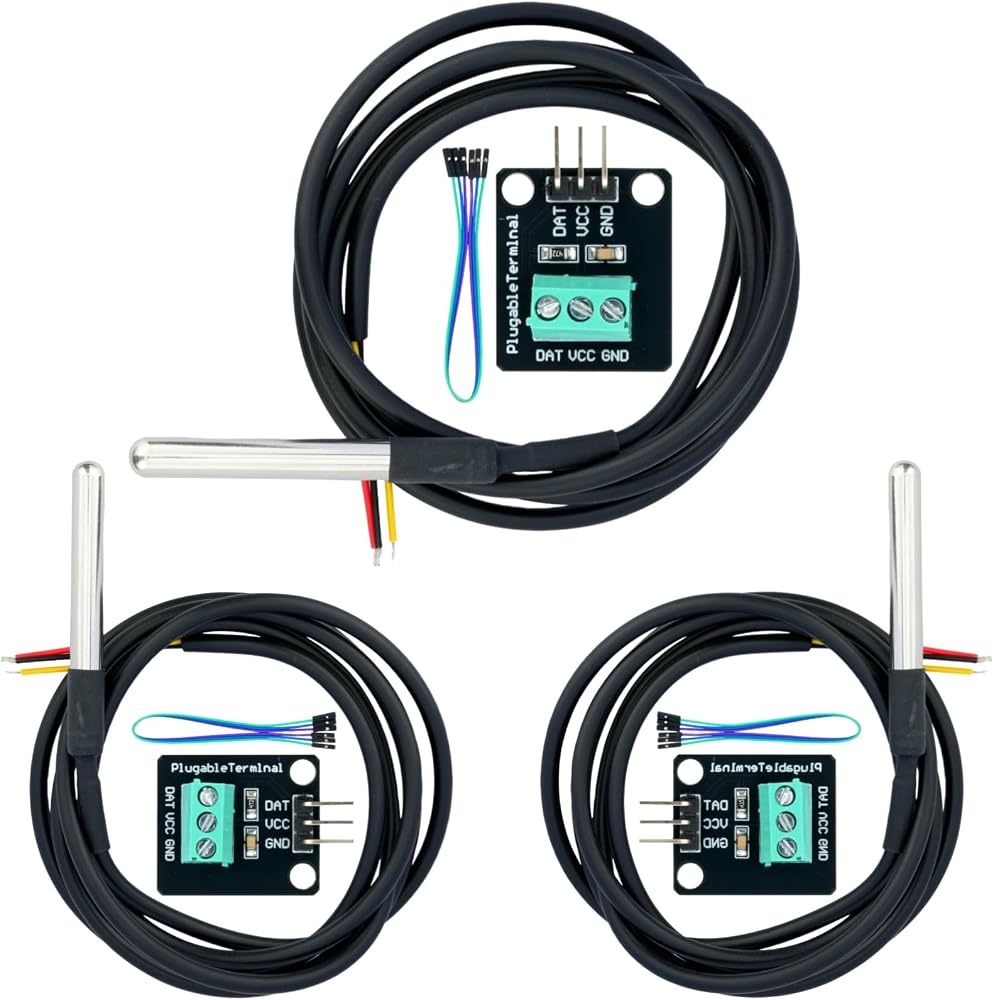

Item includes: 3Pcs DS18B20 temperature sensor; 3Pcs pluggable terminal adapter; 3Pcs 3Pin cable
The field temperature is directly transmitted digitally using a "single-wire bus", which is suitable for field temperature measurement in harsh environments
The temperature can be directly measured in places such as water or soil

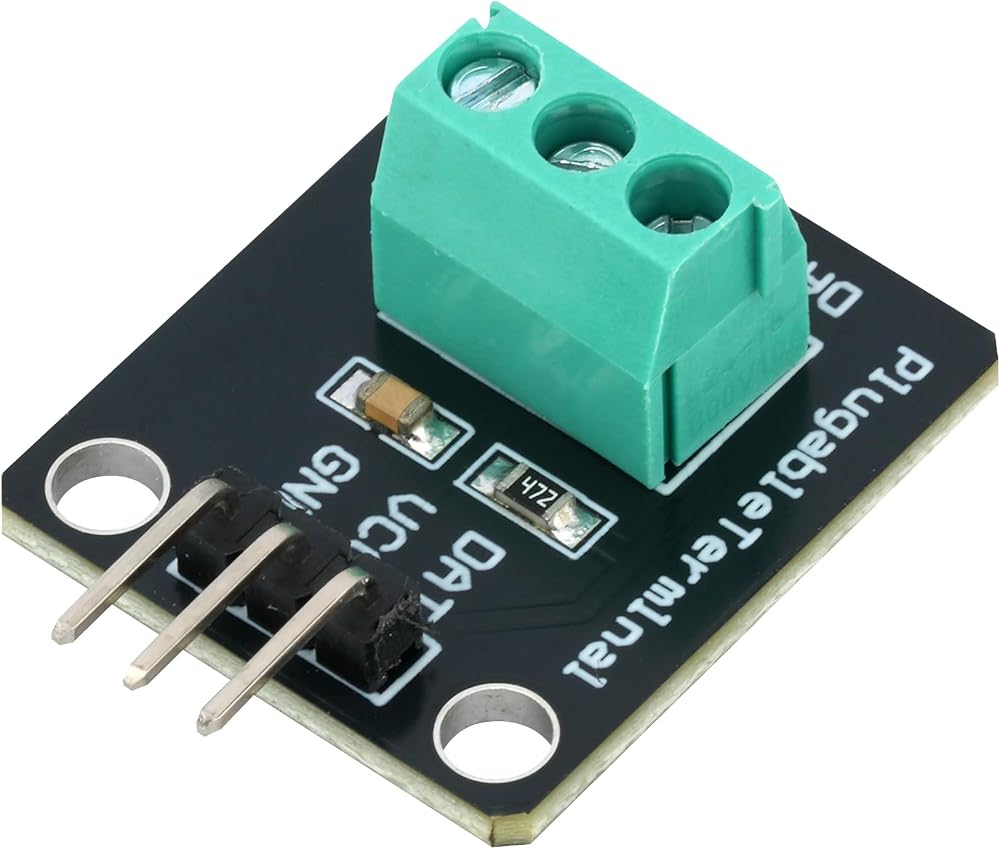

The adapter module comes with a pull-up resistor and can be directly connected to the Raspberry Pi compatible GPIO without the need for external resistors
