مميزات خاصة

WIDE APPLICATIONS: The T2000 series pressure transmitter is a good quality, high reliability product for high volume, low spend OEM, civil and industrial use
HIGH OVERLOAD CAPACITY: The NPT1/4 pressure transmitter has standard voltage and current output mode. And it uses ceramic sensitive diaphragm with high overload capacity
FEATURES: The water pressure transmitter uses military technology for large scale production, with advanced design and technology, excellent and wear

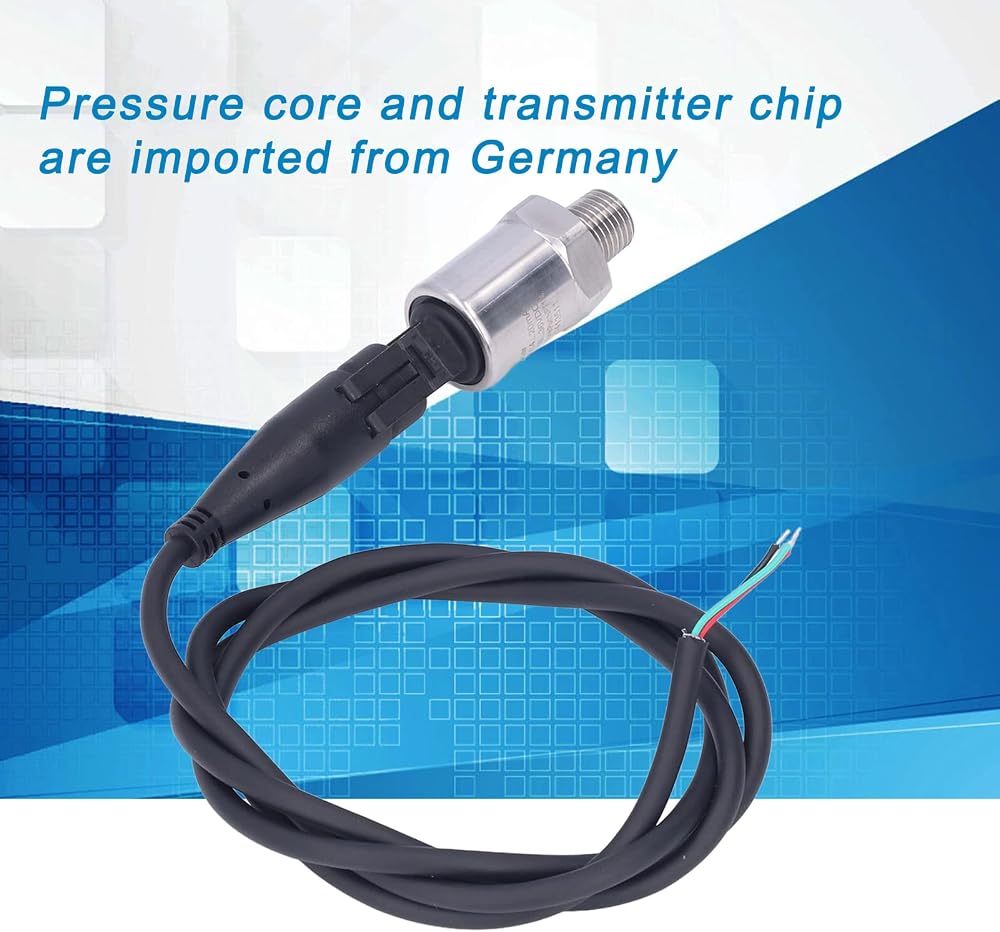

SPECIAL STRUCTURE: The pressure transmitter adopts good quality stainless steel structure, the pressure core and transmitter chip are imported from Germany, using adjustment and digital compensation technology
SPECIFICATION: Accuracy: ±1.0%F.S, Stability: ±0.5%F.S/year, Working Temperature: -20~+80℃, Storage Temperature: -40~100℃, Output : 4-20mA, Power Supply: 10-36VDC

وصف

Specification:

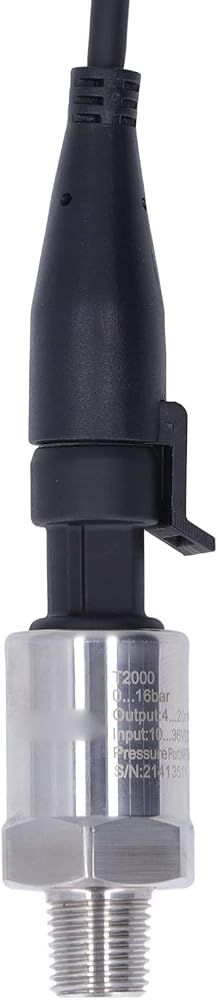

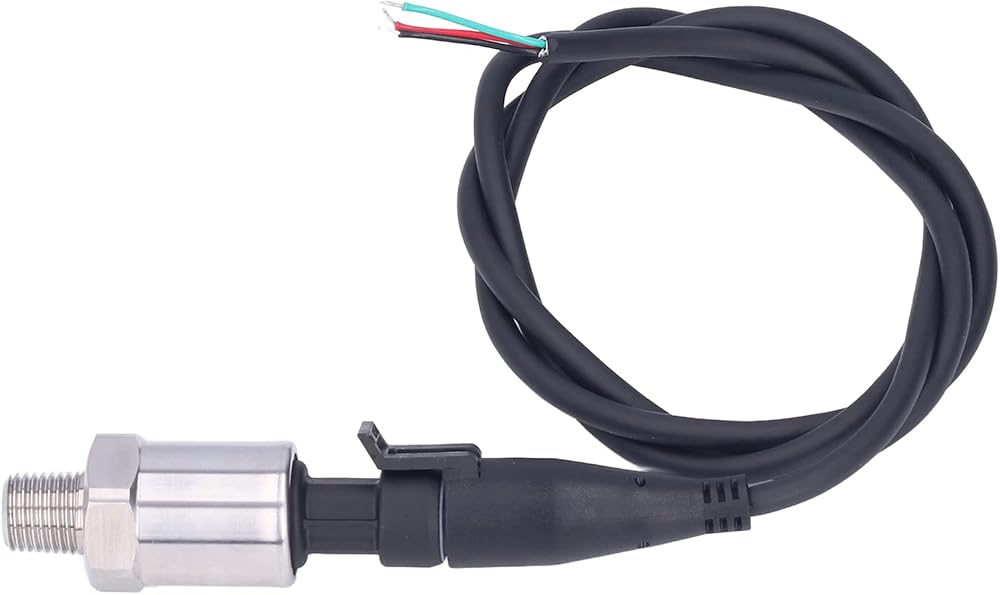

Item Type: Pressure Transmitter
Pressure Range: 0-16bar
Overload Pressure: 1.5 Times the rated pressure
Breaking Pressure: 3.0 Times the rated pressure
Accuracy: ±1.0%F.S
Stability: ±0.5%F.S/year
Working Temperature: -20~+80?
Temperature: -10~+70?
Storage Temperature: -40~100?
Measured Quality: All corrosive media compatible with 1Cr18Ni9Ti and ceramics

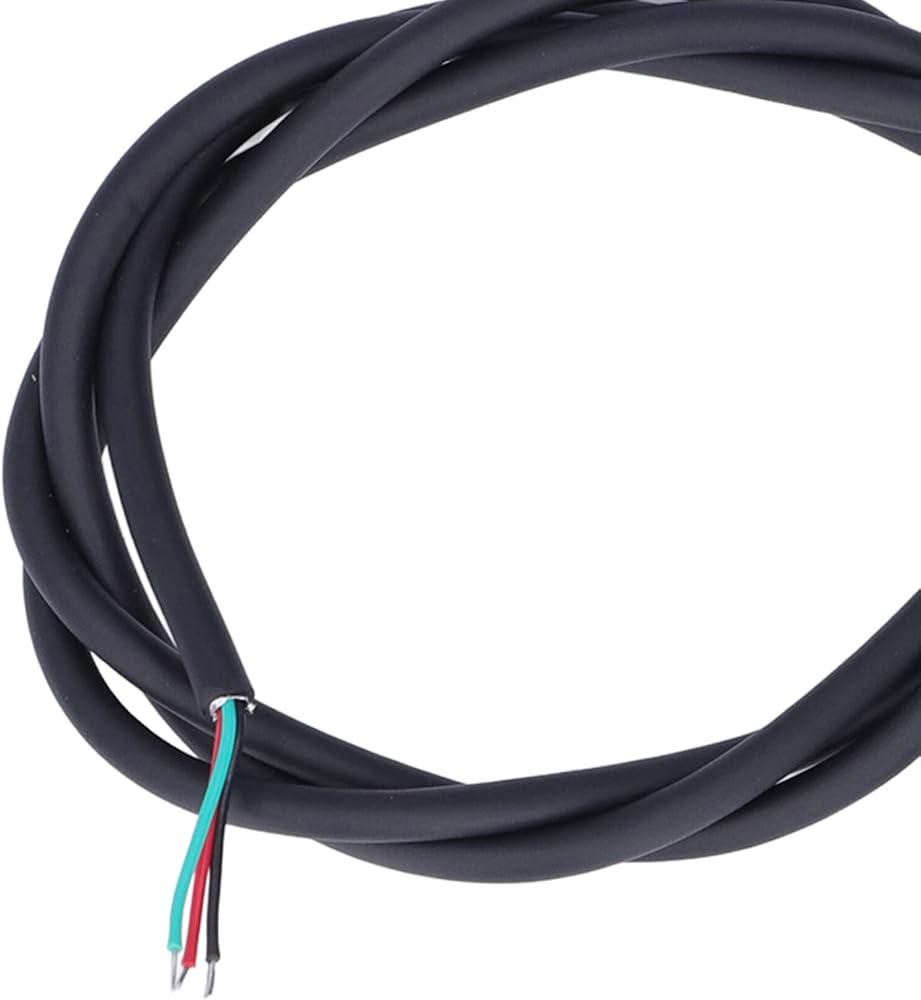

Electrical Performance: Three wire system
Output : 4-20mA
Power Supply: 10-36VDC
Electrical Connection: Plug
Shell Level: IP65

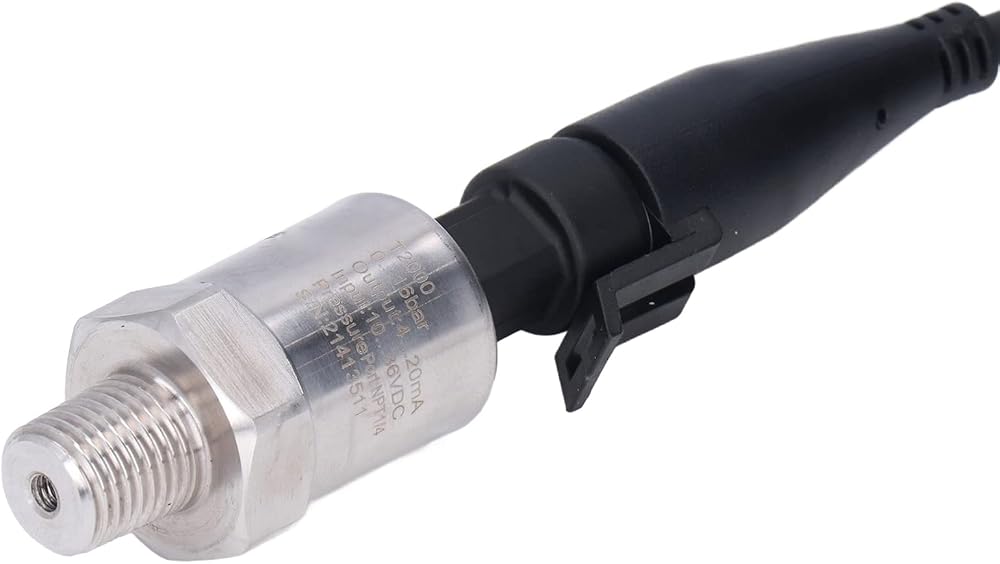

Pressure Port: NPT1/4
Pressure Form: pressure G
Certification Items: Safety explosion proof type E, RoHS, EU electrical safety standards CE
Electromagnetic Compatibility:
Electromagnetic Emission: EN50081-1/2
Electromagnetic Sensitivity: EN50082-2

Package List:
1 x Pressure Transmitter
1 x User Manual

Note:
1. Measured at 25?, including linearity, repeatability and hysteresis
2. Unit Conversion: 1kgf/CM = 14.2psi; 1bar = 14.5psi

مرحبًا،

بحث

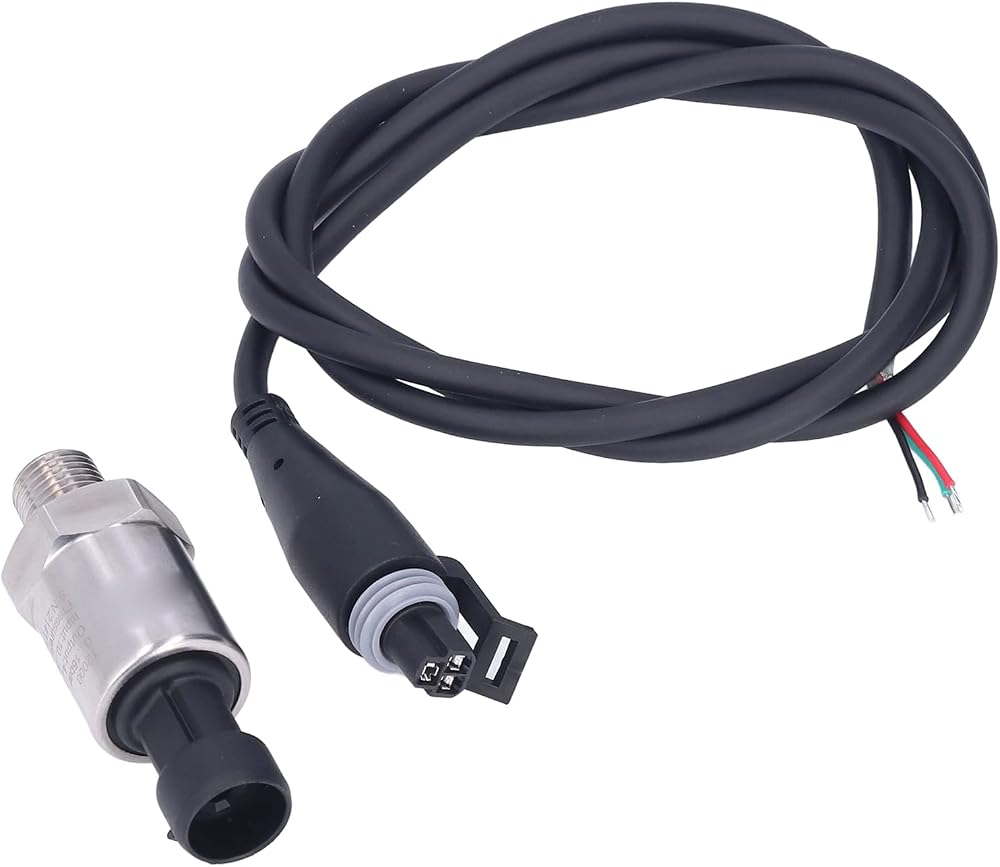

LiebeWH Pressure Transmitter, 016bar NPT1/4 420mA Universal Transducer Sensor Plug T2000 for Oil Fuel Air Water
