مميزات خاصة

Multi-Faceted Measurement: Outer circle, inner circle radius measurement, depth measurement, step measurement; inner diameter/outer diameter/high precision percentage three mode switching.
5 Interchangeable Measuring Jaws: 10mm/ 20mm/ 30mm/ 60mm/ 100mm. You can choose corresponding jaws according to your measuring needs. Maximum measuring speed greater than 1.5m/s.
Digital Accuracy Radius Gauge: It adopts multi-set measuring claw design, and selects measuring claws with different spans for different arc-shaped surface radii and measurement accuracy; it can be used in places where there are arc measurements such as mechanical parts, wooden molds and architectural steel molds.

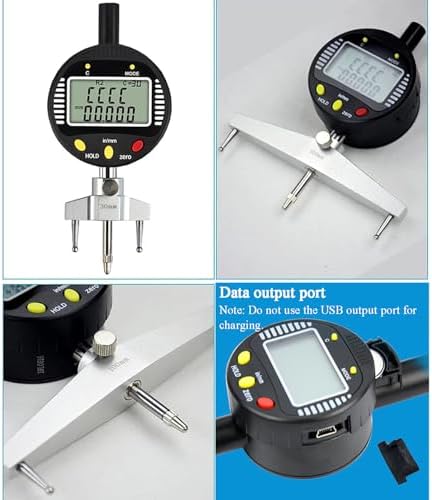

Data Transmission: USB data output port, which can be connected to a computer or printer for data processing; Note: Do not use the USB output port to charge.
High Quality: Hard aluminum alloy probe and shell,which is more resistant to corrosion and more durable than ordinary plastic and has a longer service life.

وصف

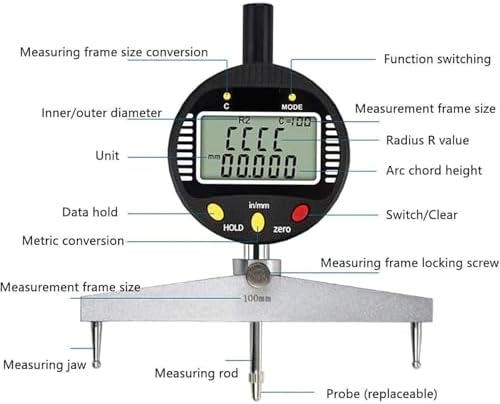

Feature:
- Zero Setting
- Inch/metric conversion

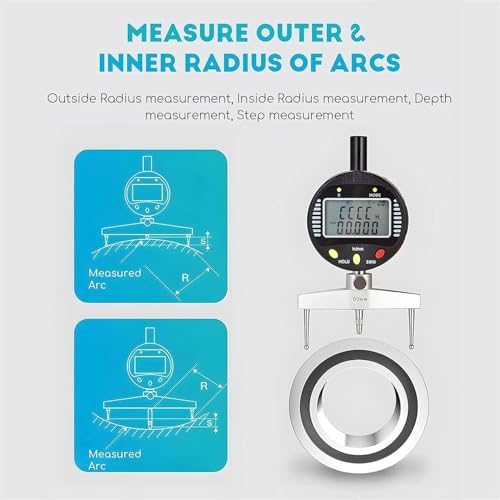

- Both measure Outer & Inner Radius of arcs
- Data output
- Large HD diplay

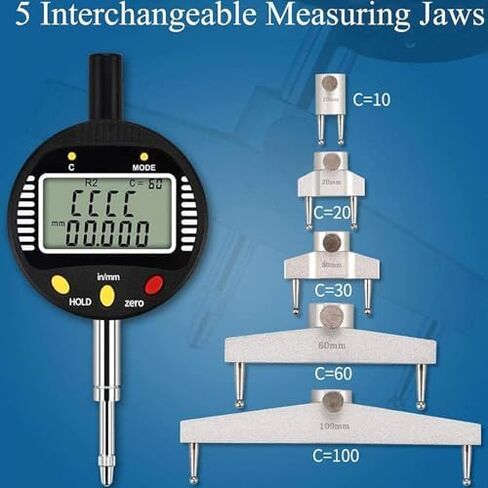

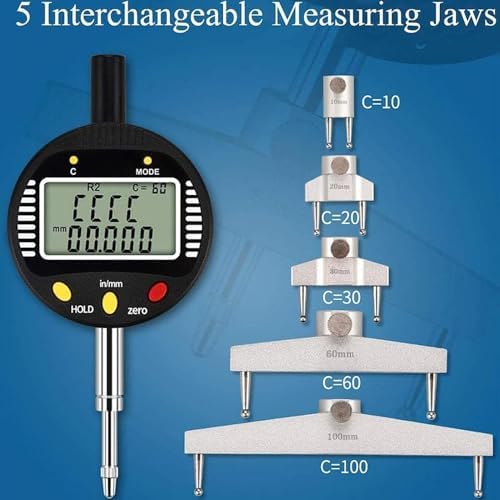

- 5 interchangeable Measuring Jaws

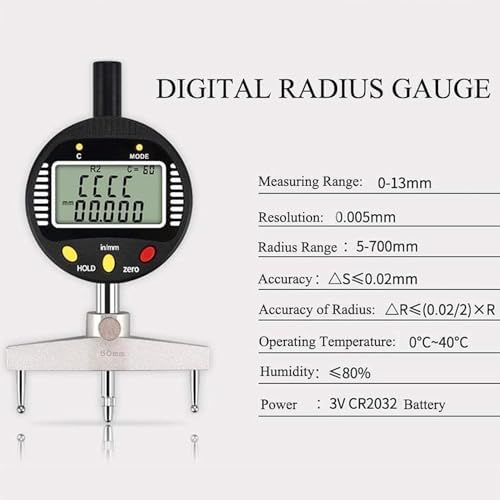

Specification:

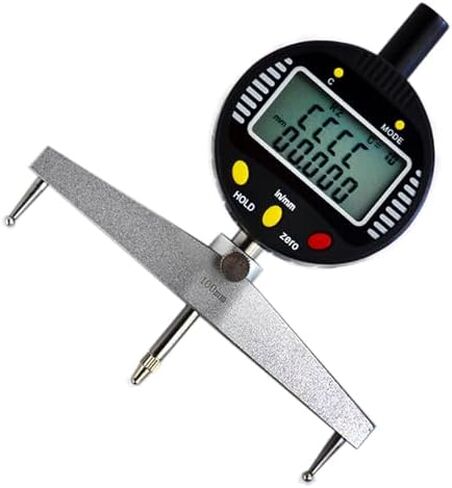

Name: Digital Radius Gauge
Material: aluminum alloy
Measuring range: 0-12.7mm
Accuracy: 20μm
Resolution (mm/in): 0.005/0.0005"
Radius Accuracy: Display range: length displacement 0-13mm
Radius range: 5- 700mm

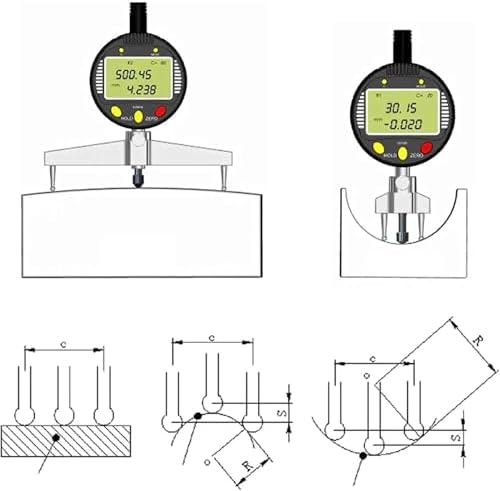

Note: R is the radius to be measured, S is the corresponding displacement value

Packing list:
1* Digital Radius Gauge
5* Measuring Jaws
1* USB data cable
