مميزات خاصة

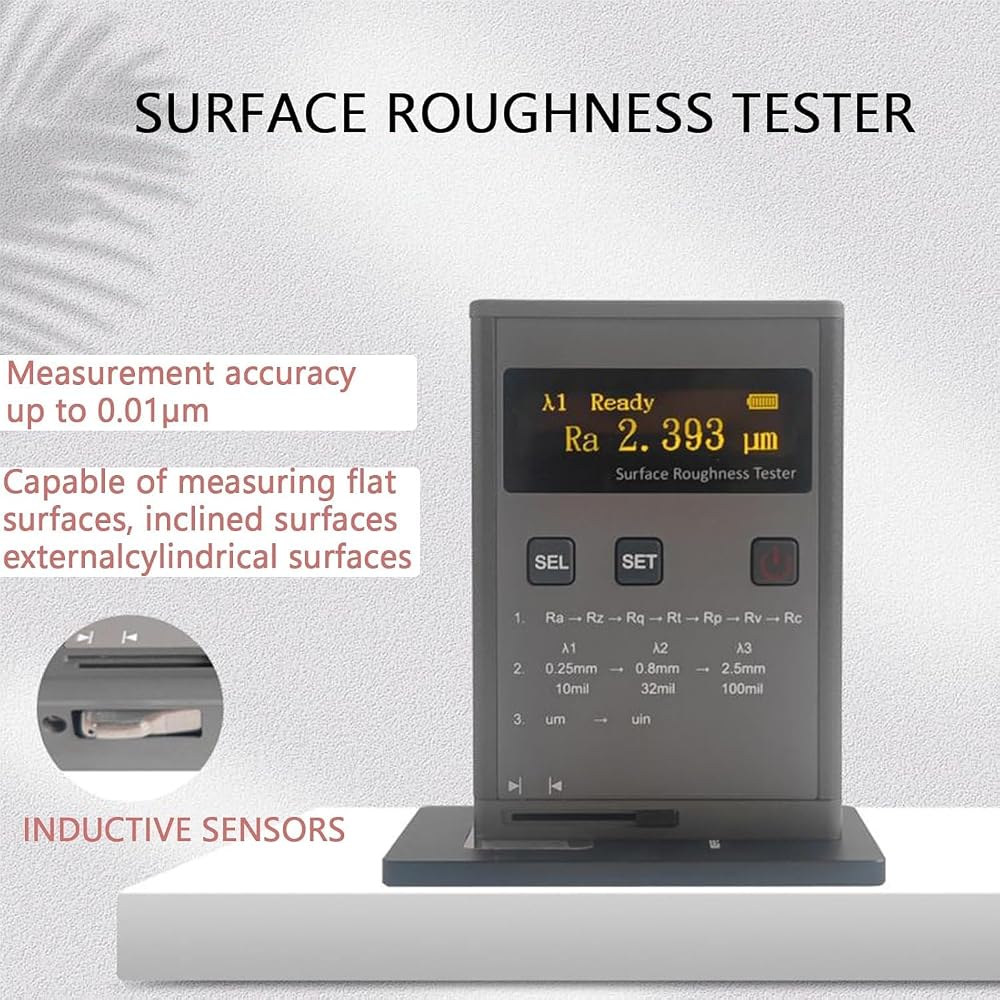

【Surface Roughness Meter】Measures roughness of round, flat, conical, ribbed surfaces (over 80×30mm). Fits industrial lines and precision tasks (e.g., auto parts, mechanical components), no surface-shape limits
【Ultra-High Precision】Display accuracy up to 0.01μm (catches tiny surface variations). Range: Ra 0.05-10.0μm/Rz 0.1-50μm, meeting high-end machining and quality check needs

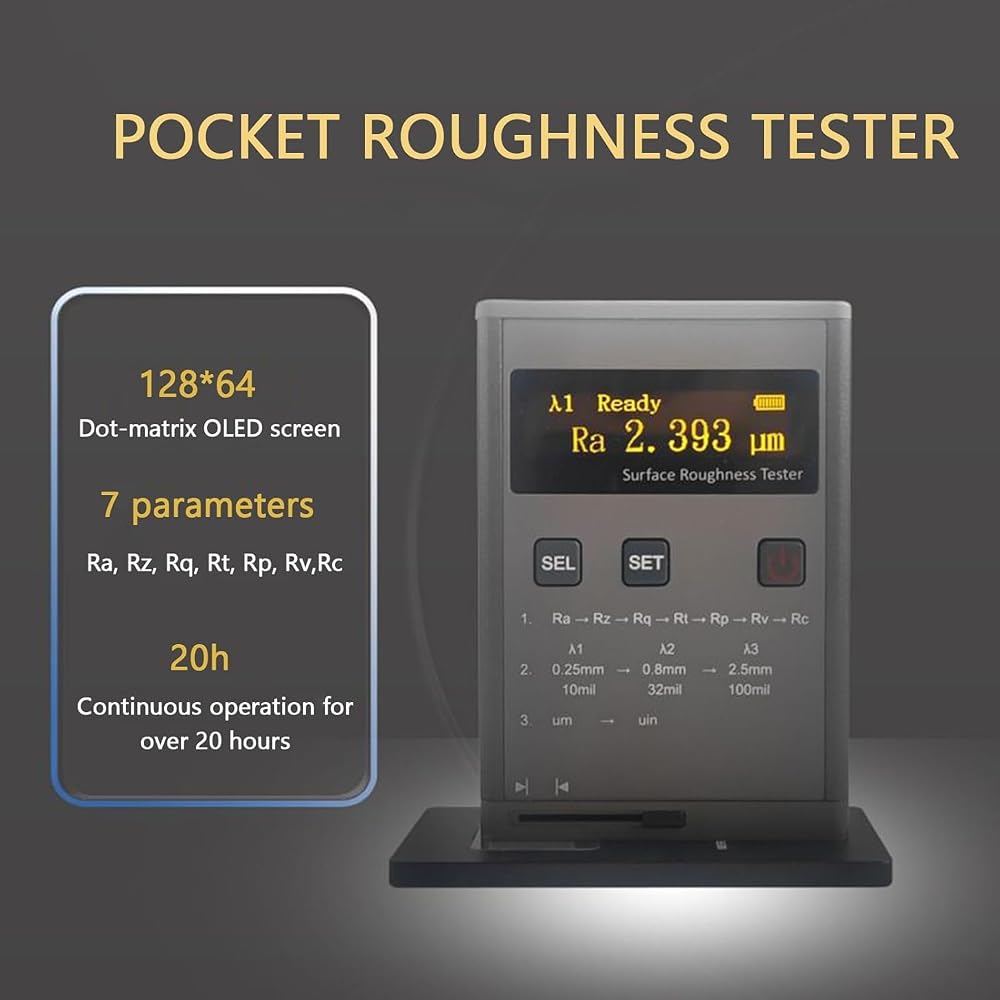

【7 Parameters】This device supports measurements for Ra, Rz, Rq, Rt, Rp, RV, and RC, offering insights on mean deviations and peak/valley heights. It allows for comprehensive surface quality analysis beyond just single metrics

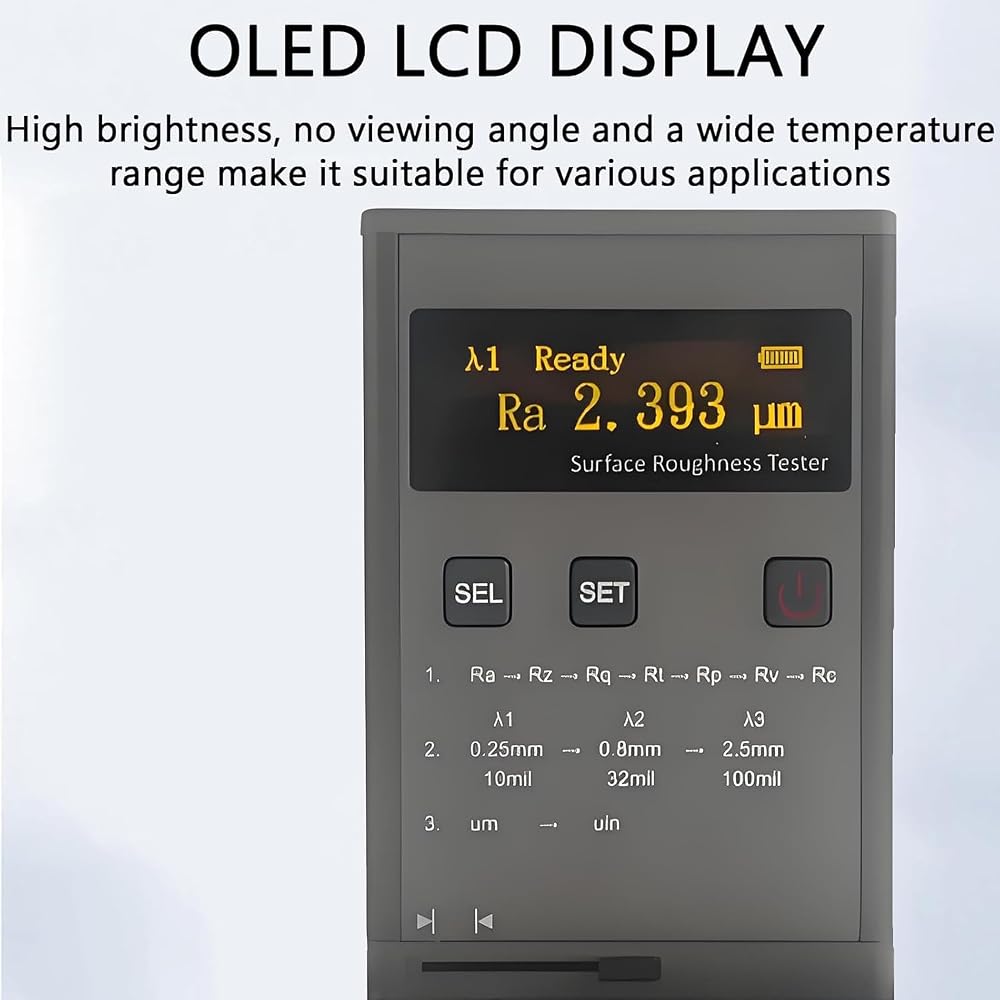

【Clear OLED Display】Wide-temperature OLED works in low/high-heat areas. High brightness/contrast ensures clear readings under direct/dim light, avoiding visibility-caused errors
【Rapid and Reliable】Equipped with a high-speed DSP processor, it accelerates data processing and provides precise results in seconds. This significantly reduces waiting time during batch tests and enhances quality control efficiency with consistent measurements

وصف

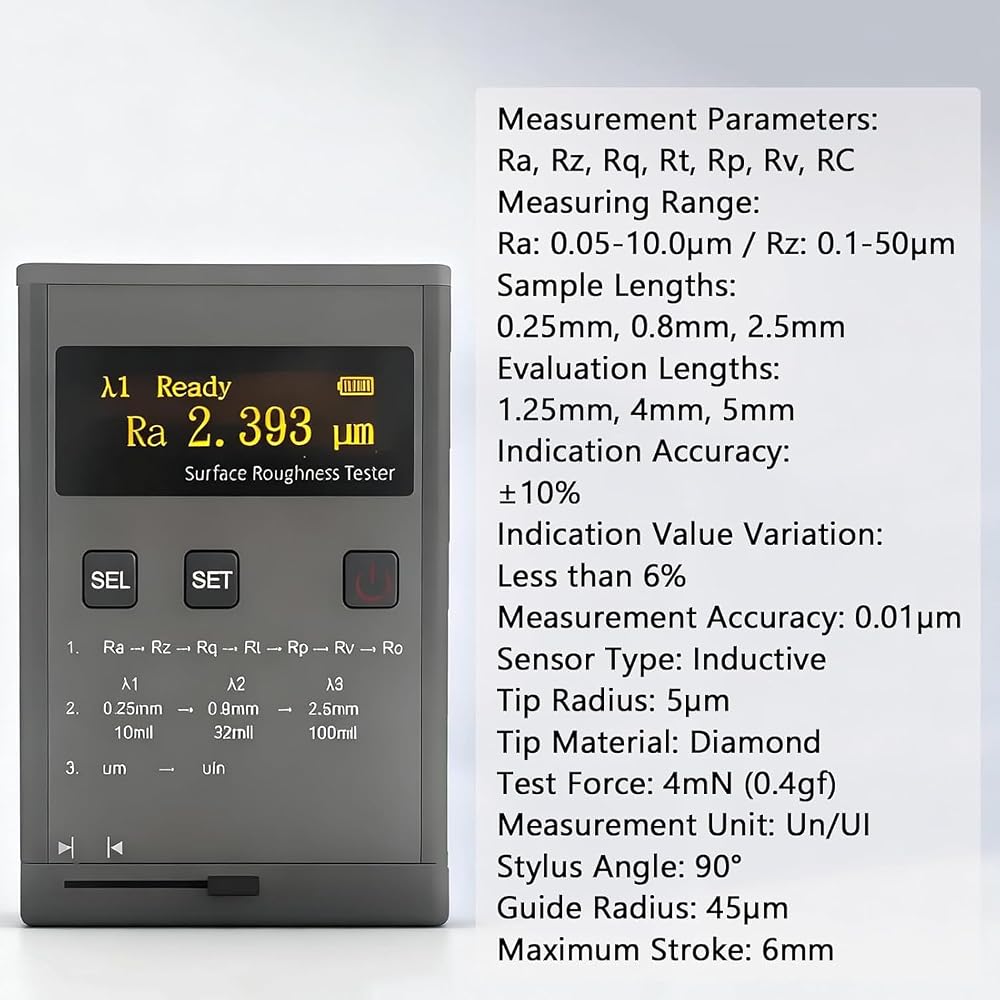

Specifications
Product Name: Surface Roughness Tester
Measurement Parameters: Ra, Rz, Rq, Rt, Rp, RV, RC
Measuring Range: Ra: 0.05-10.0µm / Rz: 0.1-50µm
Sample Length: 0.25mm, 0.8mm, 2.5mm
Evaluation Length: 1.25mm, 4mm, 5mm
Indication Accuracy: ±10%
Indication Variation: Less than 6%
Measurement Accuracy: 0.01µm
Sensor Type: Inductive
Probe Radius: 5µm
Probe Material: Diamond
Test Force: 4mN (0.4gf)
Measurement Unit: Un/Ul
Stylus Angle: 90°
Guide Radius: 45µm
Maximum Travel: 6mm
Weight: 200g

Packing List:
Surface Roughness Tester*1
