Reducer
Gearboxes Gearheads & Speed Reducers
Reducer parametersSpeed Ratios
1Stage (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1
2Stage (L2):15:1 / 20:1 / 25:1 / 30:1/ 35:1 / 40:1 / 50:1 / 70:1 / 100:1

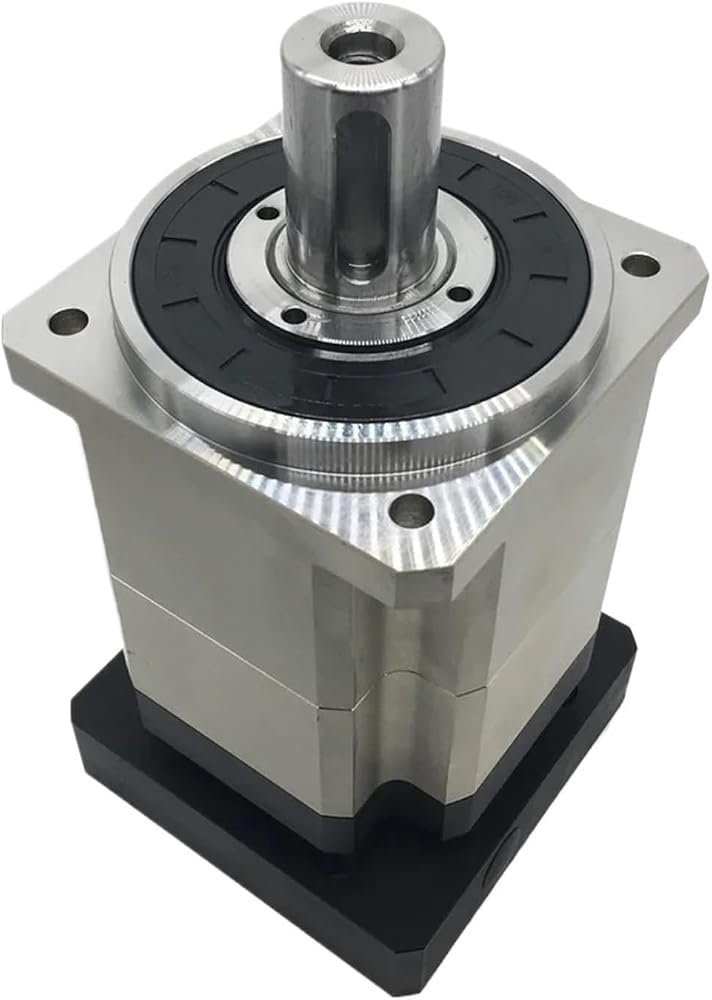

Product type:Helical Gear Planetary reducer
Input shaft: 35mm/42mm
Backlash Precision: Less than 3 Arcmin (L1) / Less than 5 Arcmin (L2)
Gear type:Helical Gear
Rated Tq:
1000Nm(5:1/ 7:1 /25:1/ 35:1/ 40:1/ 50:1) ;
800Nm (3:1/ 4:1/ 15:1/ 20:1/ 70:1) ; 700Nm ( 10:1/ 30:1/ 100:1)
Maximum Tq: 2* Rated Tq
Emergency braking Tq: 3* Rated Tq
Max radial force: 14500N
Max axial force : 7250N
Max input speed: 6000rpm
Rated input speed: 3000rpm
Transmission efficiency: More than 95% (L1) / More than 90% (L2)
Noise: less than 68dB
Working life time: 20000hProtection level: IP65
