[Measurement Parameters]: The Surface Roughness Gauge, offers the capability to measure Multiple surface roughness parameters, including Ra, Rz, Ry, Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp

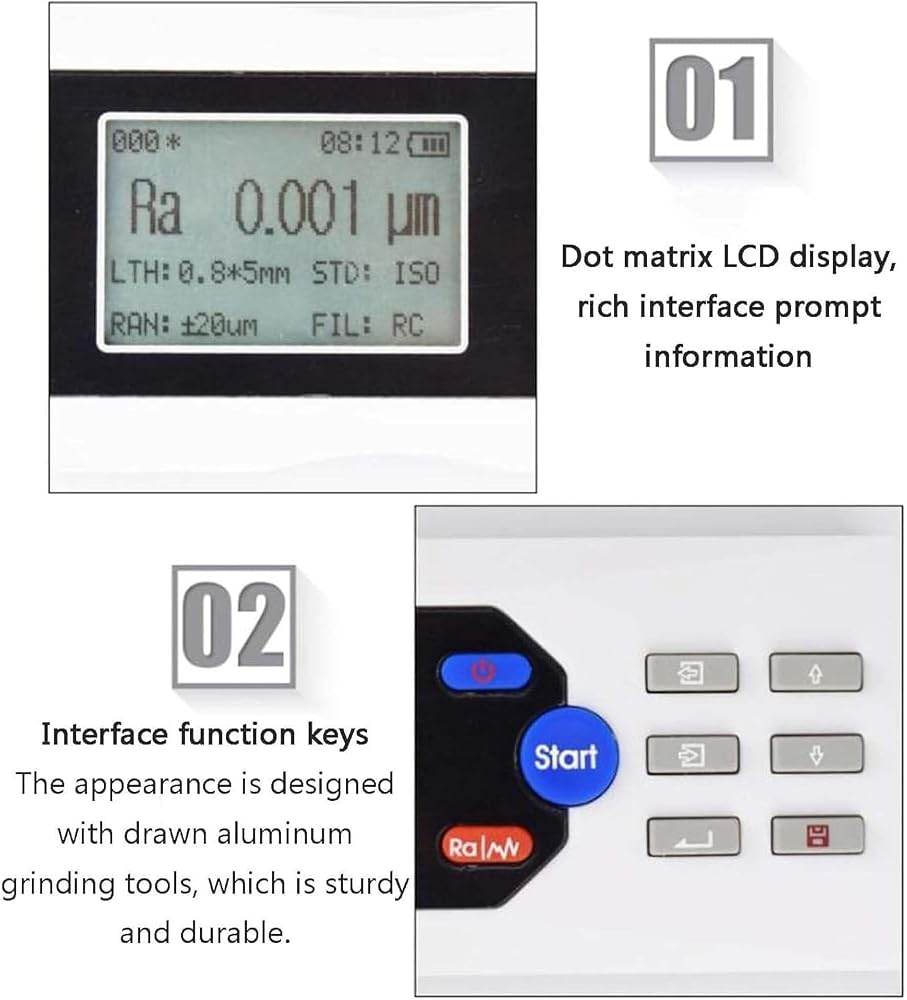

[Surface Roughness Tester]: It can measure the surface roughness of machined parts, calculate the corresponding parameters according to the selected conditions, and display all measured parameters and graphics
[Can Measure The Workpiece Range]: Plane, external surface, tapered surface, bore, groove, surface, etc. (special surface needs to be measured with applicable sensors)

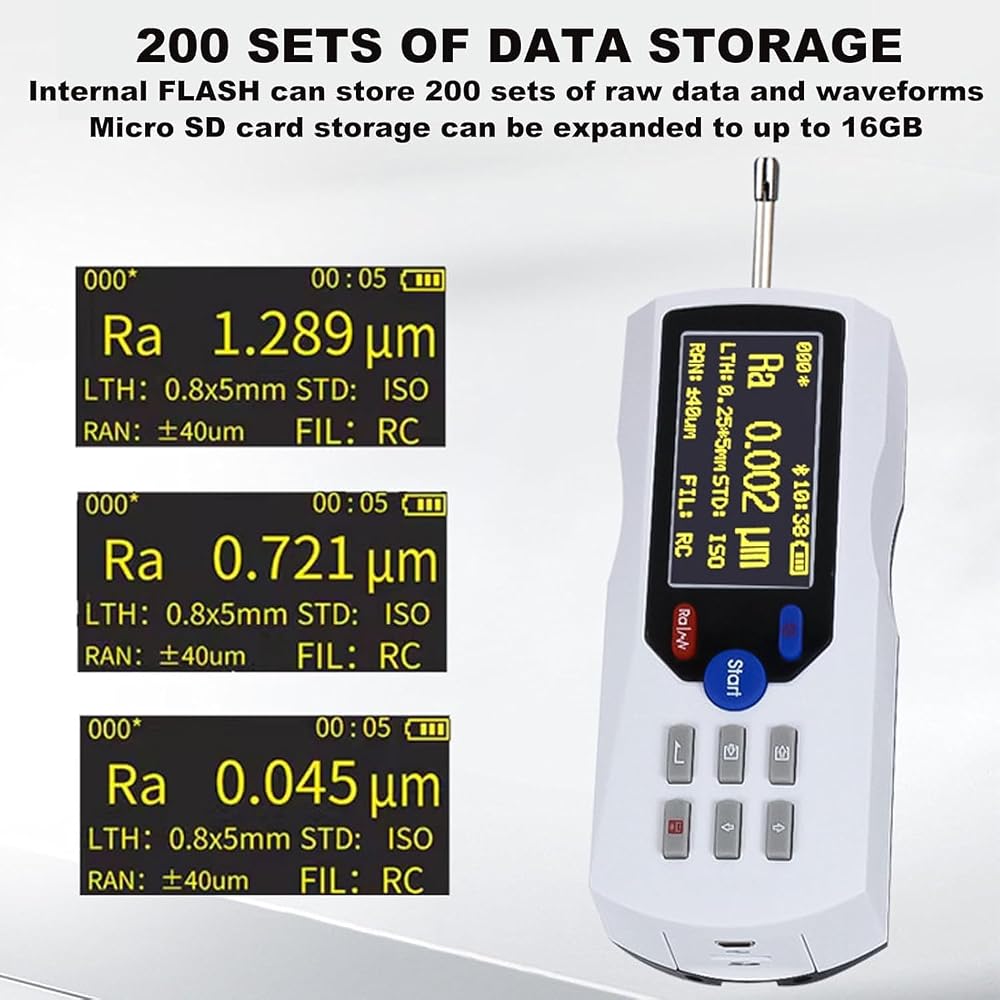

[Data Storage Function]: The profiler can store up to 100 sets of data and corresponding waveforms. Very useful for record keeping and data analysis. The USB interface allows external data transfer and connection

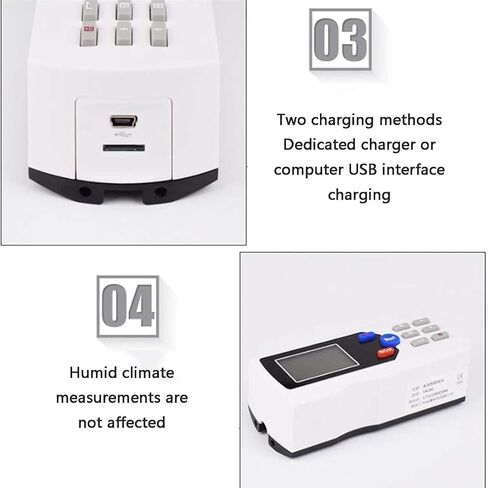

[Rechargeable]: Built-in lithium-ion rechargeable battery and charging control circuit, large capacity, continuous working time greater than 20 hours. High precision, scratch resistant, long service life

وصف

Description:
- This Portable Profilometer is suitable for aerospace, automotive parts, parts processing, power industry, electronics industry, and special inspection industries.
- It is a measurement device for accurate and efficient surfaces quality assessment.

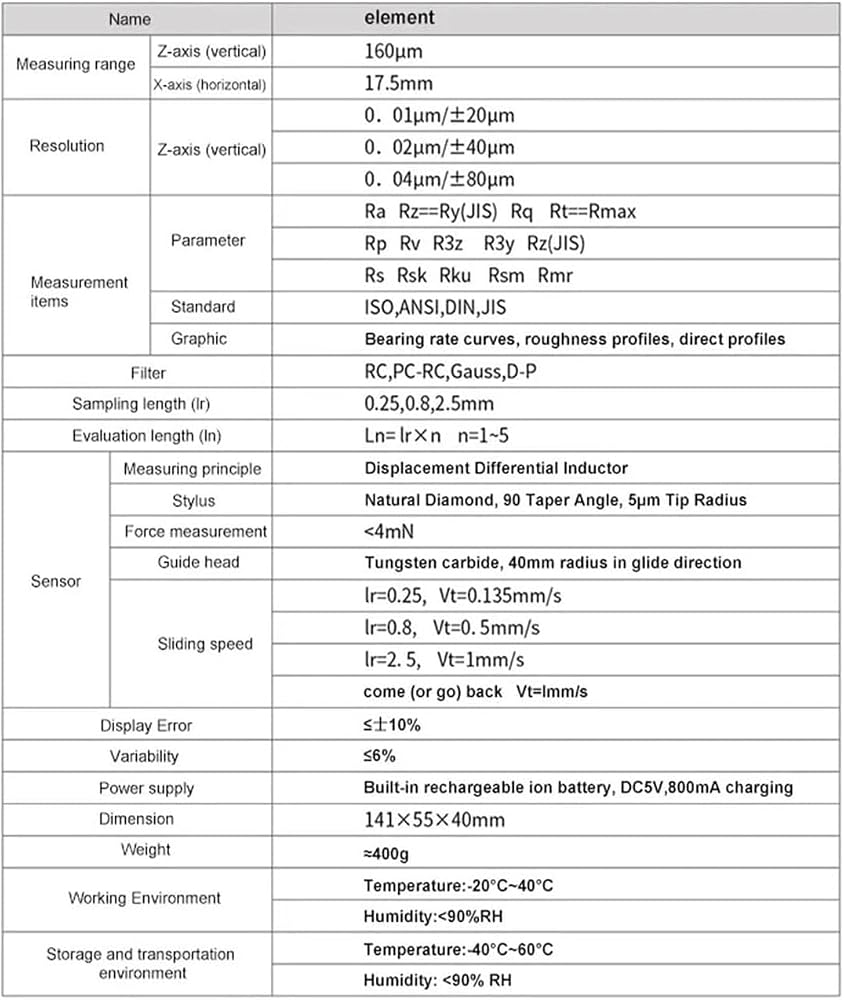

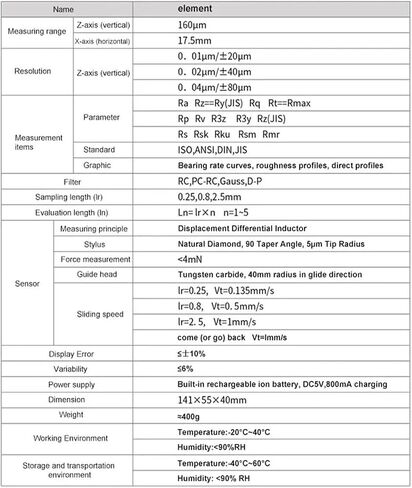

Specification:
Name: Surface Roughness Tester
Measurement parameters: Ra, Rz, Ry, Rq, Rp, Rm, Rt, R3z, Rmax, Sk, S, Sm, tp
Measuring range: 160um
Measurement accuracy: 0.001um
Sensor type: inductive
Tip radius: 5μm
Needle tip material: diamond
Measuring force: 0.4mN
Sampling length: 0.25/0.8/2.5mm
Sensor moving speed: 0.5mm/s, 1mm/s
Data storage capacity: more than 100 measurement results

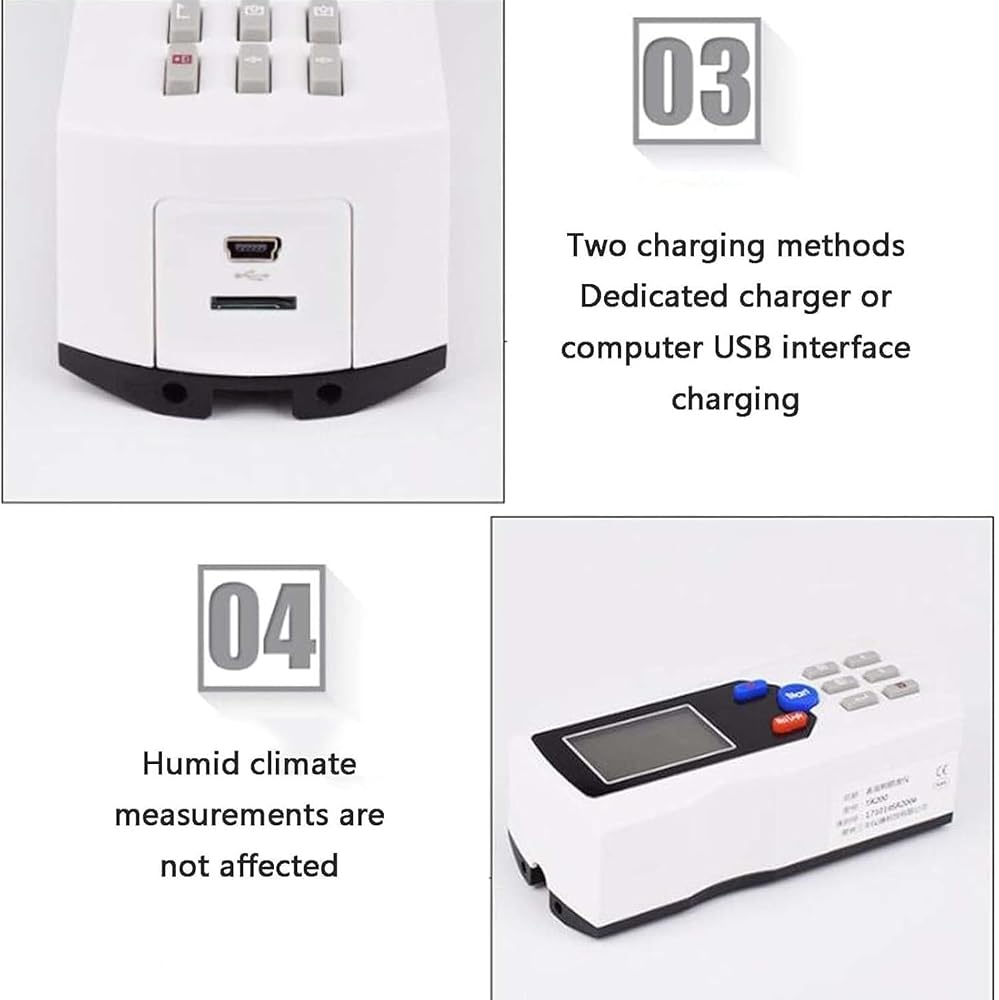

External input and output interface: USB
Power supply: built-in rechargeable lithium battery

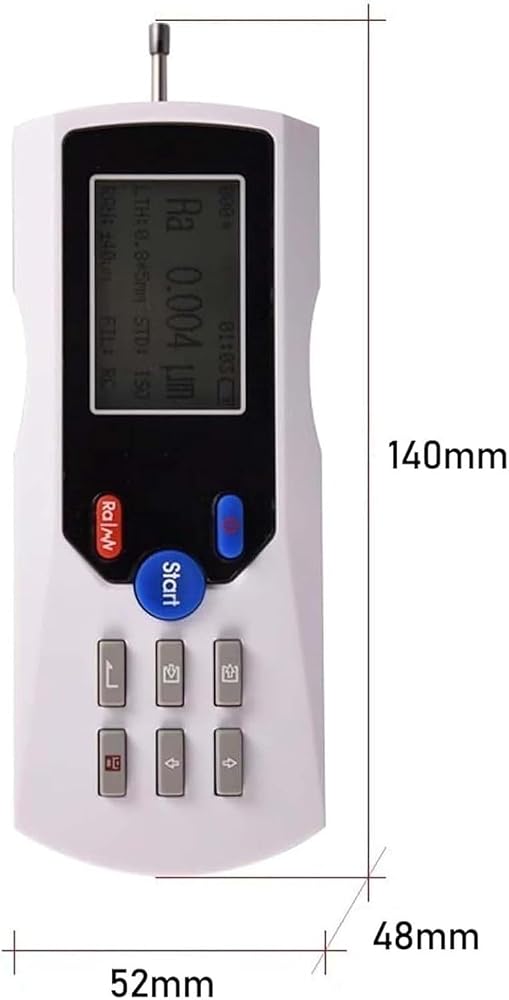

Overall dimensions: 140*52*48mm
Weight: 440g

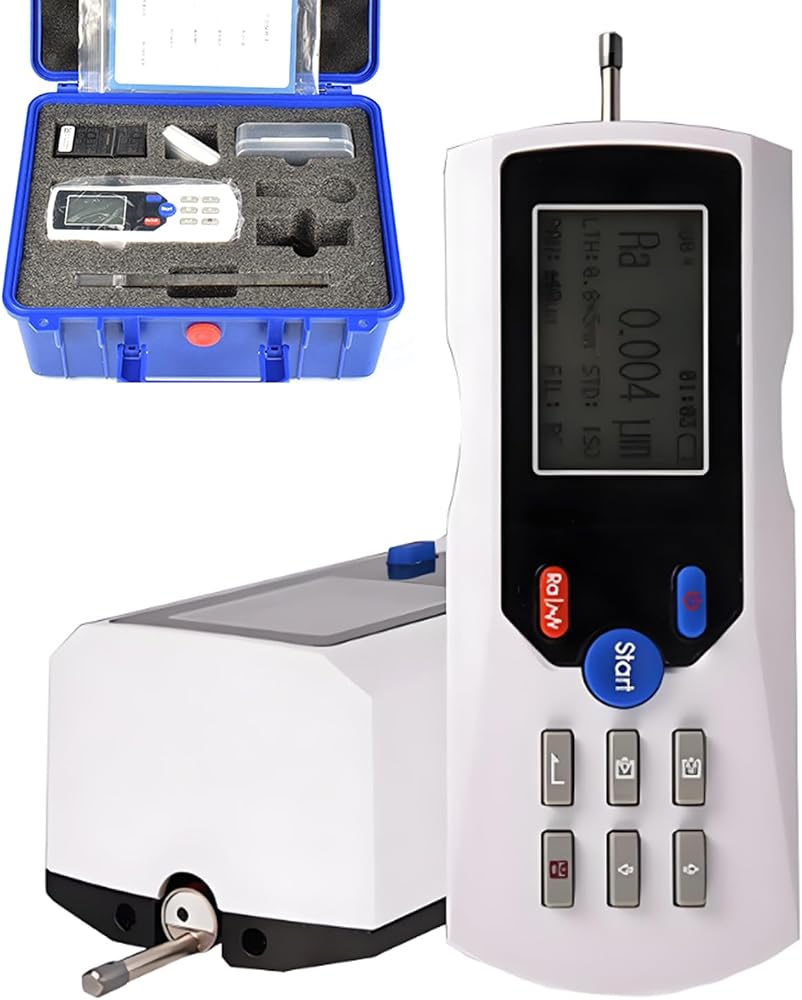

Packing List:
1 * Surface Roughness Tester
