Voltmeter

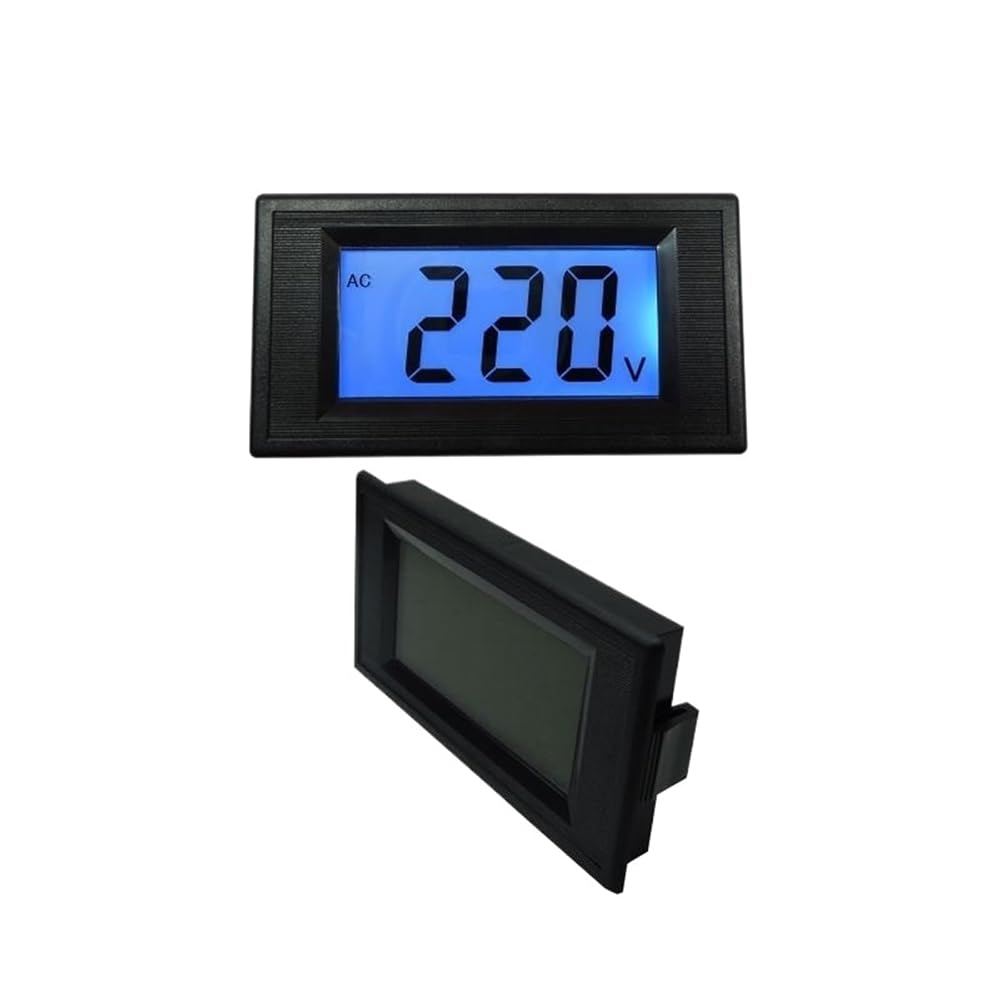

YB5135D AC80-500V Digital Voltmeter Voltage Panel Meter AC Voltage Meter Tester AC Voltmeter Digital D69 AC Voltage Detector
Attention:
1.The meter can only be used to measure 50/60Hz sine wave circuit,it will be damaged when use to measure squarewave,output of inverter and correction sine wave.
2.This meter shows the Average Value.
The difference between Full-closed and Semi-closed:
Semi-closed: from the back "can see" components on the circuit board; viewing area: 51 * 24.5mm; font: 19 * 9mm
Full-closed: from the back "can not see" components on the circuit board; viewing area: 61 * 24.5mm; font: 21 * 11mm
Technical Parameters:
Operating voltage: AC80-500V
Display: , blue backlight
Overall dimensions: 79 × 43 × 25 mm
Installation opening: 76 × 39 mm
Weight: about 70g
Measurement rate: 2 times / S
Extreme working conditions:
Working temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight: No direct exposure
Feature:
Product stability is good, high precision measurement, anti-interference ability.
The appearance of the standard size, easy installation.
==========
Hign-concerned Chemical : None
Model Number : YB5135D
DIY Supplies : ELECTRICAL
Dimensions : 79x43x25mm
Operating Temperature : -10+50 degrees
Accuracy Class : 1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Measuring Range : AC80-500V
Display Type : Blue backlight
Cover Type : Semi-closed/Full-closed
Working temperature : -10+50 degrees
Working pressure : 80~106kPa
Dimensions : 79x43x25mm
Mounting holes : 76x39mm
