مميزات خاصة

2.4-inch 320X240 TFT LCD with clear graphic interface
Both channels are independent of each other and have phase synchronization function.
Waveform storage; Support internal storage of 50 groups of user-defined edited waveforms;
Dual channel output, maximum output frequency 60M;
Output of linear/logarithmic sweep and burst (pulse train) waveforms;

وصف

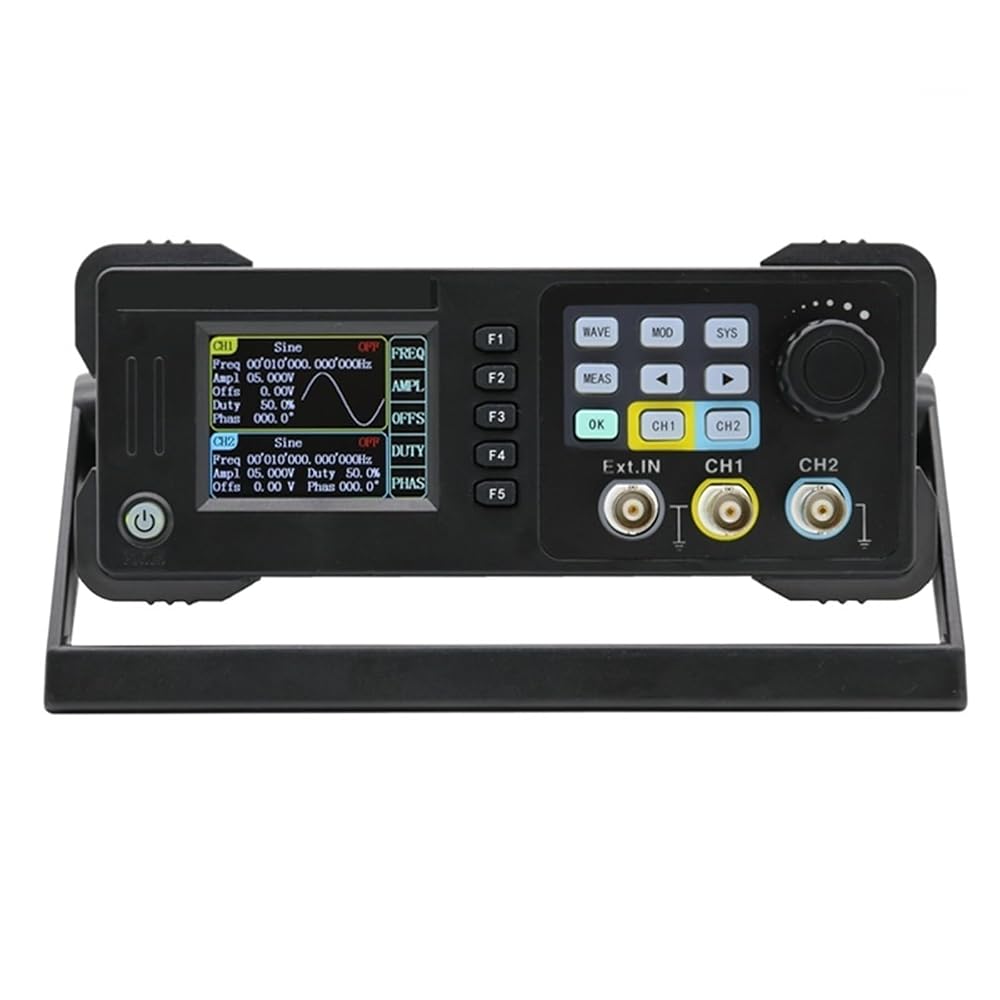

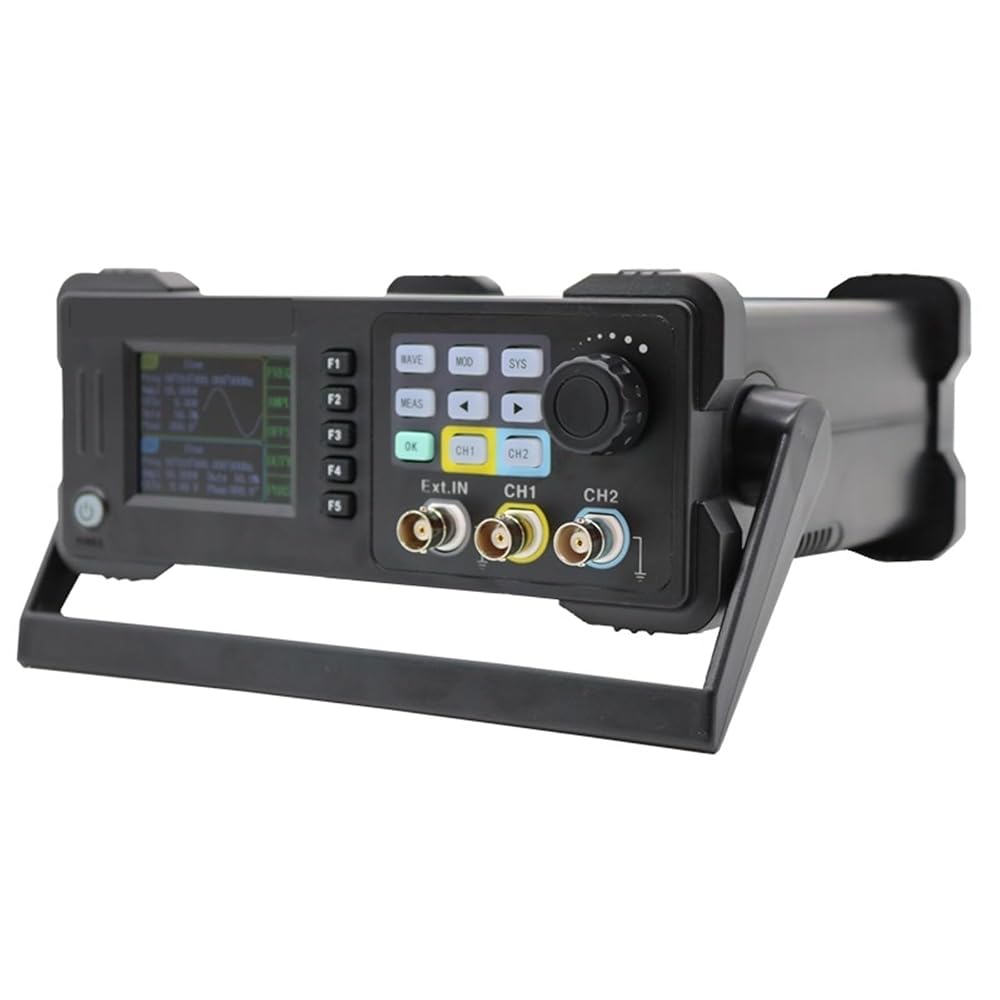

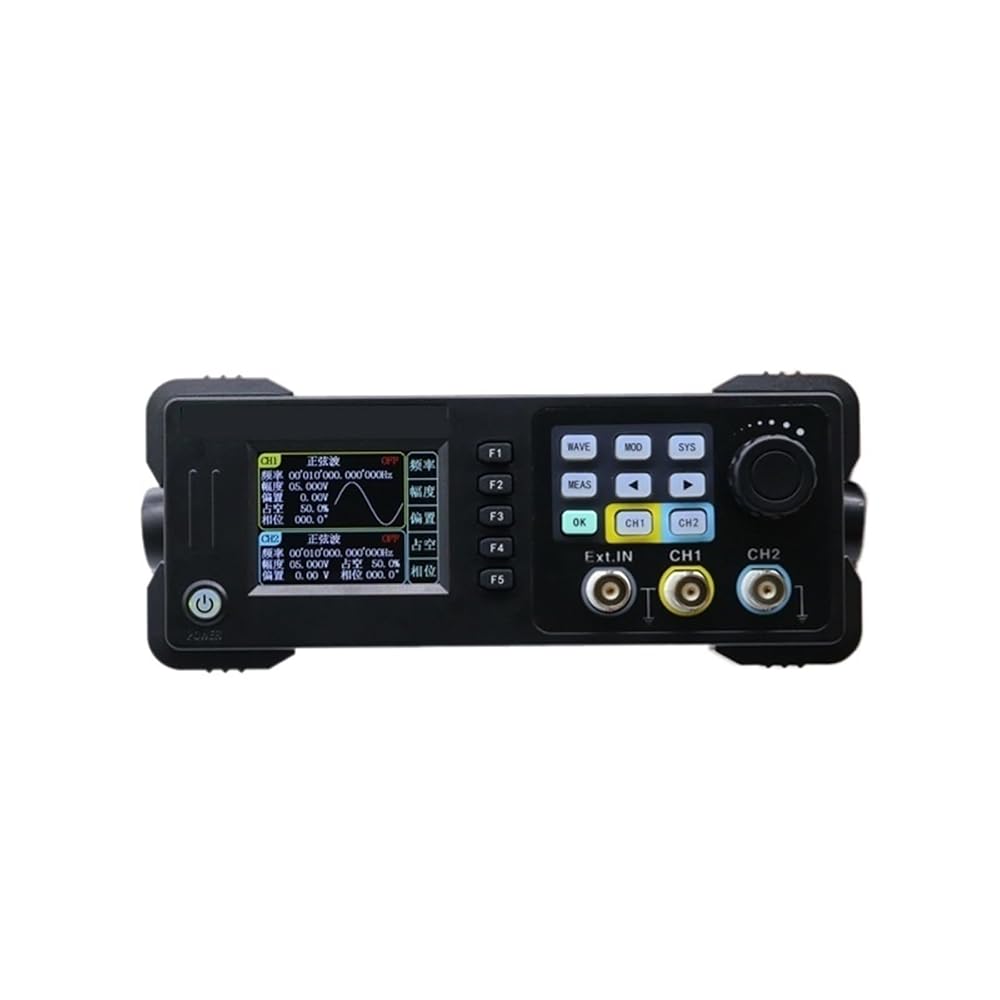

Model：ET3360C

Sine：1μHz ~ 60MHz

Square：1μHz ~ 15MHz

Triangle：1μHz ~ 15MHz

Pulse：100μHz ~ 6MHz

Arbitrary：1μHz ~ 6MHz

Frequency Resolution：1μHz

Frequency Accuracy：±20ppm

Frequency Stability：±1ppm/3 hour

Waveform Characteristics
Waveform Types：Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrarywaves and 50 kinds of user-defined waves.
Waveform Length：8192 points
Waveform Sampling Rate：200MSa/s
Waveform vertical resolution：13bits

Sine Wave Characteristics
Sine Wave

Square Wave Signal Characteristics
Square Wave

Pulse Wave Characteristics
Pulse Wave
Pulse Width：Min20ns; 1ns resolution
Edge jump time：Min20ns;
Jitter：6ns+0.1%Period

Sawtooth wave Characteristics
Sawtooth wave
Linearity Degree：≥98%(0.01Hz~10kHz)
Symmetry：0.0 ~ 100.0%(resolution0.1%)

Output Characteristics
Amplitude Range：30MHz≤freq
2mVpp ~5Vpp

Amplitude Resolution：1mV

Accuracy of amplitude：1% of set value+2mVpp（1kHzSine，0offset，>10mVpp）

Output Impedance：50Ω±10%（Typical）

Protection：All signal output terminals can work within 60s under load short circuit
