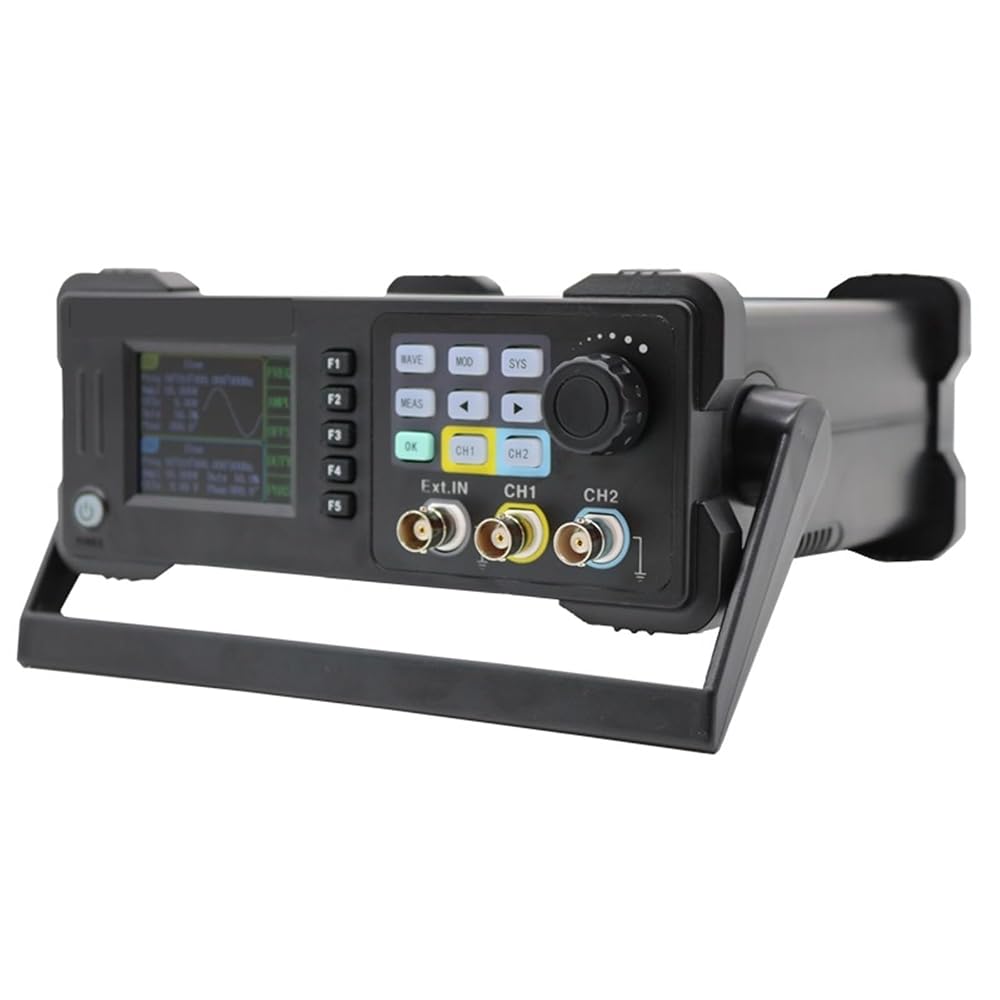

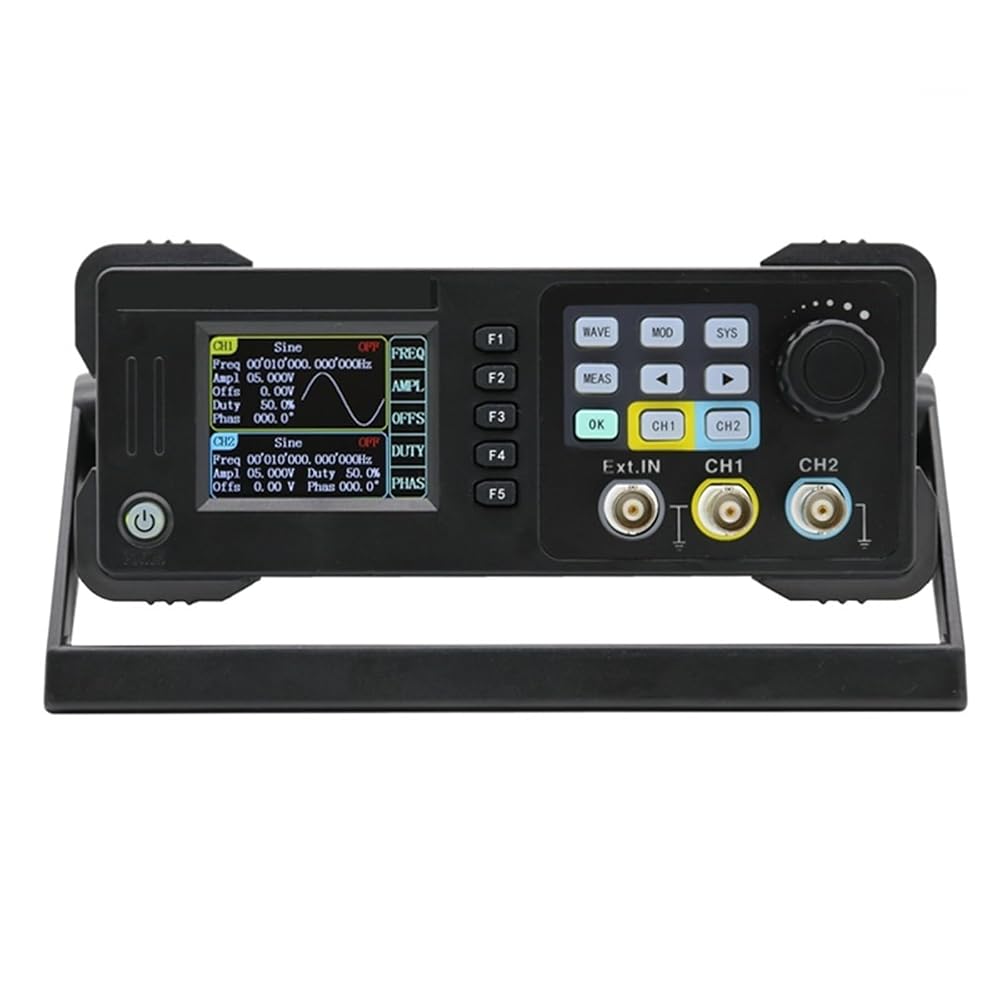

Model：ET3320C

Sine：1μHz~ 20MHz

Square：1μHz ~ 15MHz

Triangle：1μHz ~ 15MHz

Pulse：100μHz ~ 6MHz

Arbitrary：1μHz ~ 6MHz

Frequency Resolution：1μHz

Frequency Accuracy：±20ppm

Frequency Stability：±1ppm/3 hour

Waveform Characteristics
Waveform Types：Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrarywaves and 50 kinds of user-defined waves.
Waveform Length：8192 points
Waveform Sampling Rate：200MSa/s
Waveform vertical resolution：13bits

Sine Wave Characteristics
Sine Wave

Square Wave Signal Characteristics
Square Wave

Pulse Wave Characteristics
Pulse Wave
Pulse Width：Min20ns; 1ns resolution
Edge jump time：Min20ns;
Jitter：6ns+0.1%Period

Sawtooth wave Characteristics
Sawtooth wave
Linearity Degree：≥98%(0.01Hz~10kHz)
Symmetry：0.0 ~ 100.0%(resolution0.1%)

Output Characteristics
Amplitude Range：freq＜10MHz
2mVpp ~ 20Vpp

Amplitude Resolution：1mV

Accuracy of amplitude：1% of set value+2mVpp（1kHzSine，0offset，>10mVpp）

Output Impedance：50Ω±10%（Typical）

Protection：All signal output terminals can work within 60s under load short circuit
