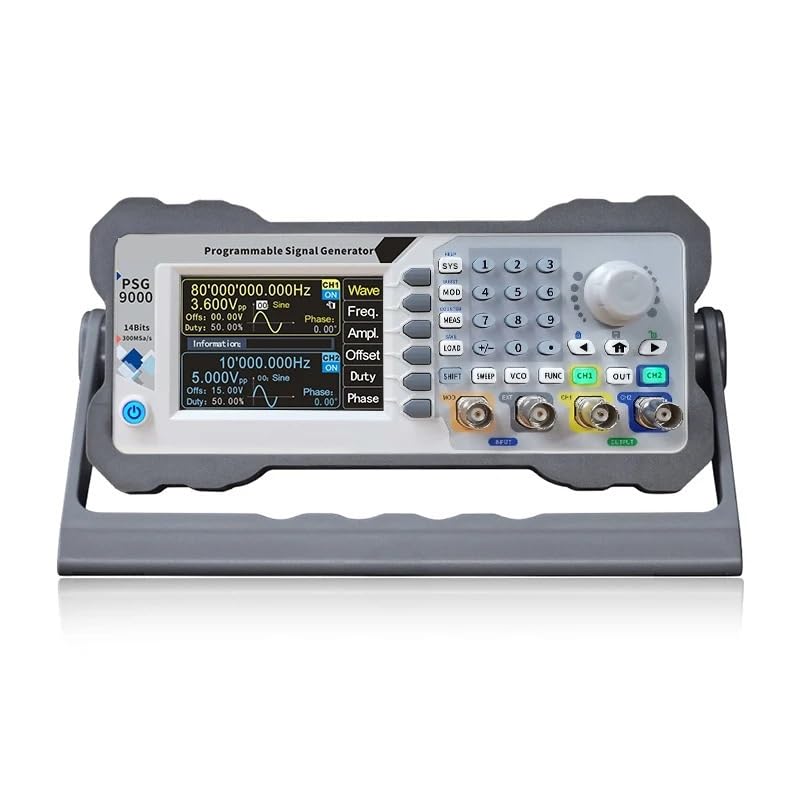

Model：PSG9060

Channel：2

Sine wave frequency：1nHz-60MHz

Sampling Rate：300MSA/S

Wave length：8192 points/channel

Waveform vertical resolution：14 bits

Wave type：Sine wave, square wave, pulse wave (duty ratio, pulse width and cycle time can be precisely set), triangle wave, rising ramp, falling ramp, CMOS wave, DC level, half wave, full wave, positive step wave, Inverse staircase wave, exponential rise, exponential fall, Lorentz pulse wave, multisonic wave, random noise wave, trapezoidal pulse wave, Sinker pulse wave, and 99 sets of user-defined waveforms.

Square wave：1nHz-30MHz

Triangle wave：1nHz-50MHz

Frequency resolution：1nHz

Rise/Fall Time：≤10nS

Amplitude range
Frequency＜1MHz,2mVpp~25Vpp
1MHz≤Frequency＜11MHz,2mVpp~10Vpp
11MHz≤Frequency＜60MHz,2mVpp~5Vpp

Amplitude resolution：1mVpp

Amplitude stability：± 1% ±1mVpp (@ 1kHz,>10mVpp)

Amplitude flatness
Frequency≤10MHz：±1%(0.1dB)
10MHz＜Frequency≤50MHz：±2%(0.2dB)
50MHz＜Frequency≤60MHz：±10%(0.9dB)

Offset range：-9.99V-12.00V

Offset resolution：0.01V

Phase adjustment range：0°-359.9°

Resolution：0.1°

Output impedance：50Ω (typical)

Modulation type：AM、FM、PM、ASK、FSK、PSK、PWM

Trigger source：Manual burst, CH2 burst, external burst (AC), external burst (DC)

Measurement function：Frequency, positive and negative pulse width, period, duty cycle

Counter range：0-4294967295

Sweep function：Sweep frequency, sweep amplitude, sweep duty

Sweep mode：Linear, logarithmic

VCO function：Frequency control, amplitude control, and duty cycle control

Running mode：Debugging、normal
