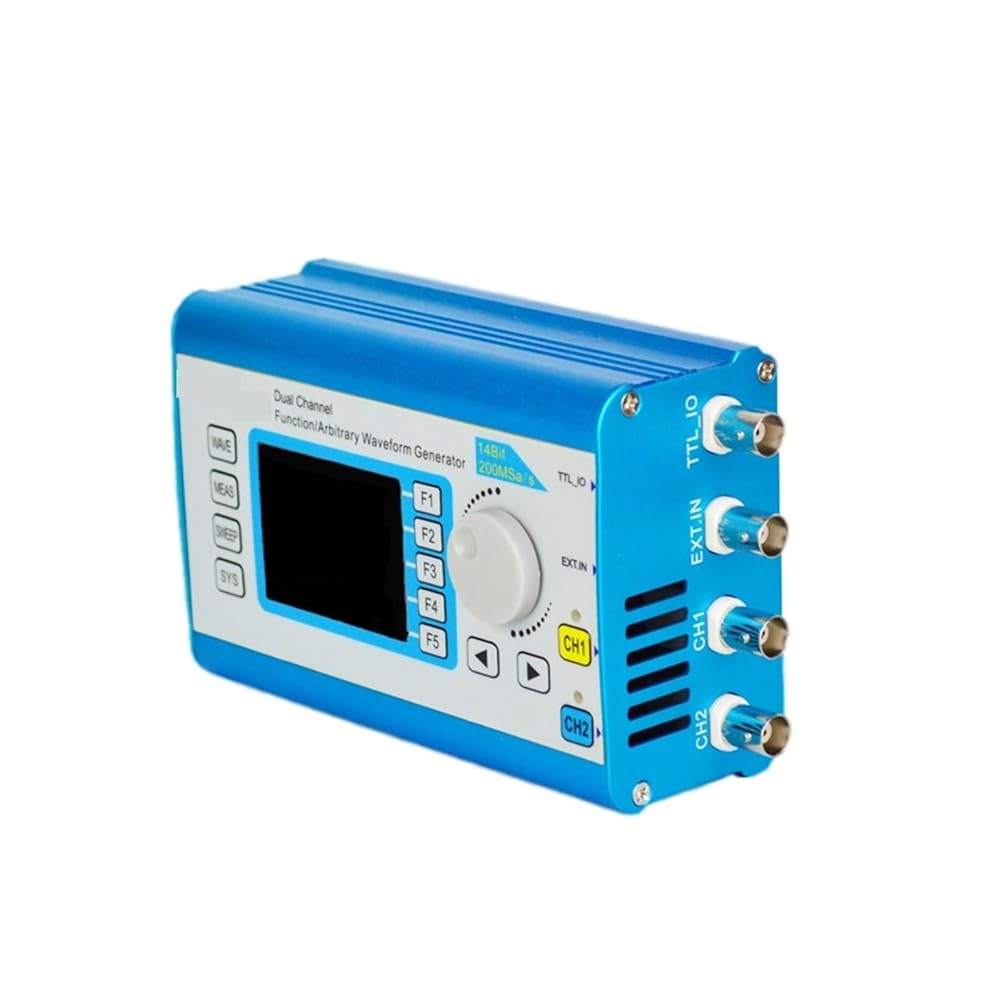

Dual Channel Function/Arbitrary Waveform Generator is a multifunctional signal generator product integrating Function Signal Generator, Arbitrary Waveform Generator, Pulse Signal Generator, Noise Signal Generator, Counter and Frequency Meter
Double channels can output 31 preseted DDS signals including Sine, Square, Triangle(Ramp), Rise Sawtooth, Fall Sawtooth, Lorenz Pulse, Multitone, Noise, Cardiogram, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step and user-defined waveform. It can also output TTL electric level. Both channels are completely independent

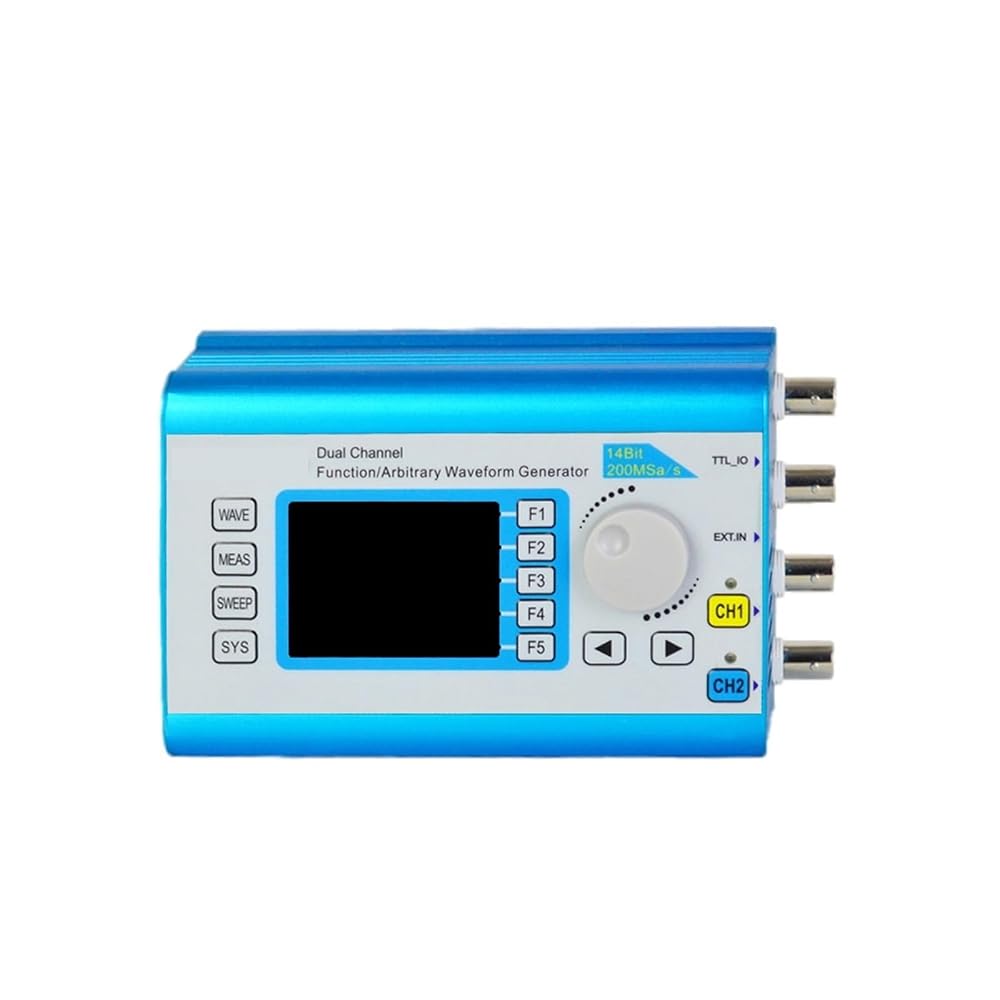

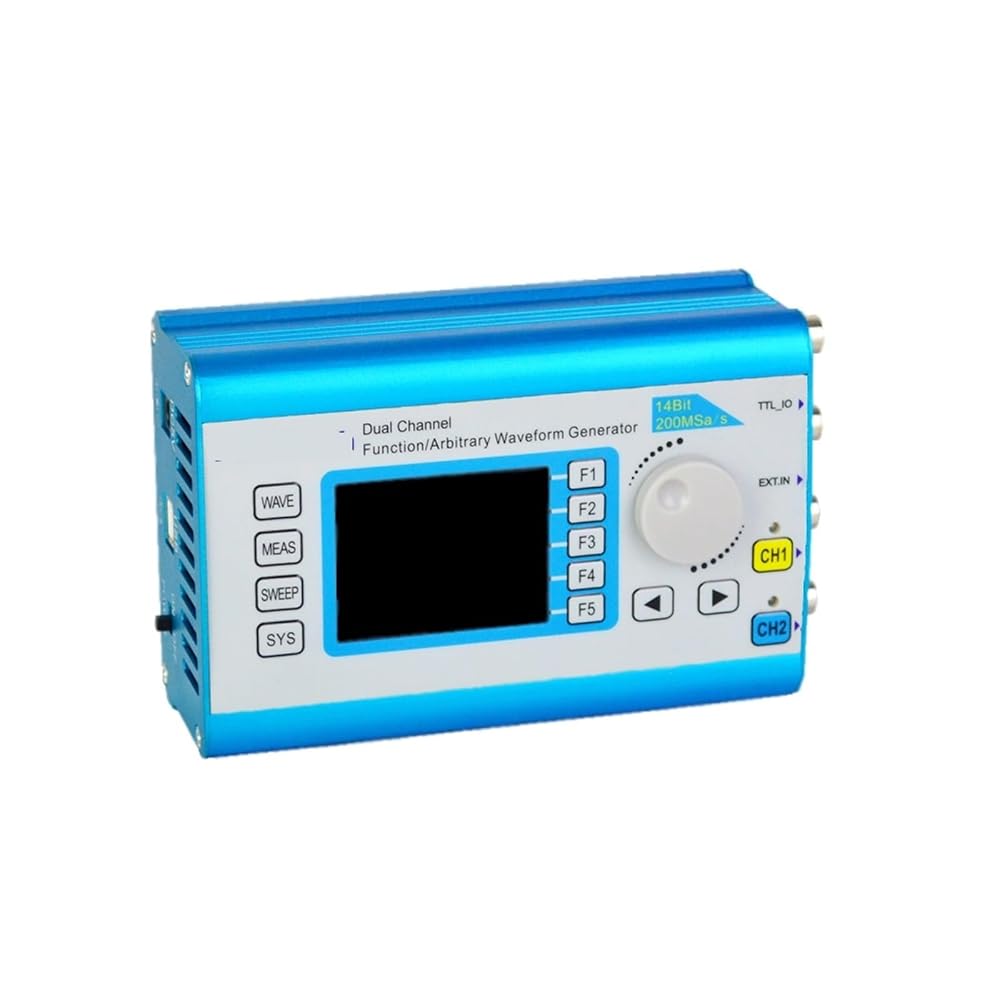

2.4 inch TFT Color LCD with 320×240 resolution can display all the parameters of both channels and current functions of all buttons . Shortcut keys simplify all complicated operations and save time. Users can be proficient after several minutes practice.
The advantages of this instrument in signal generating, waveform sweeping, parameter measurement and other fields, make it to be the ideal equipment for electronic engineers, laboratories, industry producing line, university, R&D institutes and so on.

وصف

FY2300-20MHz

Sine wave：0~20MHz

Square wave：0~6MHz

Triangle wave：0~6MHz

Sawtooth wave：0~6MHz

Pulse wave：0~6MHz

TTL/CMOS Wave：0~6MHz

Arbitrary Waveform：0~6MHz

Resolution：1μHz (0.000001Hz)

Accuracy：± 5×10-6

Stability：±1×10-6/ 3 Hours

Impedance：50Ω±10%（Typical）

Phase Range：0~359°

Phase Resolution：1°

Waveform Characteristics
Waveform Types：Sine, Square, Triangle, Sawtooth, Pulse, Ramp, TTL, CMOS, Multitone, Noise, Cardiogram, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step. Arbitrary Waveform, etc.
Waveform Length：2048Points
Sampling Rate：200MSa/s
Vertical Resolution：12 Bits

Sine wave

Square wave
Rise/Fall Time：≤20ns
Overshoot：≤7.5%
Duty Cycle：0.1%~99.9%

Sawtooth wave
Linearity：≥98% (0.01Hz~10kHz)

Output characteristics
Amplitude (50Ω)：10mVpp~20Vpp(Freq.15MHz)
Amplitude Resolution：1mV (Attenuate 20dB)
Amplitude Stability：±0.5%/ 5 Hours
Amplitude flatness：±5%(10MHz);

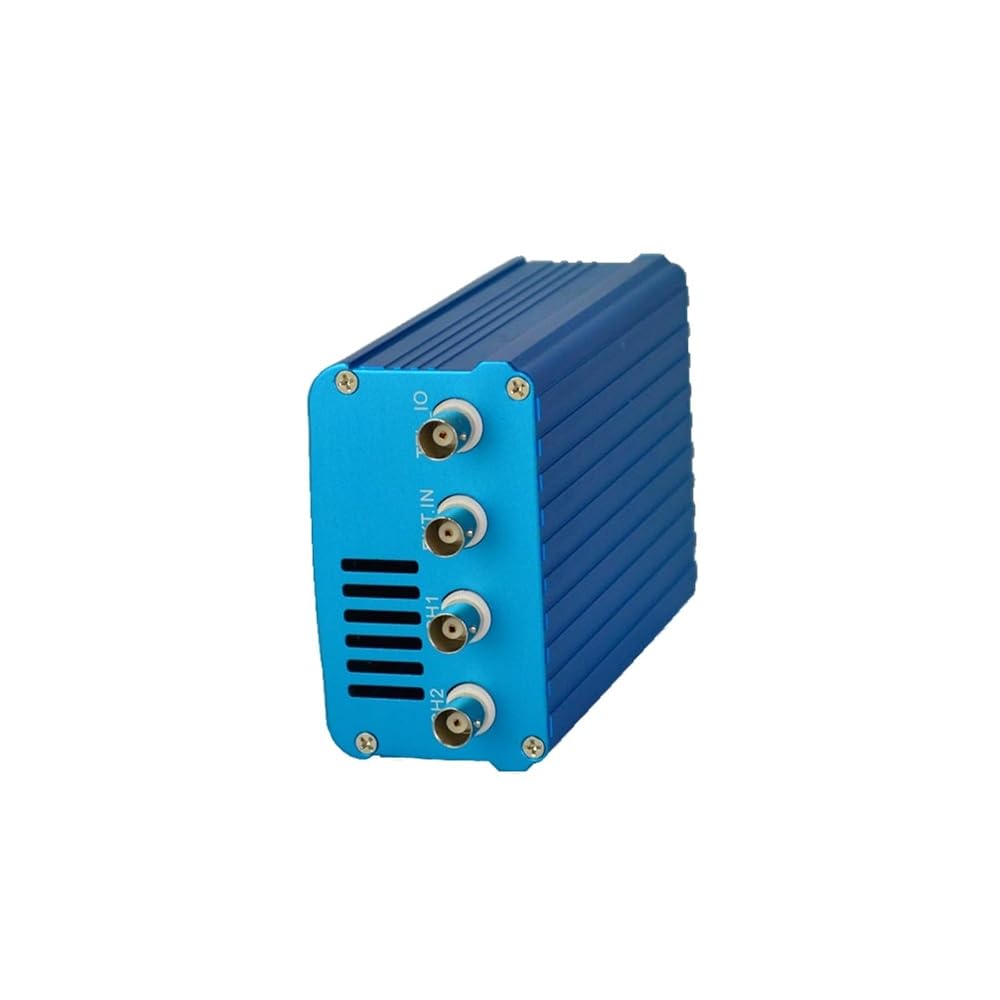

Waveform Output
Impedance：50Ω±10%（Typical）
Protection：All channels can work more than 60 seconds when the load is short-circuited.

DC Offset
Offset Range：±10V
Offset Resolution：0.01V (0.001V With Attenuation)

TTL Output
Electrical Level Amplitude：>3Vpp
Fan-out：>20 TTL Load
Rise/Fall Time：≤20ns

CMOS Output
High Electric Level：1V~10V
Rise/Fall Time：≤20ns

Frequency Meter
Range：0.01Hz~100MHz
Sensitivity：Gate Time 3 grades adjustable(1S,10S,100S)

Counter
Range：0-4294967295
Coupling Mode：DC , AC
Counting Mode：Manual
Input Voltage Range：0.7Vpp~20Vpp
Period Measurement：Resolution 5nS，Max. Limit 10S
Pulse Width measurement：Resolution 5nS，Max. Limit 10S

Sweep
Sweep Type：Linear Sweep or :Logarithm Sweep
Sweep Objects：Frequency, Amplitude, Offset and Duty Cycle
Sweep Time：0.01S~999.99S/Step
Setting Range：Starting position and Finishing position can be set arbitrarily.
Sweep Range：It is determined by the sweep parameter settings

Display：2.4 inch TFT Color Display.

Save & Load
Amount：20
Position：01 to 20 (01 for default value)

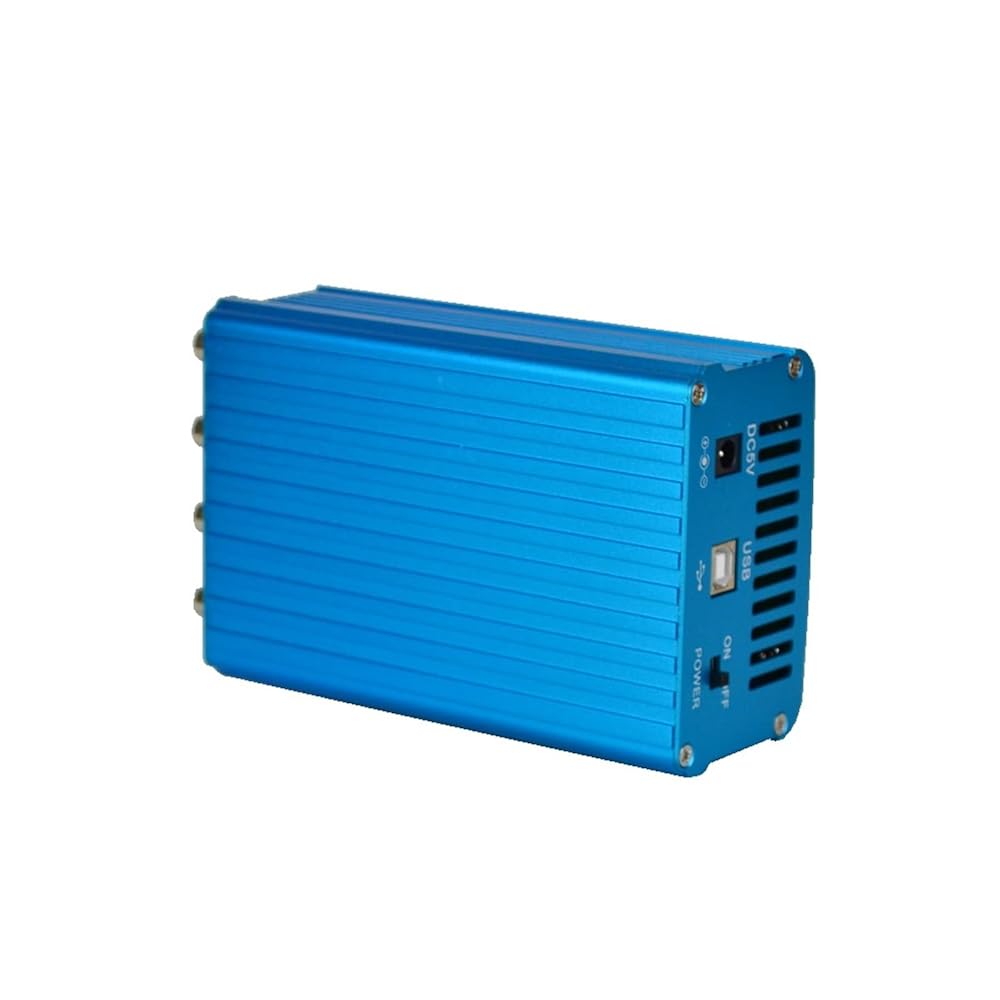

Interface Type：USB to Serial interface.

Communicating Speed：9600bps

Protocol：Command line mode, protocol complete open.

Power Supply：DC5V±0.5V

Buzzer：Can be turned on/off by setting.

Environment：Temp.：0~40℃ Humidity：﹤80%

Size：140 * 95 * 54.2mm / 5.51 * 3.74 * 2.13in (L * W * H)

Weight：419g / 14.8oz
