مميزات خاصة

Expect with the conventional signal input and output functions
Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.
With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.
The output has a custom function,the upper and lower output limits can be set arbitrarily.

وصف

Technical Parameters:

Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750;Precision:±(0.1%+0.005)

Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)

Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)

24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)

Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100;Precision:±(0.1%+0.05)

Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2M;Precision:±(0.1%+0.05)

PWM output (frequency):Range: 0-9999Hz

A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)

Operating environment: 0 °C - 50 °C.

Internal reverse and overcurrent protection; protection voltage:30V

Output automatically

Size: 92mm*72mm*30mm

Weight:165g

مرحبًا،

بحث

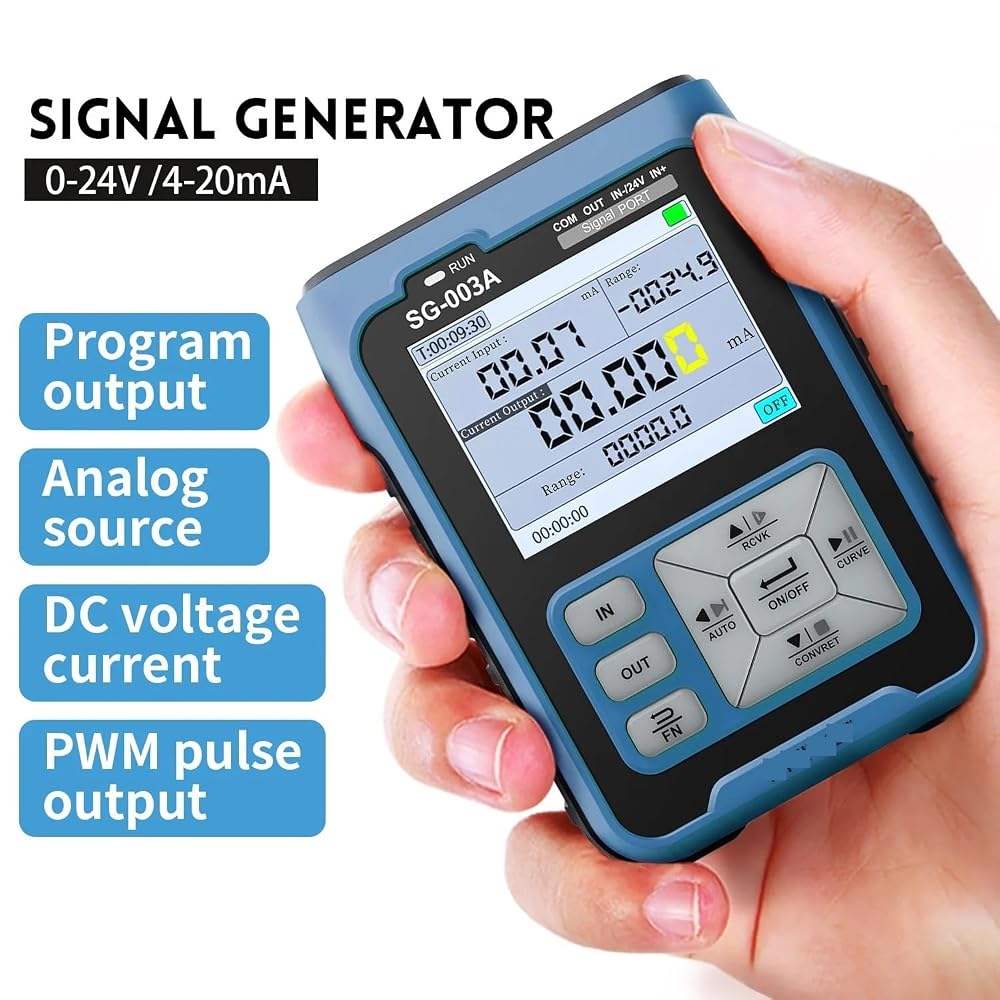

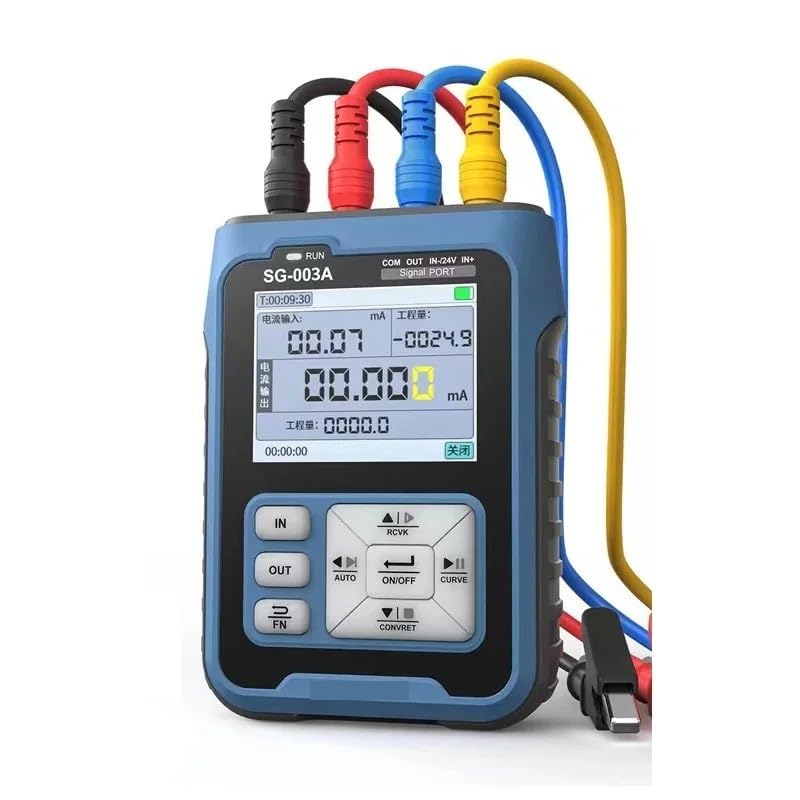

SG003A PWM إشارة مولد 4-20mA الحالي 0-24 فولت الجهد محاكاة المصادر التناظرية الارسال معاير قابل للتعديل
