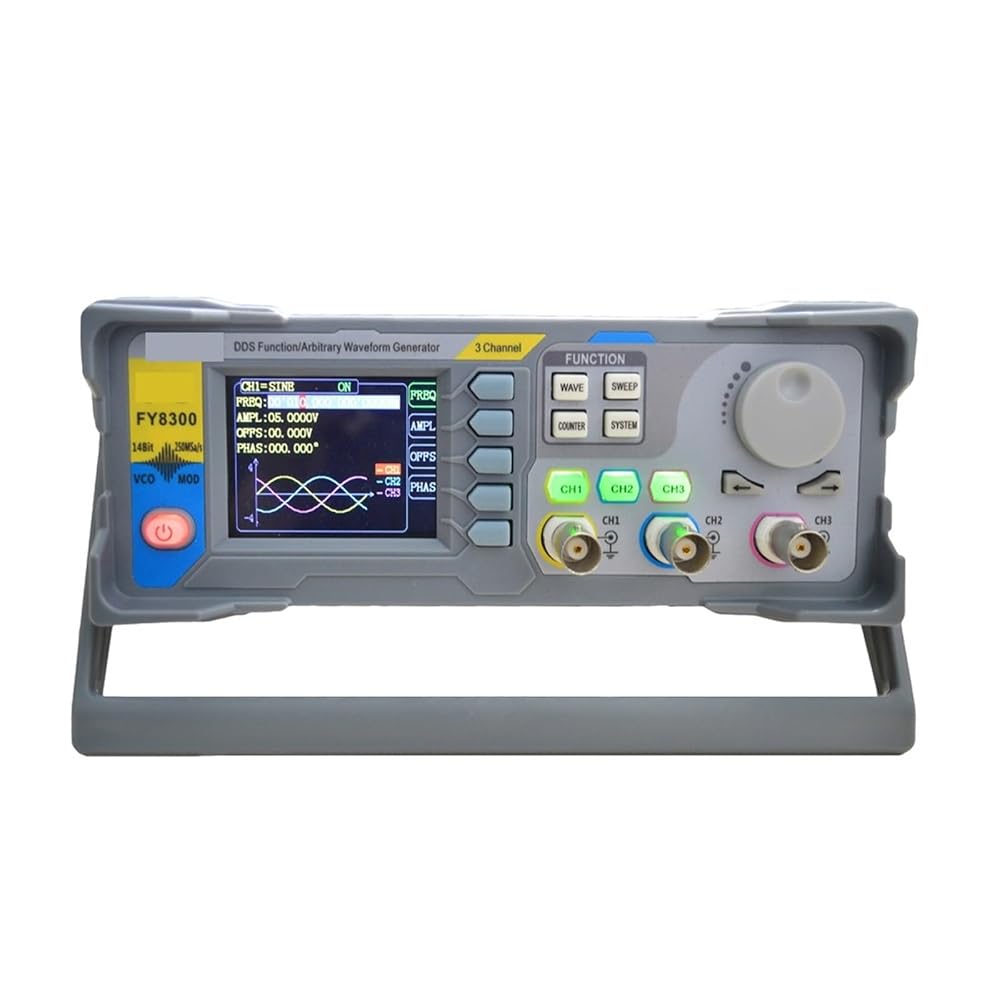

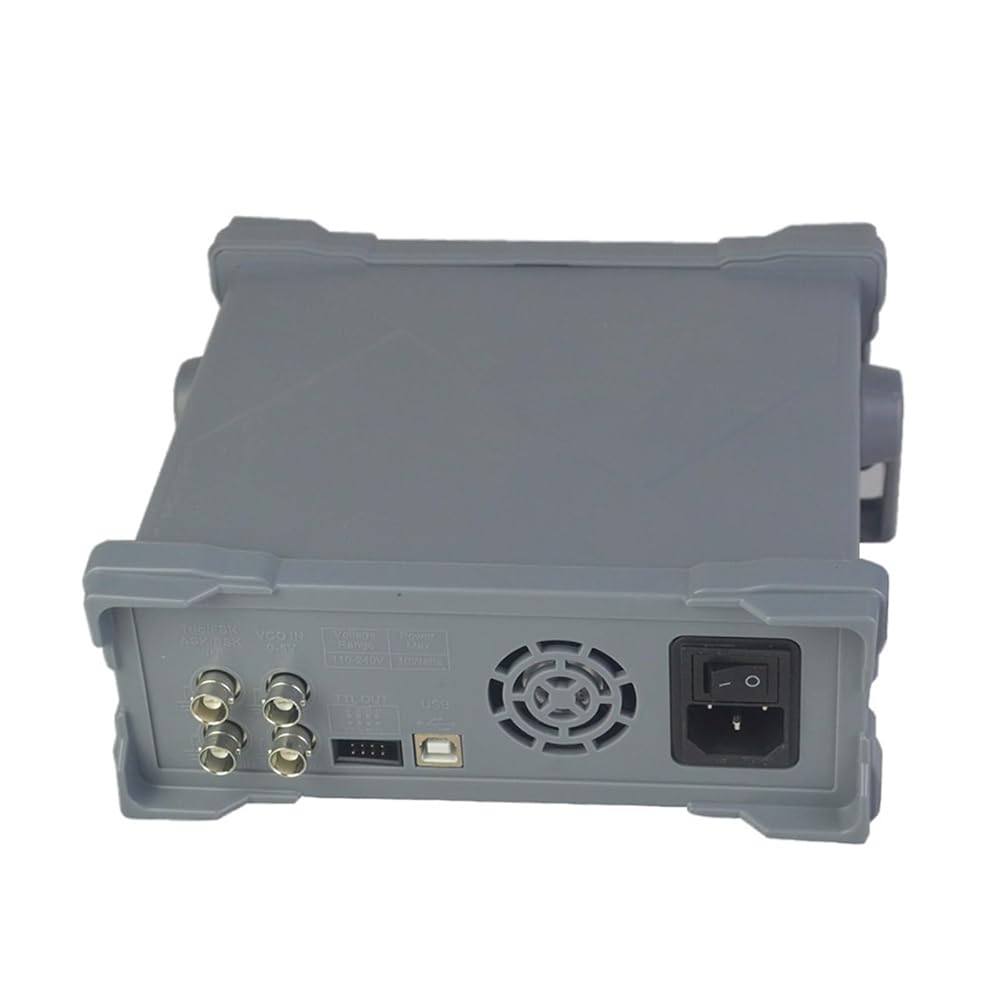

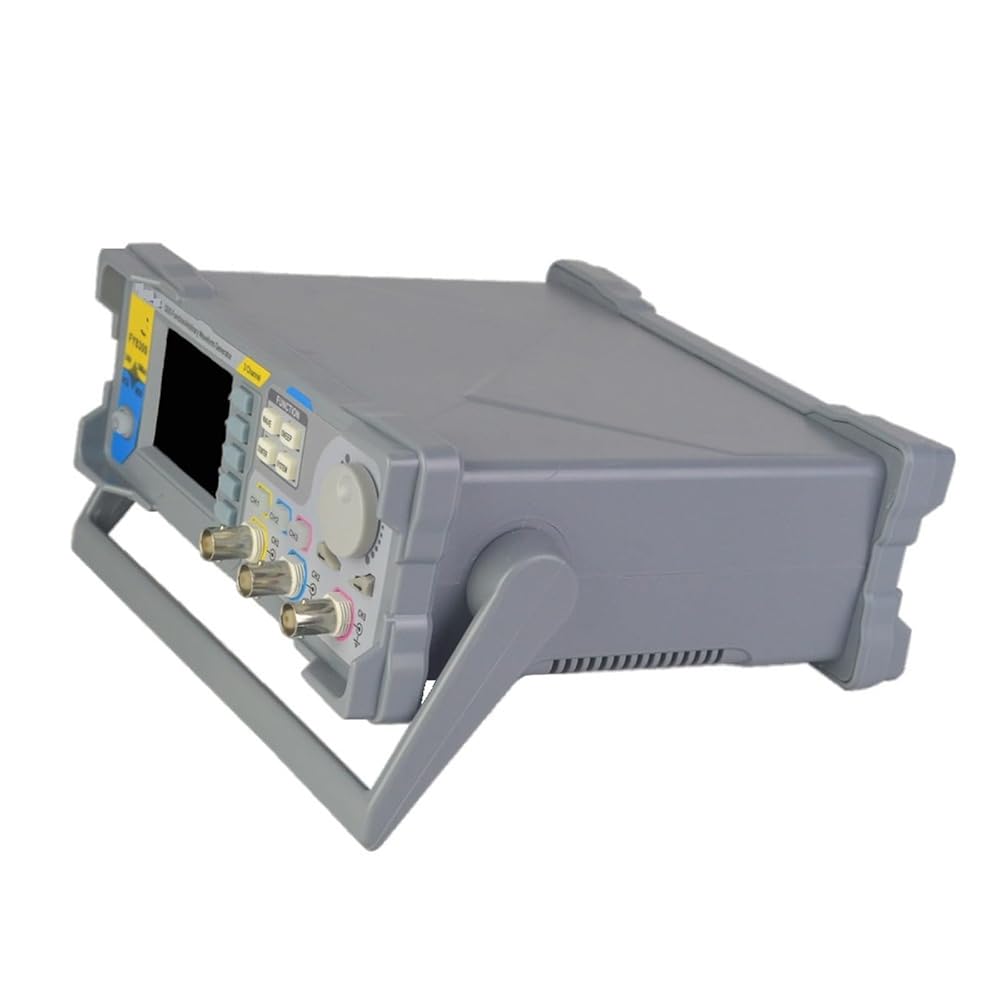

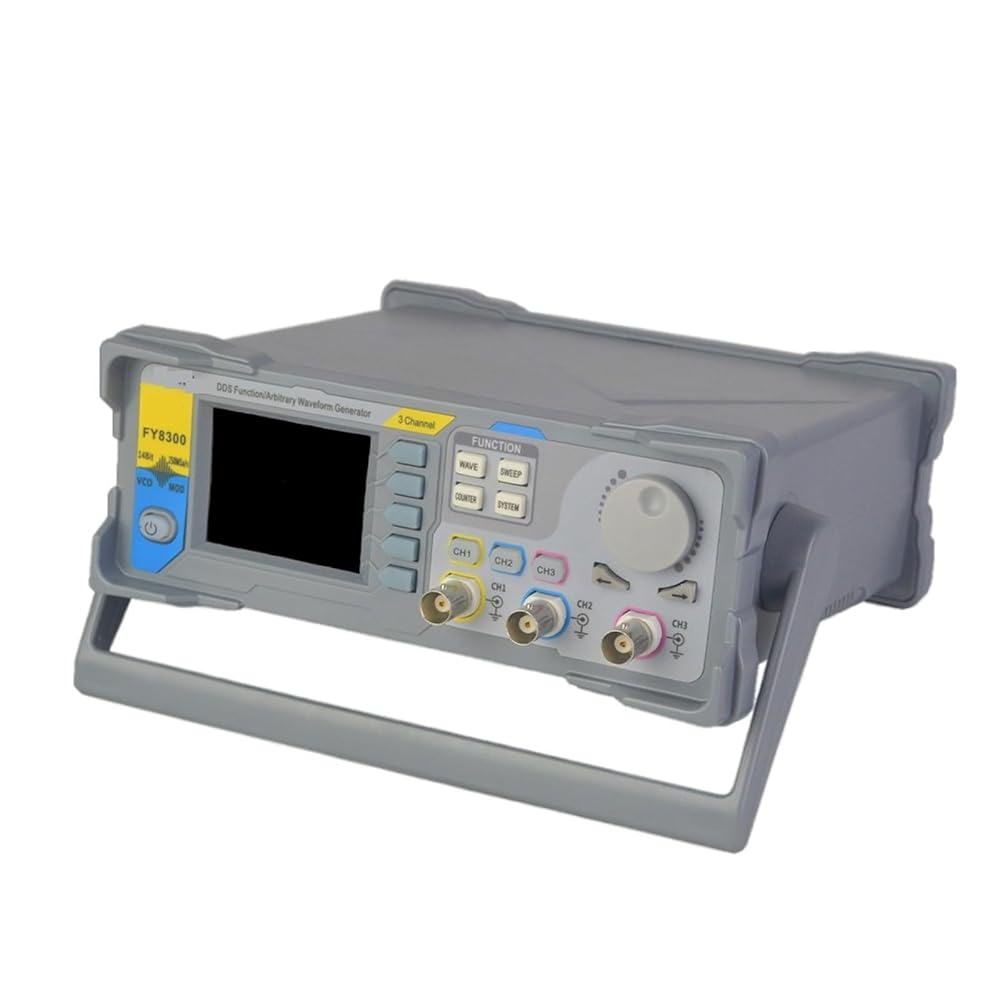

Model：FY8300-30M

Sine：0~30MHz

Square：0~20MHz

Ramp, Triangle：0~10MHz

Pulse：0~10MHz

TTL/CMOS：0~10MHz

Arbitrary Waveform：0~10MHz

Minimum pulse width：20ns(All models of pulse wave minimum width can reach 20ns)

Min. Resolution on all frequency range：1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).

Accuracy：±20ppm

Stability：±1ppm/ 3hours

Waveform Characteristics
Waveforms：Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
Non-Volatile Storage：Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Waveform Length：8192 points * 14bits
Sampling Rate：250MSa/s
Vertical Resolution：14 bits

Sine

Rectangle
Overshoot：≤5%
Duty Cycle：0.01%~99.99% (Resolution 0.01%)

Sawtooth wave
Linearity：>99% (0.01Hz~10kHz)

Output characteristics
Amplitude（VPP）
Frequency≤5MHz: 1mVpp~24Vpp;
Frequency>20MHz: 1mVpp~5Vpp;
Resolution：1mV
Amplitude Stability：±0.5%/ 5 Hours
Amplitude flatness：±2.5%(10MHz);

Waveform Output
Impedance：50Ω±10%（Typical）
Protection：All channels can work more than 60 seconds when the load is short-circuited.

DC Offset
Offset Range：Frequency≤20MHz: ±12V; Frequency>20MHz: ±2.5V;
Offset Resolution：1mV

Phase Feature
Phase range：0~359.99°
Phase resolution：0.01°

TTL Output
TTL Level Amplitude：>3Vpp
Fan-out：>8 TTL LOAD
Rise/Fall Time：≤10ns

CMOS Output
High Electric Level：1V~12V
Rise/Fall Time：≤18ns

External Measurement
Function：Frequency, Period, Positive/Negative Pulse Width, Duty Cycle
Input Voltage Range：1Vpp~20Vpp

Frequency Meter
Resolution：0.01Hz (Gate Time = 100S)
Range：0.01Hz~100MHz
Sensitivity：Gate Time 3 grades (1S, 10S, 100S) adjustable

Counter
Range：0-4294967295
Coupling：DC
Working Mode：Manual

Period
Measurement Range：5ns ~ 20s
DC coupling measurement：Pulse Width
Measurement Range：0ns ~ 20s
Resolution：5ns

Duty Cycle
Range (Display)：0% ~ 100%

Sweep
Carrier Waveform：Sine, Square, Ramp, Arbitrary (except DC)
Sweep Type：Linear or Logarithm
Sweep Direction：Up, Down and roundtrip sweep directions;
Sweep Objects：Frequency, Amplitude, Offset, Duty Cycle
Sweep Time：0.01S~999.99S/Step
Setting range：Starting position and Finishing position can be set arbitrarily.
Sweep Range：Decided by Parameters setting.
