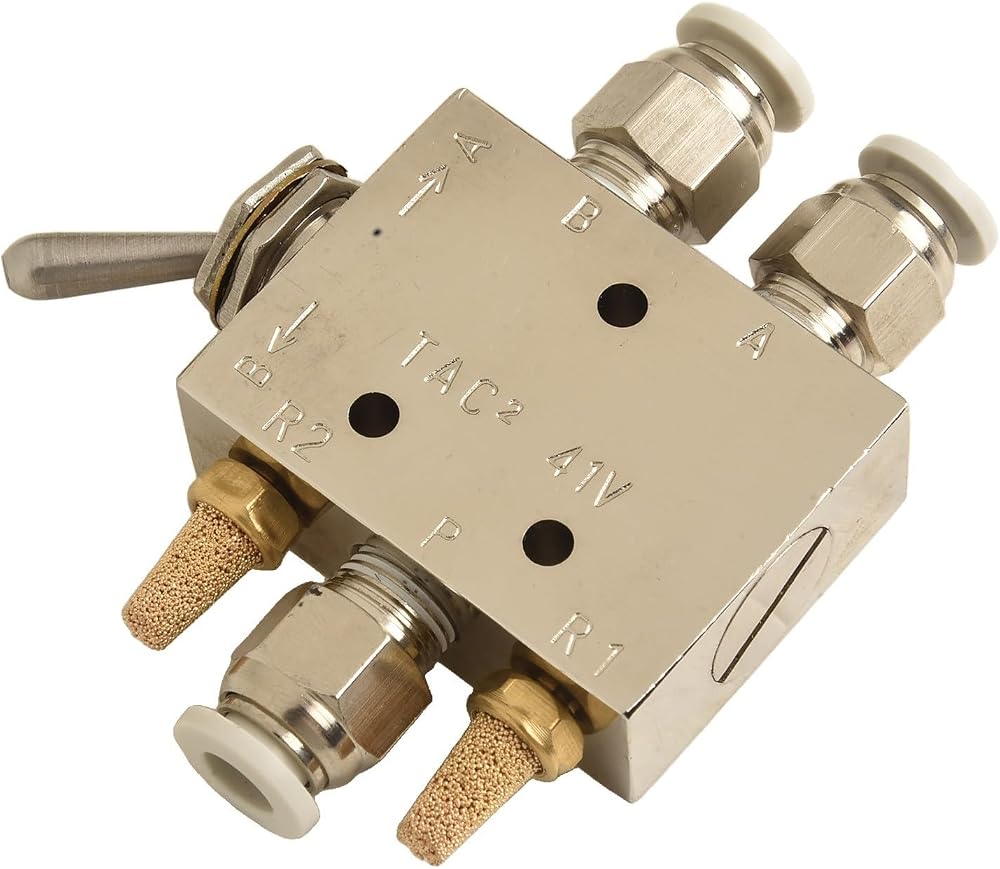

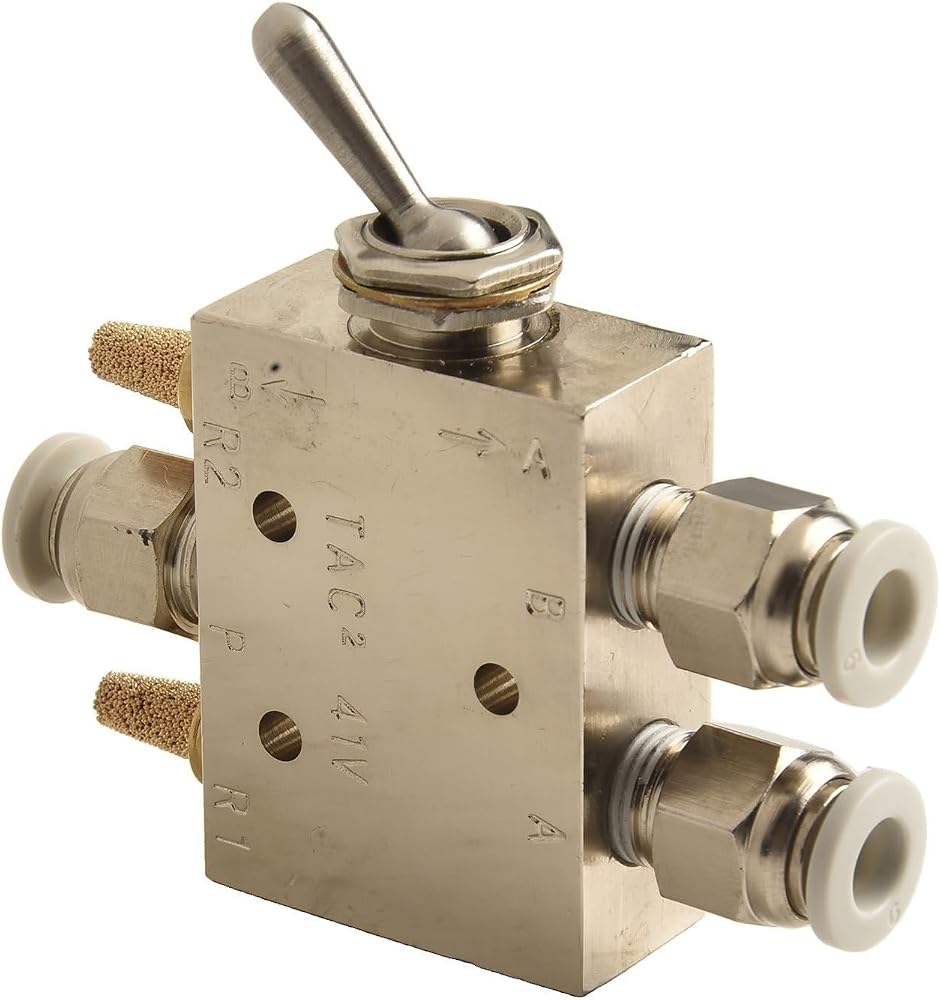

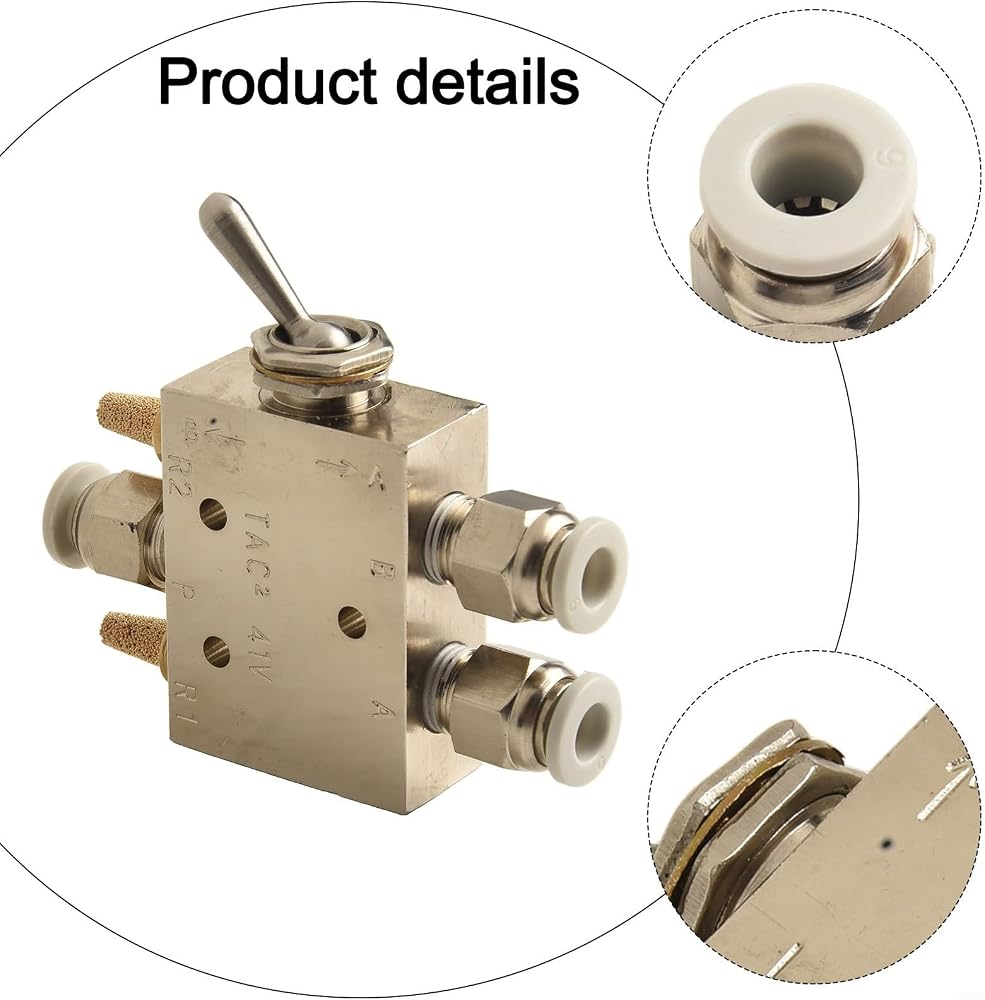

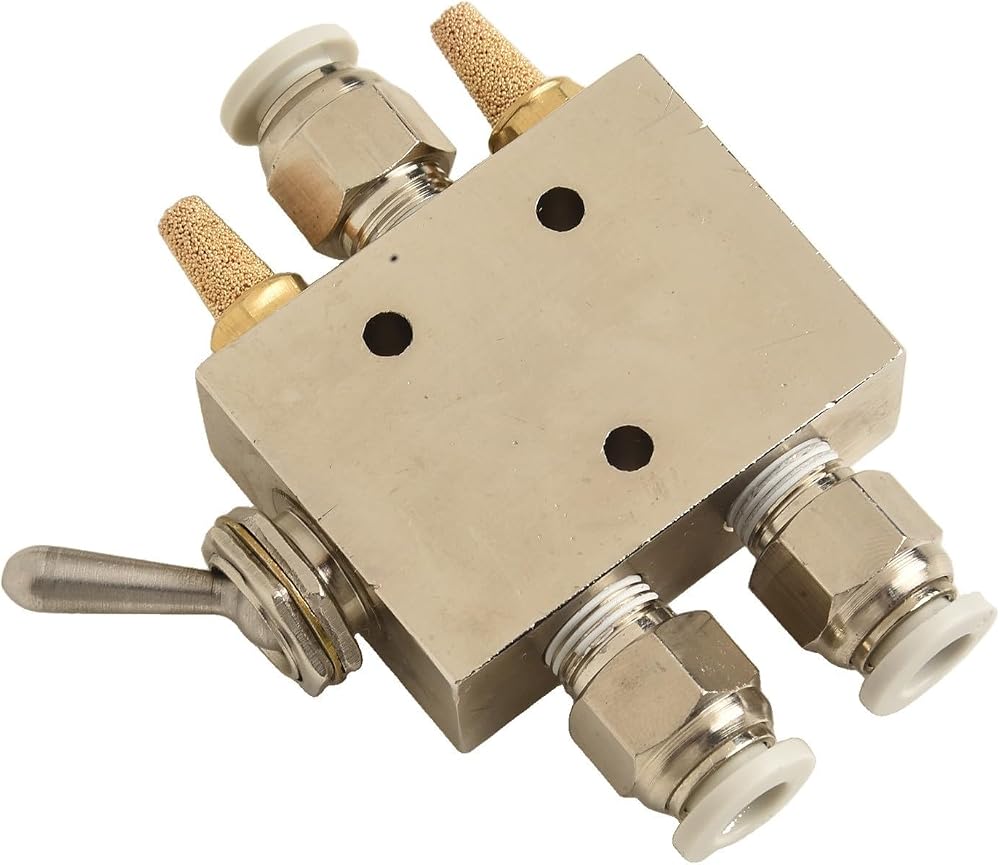

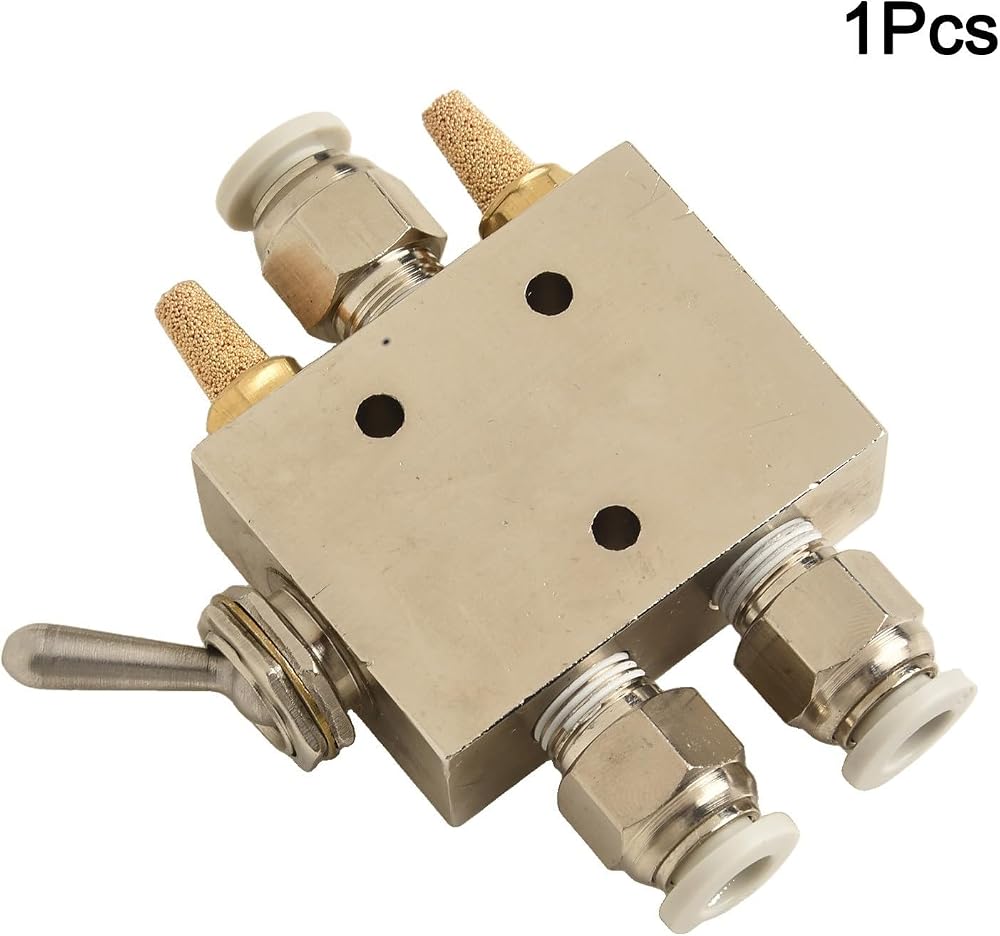

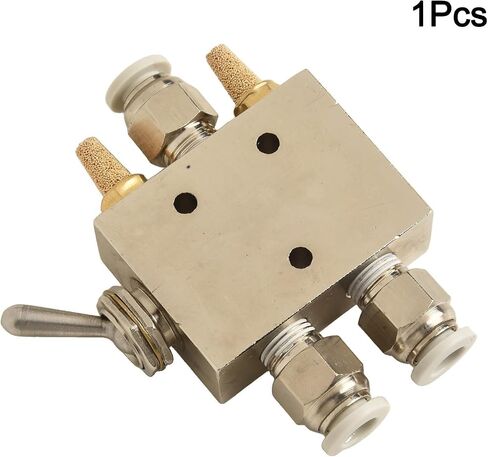

TAC2-41V Pneumatic Valve 2 Position 5 Way Mechanical Air Control Switch with 6mm Connector for Automation Equipment

KWD 6
Brand
XNManaWork
Category
Fittings
Weight
173 g
– 1 +

Special Features

  • PRECISE CONTROL: Operate pneumatic systems accurately with this 2 position 5 way mechanical valve for automated equipment
  • ROBUST BUILD: Crafted from nickel plated brass to deliver long lasting performance under 0.9MPa working pressure
  • EASY INSTALLATION: Features Rc1/8 threads and includes 6mm connectors for quick setup on air control lines
  • AUTO for reset FUNCTION: Reverses direction via external and returns to original state automatically when released
  • COMPLETE KIT: Includes TAC2-41V manual valve plus mufflers and fittings ready for immediate industrial use

Description

Features:
*Mechanical valve is a reversing valve controlled by mechanical external force. When the external force disappears, the valve will for reset itself and reverse direction
*Made of materials
*Usually used to control the output signal of pneumatic
*Pneumatic switch button switch valve for automatic equipment
*Pneumatic valve TAC2-41V 2-position 5-way switching mechanical valve with 6mm connector

Specification:
Part name: Pneumatic switching valve
Color: Silver
Material: Metal
Model: TAC2-41V
Type: 2 Position 5 Way
Fluids: :Air
Body: brass (nickel plated)
Air intake thread: Rc1/8''
Air outlet thread: Rc1/8''
for exhaust: Rc1/8''
Working pressure range: 0~0.9MPa (0~131Psi)
Working for temperature: 0~60℃
Size：31.8*16*62.2mm

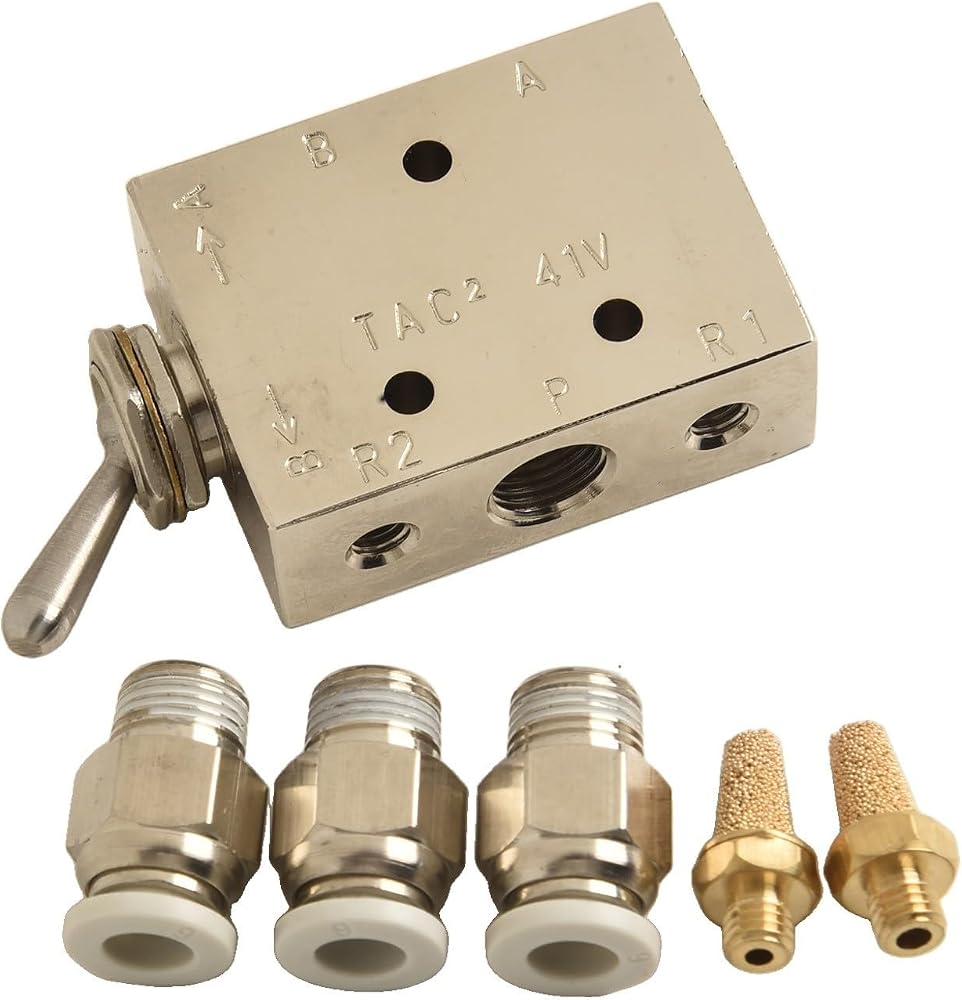

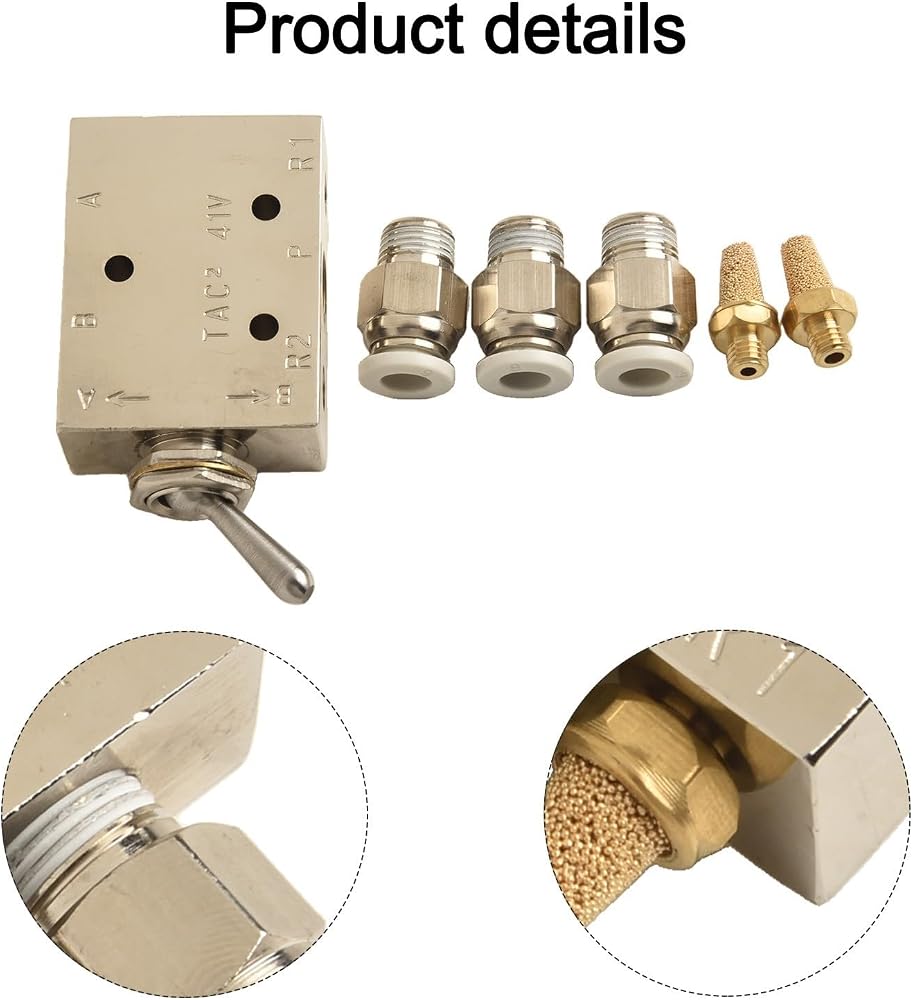

Package Content:
1 x TAC2-41V pneumatic switching valve
3 x 6mm connector
2 x muffler
