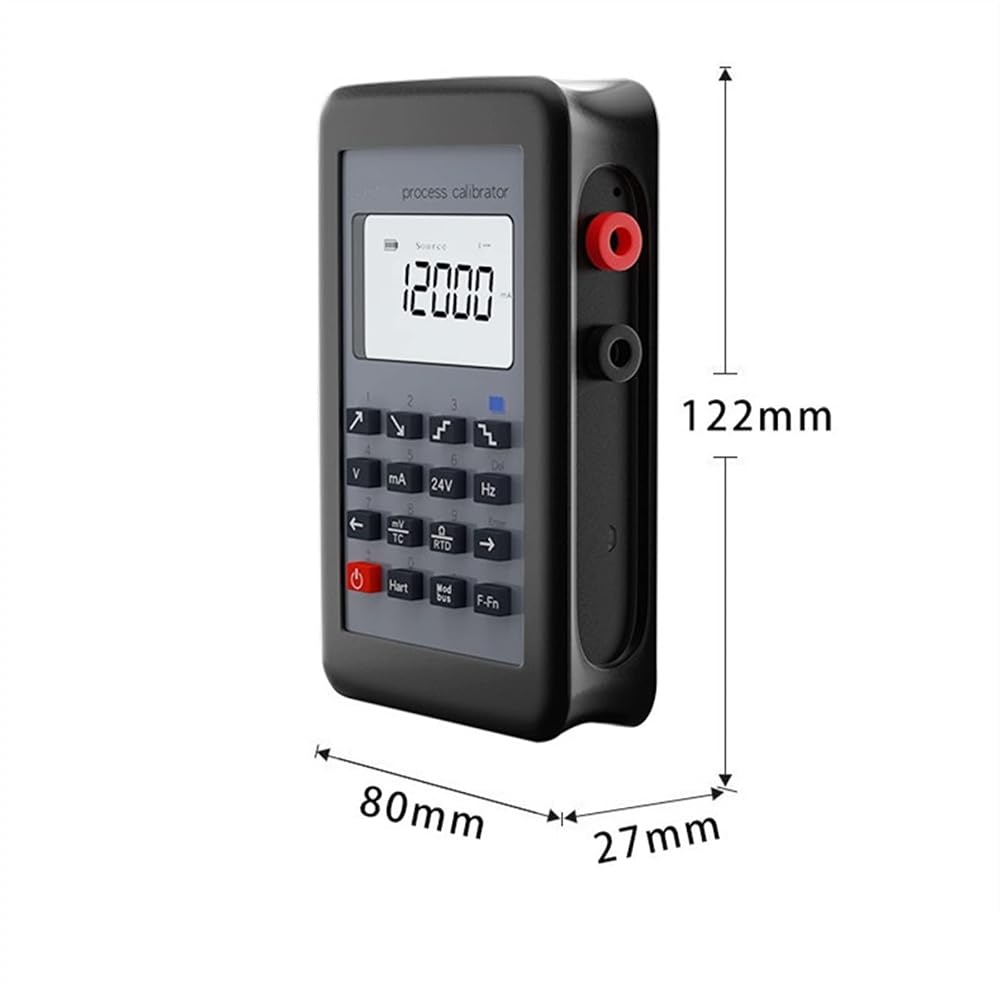

● Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.

● High accuracy 0.025%+1/2 digits, high reliability and stability.

● Have full-function operating mode, user can enter any value through digits buttons, the calibrator can output signal directly.

● 2200mAH re-chargeable battery inside, very suitable and convenient to use it in applications indoors or outside industrial site.

● Signal output & simulation: 0-10KHz frequency, 4-20mA source or passive signal, 0-11V, 0-110mV, 20-400Ω, standard R, E, S, K, J, B, T, N type thermocouple, PT100, PT1000, CU50, 24V outputs, etc.

● Measurement ranges: 0-10KHz frequency, 0-30V, 0-150mV, 0-999.9Ω, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, etc.

● High resolution color LCD display, have back light for different lighting conditions, large screen clear display.

● Fast response, no delay in signal source simulation and signal testing or measurement.

● Have battery charging and status bar. User can check the battery status easily.

● Can be used as signal generator, frequency calibrator, multifunction process calibrator and digital multimeter.

● Have description in Hz, V, mV, mA, RTD, TC, Step, and Ω keys, it enables user to operate it easily.

● Frequency signal, DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.

● AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability

● Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage.

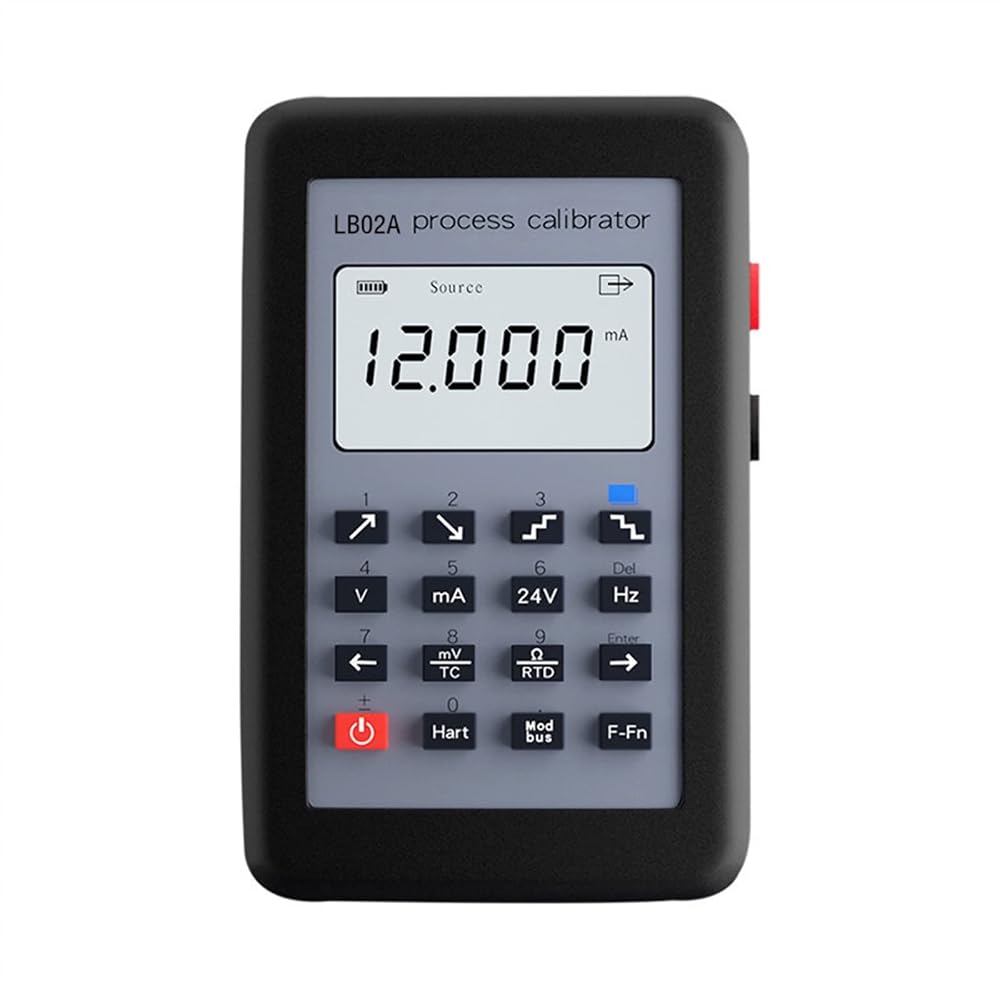

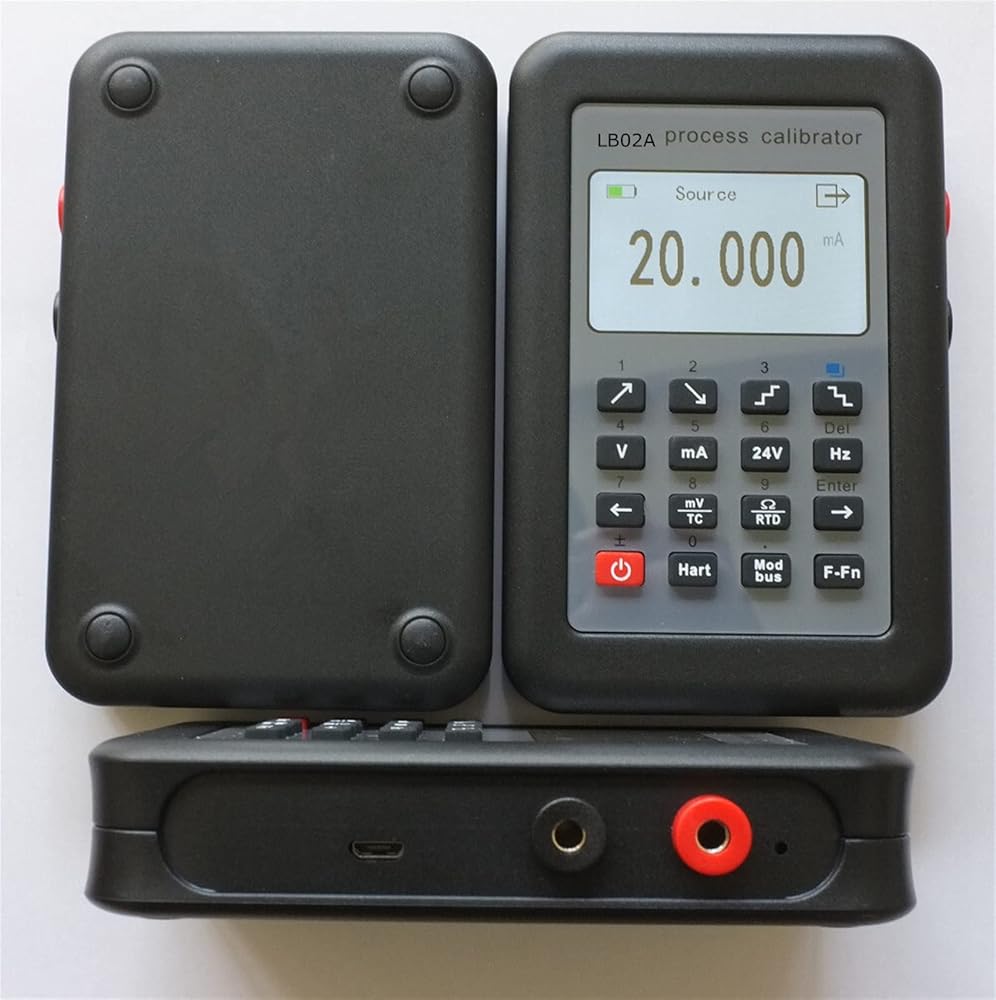

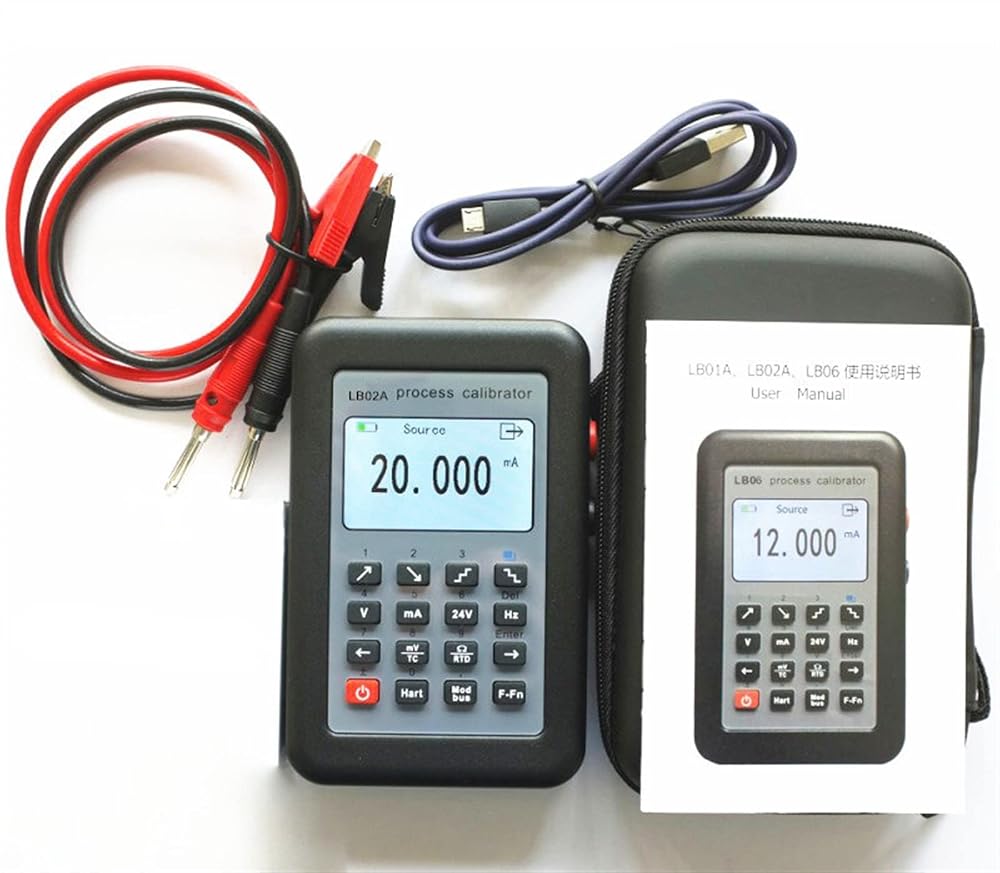

1 Unit x LB02A Portable Precision Process Calibrator (* No MODBUS, Hart Functions)

1 Set x alligator testing clips

1 Unit x High quality 2A USB Cable for Battery Re-charge
