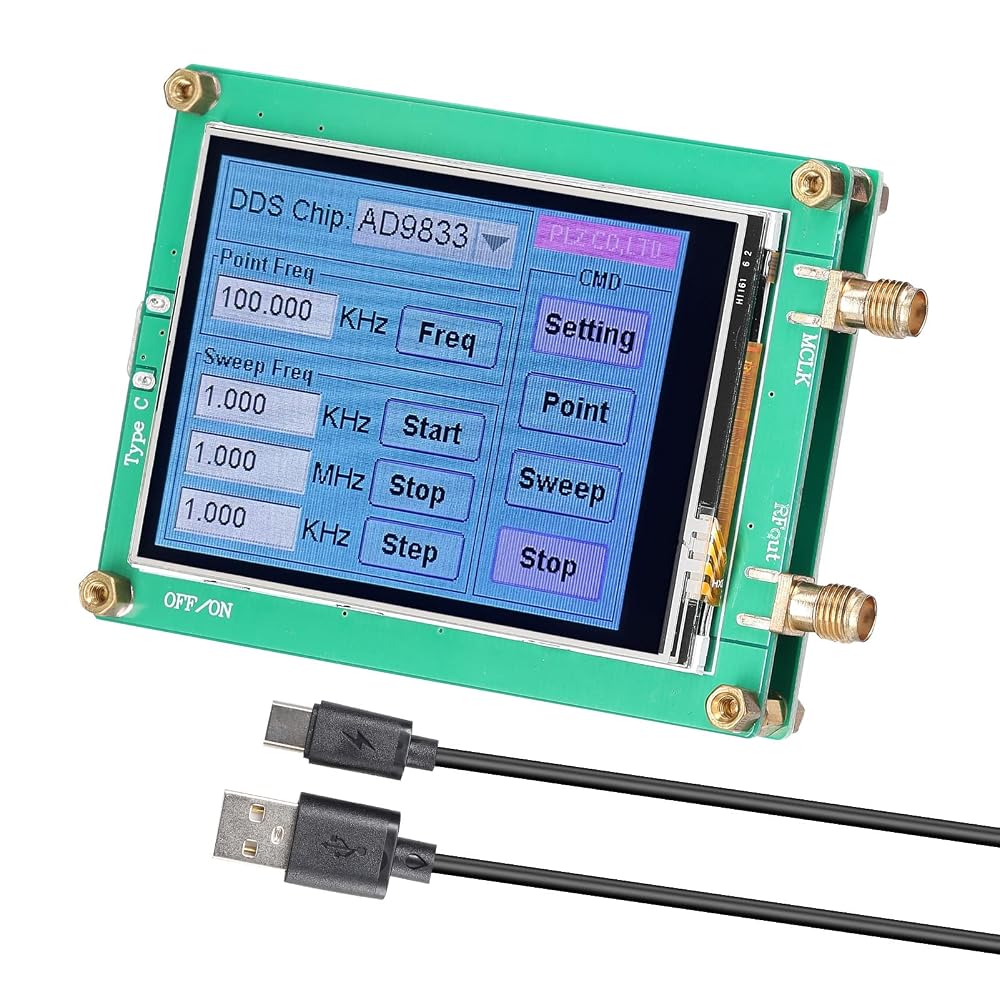

The module is powered by 5V Type-C, the user can select the desired chip, set the desired point frequency, sweeping starts frequency, sweeping stop frequency, and the sweeping-step frequency.
You can set the clock reference frequency and change the output waveform signal. When connecting to an external clock, you need to input the corresponding external clock frequency.
In Waveform, you can output Sine (sinewave) signal, Square (squarewave) signal, Triangular (triangularwave) Signal.

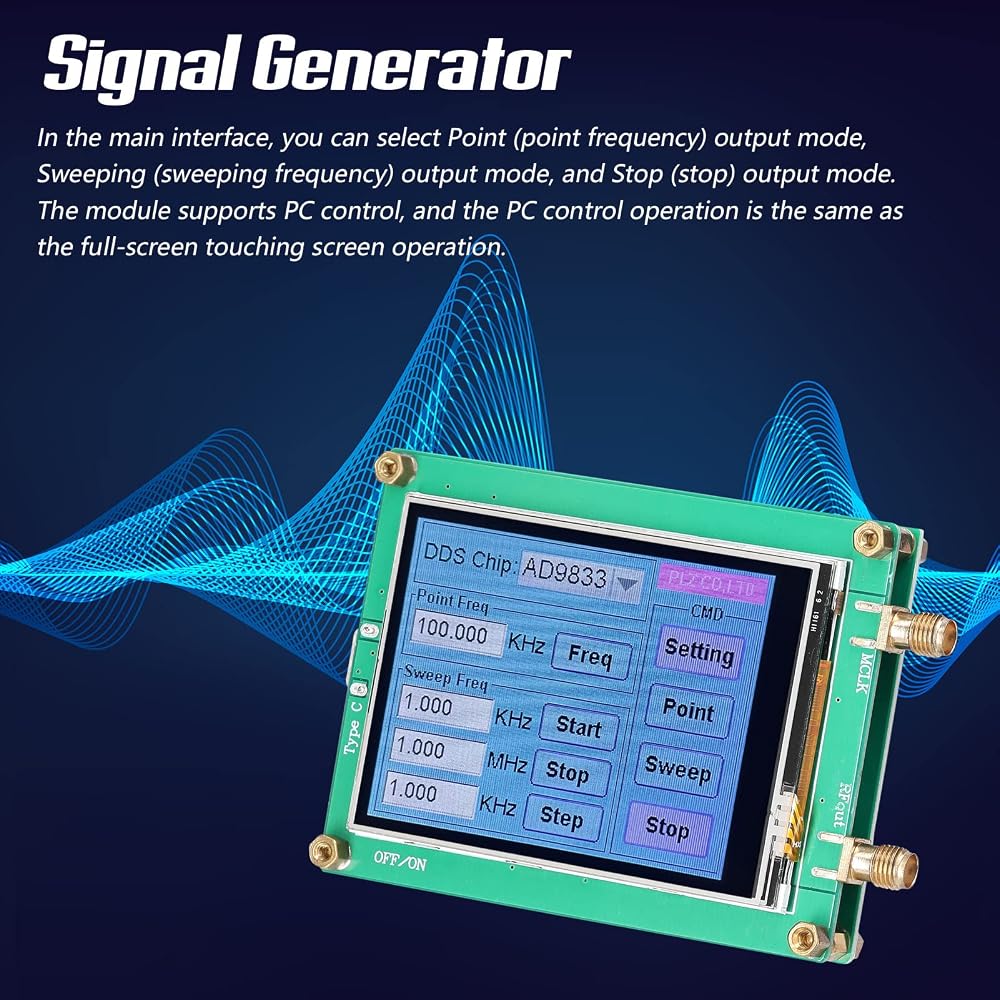

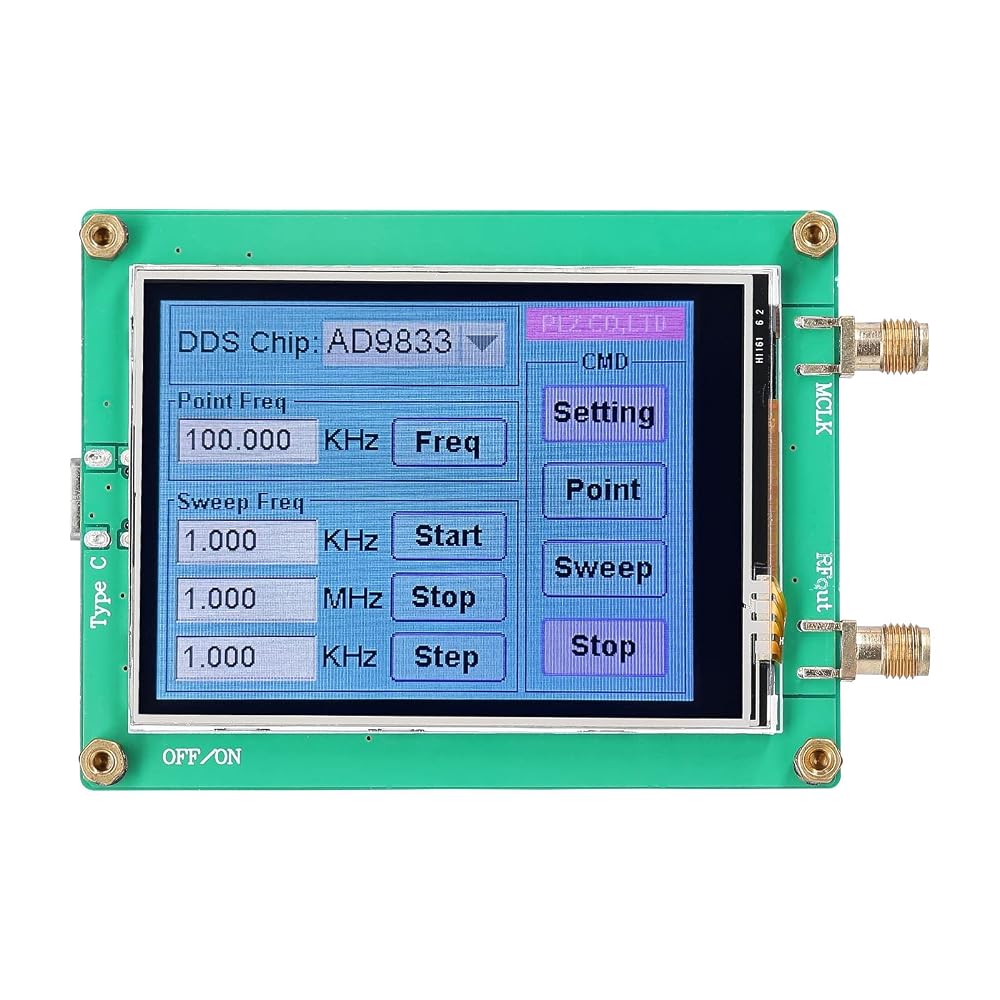

In the main interface, you can select Point (point frequency) output mode, Sweeping (sweeping frequency) output mode, and Stop (stop) output mode.
The module supports PC control, and the PC control operation is the same as the full-screen touching screen operation.

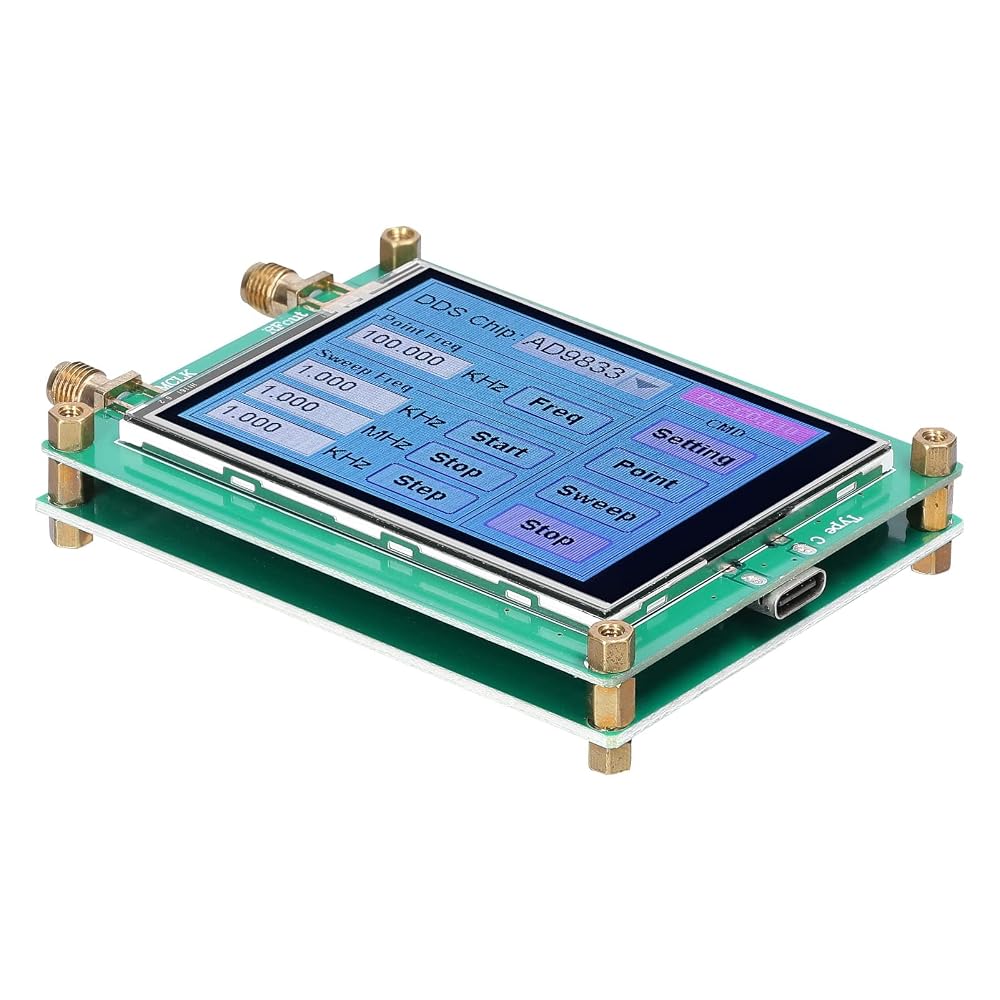

Specifications:

Material: printed circuit board

Power supplys: DC5V

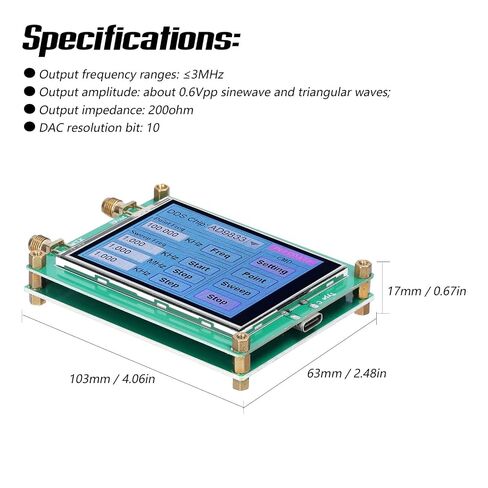

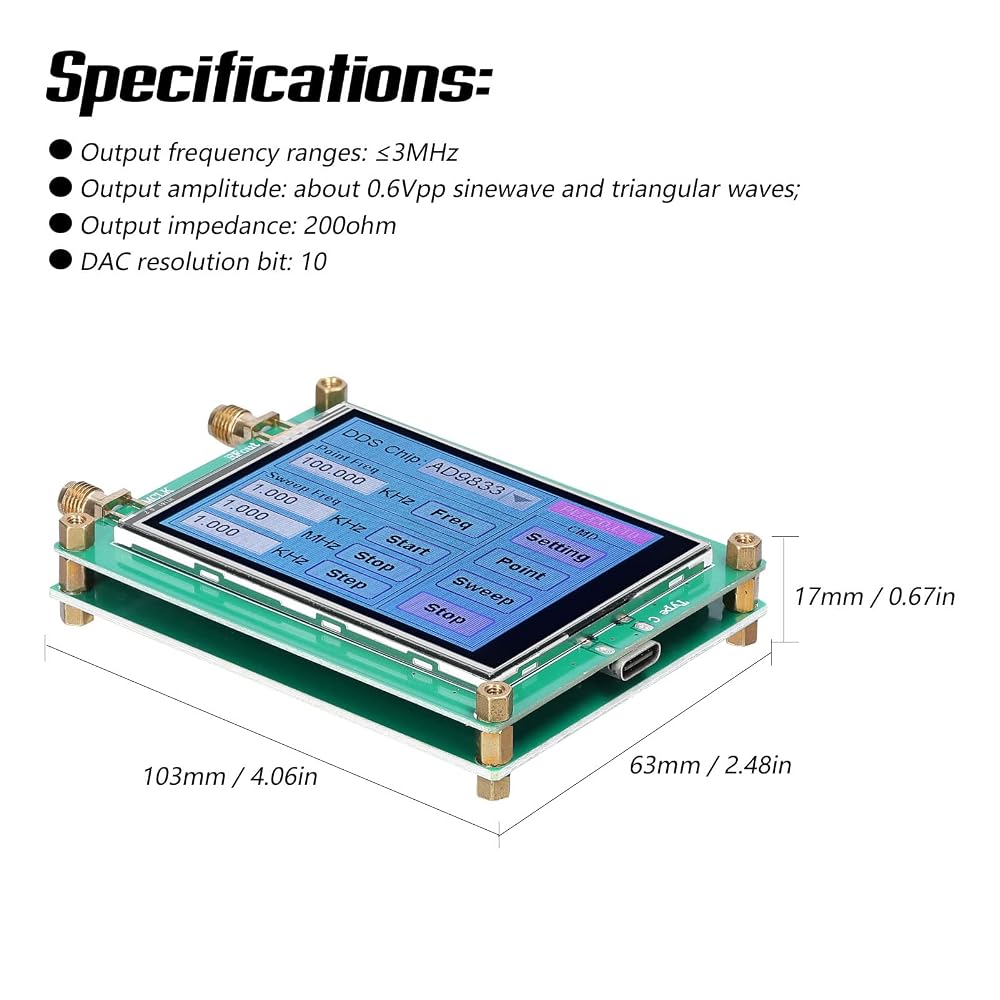

D-A-C resolution bit: 10

Output frequency ranges: ≤3MHz

Output amplitude: about 0.6Vpp sinewave and triangular waves; about 3Vpp square waves

Output impedance: 200ohm

Output interface: SMA

Output channel: 1 channel

Item size: 103 * 63 * 17mm / 4.06 * 2.48 * 0.67in

Item weight: 89g / 3.14ounce

Package size: 125 * 103 * 40mm / 4.92 * 4.06 * 1.57in

Package weight: 116g / 4.09ounce
