مميزات خاصة

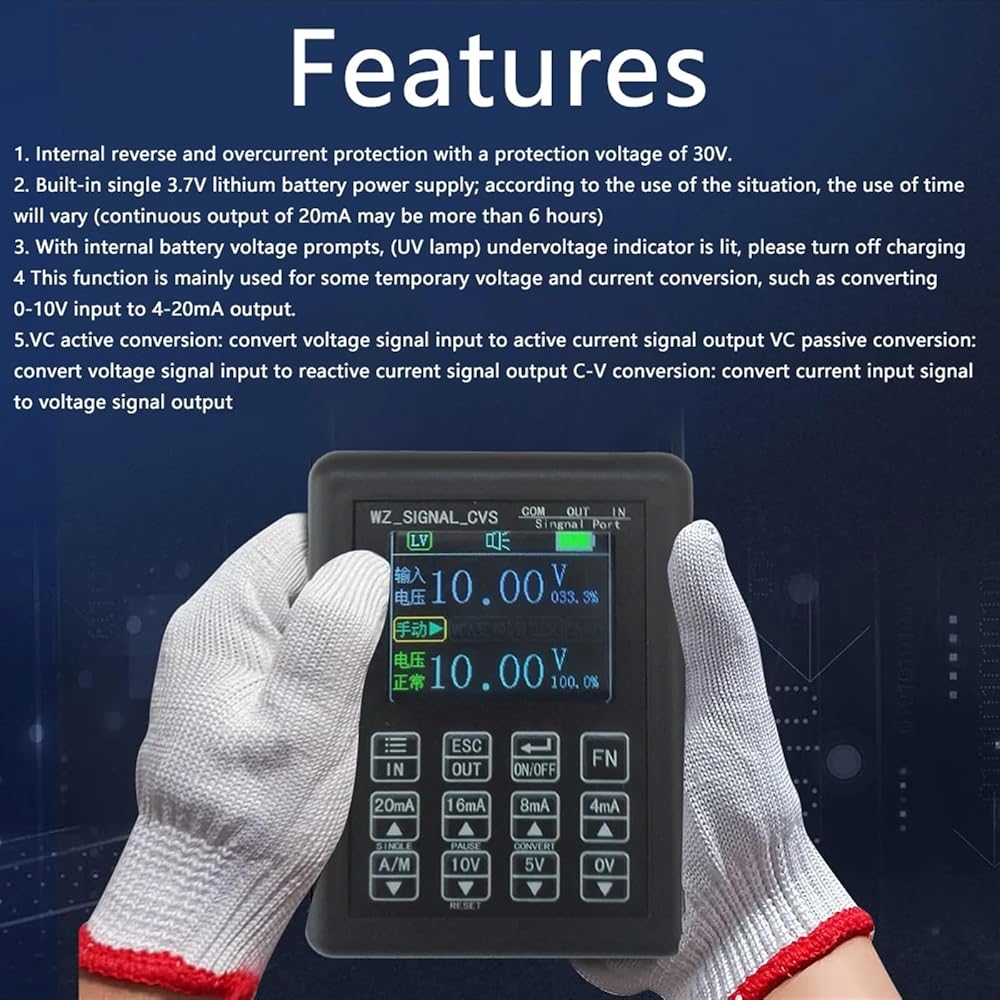

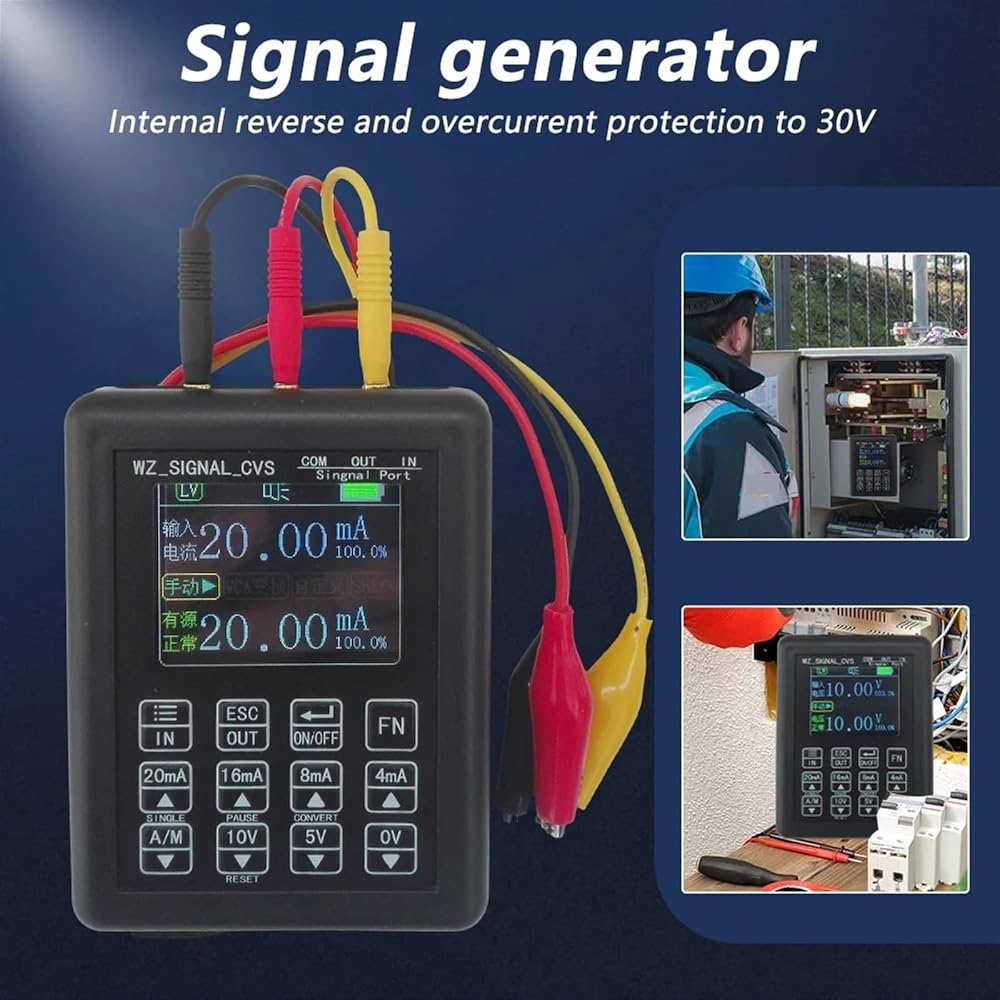

Internal reverse and overcurrent protection at 30V.
Built-in single 3.7V lithium battery power supply; Depending on the use, the use of time will vary (continuous output of 20mA may be more than 6 hours)
With internal battery voltage prompts, (UV lamp) under-voltage indicator is lit, please turn off charging
This function is mainly used for some temporary voltage and current conversion, such as converting 0-10V input to 4-20mA output.
VC active conversion: convert voltage signal input to active current signal output VC passive conversion: convert voltage signal input to reactive current signal output C-V conversion: convert current input signal to voltage signal output

وصف

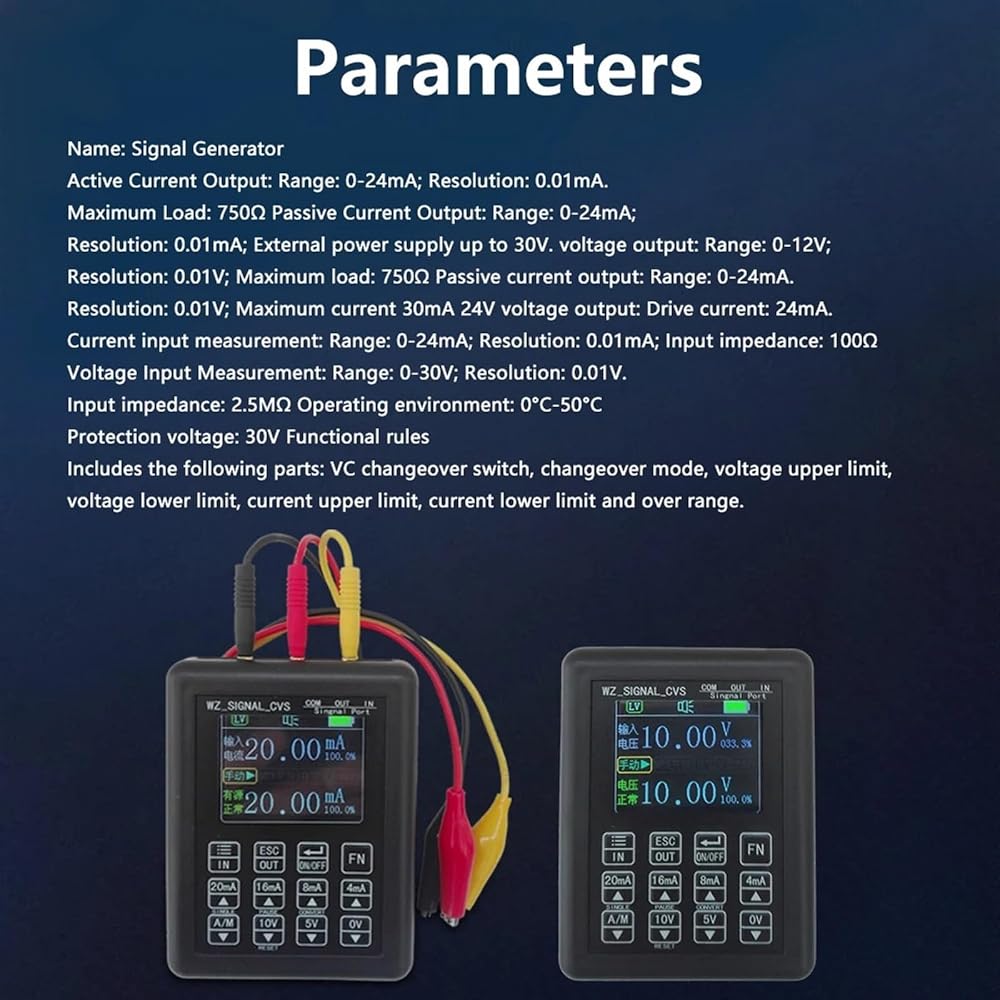

Active current output: Range: 0-24mA; Resolution: 0.01mA; Maximum load: 750Ω

Passive current output: Range: 0-24mA; Resolution: 0.01mA; External power supply up to 30V.

Voltage output: Range: 0-12V; Resolution: 0.01V; Maximum current 30mA
24V voltage output: drive current: 24mA.

Current input measurement: Range: 0-24mA; Resolution: 0.01mA; Input impedance: 100Ω

Voltage input measurement: Range: 0-30V; Resolution: 0.01V; Input impedance: 2.5MΩ

Operating environment: 0℃-50℃

Protection voltage: 30V

Function rules include the following parts: VC conversion switch, conversion mode, voltage upper limit, voltage lower limit, current upper limit, current lower limit and over range.

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

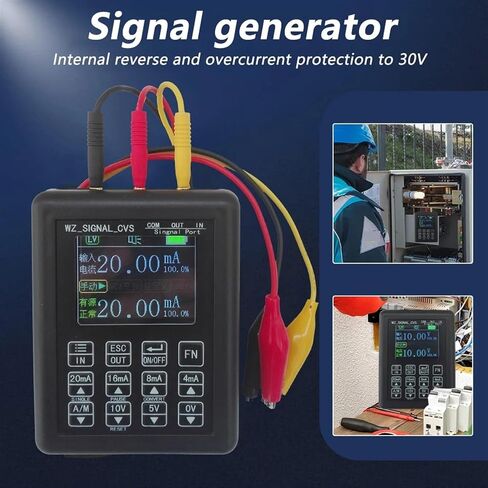

0-10 فولت إلى 4-20mA إشارة مولد الدقة قابل للتعديل الجهد الحالي محاكاة
