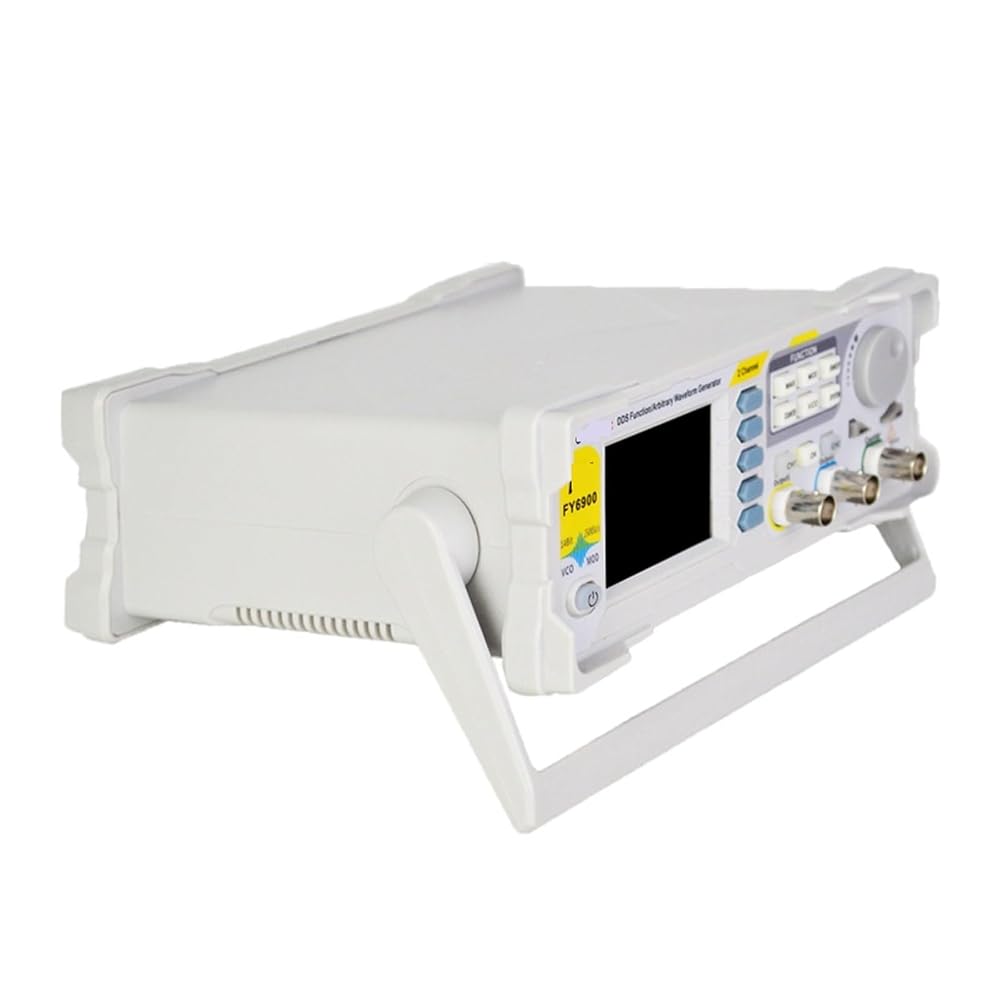

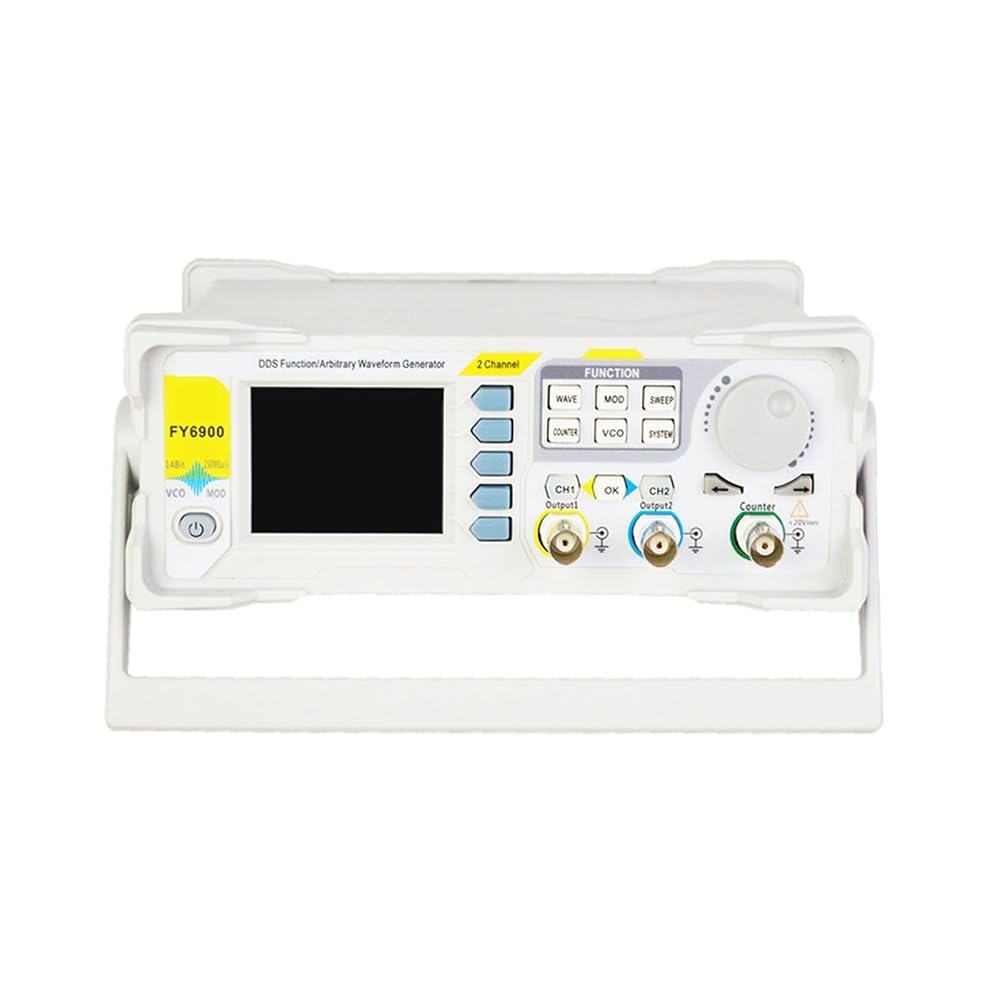

Mode：FY6900-50M
Sine：0~50MHz
Square：0~25MHz
Ramp, Triangle：0~10MHz
Pulse：0~10MHz
TTL/CMOS：0~10MHz
Arbitrary Waveform：0~10MHz
Minimum pulse width：20ns(All models of pulse wave minimum width can reach 20ns)
Min. Resolution on all frequency range：1Hz (Min. resolution can reach 1Hz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).
Accuracy：±20ppm
Stability：±1ppm/ 3hours
Non-Volatile Storage：Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Waveform Length：8192 points * 14bits
Sampling Rate：250MSa/s
Vertical Resolution：14 bits
Sine
Rectangle
Overshoot：5%
Duty Cycle：0.01%~99.99% (Resolution 0.01%)
Sawtooth wave
Linearity：>99% (0.01Hz~10kHz)

Amplitude(VPP)
Frequency5MHz: 1mVpp~24Vpp;
Frequency>20MHz: 1mVpp~5Vpp;

Resolution：1mV
Amplitude Stability：±0.5%/ 5 Hours
Amplitude flatness：±2.5%(10MHz);

Waveform Output
Impedance：50±10%(Typical)
Protection：All channels can work more than 60 seconds when the load is short-circuited.
DC Offset
Offset Range：Frequency20MHz: ±12V; Frequency>20MHz: ±2.5V;
Offset Resolution：1mV

Phase Feature
Phase range：0~359.99°
Phase resolution：0.01°
TTL Output
TTL Level Amplitude：>3Vpp
Fan-out：>8 TTL LOAD
Rise/Fall Time：10ns
CMOS Output
High Electric Level：1V~12V
Rise/Fall Time：18ns

External Measurement
Function：Frequency, Period, Positive/Negative Pulse Width, Duty Cycle
Input Voltage Range：1Vpp~20Vpp

Frequency Meter
Resolution：0.01Hz (Gate Time = 100S)
Range：0.01Hz~100MHz
Sensitivity：Gate Time 3 grades (1S, 10S, 100S) adjustable

Counter
Range：0-4294967295
Coupling：DC, AC
