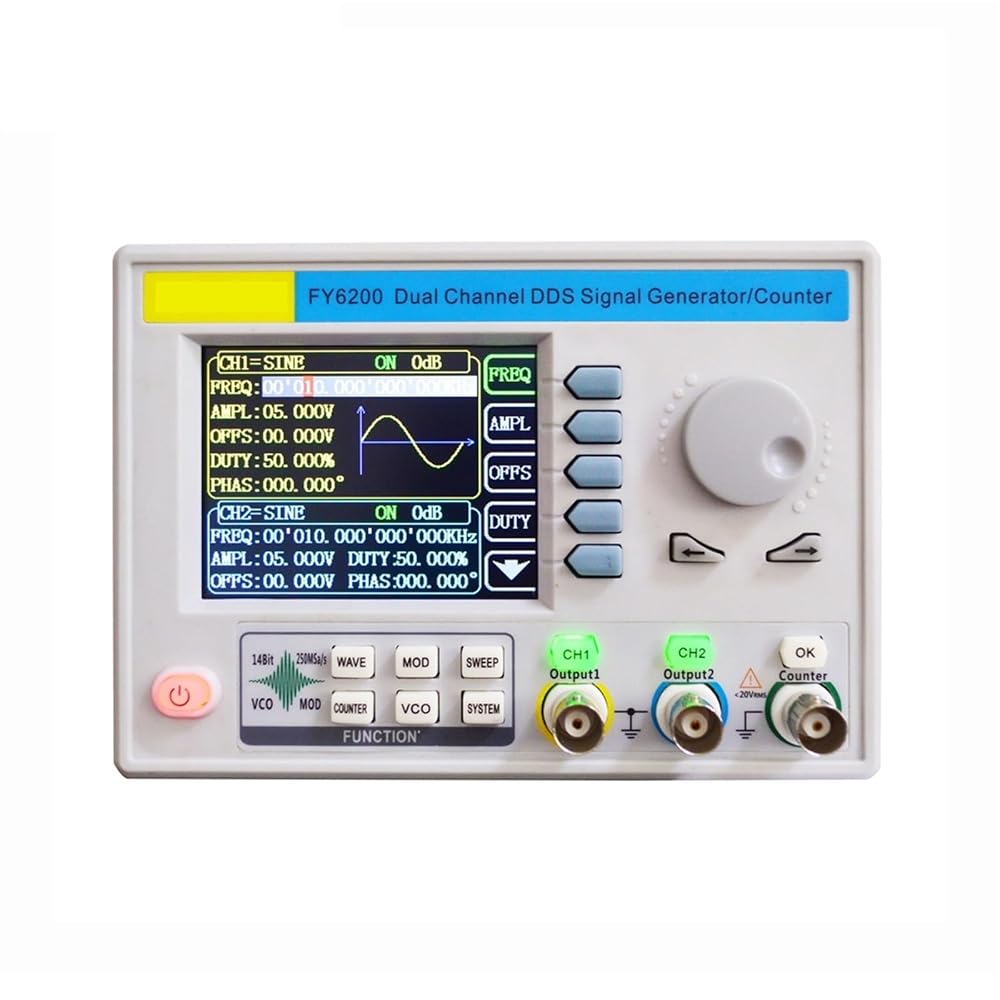

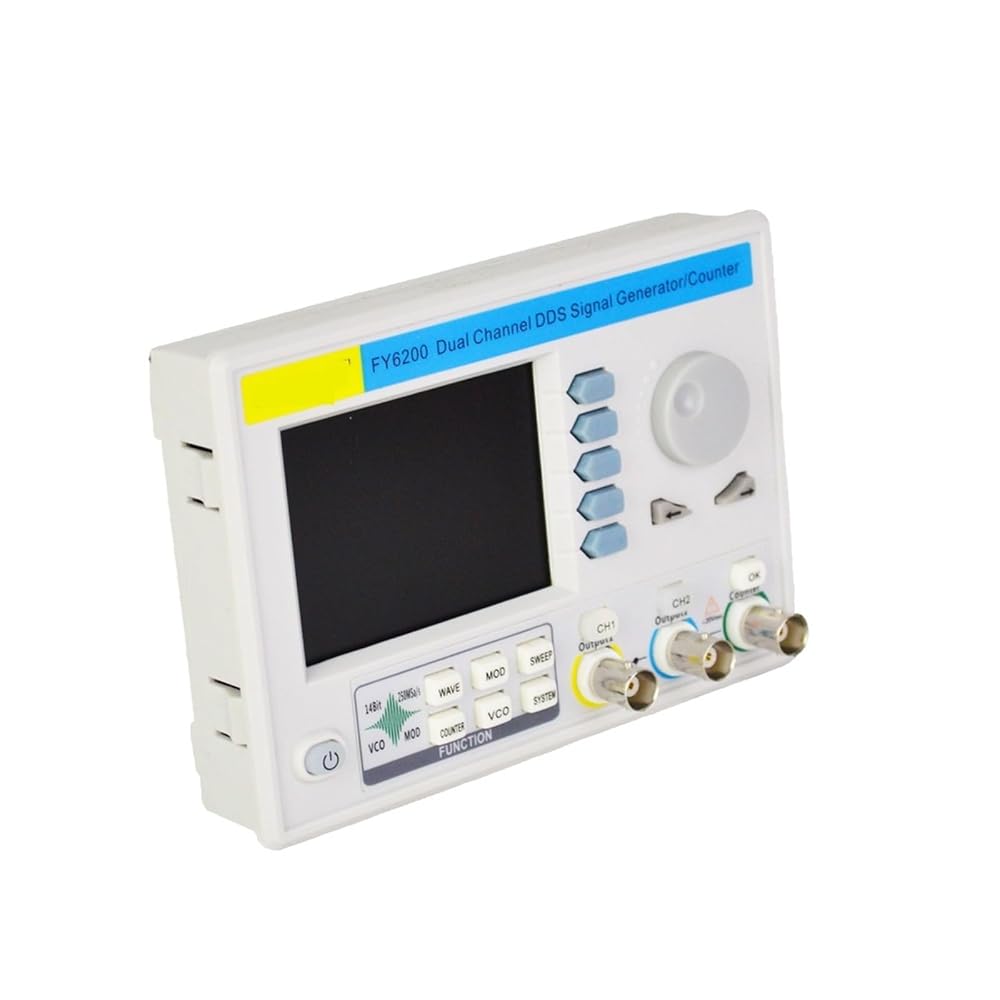

FY6200-40M

Sine wave：0~40MHz

Triangular wave：0~10MHz

Pulse wave：0~10MHz

Arbitrary wave：0~10MHz

TTL/CMOS Digital wave：0~20MHz

Minimum pulse width：20ns(The minimum adjustable width of all types of pulse wave can reach 20ns)

Min. Resolution on all frequency range：1μHz (The minimum resolution of the whole frequency band can reach 1uhz, so as to ensure the adjustment accuracy of the instrument at high frequency. For example, the instrument can output 10.000000000001MHz high-precision signal.)

Frequency Accuracy：±20ppm

Frequency stability：±1ppm/ 3 hours

Waveform Characteristic
Nonvolatile storage (64)：64 user-defined arbitrary waveforms can be stored
Waveform Length：8192 points (8K points) * 14bits
Sampling rate：250MSa/s
Vertical Resolution：14 bits

Sine Wave

Square and Pulse wave
overshoot：≤5%
Duty cycle adjustment range：0.01%~99.99% (Resolution 0.01%)

Sawtooth wave
linearity：≥98% (0.01Hz~10kHz)

Output characteristics
Amplitude Resolution：1mV
Amplitude Stability：±0.5%/ 5 hours
Amplitude flatness：±5%(10MHz);
Waveform Output
Output Impedance：50Ω±10%（Typical）
Protection：All signal output terminals can work for more than 60s under load short circuit condition
