Specification:
Weight: 130g/4.6oz
Model: HS-60-12
DC output voltage: 12V
Output voltage tolerance: 1%
Rated output current: 5A
Output current range: 0 ~ 5A
Noise: 100 mVp-p
Stability of incoming line: ±0.5%
Load stability: ±0.5%
DC output power: 60W
Efficiency: 85%
DC voltage adjustable range: 10%
Input voltage range: 100 ~ 240VAC47 ~ 63Hz; 120-370 VDC
Input current: 2A/115V 1A/230V
Shock current: cold starting current 30A/115V, 60A/230V
Leakage current: Overload protection: 105% ~ 150%; Type: cut off output; Reset: automatic recovery
Overvoltage protection: 115%-135%
High temperature protection:
Temperature coefficient: + 0.03% / ℃ (0 ~ 50 ℃)
Start, rise and hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC

Seismic resistance: 10 ~ 500Hz, 2G 10min, /1 cycle, 60 minutes in total, each-axis
Pressure resistance:
Between input and output: 3KvAC input and housing; 1.5kvAC output and housing; 0.5 KvAC

Isolation resistance:
Between the input and output, the input and the shell, the output and shell: 500 VDC / 100 m Ω

Working temperature and humidity: - 10 ℃ ~ + 60 ℃, 20% ~ 90% RH
Storage temperature and humidity: - 20 ℃ ~ + 85 ℃, 10% ~ 95% RH
Size: 85 * 60 * 34mm / 3.3 * 2.4 * 1.3in

Package List:

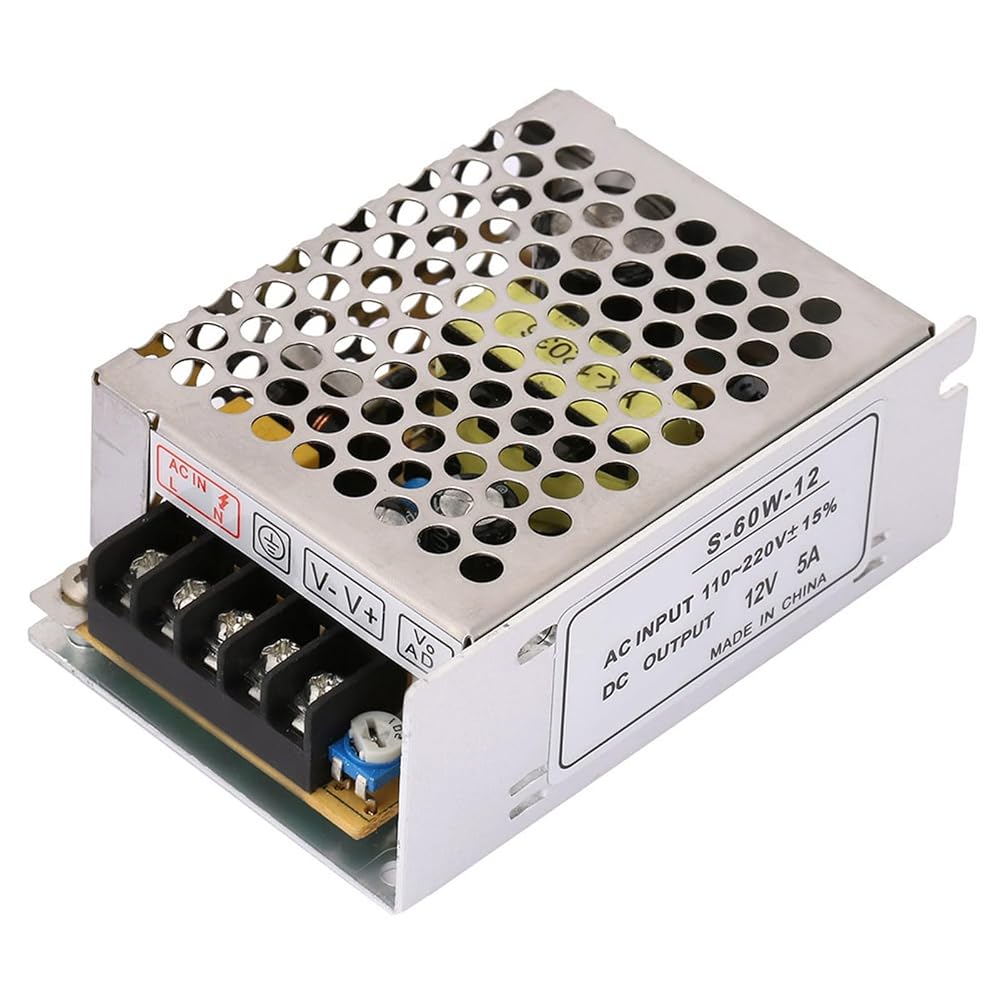

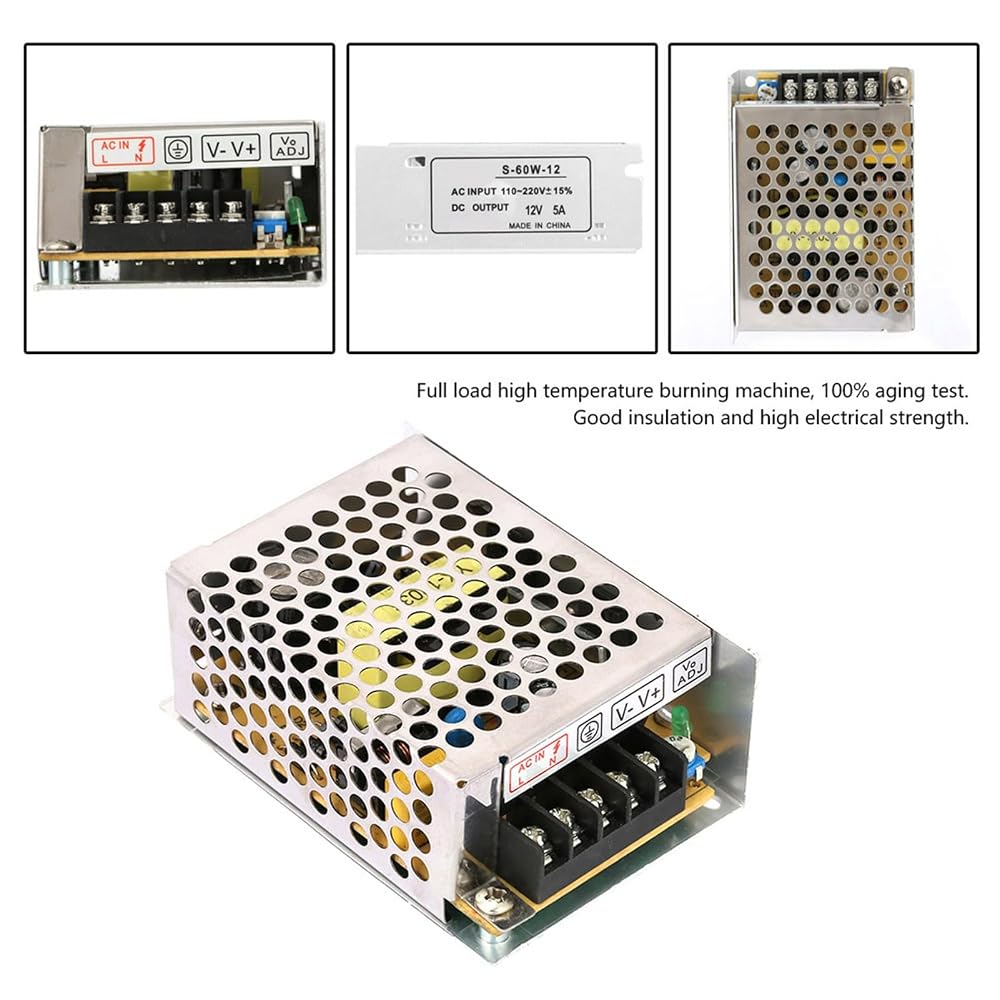

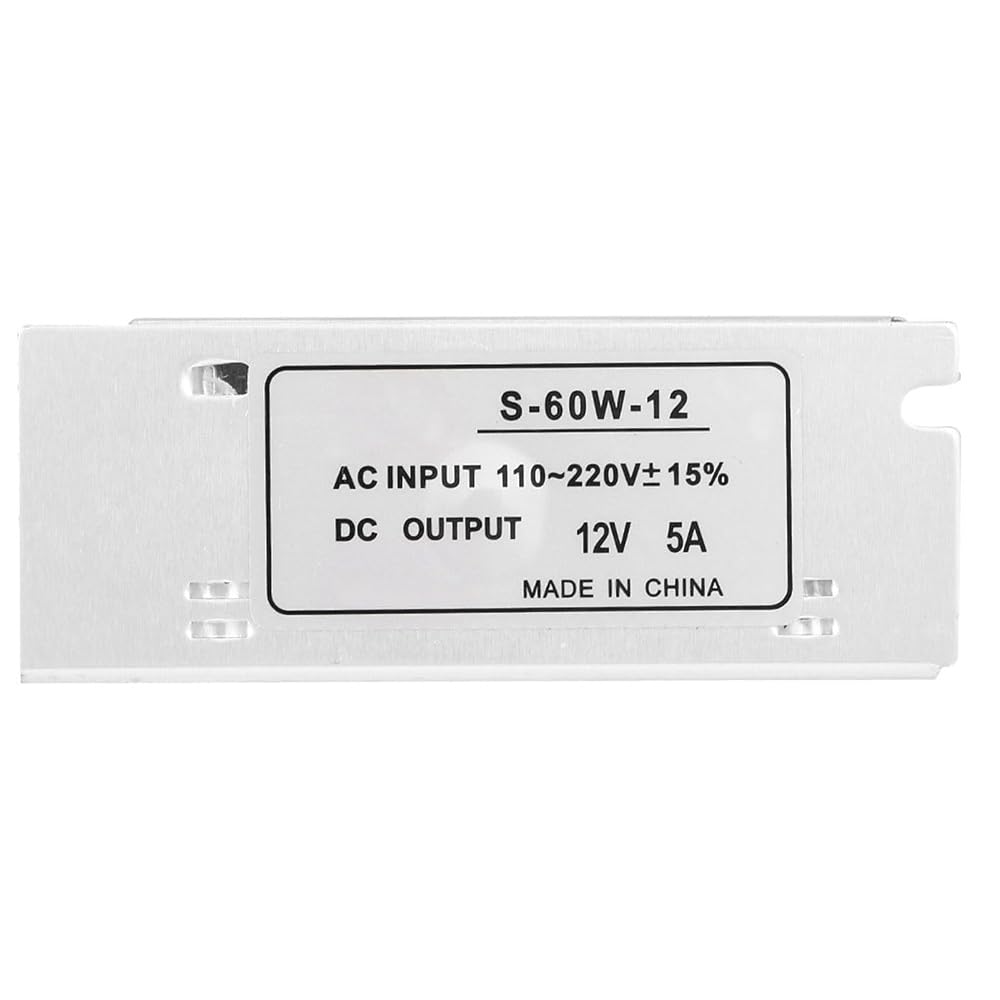

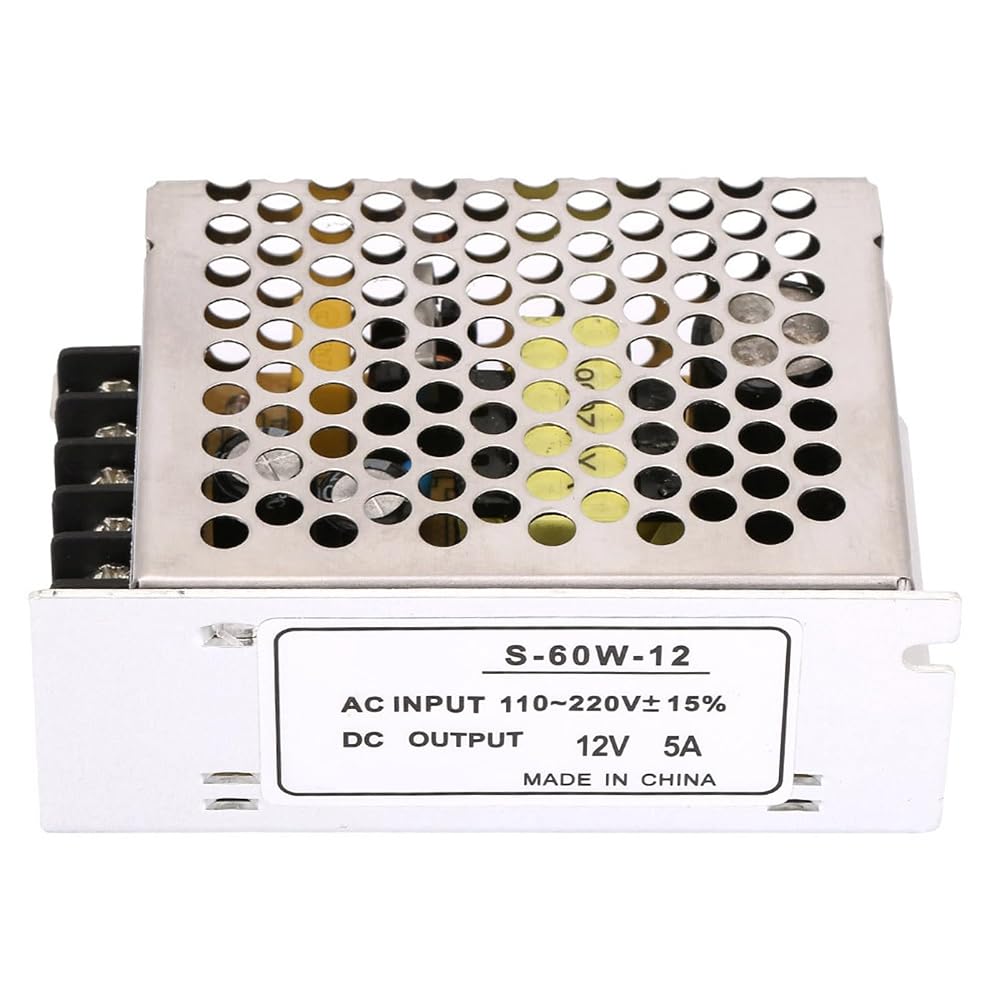

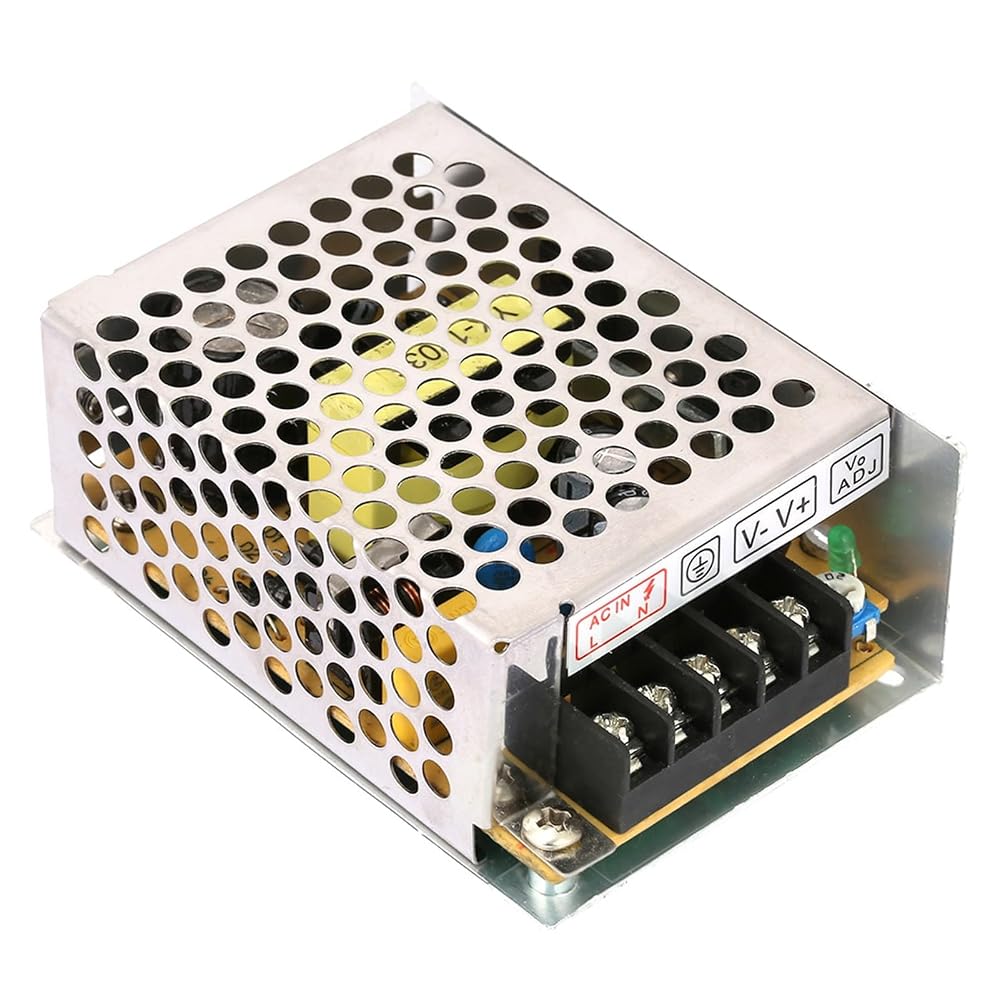

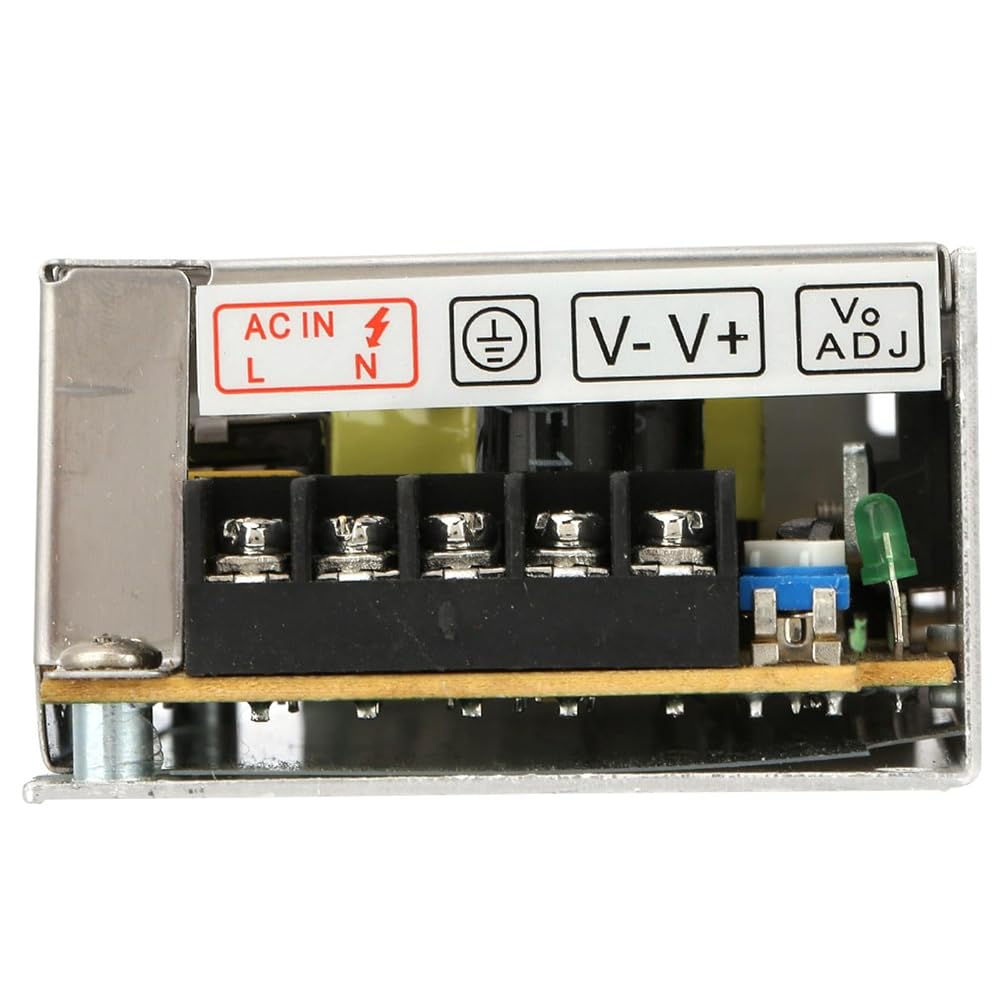

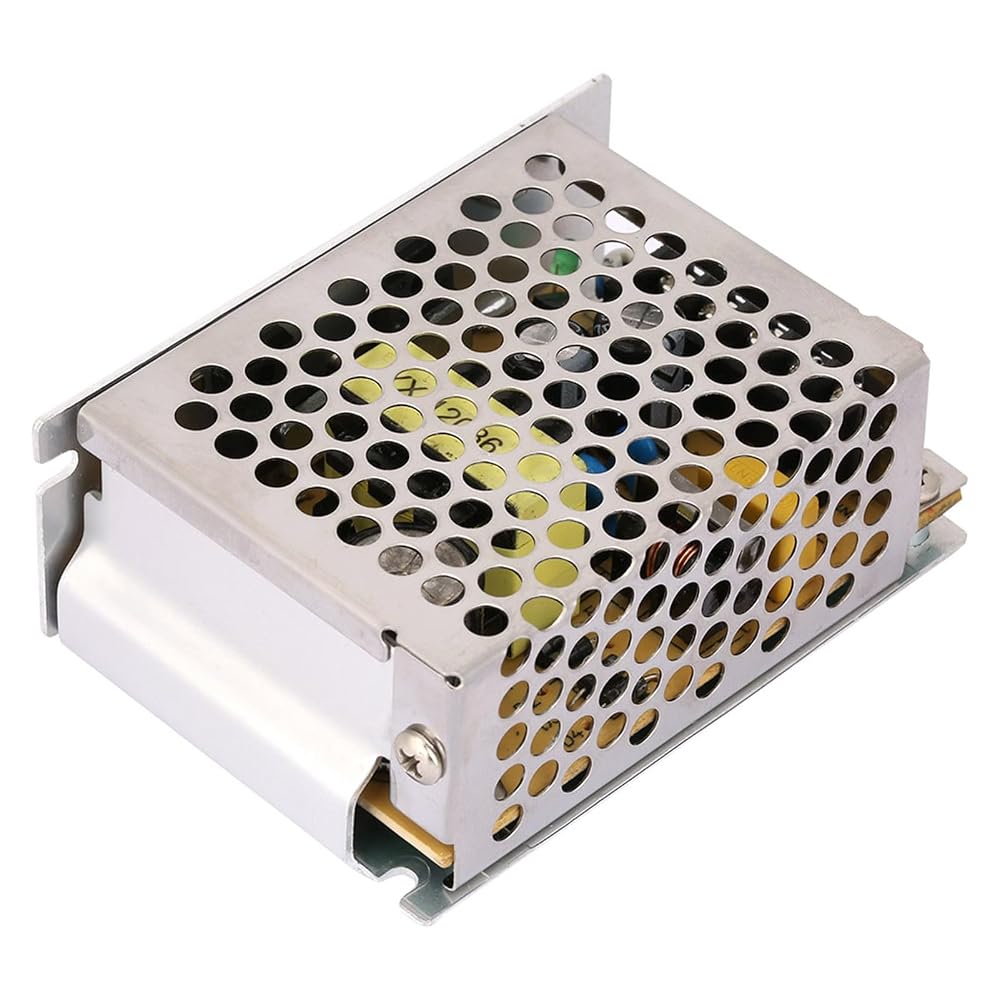

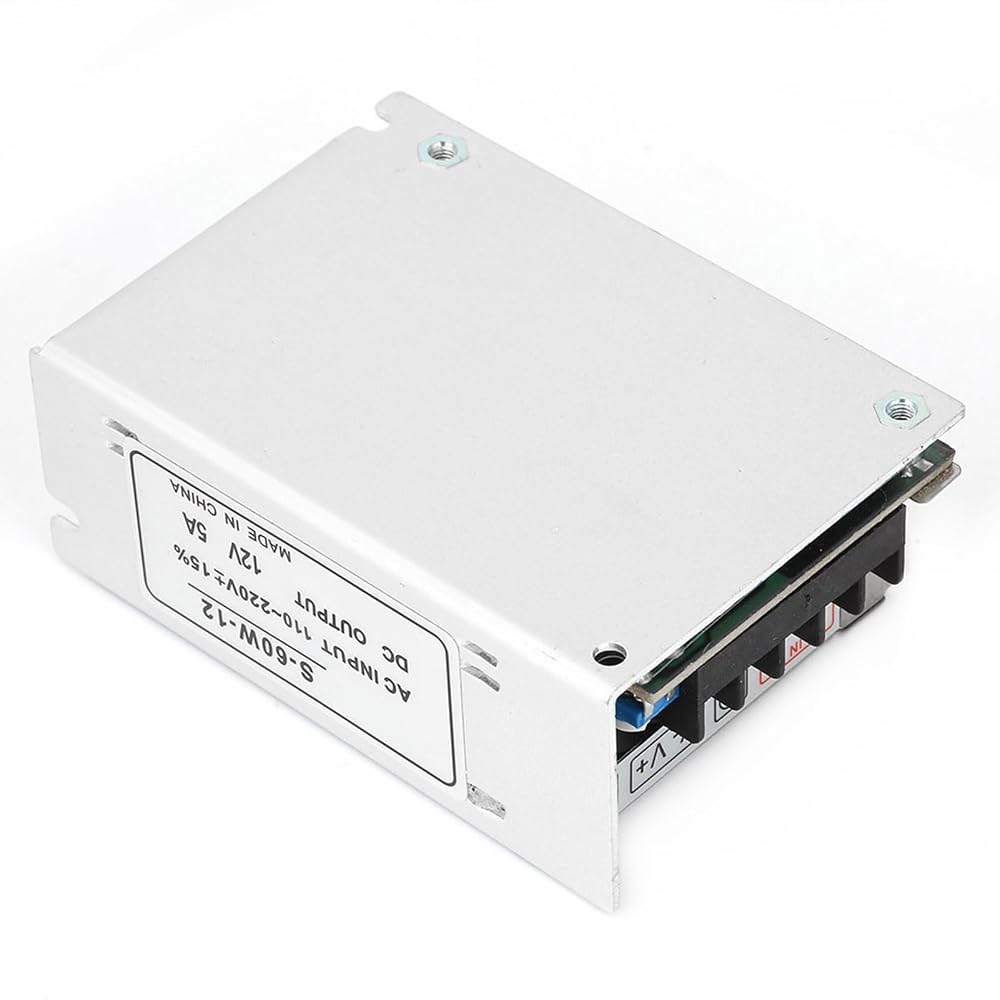

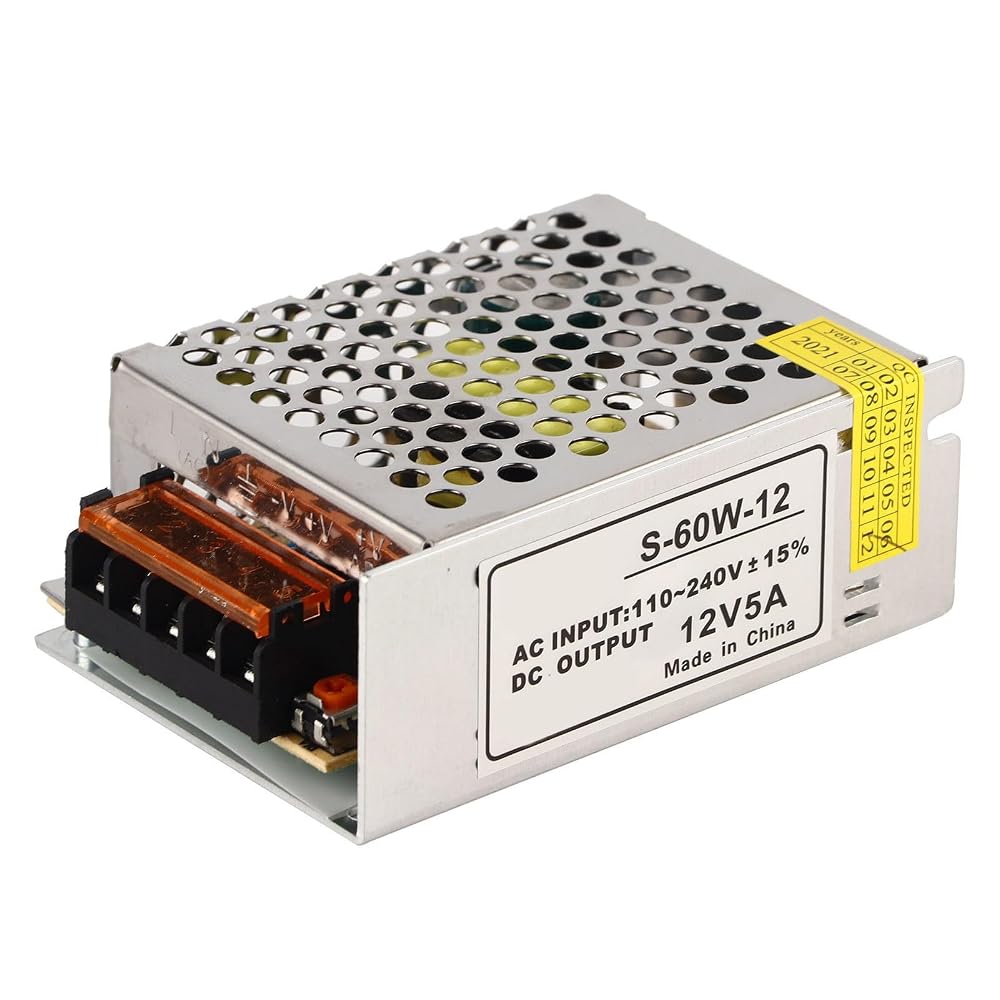

1 x Power Supply Regulated Switch
