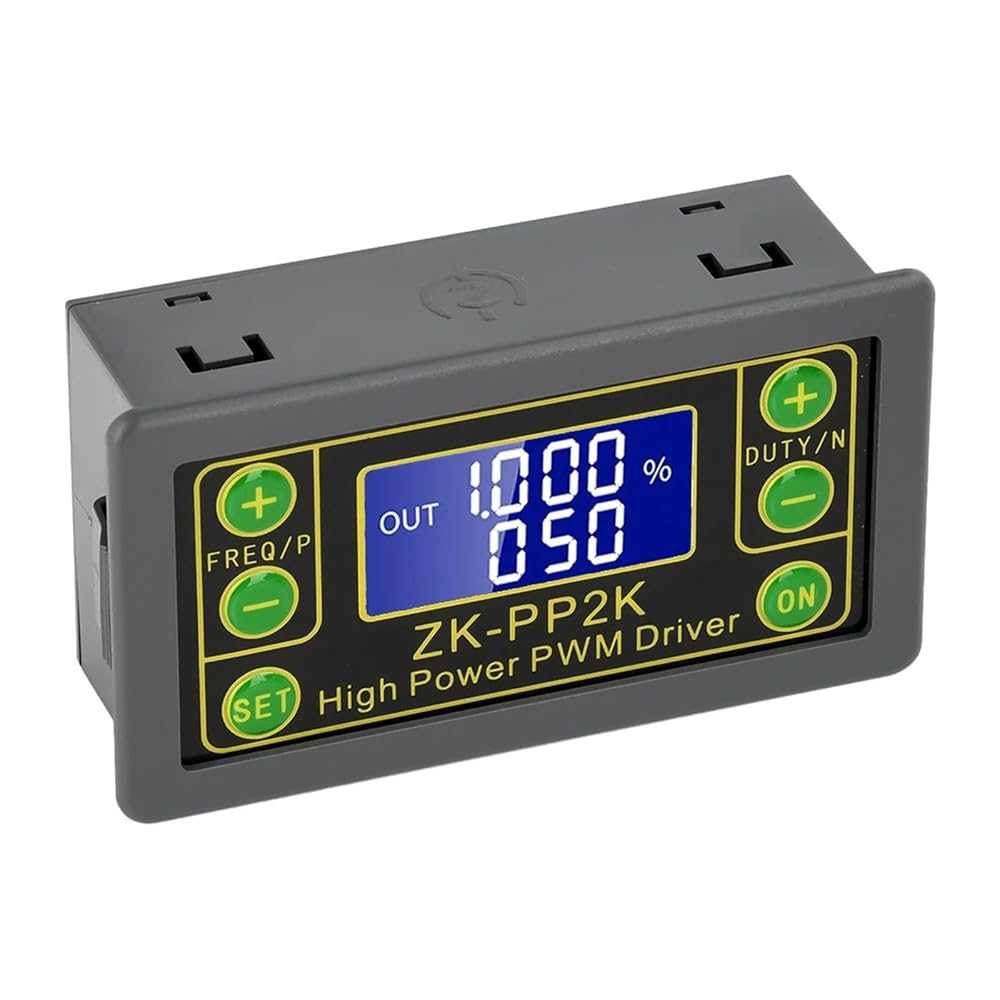

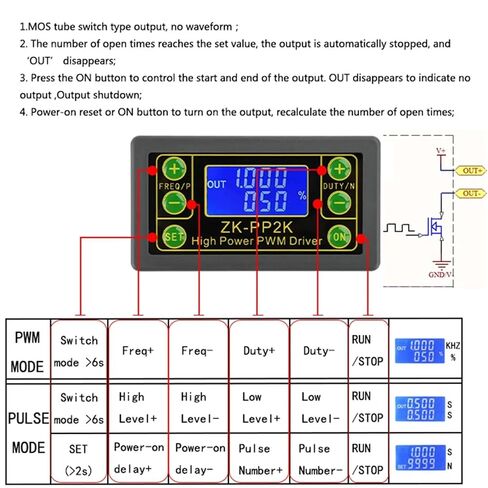

ZK-PP2K PWM Signal Generator 8A Driver Module for Motor/Lamp Dual Mode LCD PWM Pulse Frequency Duty Cycle Adjustable Module

Features:
1. Can directly drive loads such as LEDs, motors, solenoid valves, etc.;

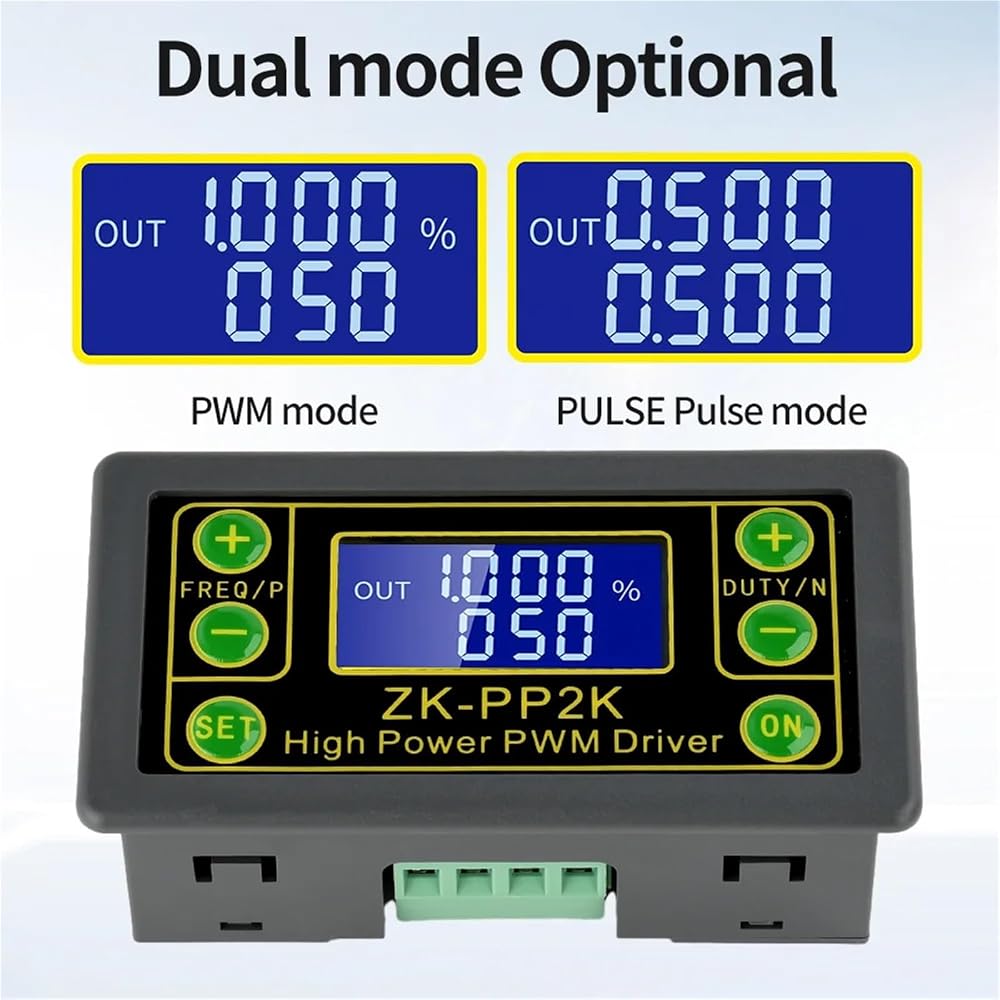

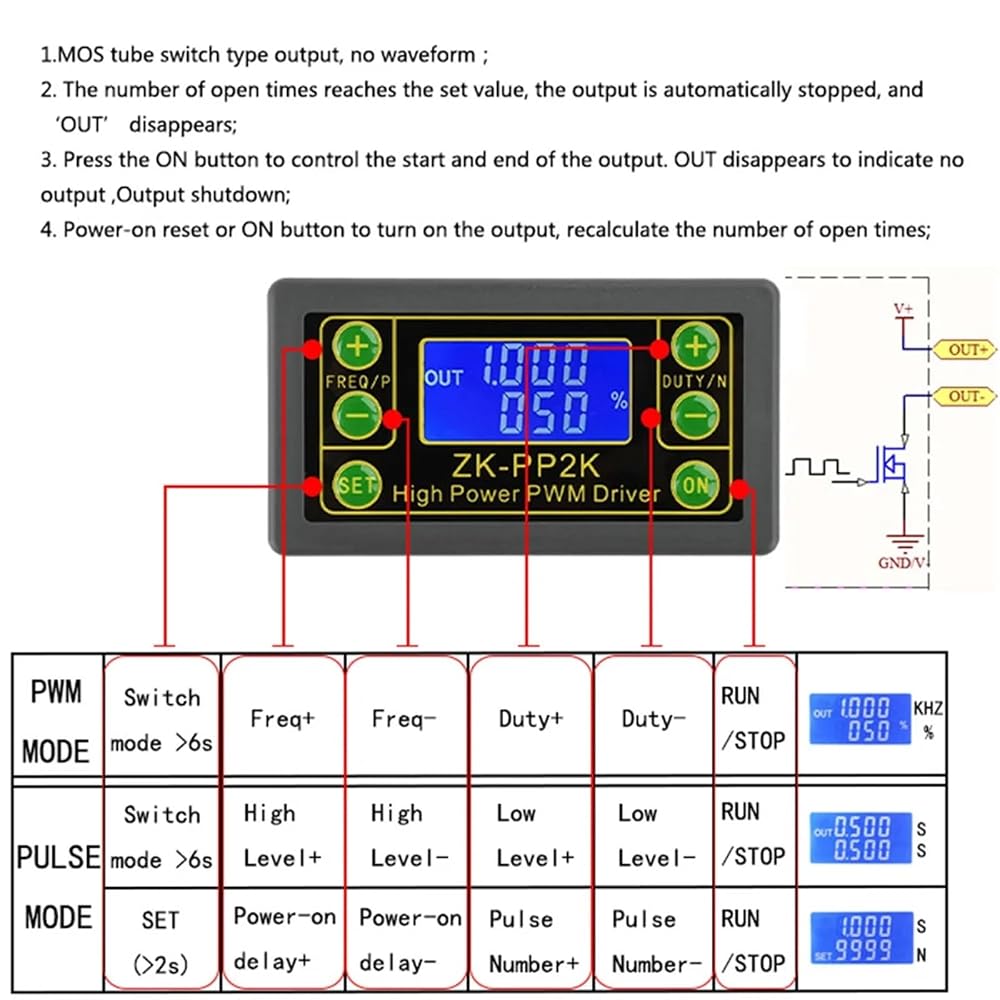

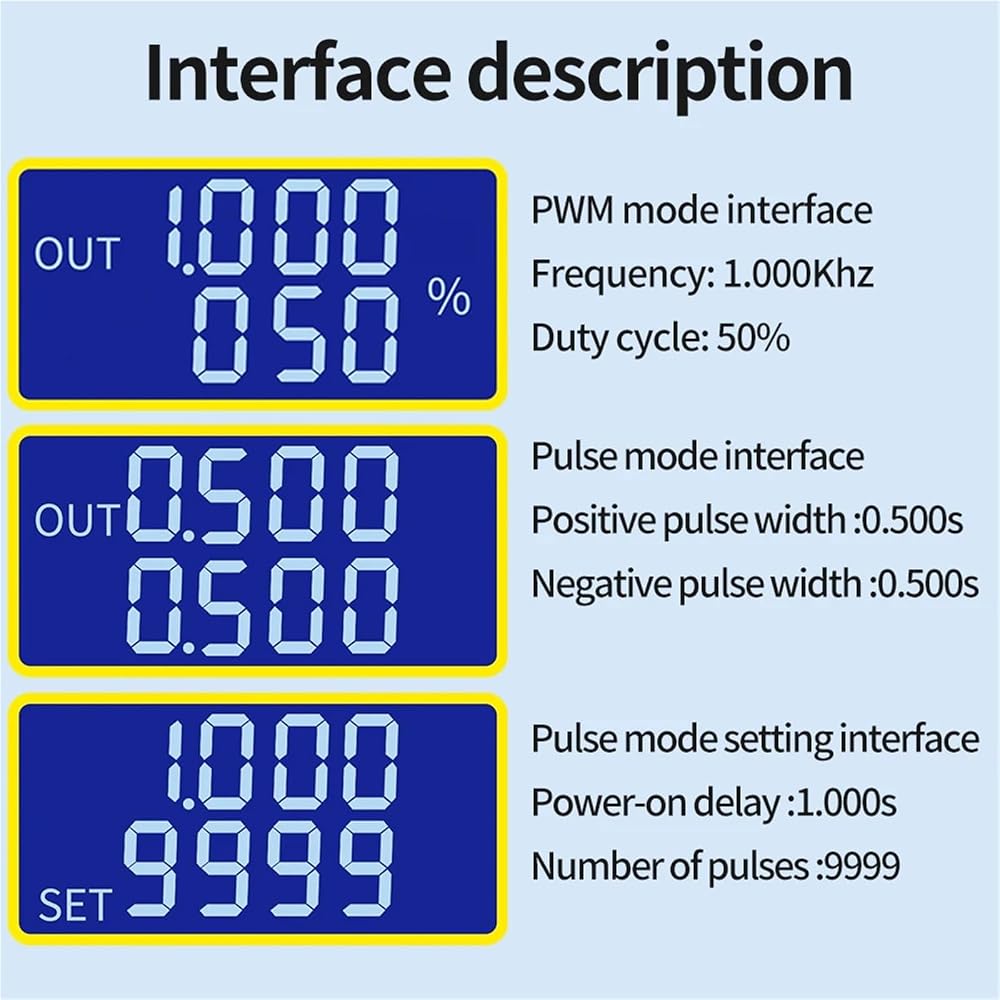

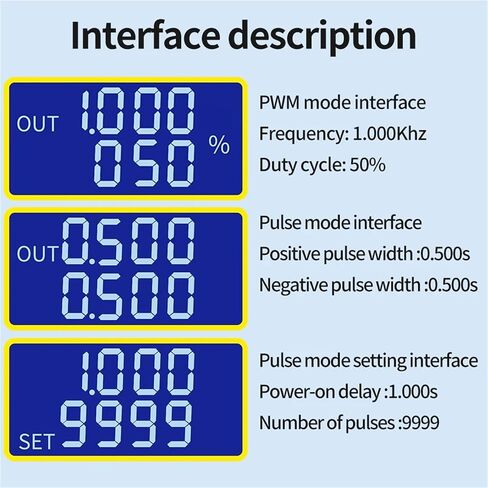

2. Two modes can be selected: PWM mode-frequency (continuous), duty cycle. Note that the number of switches cannot be set in this mode, and it will cycle on and off; PULSE pulse mode-positive pulse width time, negative pulse width time, power-on delay start time, and number of switches are adjustable.
3. With start and stop buttons, you can control the start and stop;
4. Wide voltage input 3.3-30V, 5.08mm terminal wiring;
5. The product is made of high-quality materials and the quality is guaranteed
Specifications:
Working voltage: 3.3~30V (be careful not to connect the positive and negative poles in reverse, otherwise it may burn)
Frequency range: 1Hz~150KHz, accuracy is about 2%. The motor speed regulation generally selects 20KHZ
Duty cycle range: 0-100%, 1% step
Number of pulses: 1-9999, or infinite (displaying '----' represents infinite)
Delay output time: 0.000s-9999s, the minimum setting is 1ms Positive and negative pulse width length: 0.000s-9999s, the minimum setting is 1ms
Output load capacity: less than 8A (MOS switch tube)

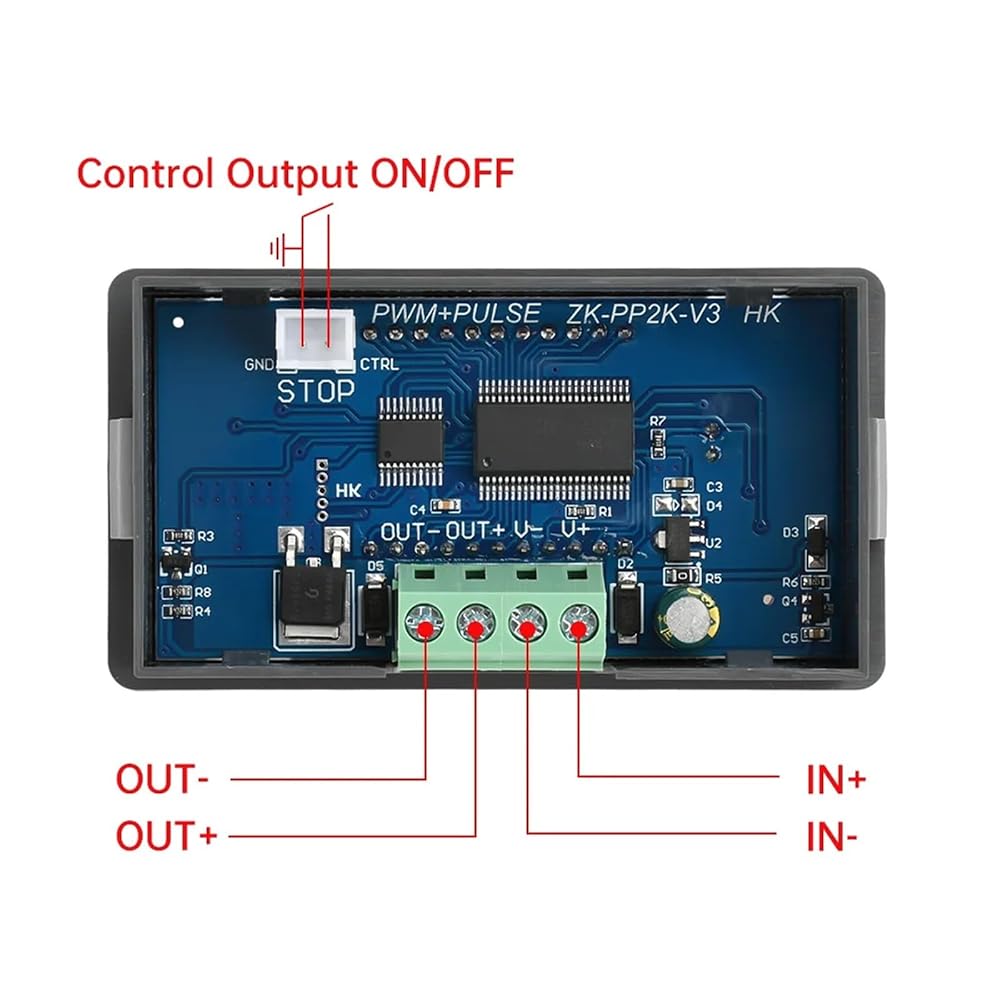

Output amplitude: The amplitude is equal to the supply voltage (OUT+ and V+ are directly connected inside the module)
Multiple practical scenarios:
1. LED brightness adjustment, frequency and duty cycle are adjustable
2. Motor speed adjustment, frequency and duty cycle are adjustable
3. Drive the solenoid valve to close and release, automatic cycle, delay output, number of cycles (or infinite cycle) can be set
4. Control the on and off of the equipment, perform switch fatigue test, voltage drop test and other tests to verify the reliability of the customer's equipment
5. Delay start load, delay time can be set, and it will be on or intermittent after the delay
Package Included:
PWM generator X1
