Note:This blower requires a driverto function properly.
Product introduction:
1> NMB ball bearing guarantee long life
2> Compact size but output high pressure and airflow
3> Very suitable for compact system or tools
4> Can choose external driver controller
5> External driver controller can change speed by PWM or 0~5V signal
Notes:
1> Do not use max pressure as working point, this point is not safe since air flow is too small
2> To add a filter onto the inlet can make the blower run longer time
3> The right impeller run direction is CCW
Wattage : Under 500W
is_customized : Yes
Application : Air Blower
Pressure : High Pressure
Origin : Mainland China
Power Source : DC
Model Number : 4235-12/24/48V
Rated Voltage : 24V
Rated Power : 150W/192W
Type : Centrifugal Blower
Motor : Brushless
Use : Commercial Manufacture
Motor Type : Three-phase DC Brushless Motor

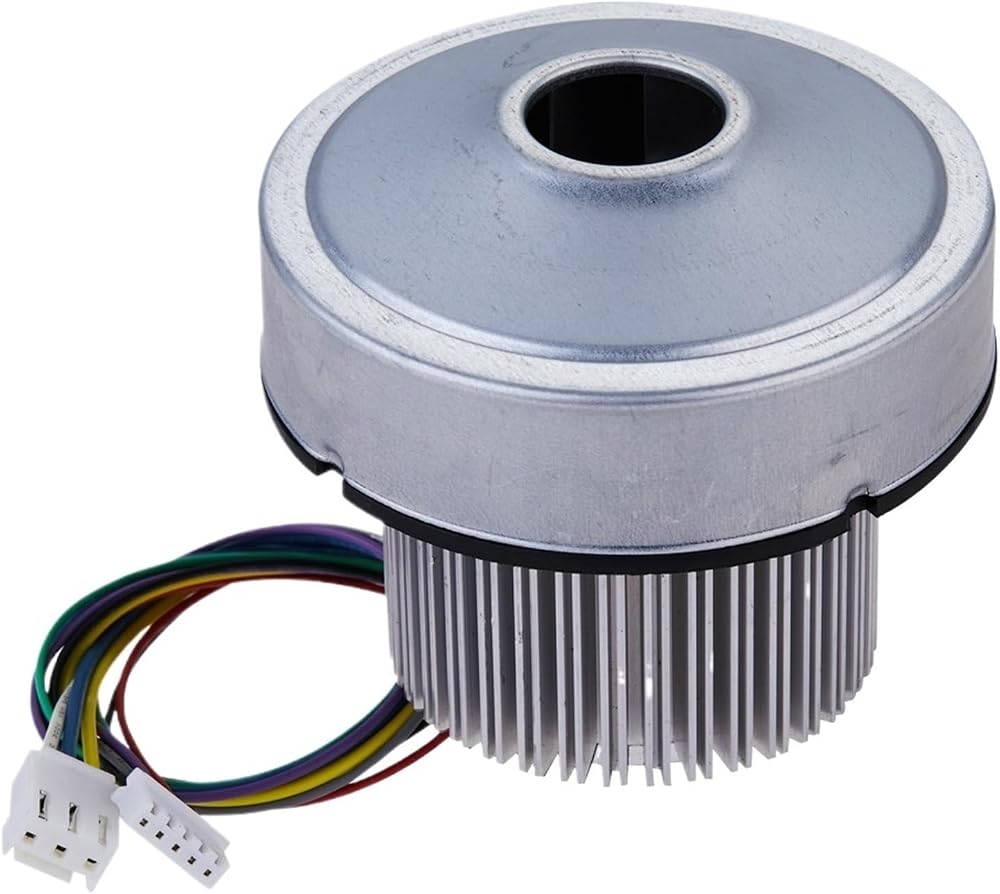

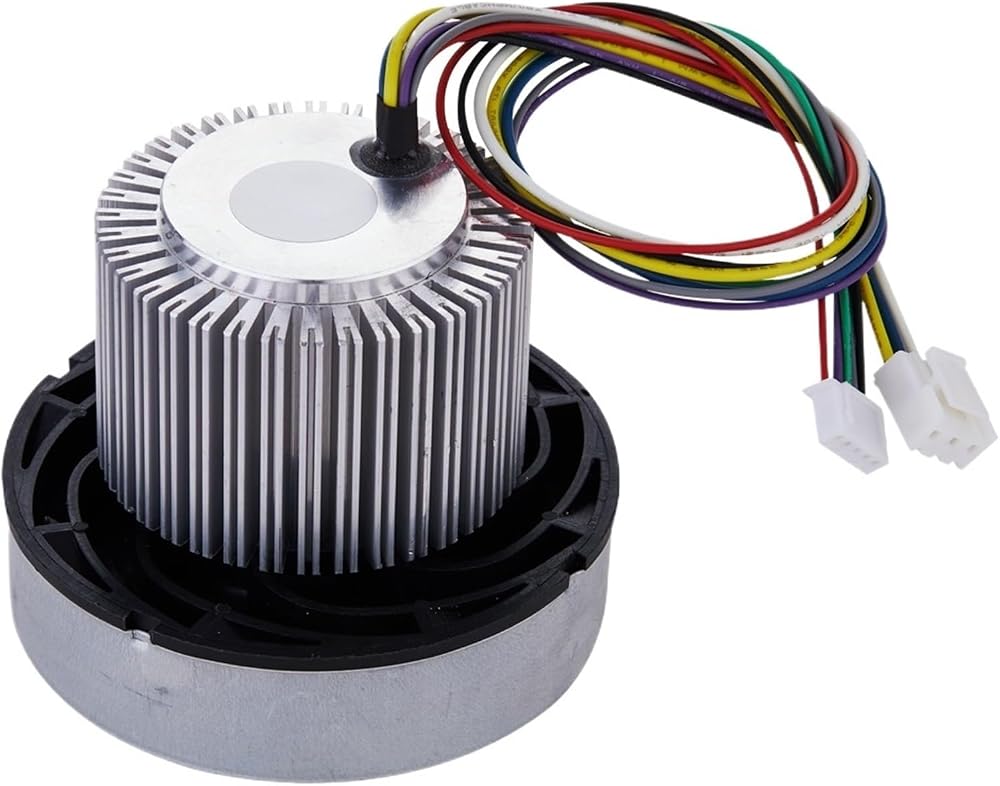

Name : Centrifugal Brushless DC blower
Material : Aluminium
Speed (open) : 24000/26000 RPM
Speed (sealed) : 28000/31700 RPM
Air flow (open) : 48/54m3/h
Air pressure (sealed) : 7/8.5 KPa
Noise : 80dBA
Hall angle : 120 degrees
Bearing type : NMB Ball bearing
Certification : CE
Protect Class : IP 54
Insulation Class : Class F
