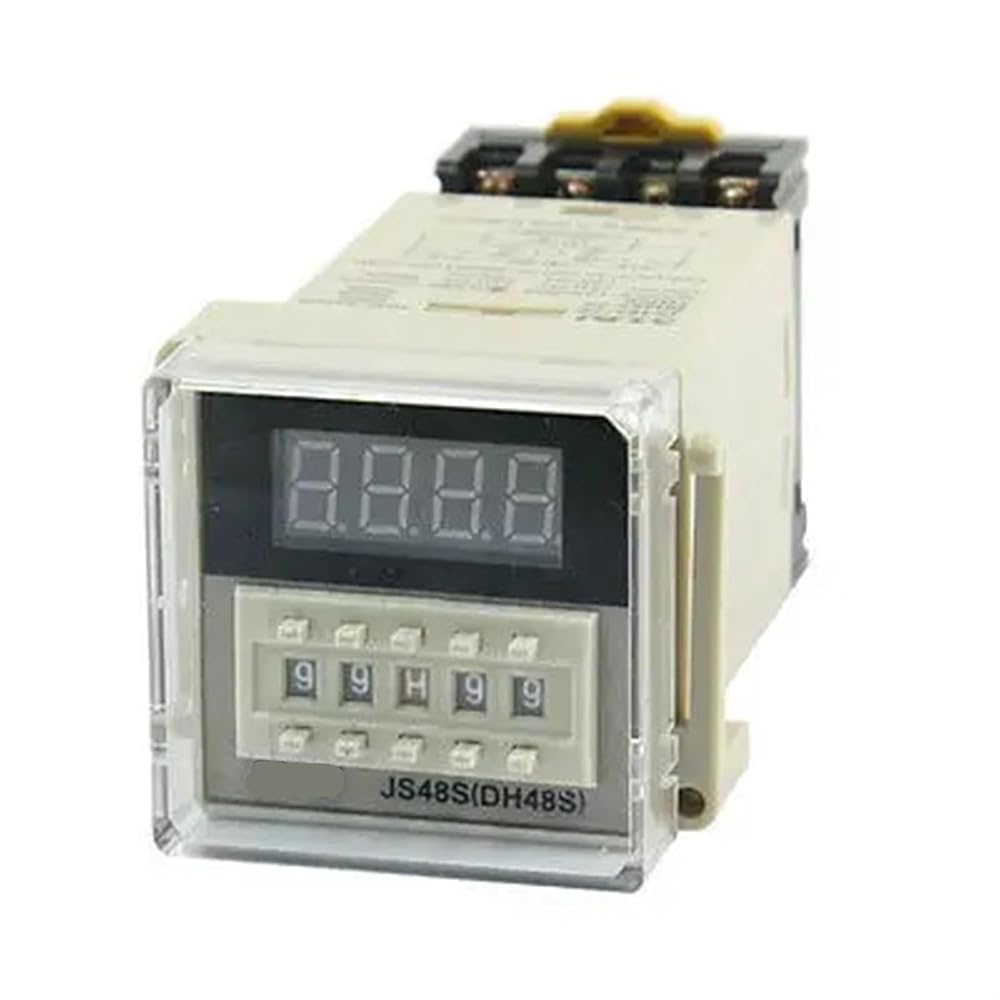

JS48S(DH48S) AC 220V 99S99 99M99 99H99 LED Digital Display Time Relay
Description
Shipping & Payment

Other Term Attention
Specification
Product Name Digital Time Relay
Type JS48SDH48S
Contact Type DPDT
Rated Voltage AC 220V 5060 Hz
Accuracy 001%+0.05S
Panel Mount Size 45 x 45 mm / 1.7" x 1.7"(L*W)
Mounting Type 35mm DIN Rail, Panel Mount
Diaplay LED Digital Display
Contact Capacity AC 250V 5A Resistive Load
Time Range 99S99, 99M99, 99H99

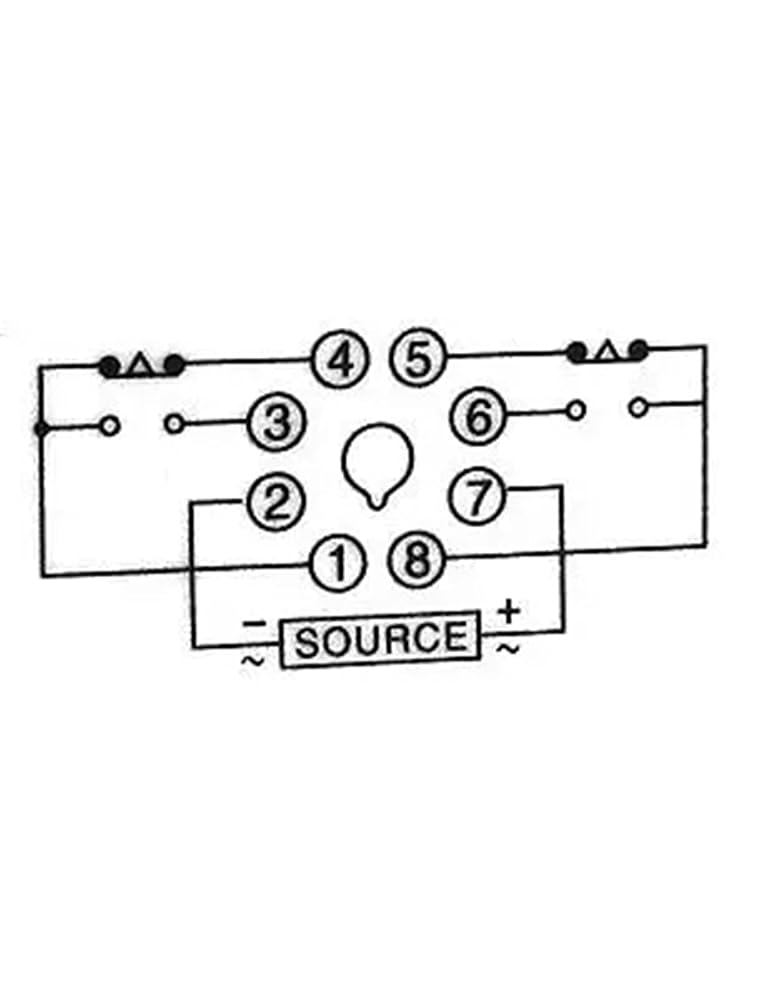

Pin Number 8 Pins
Total Size 60 x 50 x 110 mm / 2.4" x 2" x 4.3"(L*W*H)
Main Color Black, Gray
Net Weight 250g
Package Content 1 x Digital Time Relay
Description:
Features: clear plastic cover on the panel, power on delay, one group of delay contact. one group of instantaneous, power delay operate mode. panel mounting type.

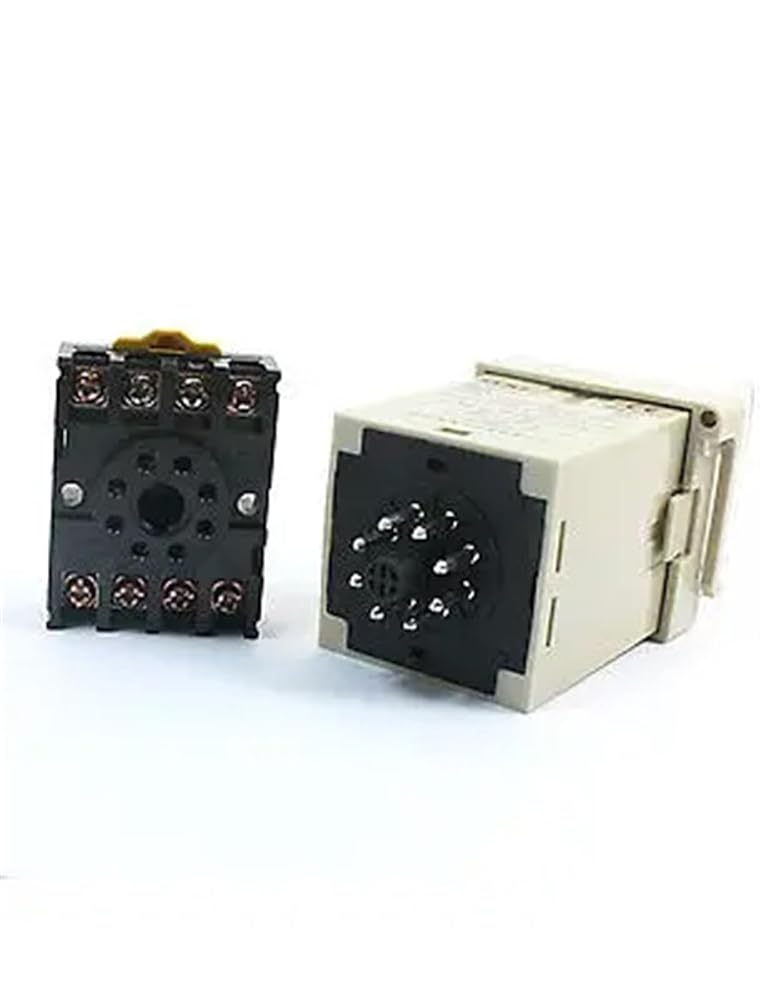

8 pin terminals for installation. 4 digits display and double row knob for setting time.
Used widely for delay control in the industrial automation system and mechanical equipment.
