مميزات خاصة

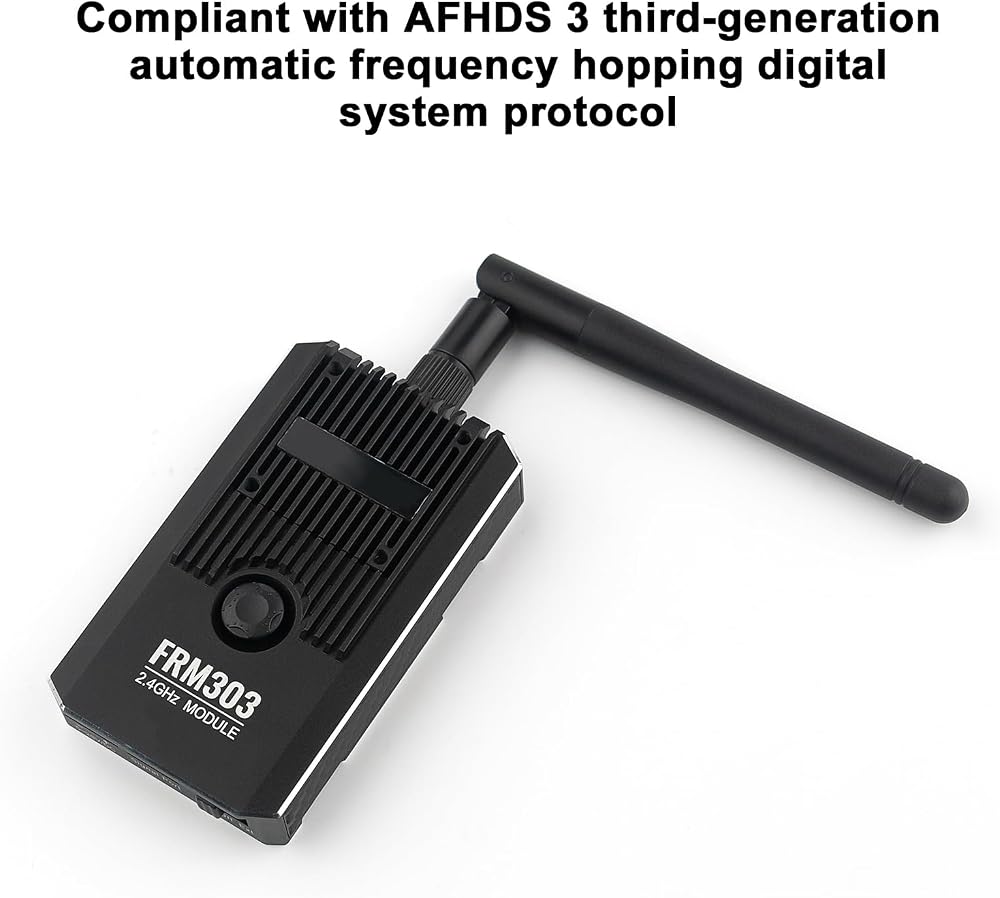

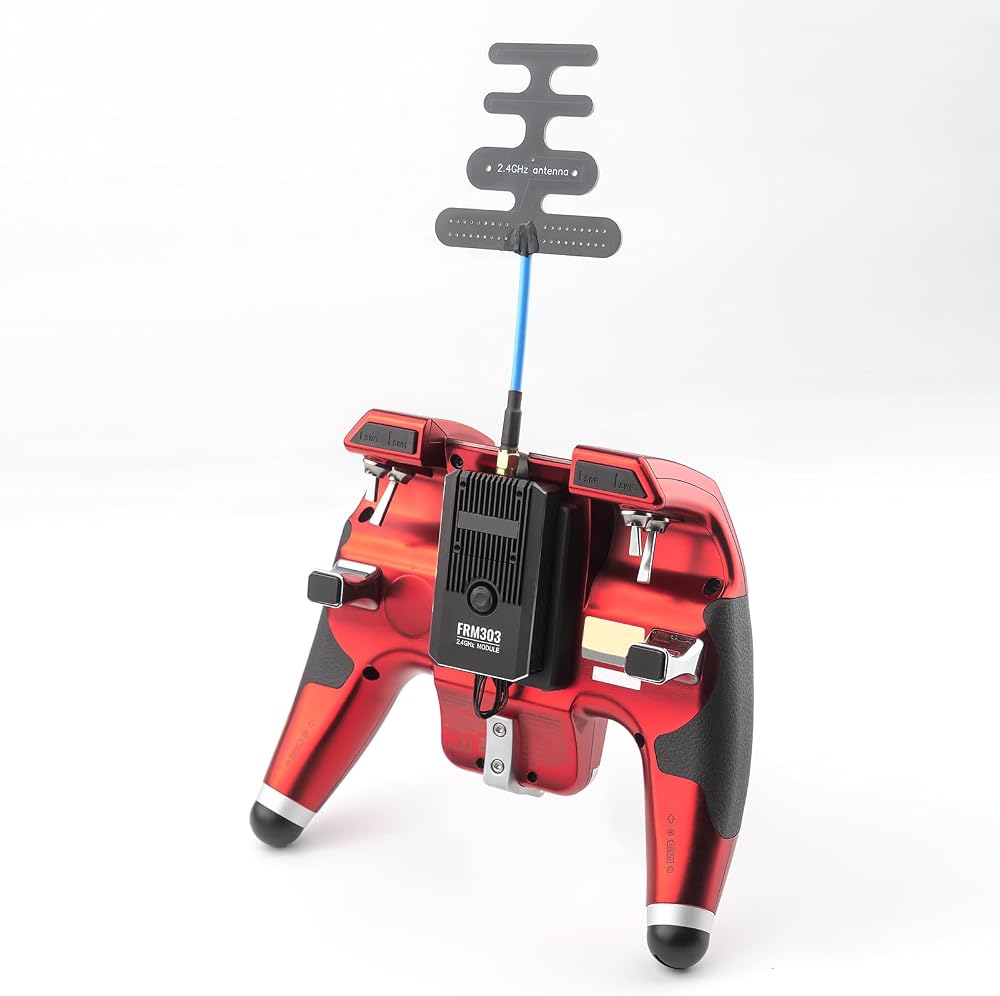

1. Advanced AFHDS 3 Protocol：This RF Module utilizes third-generation AFHDS 3 automatic frequency hopping technology, ensuring stable signal transmission with 18 channels and 4096 resolution. As a high-performance 18 C H RF Module, it delivers precise remote control for demanding RC applications.
2. Versatile Compatibility：This 2.4GHz Long Ranges Transmitter RF Module for Aircrafts supports multiple input signals, including PPM, S.BUS, and UART. The AFHDS 3 Transmitter is compatible with PL18, EL18, NB4/NB4 Pro controllers and various receiver model, offering exceptional flexibility for hobbyists and professionals.
3. Extended Long-Range Control：With transmission distance exceeding 3500 meters in open areas, this RF Module provides reliable long-range control for fixed-wing aircraft and RC racing aircraft. As a true Long Ranges Transmitter RF Module for Aircrafts, it gives you the freedom to fly farther without signal concerns.
4. Flexible Power Options：This 18 C H RF Module offers 3 power methods: XT30 interface (5-28V), signal interface (5-10V), and USB (4.5-5.5V), with a voltage alarm function for external power sources. The Bidirectional Transmission RF Module adapts to various power setups for convenience.

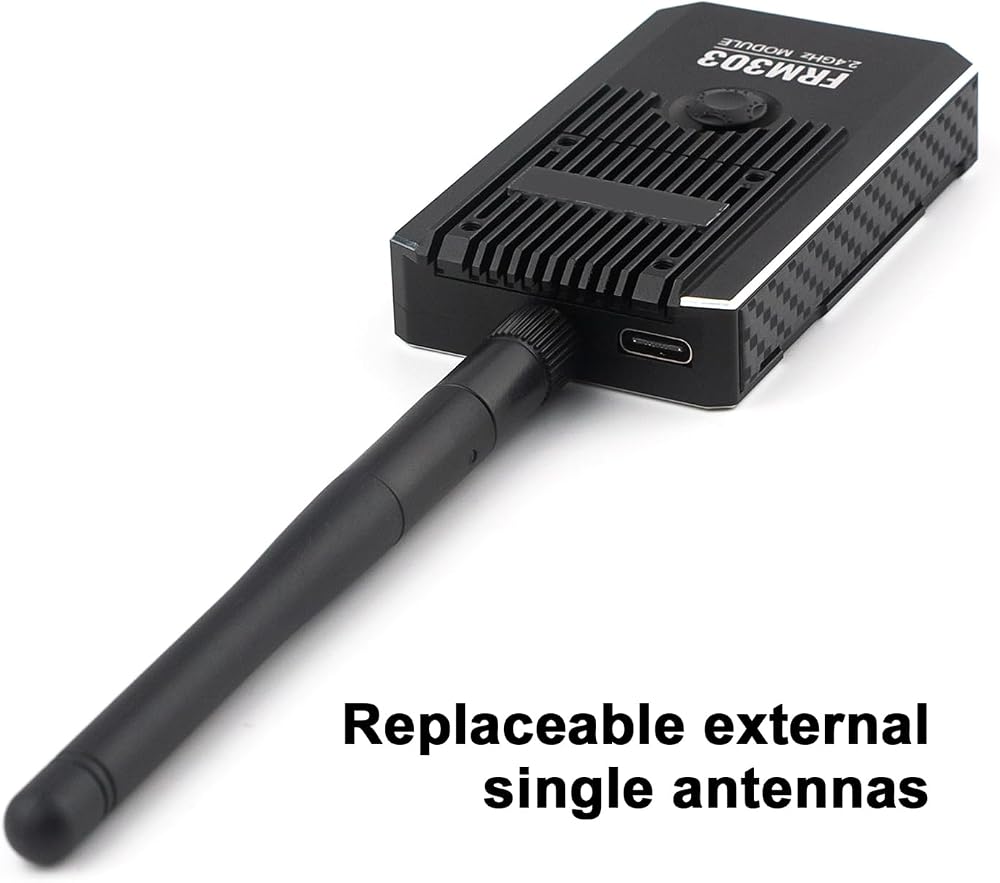

5. Upgradable Design：Featuring replaceable external SMA antennas and support for firmware updates, this AFHDS 3 Transmitter maintains optimal performance across various operating conditions (-10℃ to +60℃). As a cutting RF Module, it grows with your RC needs through simple software and hardware upgrades.

وصف

Specification:
Item Type: 2.4GHz 18 C H AFHDS 3 RF Module

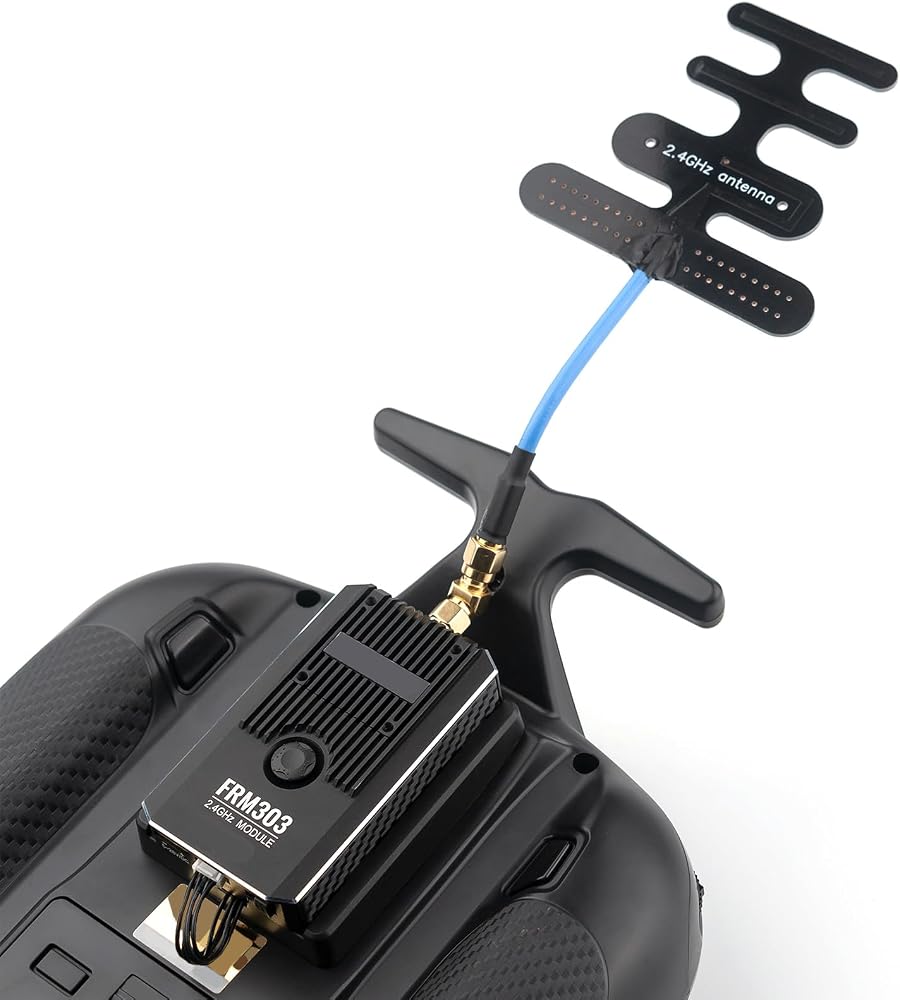

Application: fit for PL18/EL18/NB4/NB4 Pro
Compatible Devices (PPM): FS-TH9X, FS-ST8, FTR8B receivers
Compatible Devices (S.BUS): FS-ST8, FTR8B receivers
Compatible Devices (Closed Protocol-1.5M UART): PL18
Compatible Devices (Open Protocol-1.5M UART): EL18
Compatible Devices (Open Protocol-115200 UART): Devices supporting this protocol

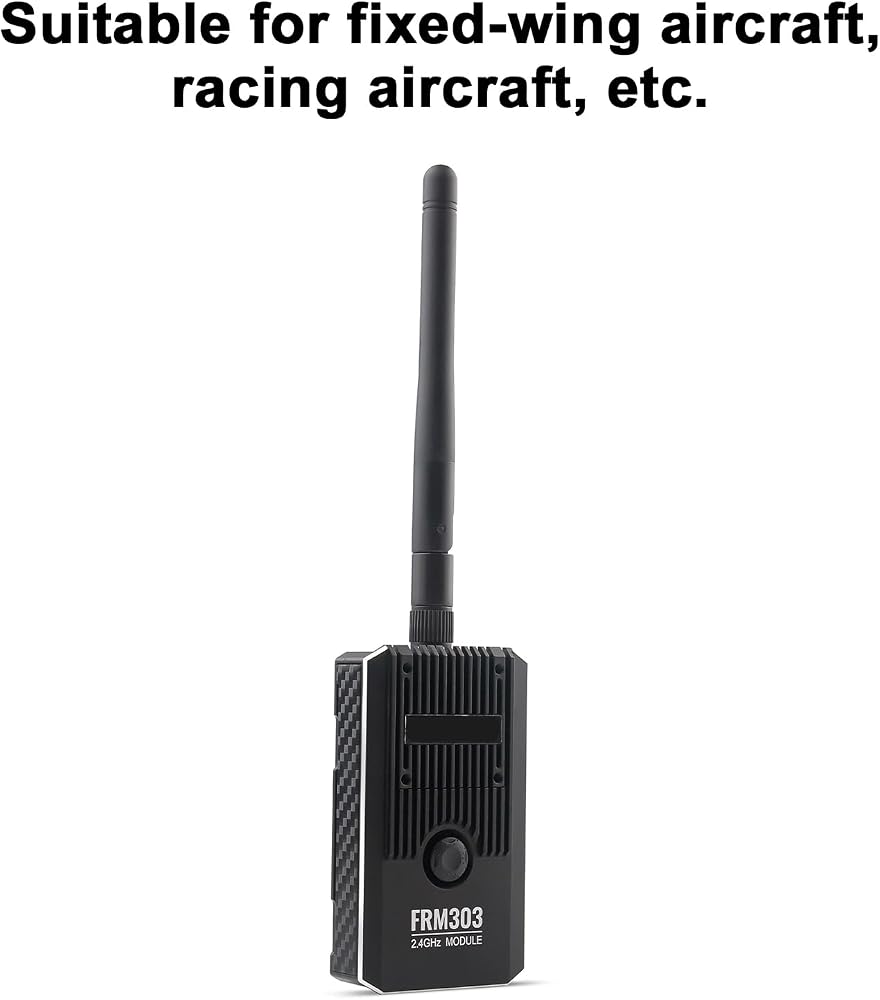

Suitable Model: Fixed-wing aircraft, RC racing aircraft, relay competitions
Channels: 18
Resolution: 4096
RF Frequency: 2.4GHz ISM band
Protocol: AFHDS 3
Maximum Power: Transmission Distance: 3500m / 11482.94ft (interference-free area)

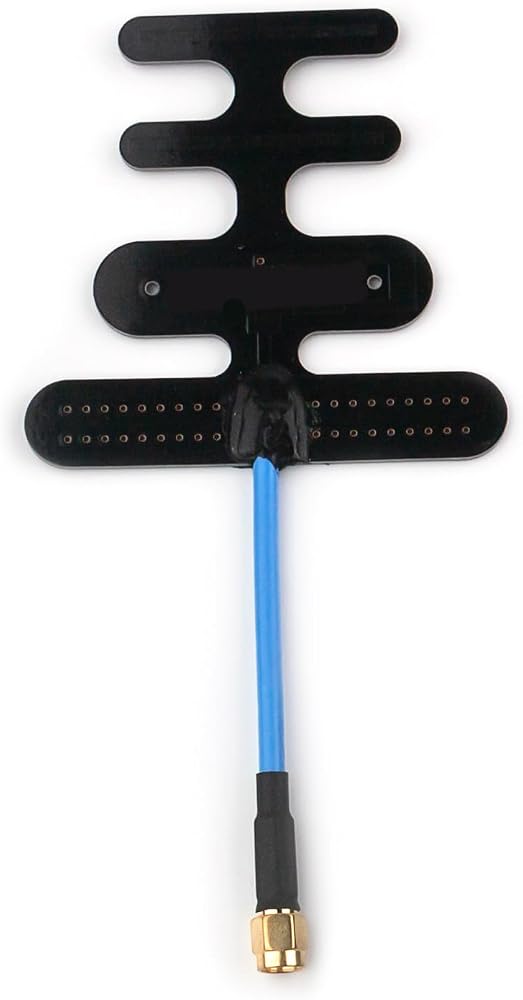

Antennas: External single SMA antennas (male thread with inner pin)
Power Input (XT30): 5-28V/DC
Power Input (Signal Interface): 5-10V/DC
Power Input (USB): 4.5-5.5V/DC
Working Current (External Power): 98mA/8.4V
Working Current: 138mA/5.8V
Working Current (USB): 135mA/5V
Data Interface: PPM, UART, and S.BUS
Temperature Range: -10℃ - +60℃ / 14℉ - 140℉
Humidity Range: 20% - 95%
Firmware Update: Supported

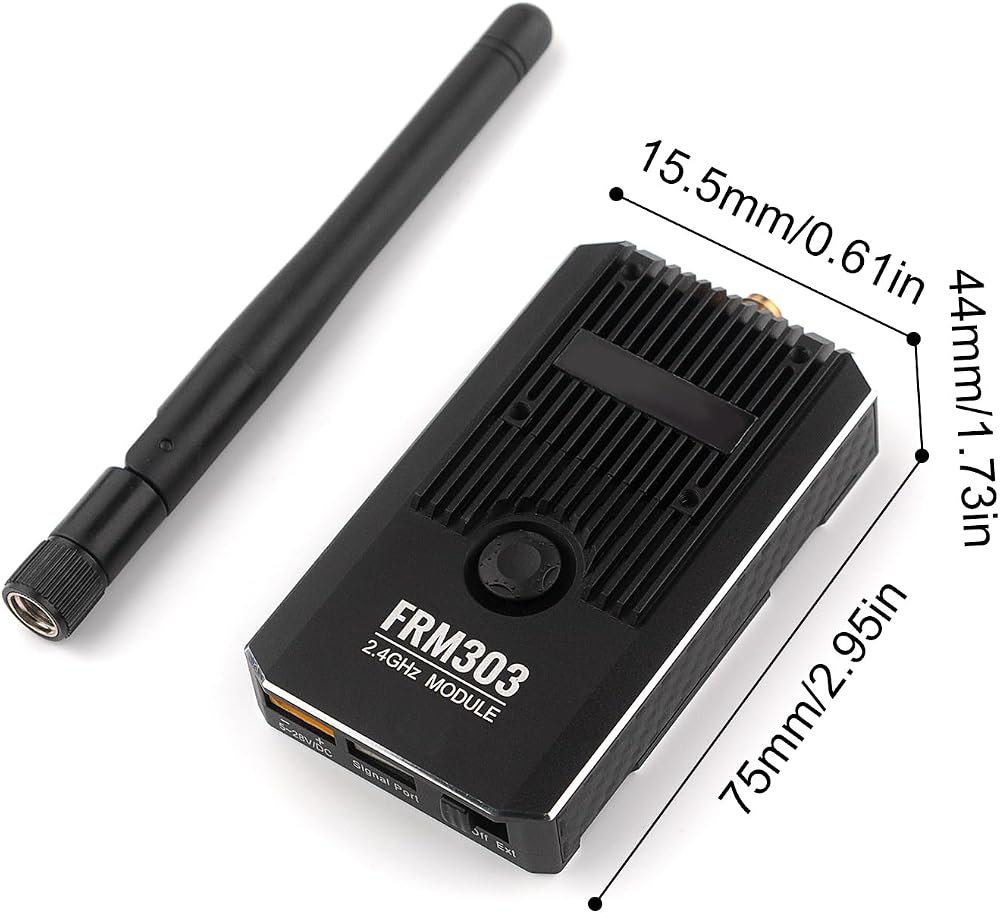

Product Size: 75x44x15.5mm / 2.95x1.73x0.61in (without antennas)

How to Use:
1. Install the instruction manual to the matching remote controller.

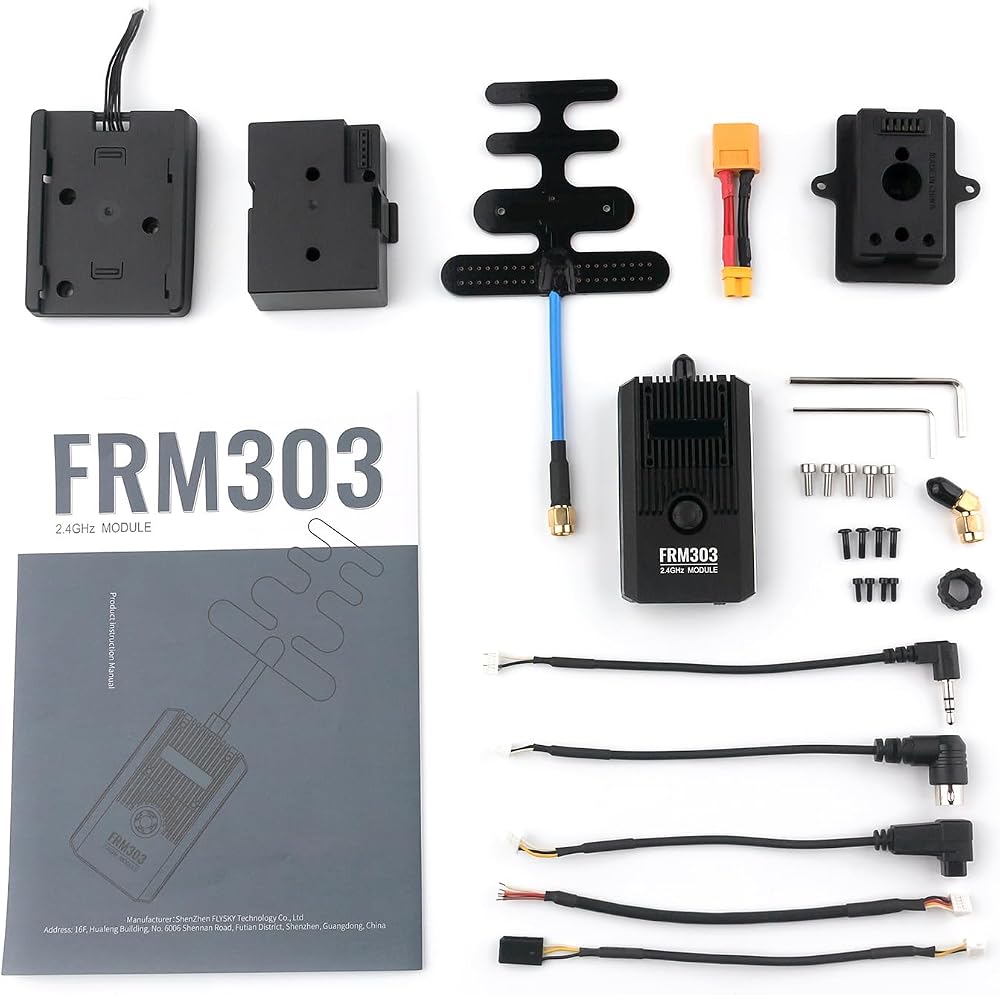

Packing list:
1 x RF Module
1 x Antennas
1 x SMA Antennas Adapter
3 x Adapter

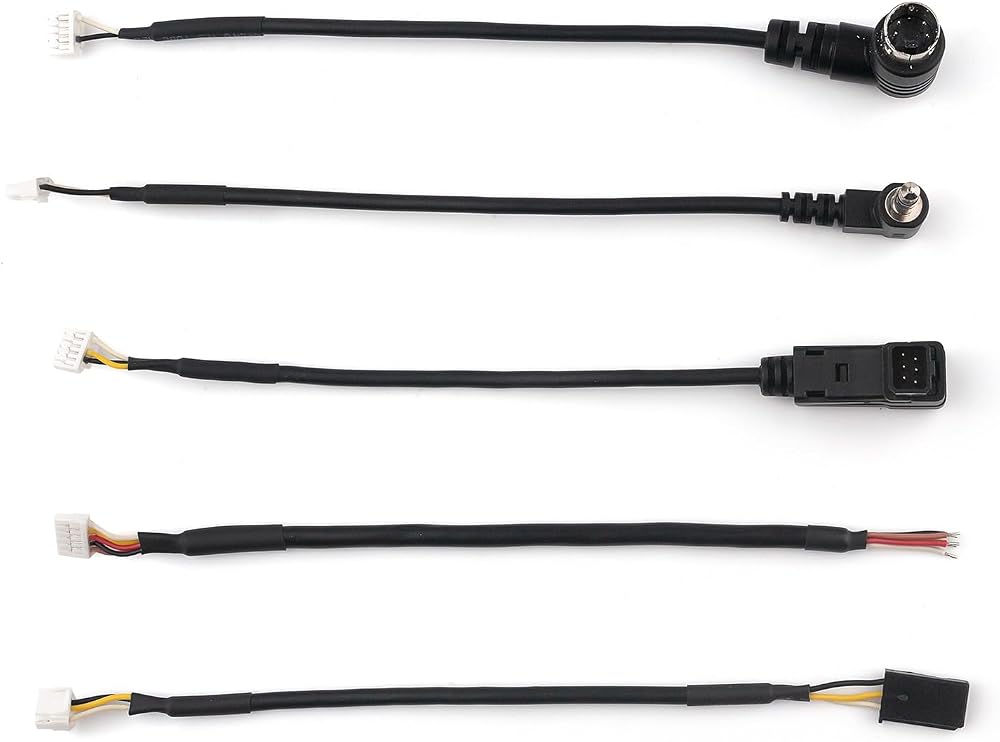

5 x Adapter Cable
1 x Instruction Manual
1 x XT60 Male To Female Connector
2 x Wrench
13 x Screw
1 x Installation Auxiliary Ratchet
