مميزات خاصة

XR2206 generator has three waveforms: Square, sine, triangle
Good precision: the XR2206 function generator is precise and practical
generator has wide power supply range, external power supply 9-12v or 9V battery can be used
All components are easy to use, small number of components, simple installation and debugging
The frequency of the generator can be changed from 1 Hz to 1 MHz. 5-bit precision resolution

وصف

Description

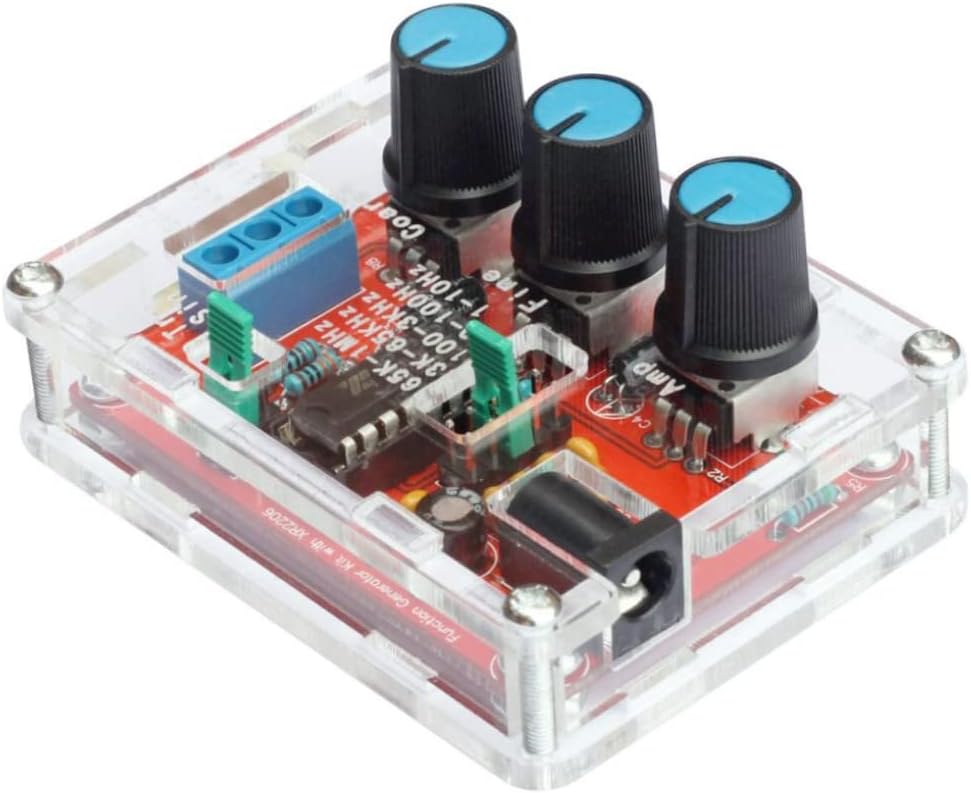

This generator DIY kit is professional product to generate sine/triangle/square wave. It's a DIY kit for you to weld and install. Multifunction and convenient to use, our generator is a great tool for you.

Features

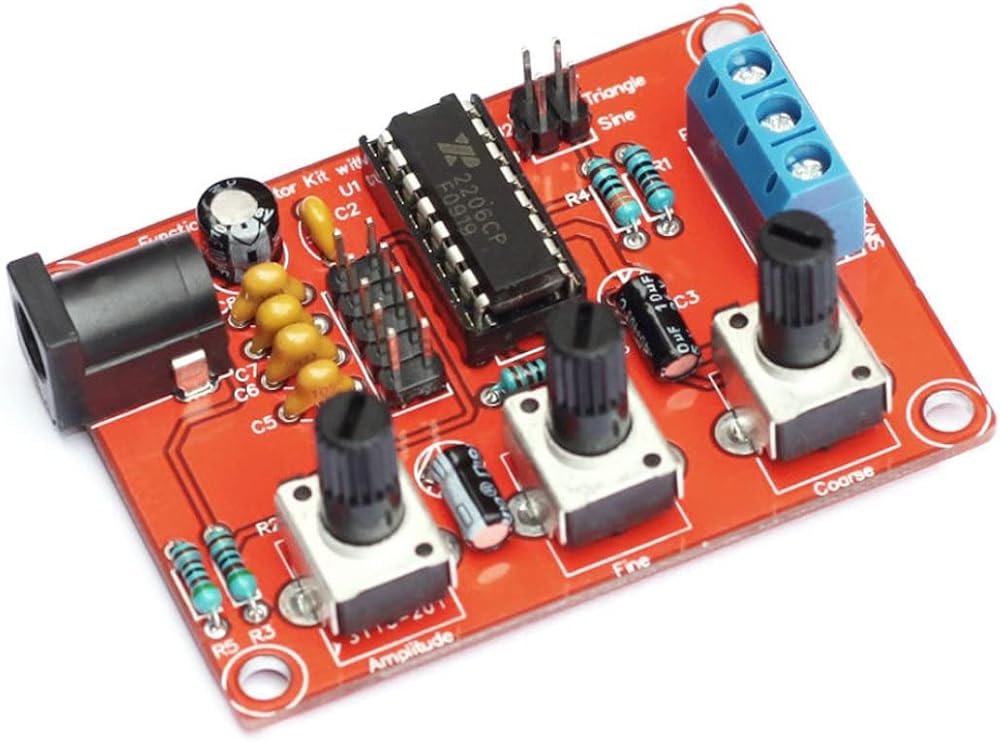

XR2206 generator
- Color: Red.
- Material: ABS.

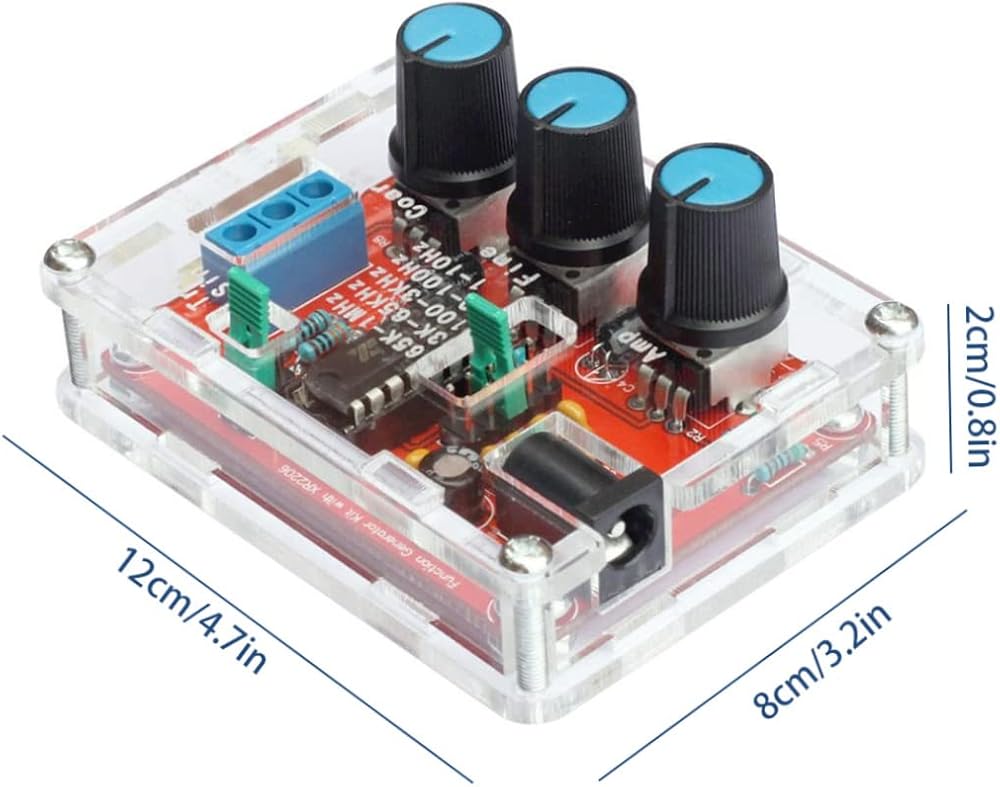

- Size: 12x8x2cm/4.7x3.1x0.8inch.
Voltage Supply: 9-12V DC Input

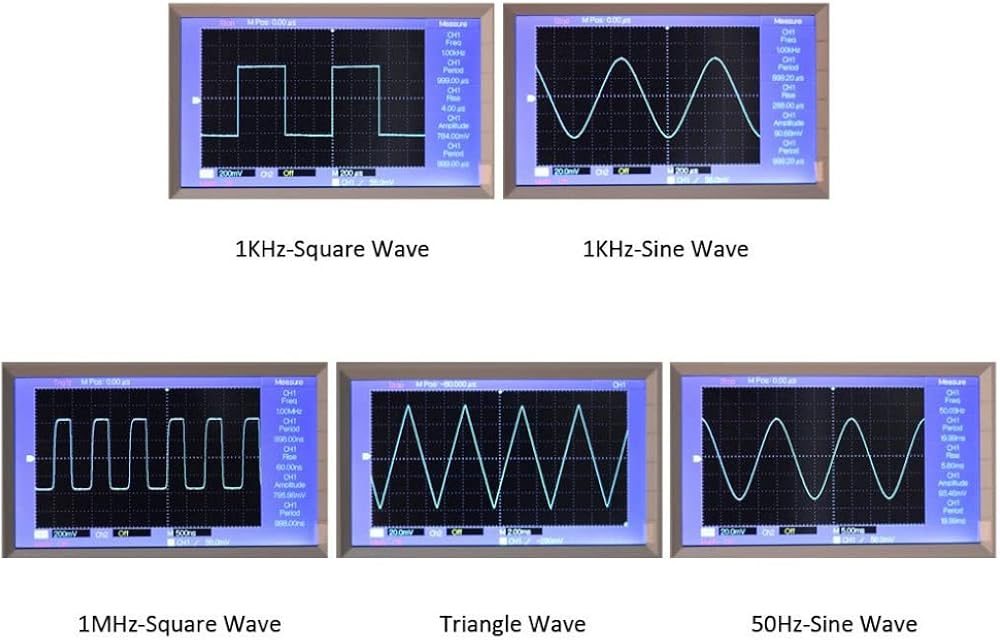

Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA

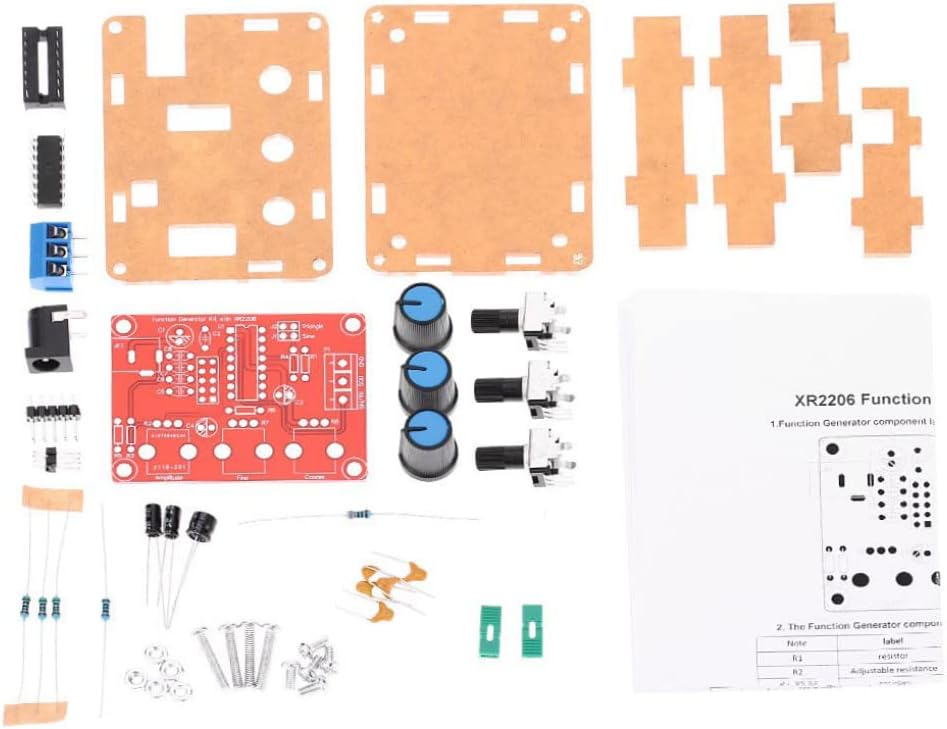

Package Including
1 Set * XR2206 generator
