Durable Construction for Reliable Use: Made from PCB, ABS, and LCD materials, the generator is built to withstand working temperatures from -20℃ to +70℃, ensuring durability and consistent performance
Specification:

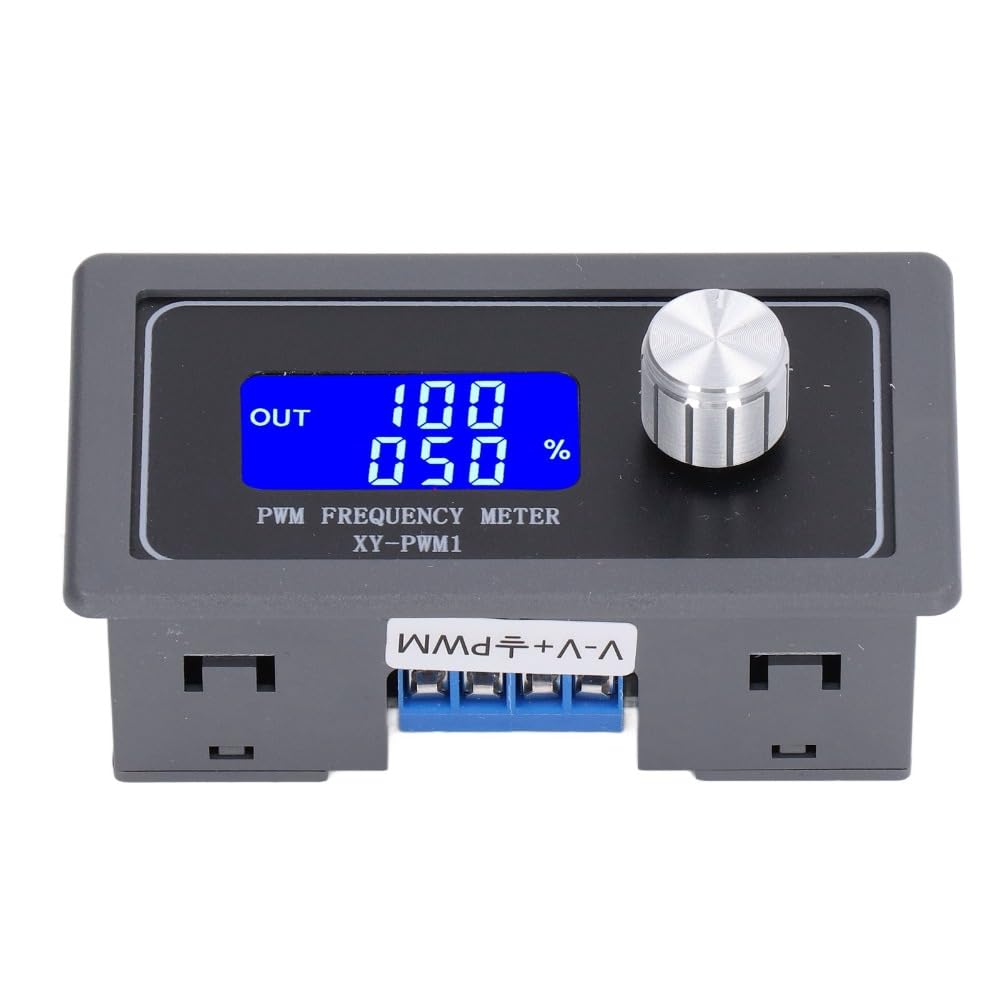

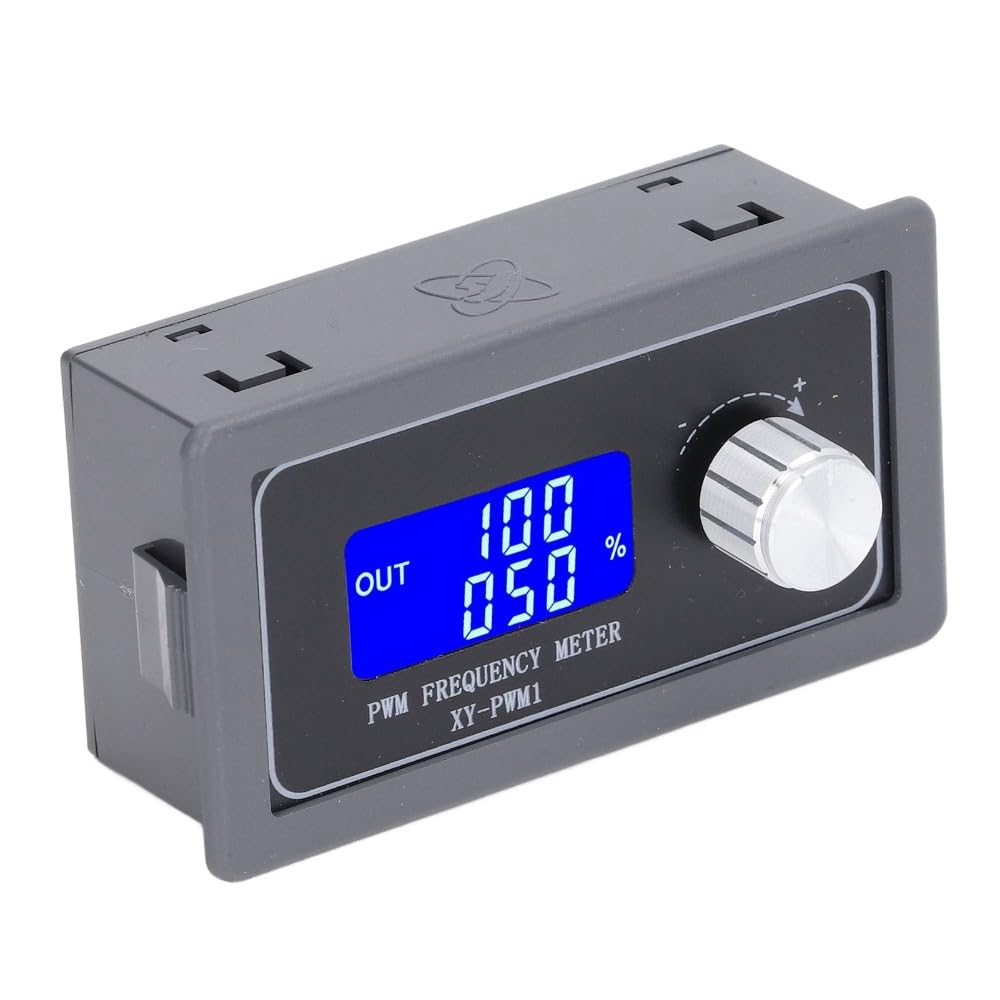

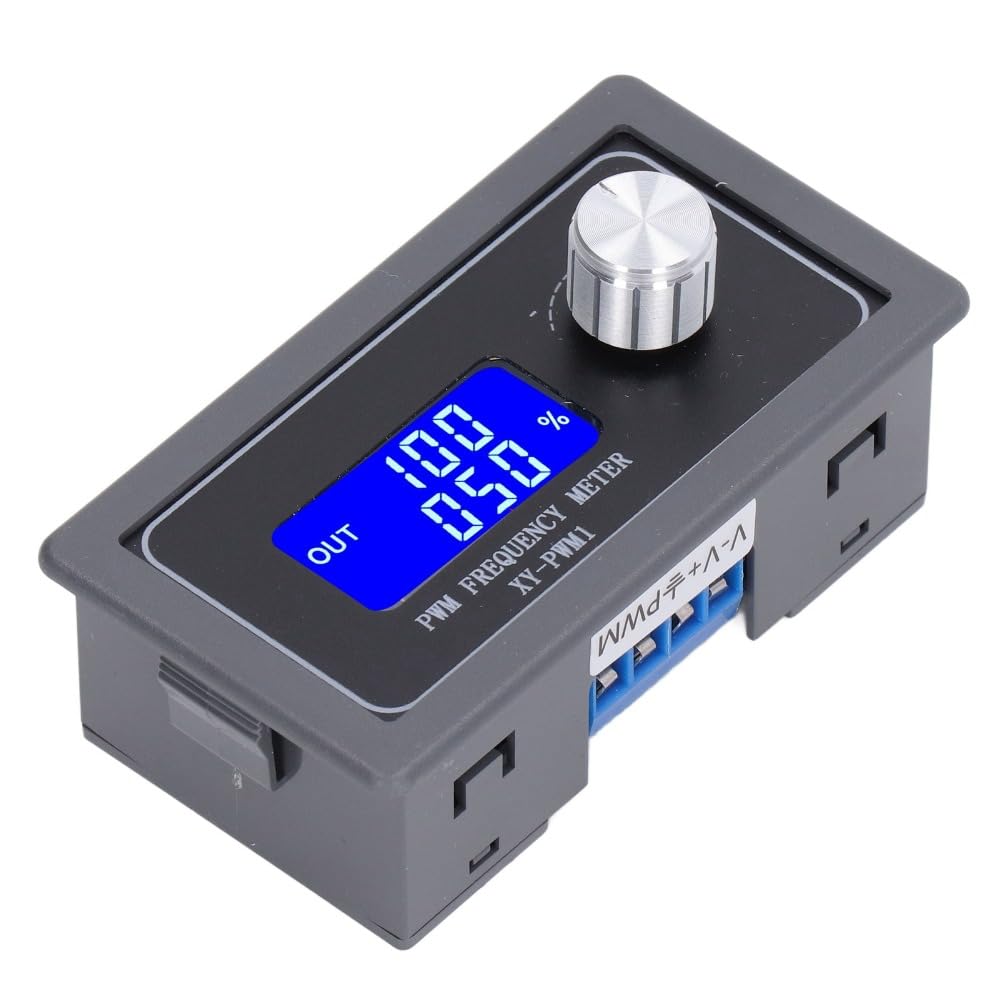

Item Type: Frequency Generator
Model: XY-PWM1
Material: PCB + ABS + LCD
Working Voltage: DC 3.3V-30V
Frequency Accuracy: 2% in each range.
Application: Square Wave Signal Generator

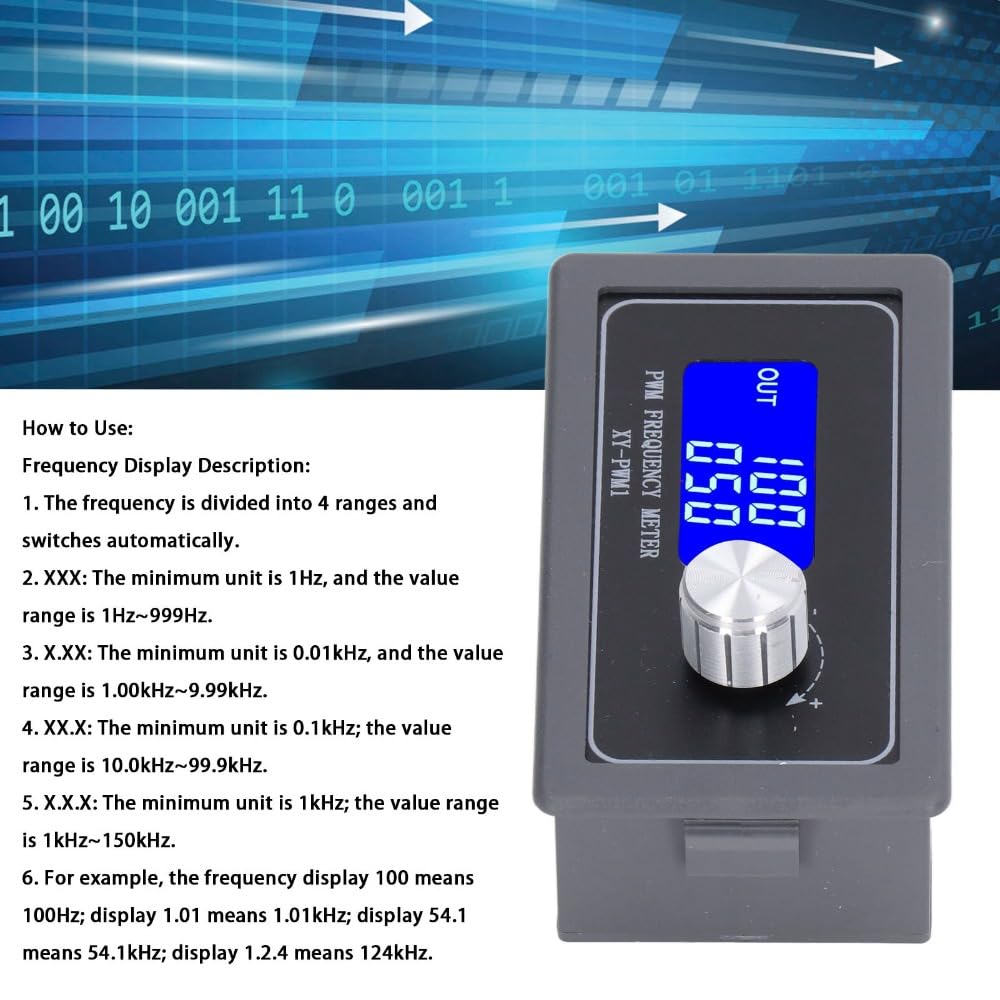

Frequency Range: Normal Mode: 1Hz-150kHz; Fine Mode: 1Hz-15kHz.
Signal Load Capacity: The output current is about 5-30mA.
Working Temperature: -20℃~+70℃

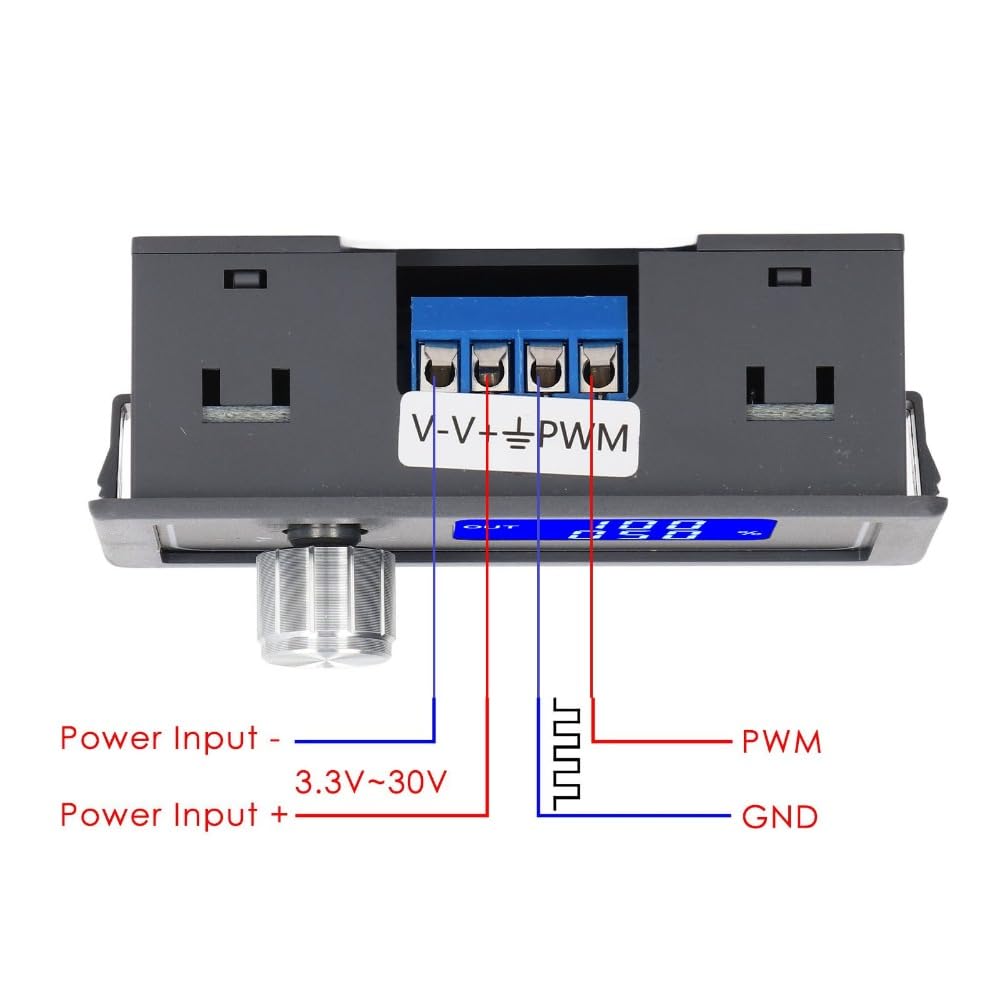

Output Amplitude: The PWM amplitude is equivalent to the input voltage value.
Normal Mode Frequency Range: 1Hz-150kHz

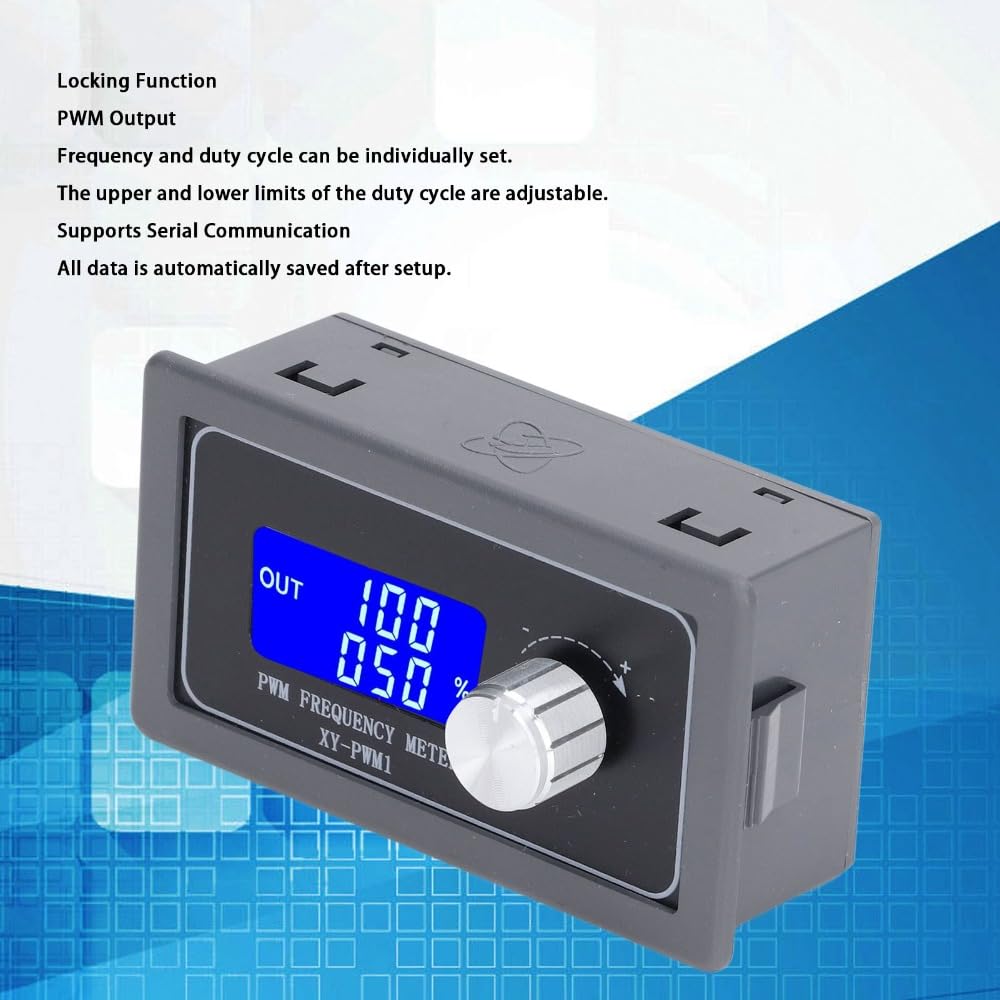

Normal Mode Duty Cycle: 00 to 100%
Normal Mode Duty Cycle Stepper: 1%
Fine Mode Frequency Range: 1Hz-15kHz
Fine Mode Duty Cycle: 00.0 - 100%
Fine Mode Duty cycle Stepper: 0.1%
Application:
1. As a square wave signal generator for experimental development;
2. As a motor driven square wave signal generator;
3. As an adjustable pulse generator for MCU;
4. As a pulse generator, it controls related circuits (PWM dimming, speed adjustment).
Note:
1.Please pay attention to electricity safety when using it

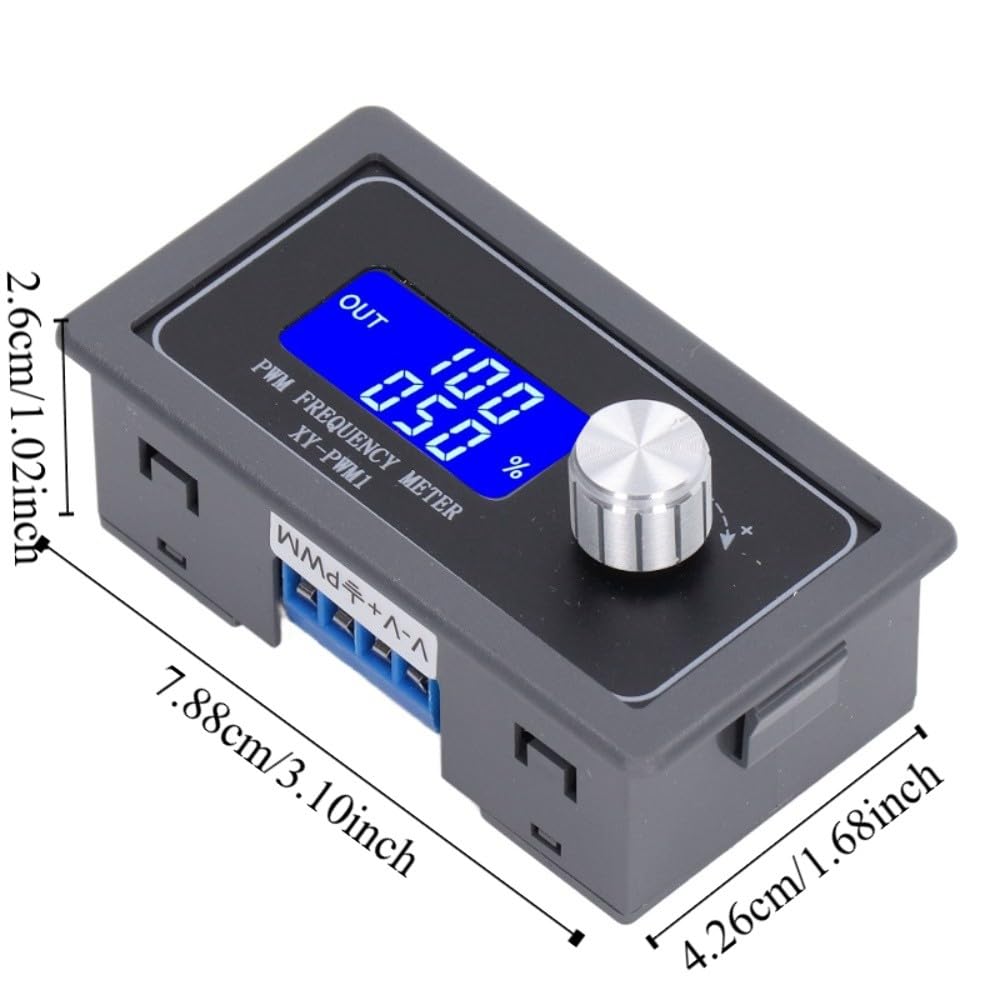

2.Please allow 0.2 inch measuring deviation due to manual measurement. thanks for your understanding
Package List:
1 x Frequency Generator
