ball valve
Good Service -- If any problem please feel free to contact
The water shut off tool valve is designed to withstand high pressure and temperature extremes. Lasts longer than plastic valves which can crack or leak. Ideal for or leisure facilities.
【Easy Installation】-- No further modification direct replacement

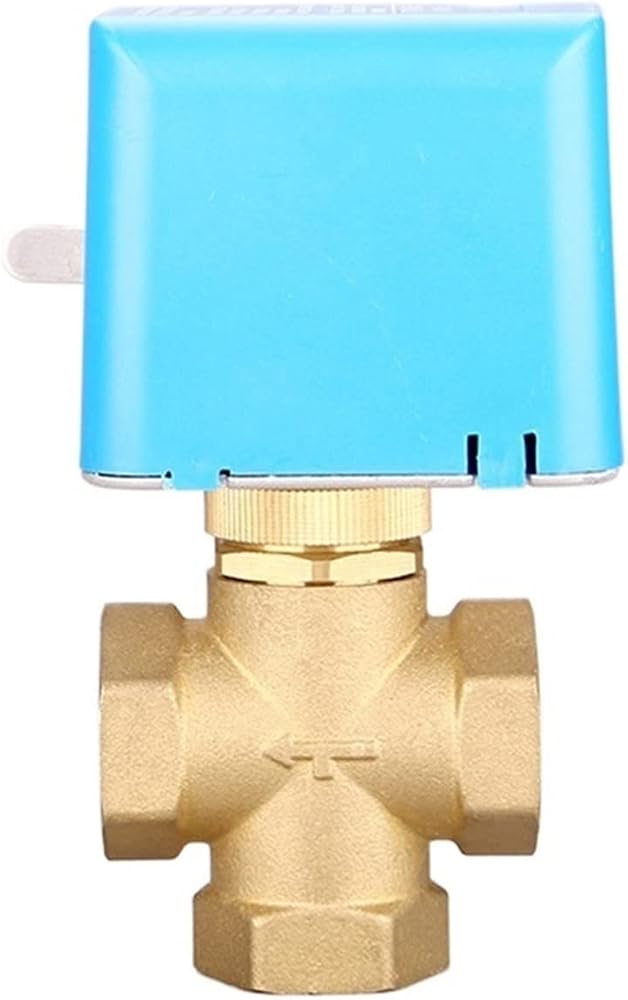

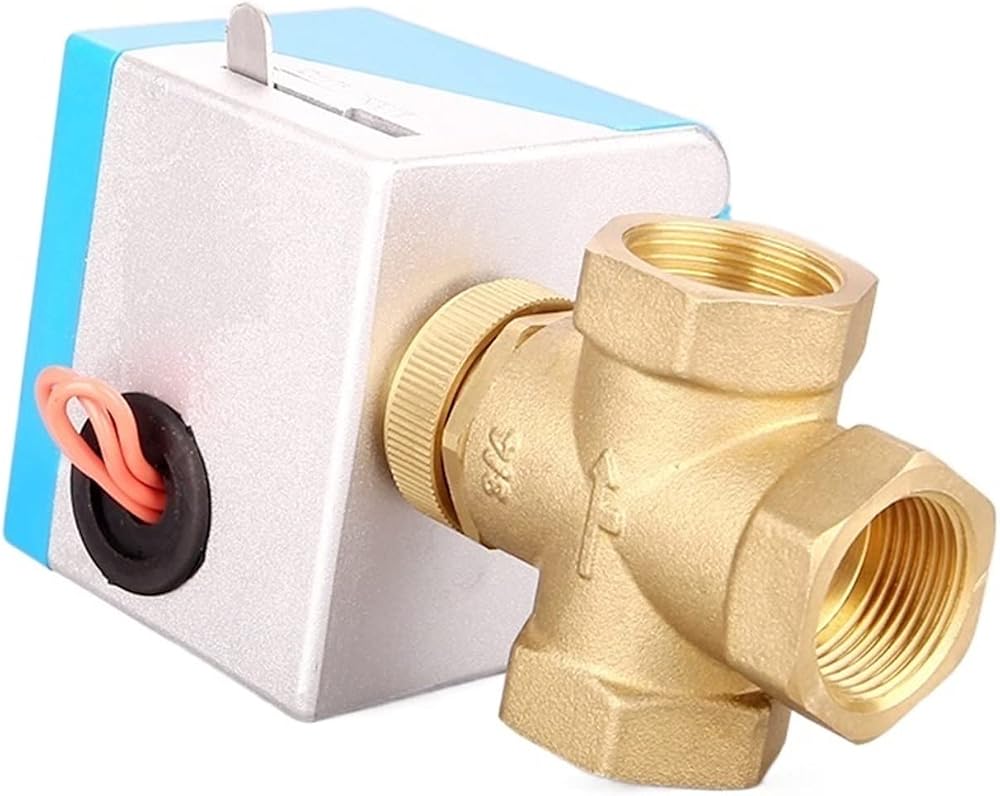

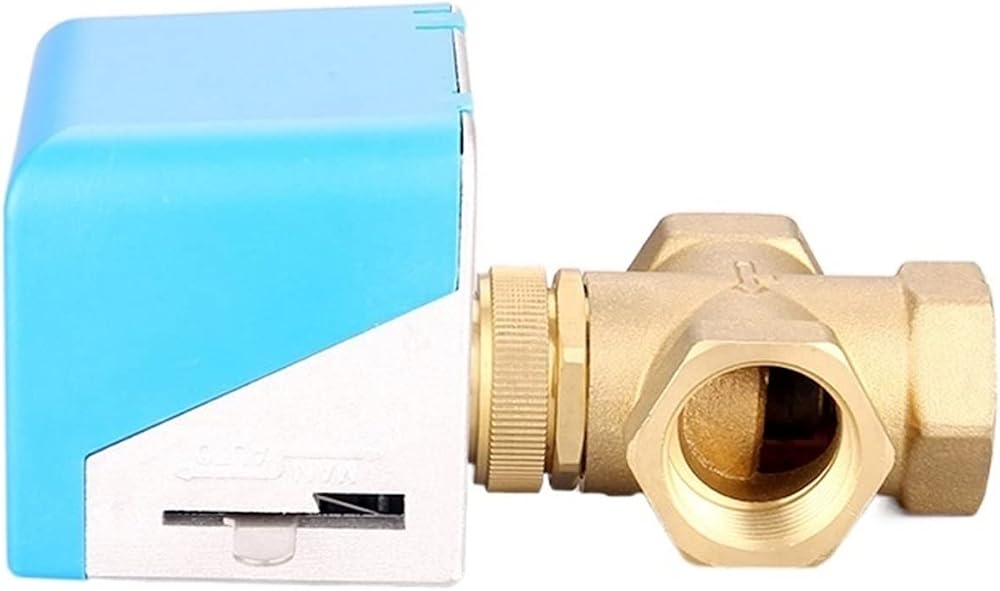

Valve Type: Globe Valve
Position Type: Normally Closed
Body Material: Brass
Connector Type: G Thread Female
Nominal Pressure: 1.6MPa (PN16)
Fluid Temperature: 2~94
Environment Temperature: 0~60
KV (Flow Coefficient): 2.5
Shutoff Differential Pressure: 0.25Mpa
Voltage: AC 220V
Power Consumption: 2VA
Fully Open Time: 10s
Fully Close Time: 5s
Size: 1/2"(DN15) 3/4"(DN20) 1"(DN25)
Features:
- Brass for ductility at high temperatures and low magnetic permeability.
- Female threads for connecting to male threaded pipes.
- Will fully open valve in 5 seconds or close in 5 seconds.
- With manual handle for operation push it down and hold to open the valve.
