المحمل الخطي LM4UU LM5UU LM6UU LM8UU LM10UU محامل الحركة ABEC-5 LM Ball(LM10UU A5 4PCS) in Kuwait

المحمل الخطي LM4UU LM5UU LM6UU LM8UU LM10UU محامل الحركة ABEC-5 LM Ball(LM10UU A5 4PCS)

KWD 22
مقاسLM10UU A5 4 قطع
– 1 +

مميزات خاصة

  • Air Bearings
  • Introduction:

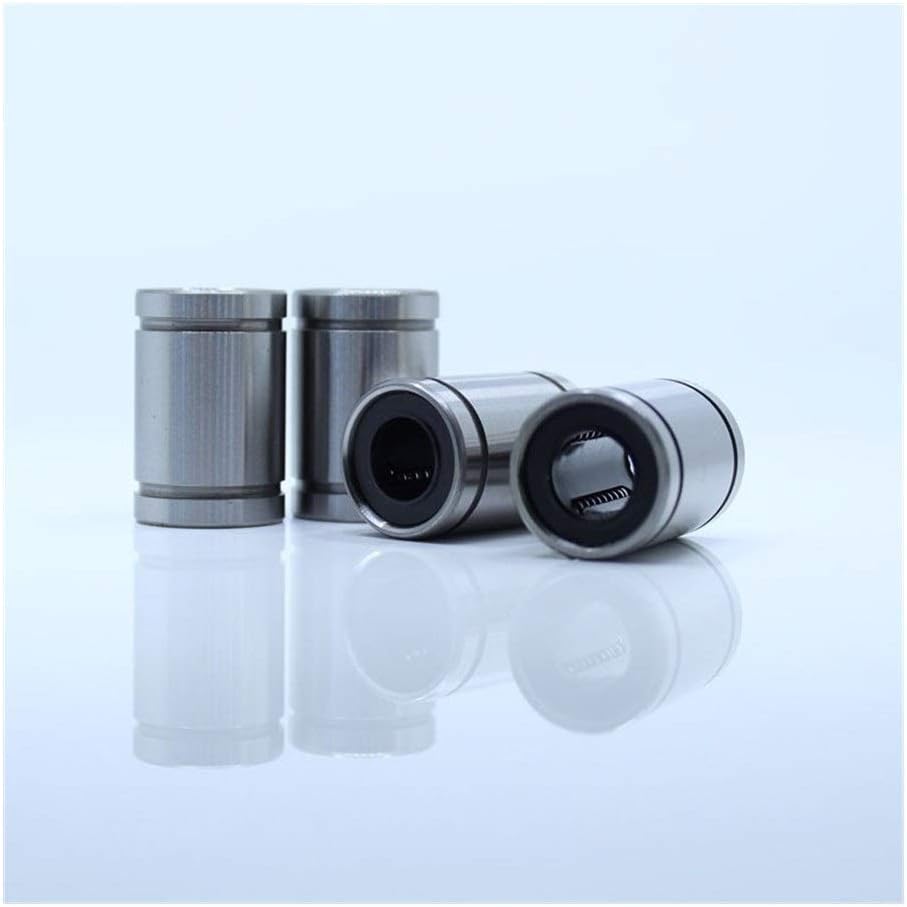

  • Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion.
  • The balls in the loaded area of the nut are in point contact with the LM shaft.
  • This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.
  • The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.

وصف

Air Bearings
Details
Model: LM4UU
Ball circuit: 4
Inscribed circle Diameter: 4 mm
Out Diameter: 8 mm
Length: 12 mm
Dynamic Cr: 9 kgf
Static Cor: 13 kgf
Weight: 3 g
Grade: ABEC-5
Quantity: 1 Lot = 4 PC
Model: LM5UU
Ball circuit: 4
Inscribed circle Diameter: 5 mm
Out Diameter: 10 mm
Length: 15 mm
Dynamic Cr: 17 kgf
Static Cor: 21 kgf
Weight: 4 g
Grade: ABEC-5
Quantity: 1 Lot = 4 PC
Model: LM6UU
