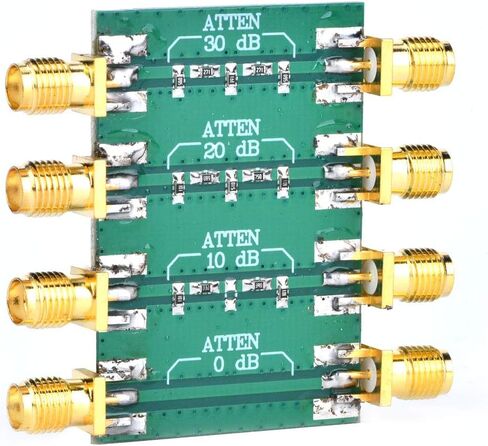

Socobeta SMA Double Female RF Attenuator DC-4.0GHz 50 10dB 20dB 30dB for Signal Adjustment Impedance Matching

KWD 4
Brand
Socobeta
Weight
19 g
– 1 +

Special Features

  • [VERSATILE SIGNAL CONTROL] This fixed RF attenuator is widely used in electronic equipment to precisely adjust signal levels within circuits. It excels in comparison method measurement setups, allowing you to directly read the attenuation value of a network under test.
  • [ENHANCED IMPEDANCE STABILITY] Improve your circuit's impedance matching with this durable attenuator. When your setup requires a more stable load impedance, simply insert this device between the circuit and the actual load to buffer against unwanted impedance changes.
  • [HIGH RELIABILITY CONSTRUCTION] Built with a carbon film , this attenuator delivers excellent uniformity and consistency. The carbon film provides stable resistance values and high long term reliability, even under repeated use.
  • [EXCELLENT ELECTRICAL PERFORMANCE] Experience minimal performance variation due to temperature changes with this RF component. Its superior electrical characteristics ensure that signal attenuation remains accurate across a wide operating frequency range from DC to 4.0 GHz.

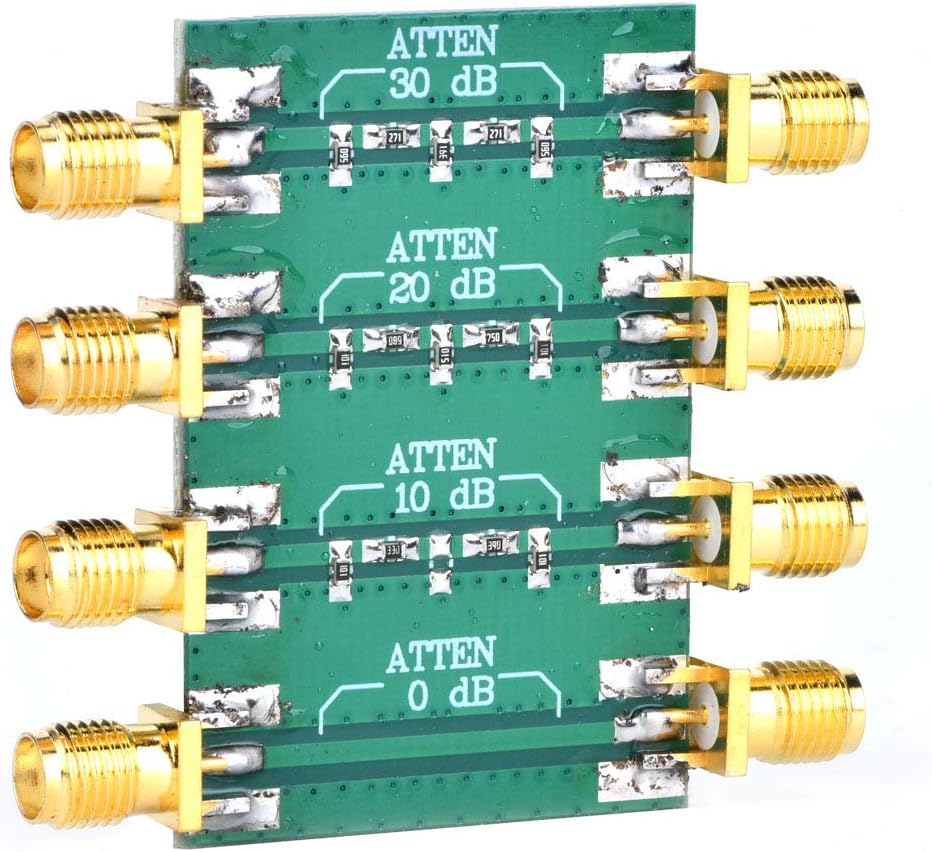

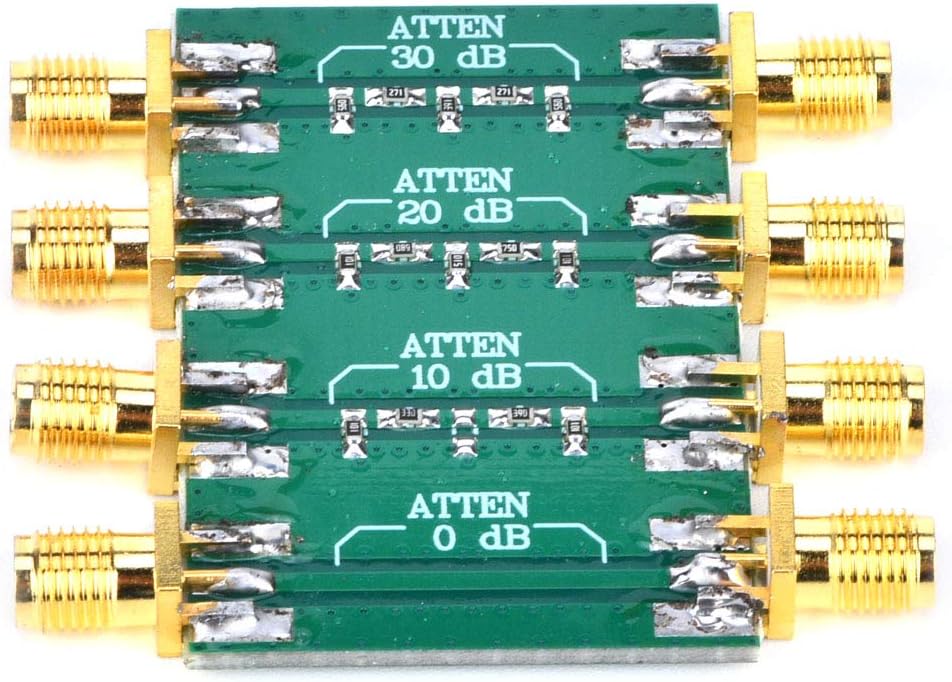

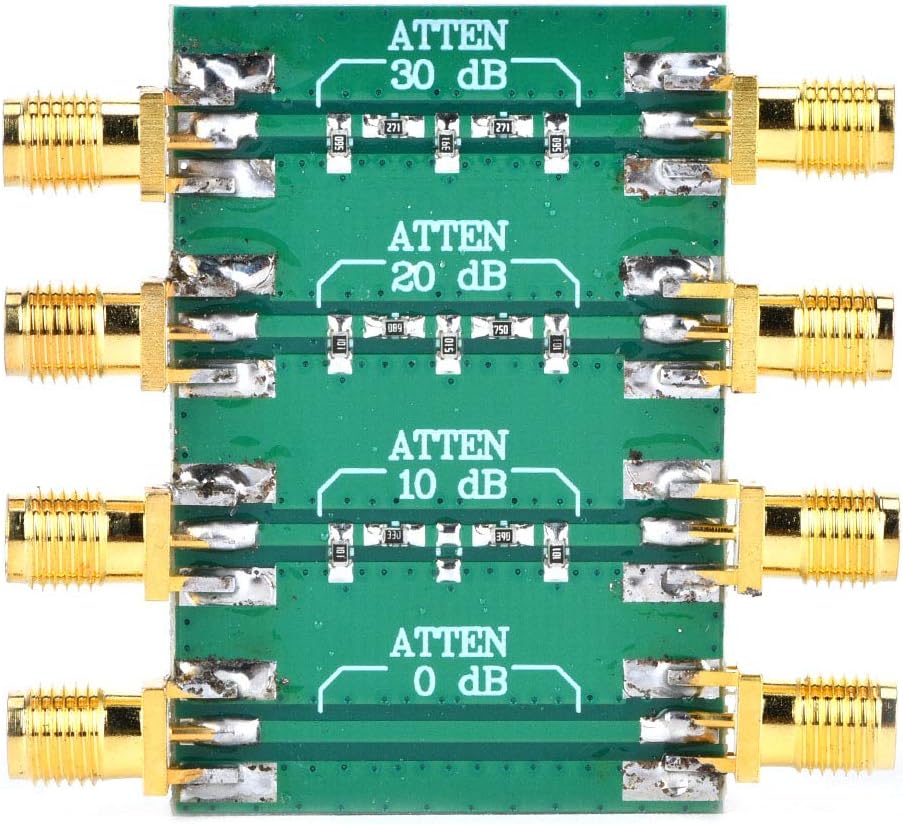

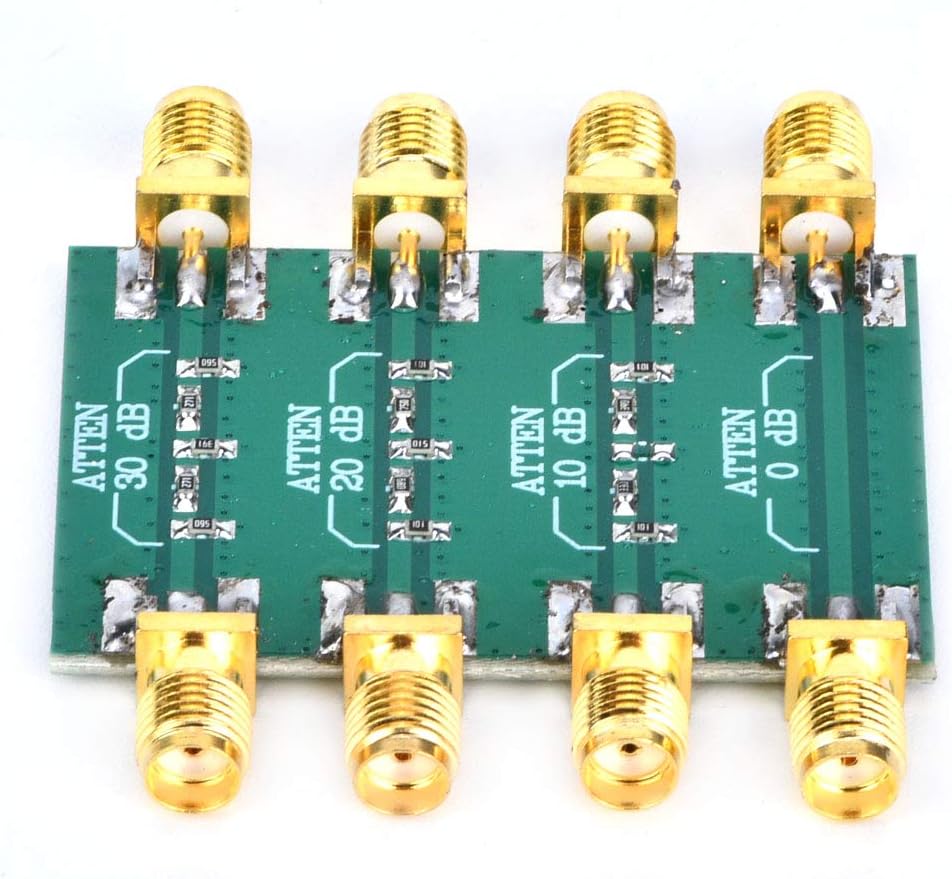

  • [COMPLETE ATTENUATION SET] This package includes a single radio frequency attenuator with selectable attenuation values for maximum flexibility. It features a straight through 0dB reference, plus level 1 at 10±0.8dB, level 2 at 20±1.1dB, and level 3 at 30±1.5dB.

Description

Spec:
Features:
1. Widely used in electronic equipment to adjust the size of signals in the circuit.
2. In the comparison method measurement circuit, it can be used to directly read the attenuation value of the network under test.
3. Improve impedance matching. If some circuits require a relatively stable load impedance, an attenuator can be inserted between this circuit and the actual load impedance to buffer the impedance change.
4. Carbon film has good uniformity and consistency, stable resistance and high reliability.
5. Excellent electrical performance, minimal change due to temperature.

Specification:
Condition: 100% Brand New
Item Type: Radio Frequency Attenuator
Operating frequency: DC-4.0GHz
High Power: 23dBm (200mW)
Standing Wave Ratio: ≤1.20
System Impedance: 50Ω

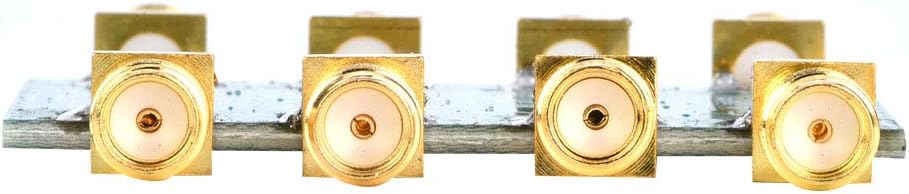

RF Interface: SMA Double Female Head (Outer screw inner hole)
Attenuation Value:
Straight Through: 0dB (reference)
Level 1: 10±0.8dB
Level 2: 20±1.1dB
Level 3: 30±1.5dB

Package List:
1 x Radio Frequency Attenuator
