Specification:
Material: 304 stainless steel, corrosion-resistant, meeting food-grade hygiene requirements.
Standard: Complies with 3A sanitary standards, suitable for industries such as food, beverage, dairy, and pharmaceuticals.
Features: Reducing design to accommodate different pipe diameters; quick-install structure for easy assembly; smooth inner wall for easy cleaning and reduced fluid resistance.
Specifications: Various size combinations available, compatible with standard piping systems. The standard sizes for quick flange fittings are KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-16, NW-25, NW-40, and NW-50, respectively.
Application: The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.Used for fluid distribution, merging, or transition connections, enhancing flexibility in fluid transport.
Compact design, reliable connections, and suitable for diverse industrial needs.

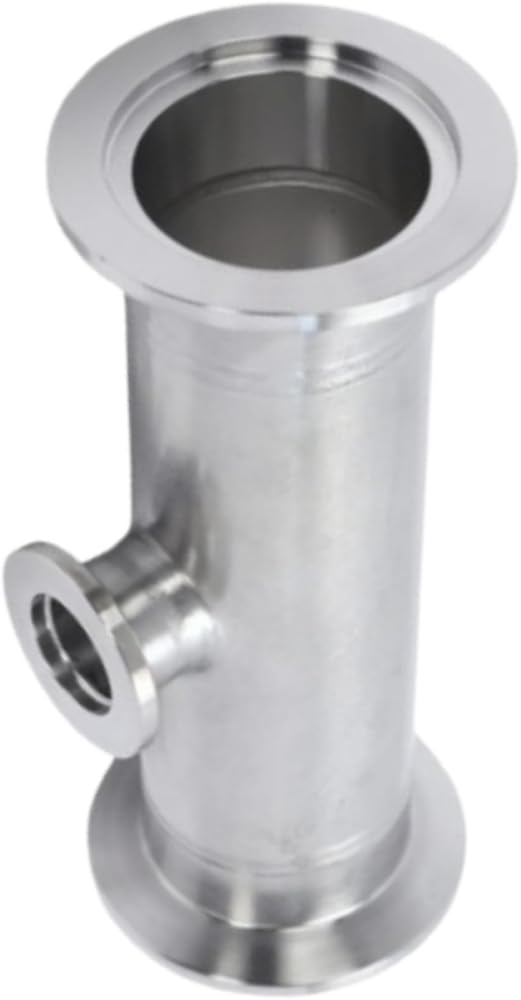

These Tee Reducer KF-50 to KF-16 fittings follow ISO-KF standards and have a flange size of NW-50 to NW-16.
KF Flanges are ideal for high vacuum applications requiring frequent assembly and disassembly. Elastomer seals are reusable and allow for fast assembly.
ISO-KF Flange Size: NW-50 to NW-16
Common Dimensions: A = 5.51" (140mm), B = 1.58" (40mm)
Package:1 * Tee Reducer
