Temperature
Theory: Optical Sensors
Material: Metal
Type: Photoelectric sensor
Output: switch sensor
Origin: Mainland China
Application: Radiation sensor
Power supply: DC10-30V

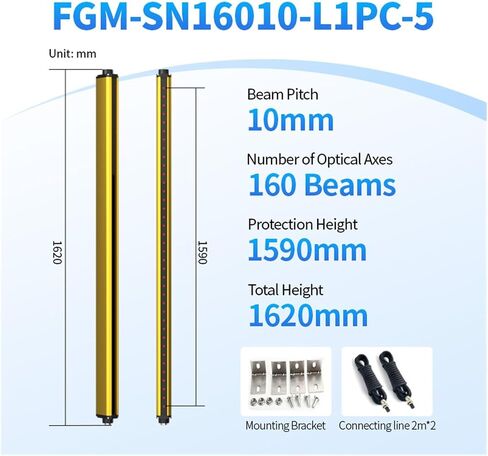

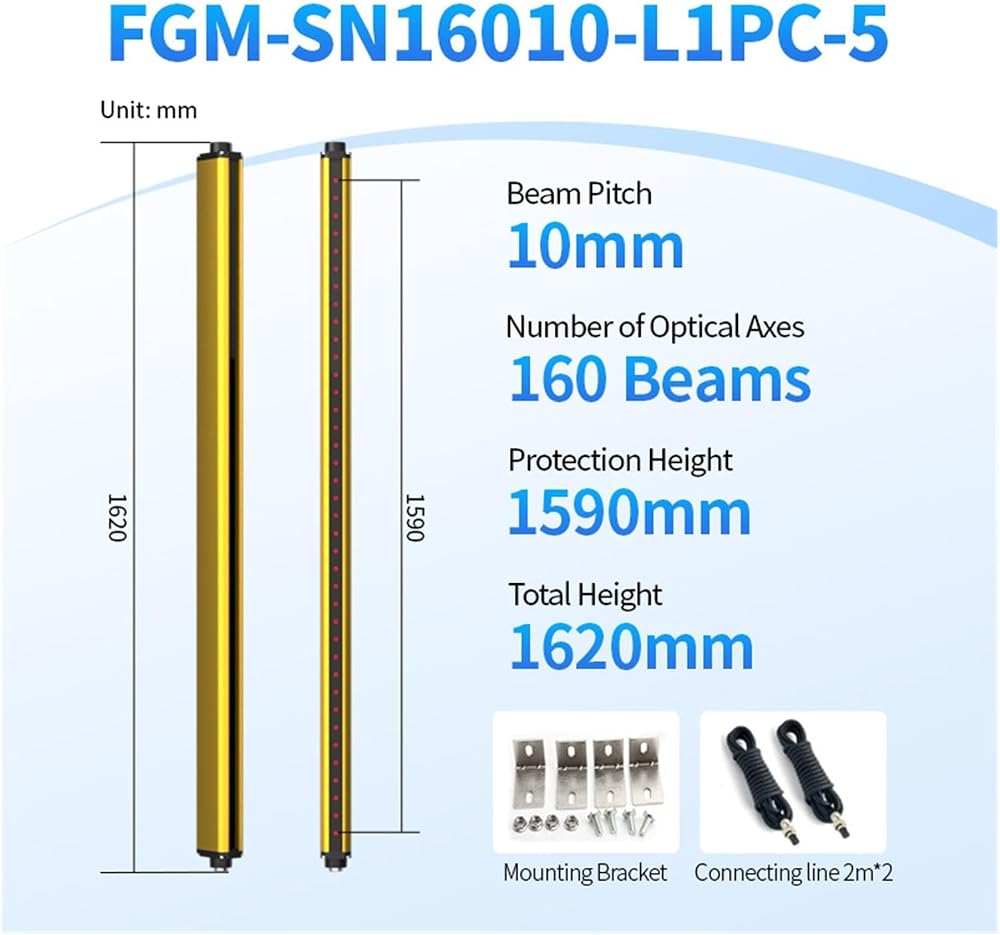

Beam space: 10mm/20mm/40mm
Resolution: 20mm/30mm/50mm

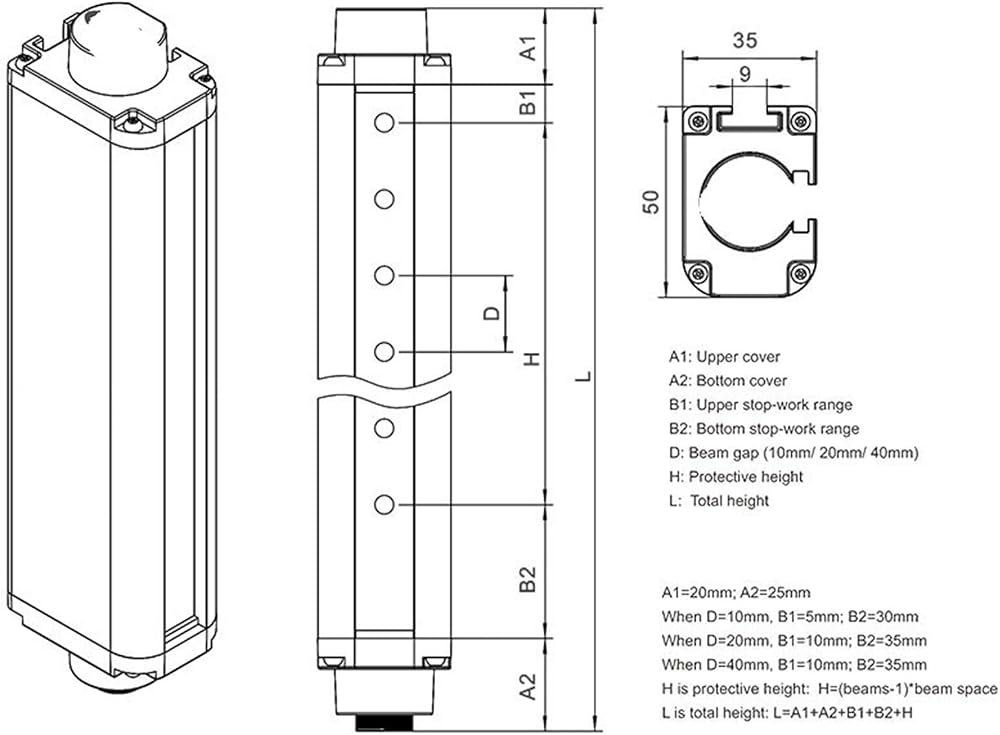

Protection height: Protection height = (Nl) beam spacing, Ns number of beams.
Wavelength: 940nm
Response time: Protection height = (N-1) beam gap
Protection circuit: overload voltage protection, power reverse connection protection, overcurrent protection
Sensing distance: 0.1~0.5m, 0.1~2m, 0.1~5m, 0.1~10m, 0.1~20m, 0.1~30m (Please inform us in advance if the environment is reflective light)
Anti-light interference: 10000 lux (angle> 5°)
Sensing method: through-beam
Synchronization: Wired synchronization
Shell material: aluminum alloy
Enclosure protection grade: IP65
Shell section: 35*50mm
Vibration resistance: 10Hz...55Hz, double amplitude 20 times in X, Y, and Z directions
Ambient operating temperature: -10°C-55°C (no icing)
Storage temperature: 30°C~70°C (no freezing)
Ambient operating humidity: When the temperature is 20°C, the maximum humidity is 85%
