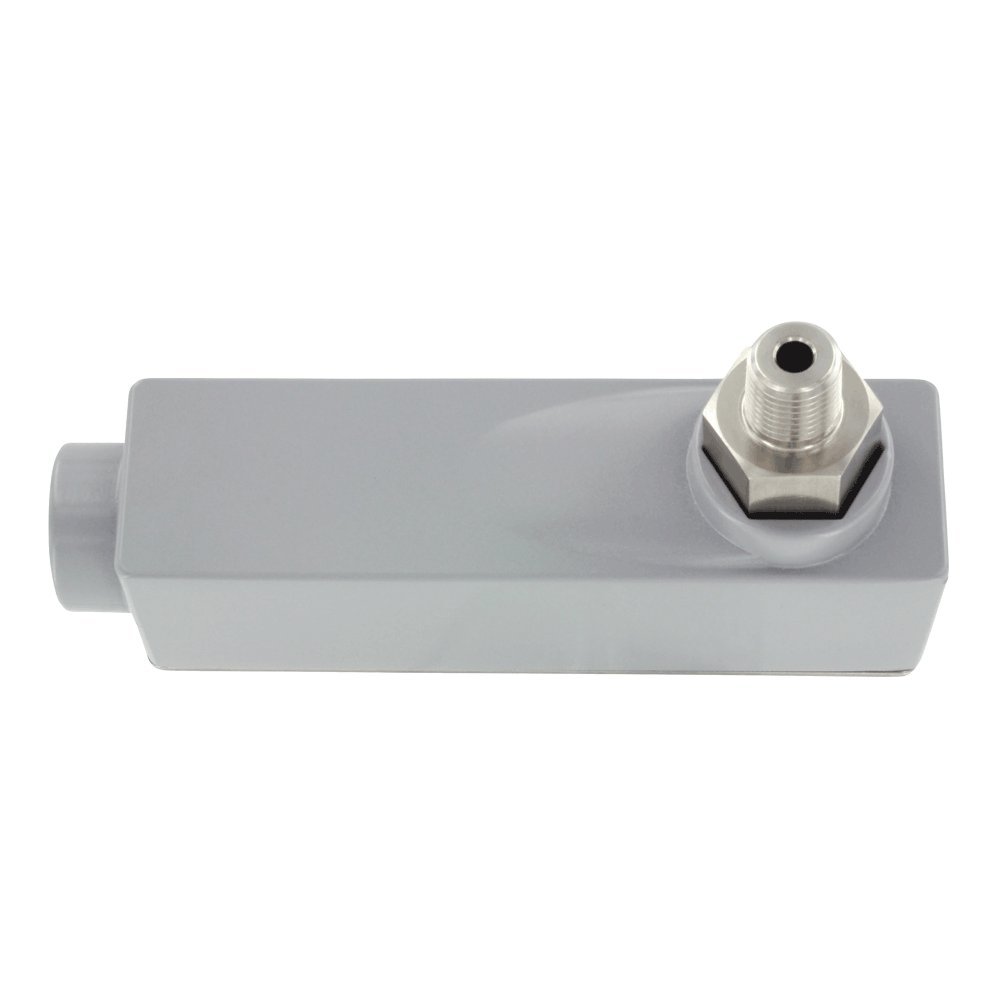

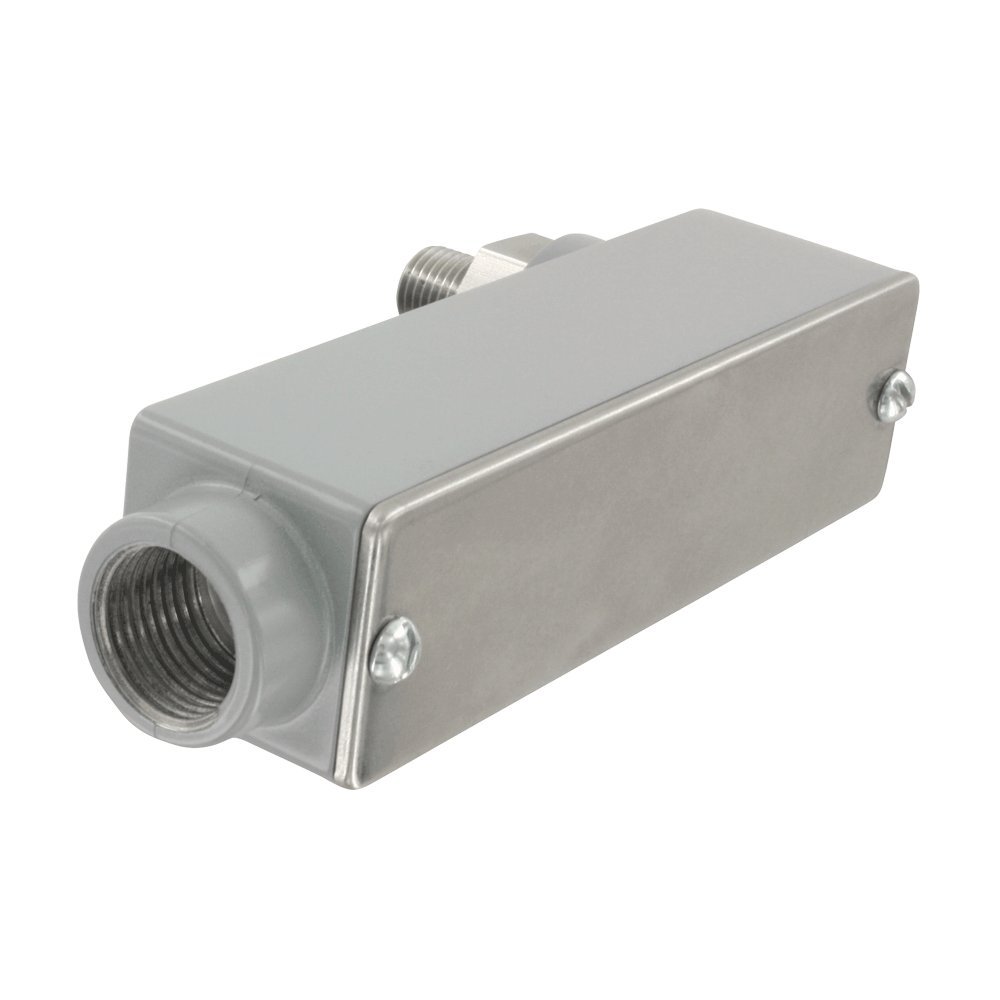

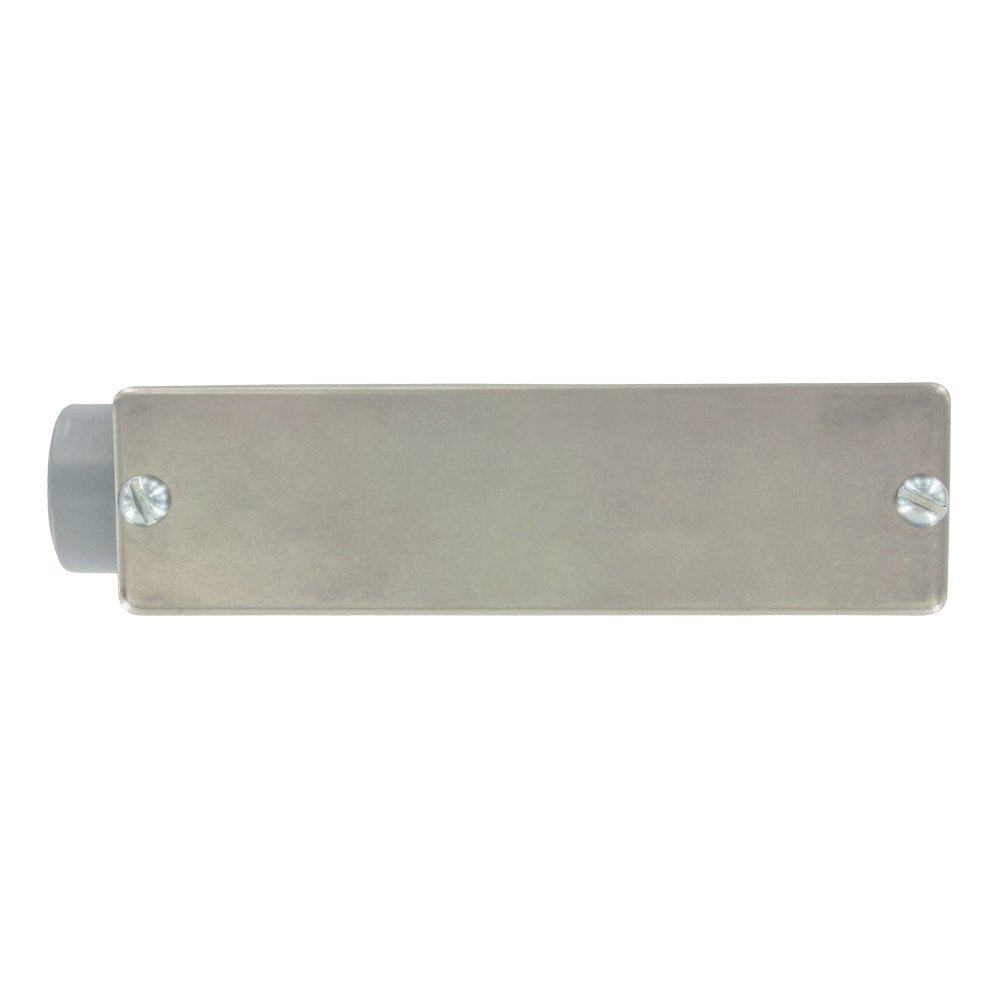

Dwyer® Ind'l Pr Transmitter, 628-11-CB-P1-E5-S1, 0-150 psig, 1/2" FNPT Conduit Connection, 4-20 mA, 2 Wire, 1.0% FS Accuracy in Kuwait Dwyer® Ind'l Pr Transmitter, 628-11-CB-P1-E5-S1, 0-150 psig, 1/2" FNPT Conduit Connection, 4-20 mA, 2 Wire, 1.0% FS Accuracy in Kuwait Dwyer® Ind'l Pr Transmitter, 628-11-CB-P1-E5-S1, 0-150 psig, 1/2" FNPT Conduit Connection, 4-20 mA, 2 Wire, 1.0% FS Accuracy in Kuwait

Dwyer® Ind'l Pr Transmitter, 628-11-CB-P1-E5-S1, 0-150 psig, 1/2" FNPT Conduit Connection, 4-20 mA, 2 Wire, 1.0% FS Accuracy

KWD 82
Brand
Dwyer
Weight
0.5 kg
– 1 +

Special Features

  • MANUFACTURER DIRECT
  • Housing: Conduit Box Housing, NEMA 4X IP 66; Service: Compatible gases and liquids. Wetted Materials: Type 316L SS.
  • Temperature Limit: 0 to 200°F (-18 to 93°C); Compensated Temp Limit: 0 to 175°F (-18 to 79°C).
  • Pressure Limits: 0 to 150 psig, max pr. 300 psig, over pr. 750 psig.
  • Output Signal: 4 to 20 mA, 0 to 5 VDC,1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC.

Description

The Dwyer Series 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
