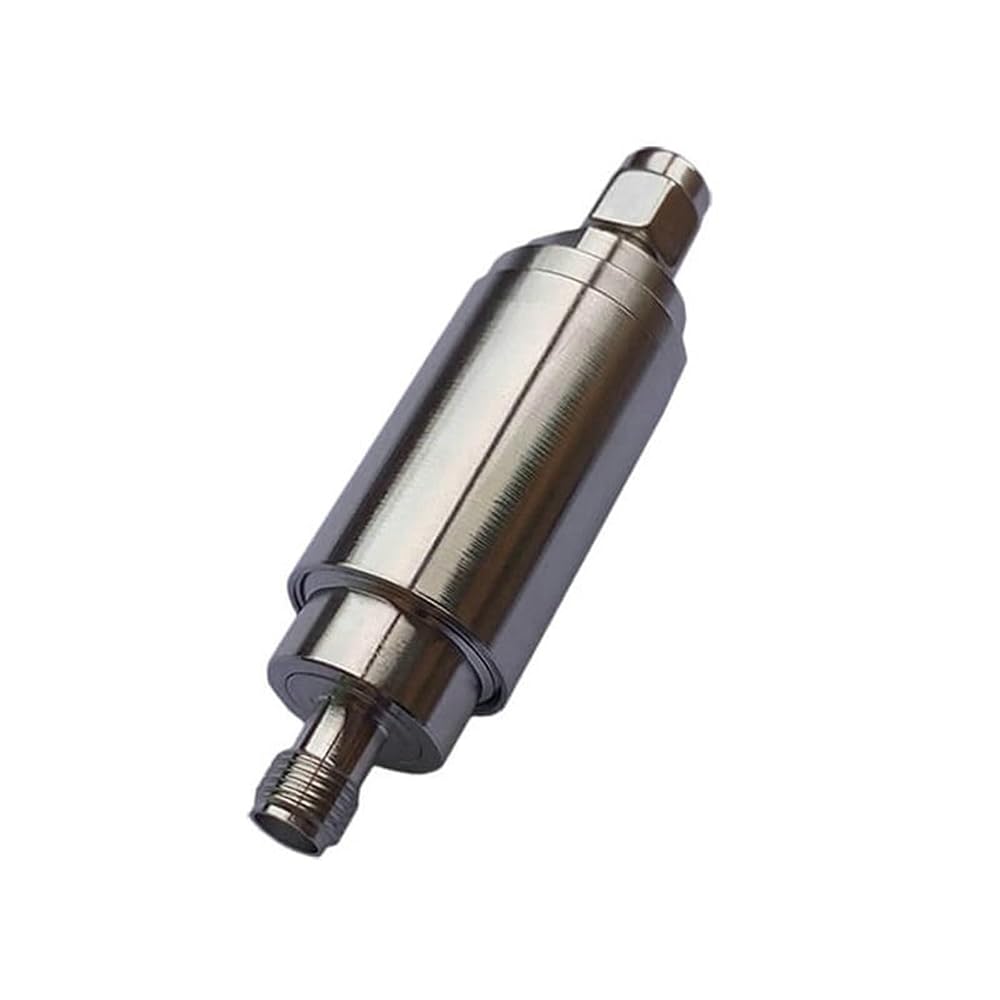

5W SMA Male to Female 50 Ohm Fixed RF Coaxial Attenuator IP20 DC-3GHz Multiple Attenuation 1-40dB(5W30DB) in Kuwait

5W3DB

KWD 14.500
Brand
Generic
Weight
80 g
Size5W3DB
– 1 +

Special Features

  • Standard 50 ohm fixed attenuator with bidirectional SMA male to female connector design.
  • 5 watt rated power, wide frequency band DC to 3GHz with stable electrical parameters.
  • IP20 protection grade, low VSWR internal structure to cut signal reflection and transmission loss.
  • Precision internal resistance core supports attenuation values ranging from 1dB to 40dB.
  • Metal shell with anti-oxidation coating, compact solid structure for long steady service life.

Description

Model: SMA Type Fixed Attenuator
Power Rating: 5W
Impedance: 50Ω
VSWR: ≤1.20 (Unidirectional VSWR)
Frequency Range: DC to 3GHz
Operating Temperature Range: -55℃ ~ +125℃
Attenuation Values: 1, 3, 6, 10, 15, 20, 30dB
Tolerance: ±0.5dB for 1–10dB; ±1dB for 15–30dB; ±1.5dB for 40dB; ±1.7dB for 50dB
Connector: SMA Male to SMA Female
