High Accuracy: Provides precise angle measurements for critical applications
Real-Time Tilt Monitoring: Instantly detects and reports changes in tilt angle
Easy to Install: Compact design with simple mounting options
Inclinometers measure angle, level, and tilt for guidance and safety in tunneling, vehicles, platforms, medical gear

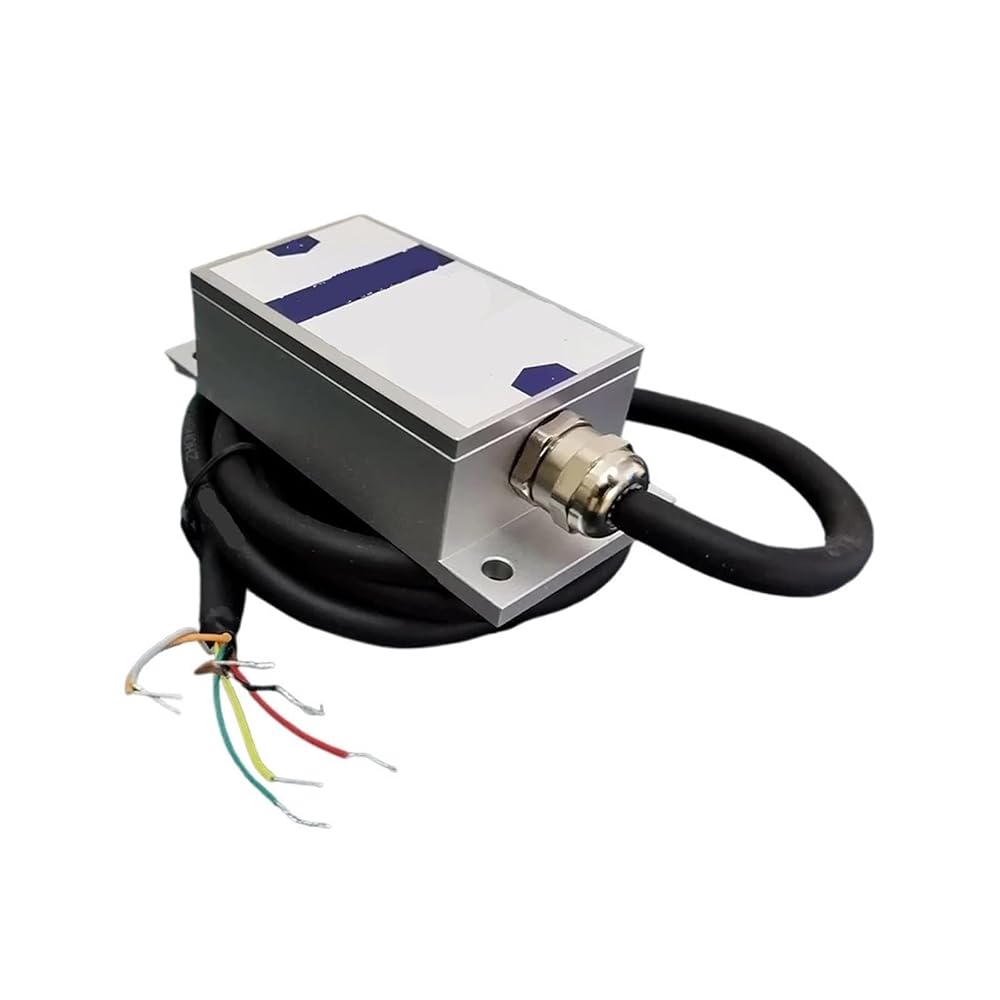

BWK220 BWK228 Dual-Shaft InclinometerAngle Sensor

Installation(Default):Acquiescent±90°,If you need vertical installation (pendulum or wall type), pleaseLeave message to us.

Output Mode:0-5V , 0-10V ,4-20mA , 0-20 mA, 0-24 mA (optional)

Resolution : 0.02

Voltage : 9~35V

Current consumption : 20~60mA

Operating temperature : -40 ~85 degree ℃

Storage temperature : -55~100 degree ℃

Shock resistance : 2000g,0.5ms,3times/Shaft

Installation(Default) : Acquiescent +/-90 degrees

Installation(optional) : Vertical installation (pendulum or wall type)-Leave message to us

Output Mode : 0-5V , 0-10V (optional)

Product Size : 90*40*26 (mm)

Wire cable length : 1.5 M
